DIY on-car flaring tool

Post by CitroenCrazy »

My Xantia disgraced itself by bursting one of the high pressure pipes that runs from front to back.

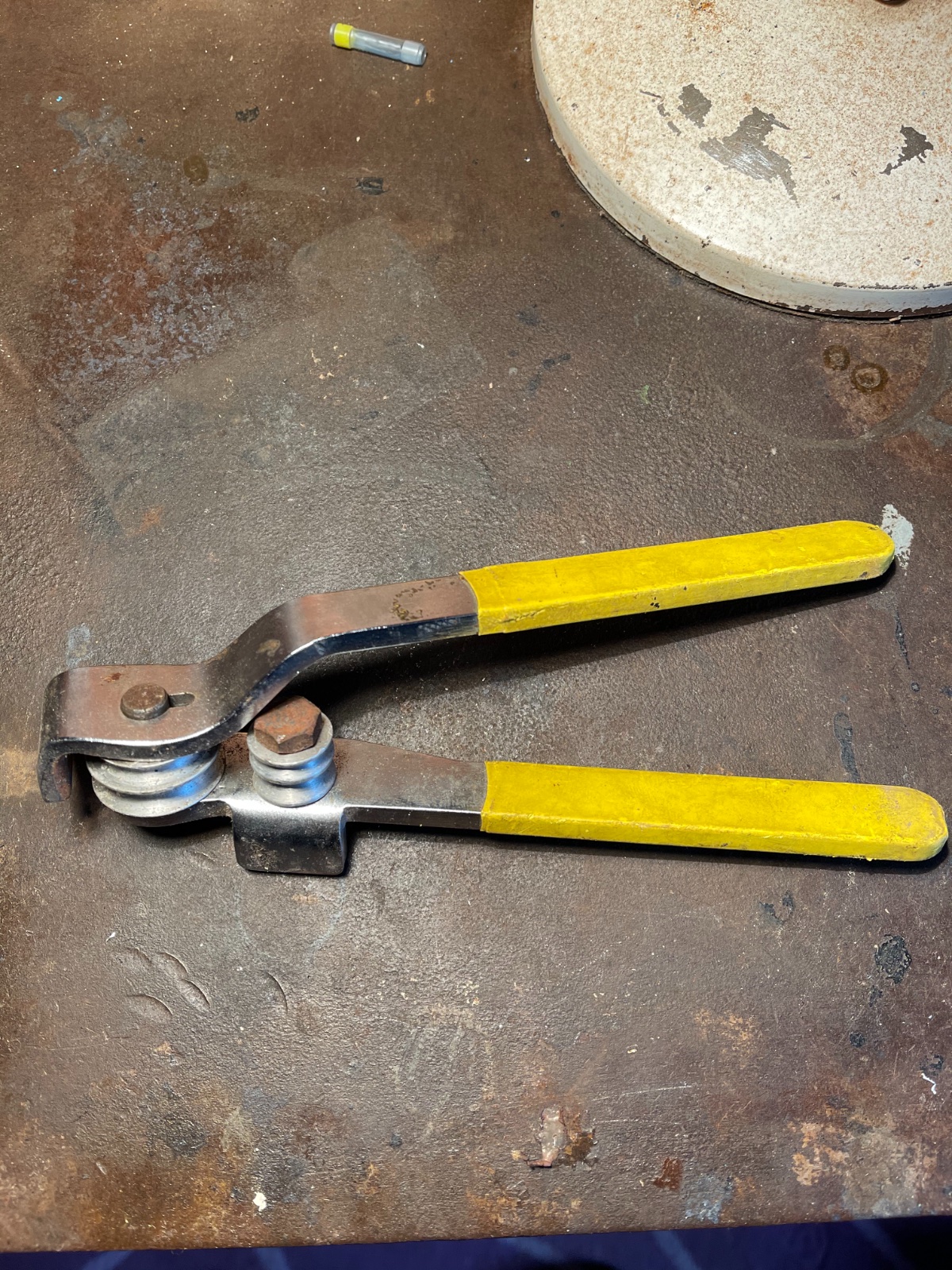

Access is pretty terrible at both ends, so I decided the only way I was going to get the car mobile again was to replace just the rusty section. In theory, this should be straightforward; cut the affected section out, flare the pipe on each side and use a pair of in-line connectors to splice in a new section.

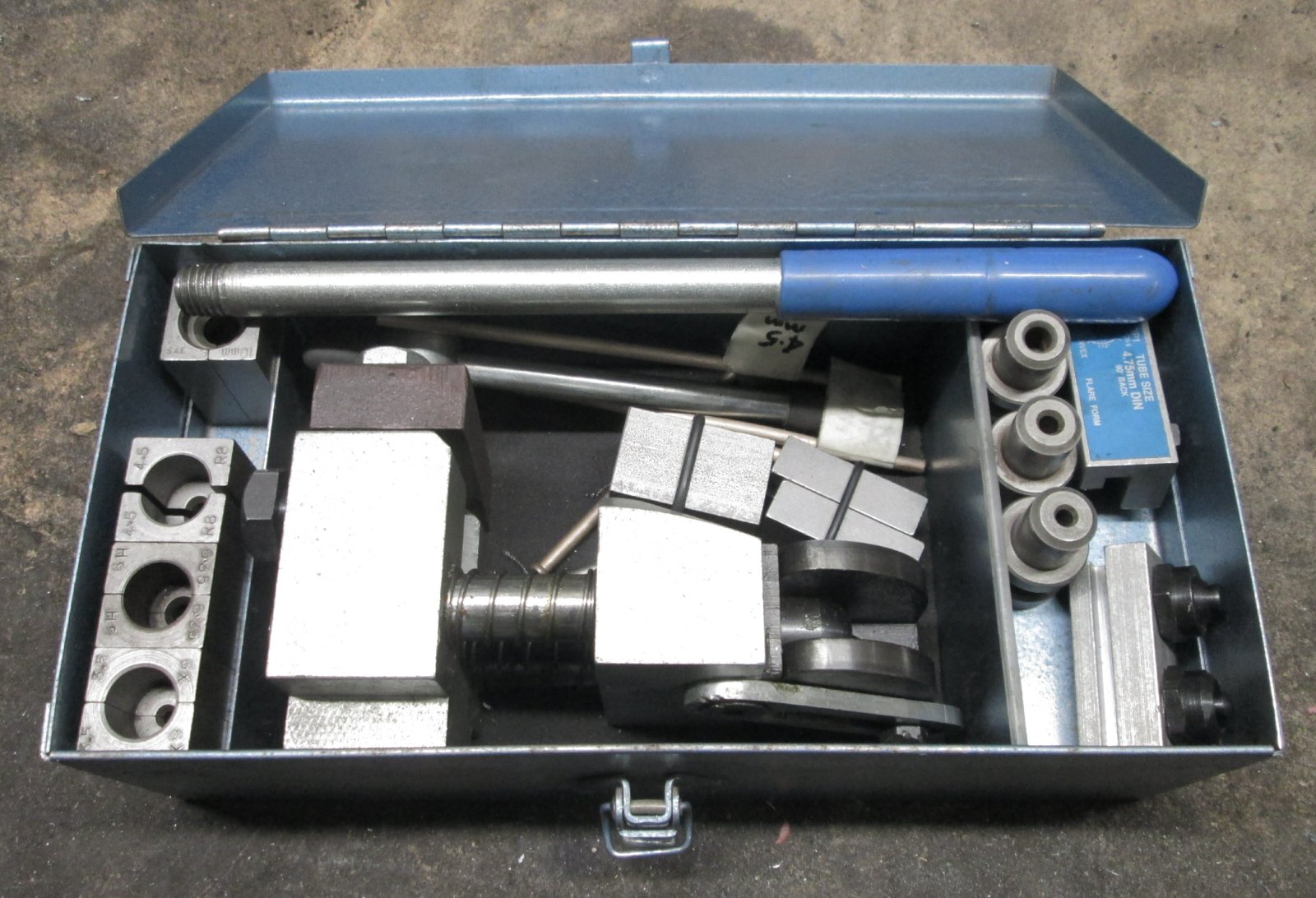

In practice, this gave me a problem because I only have a bench-mounted flaring tool, which I bought from Pleiades about 25 years ago.
I know people have managed to use this type of tool on the car, but being cam-operated, it's really not designed for that type of application.
I was quite prepared to buy a new flaring tool, intended for use on the vehicle. BeePro in Germany make a very nice example, but with shipping to the UK, it's over £350.
I couldn't find anything else at a price I was prepared to pay, so I decided to try making my own, using the punches and dies from the Pleiades tool I already have.

Hopefully this will inspire someone else to do the same and also spawn suggestions for improvement.

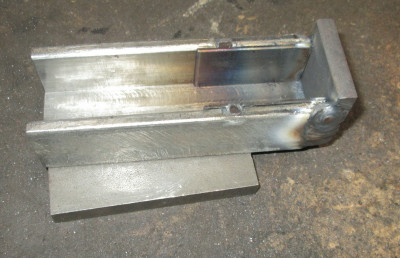

I found a nice chunky piece of U channel in my reclaimed metal stock, so that became the body, and I made the other parts to fit around that.

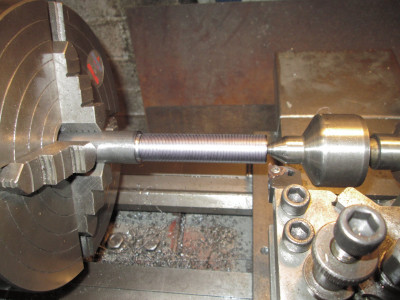

The new tool had to be screw-operated, and flaring steel pipe needs quite a bit of force, so I threaded a piece of bar M20 x 1.0 pitch

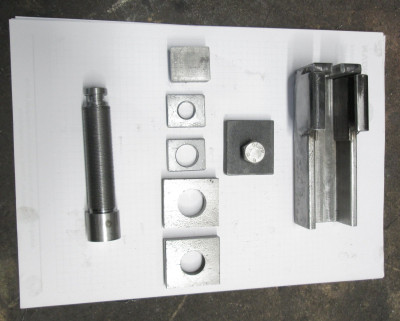

This is the kit of parts about 2/3 of the way through the build

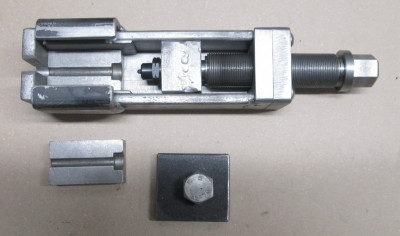

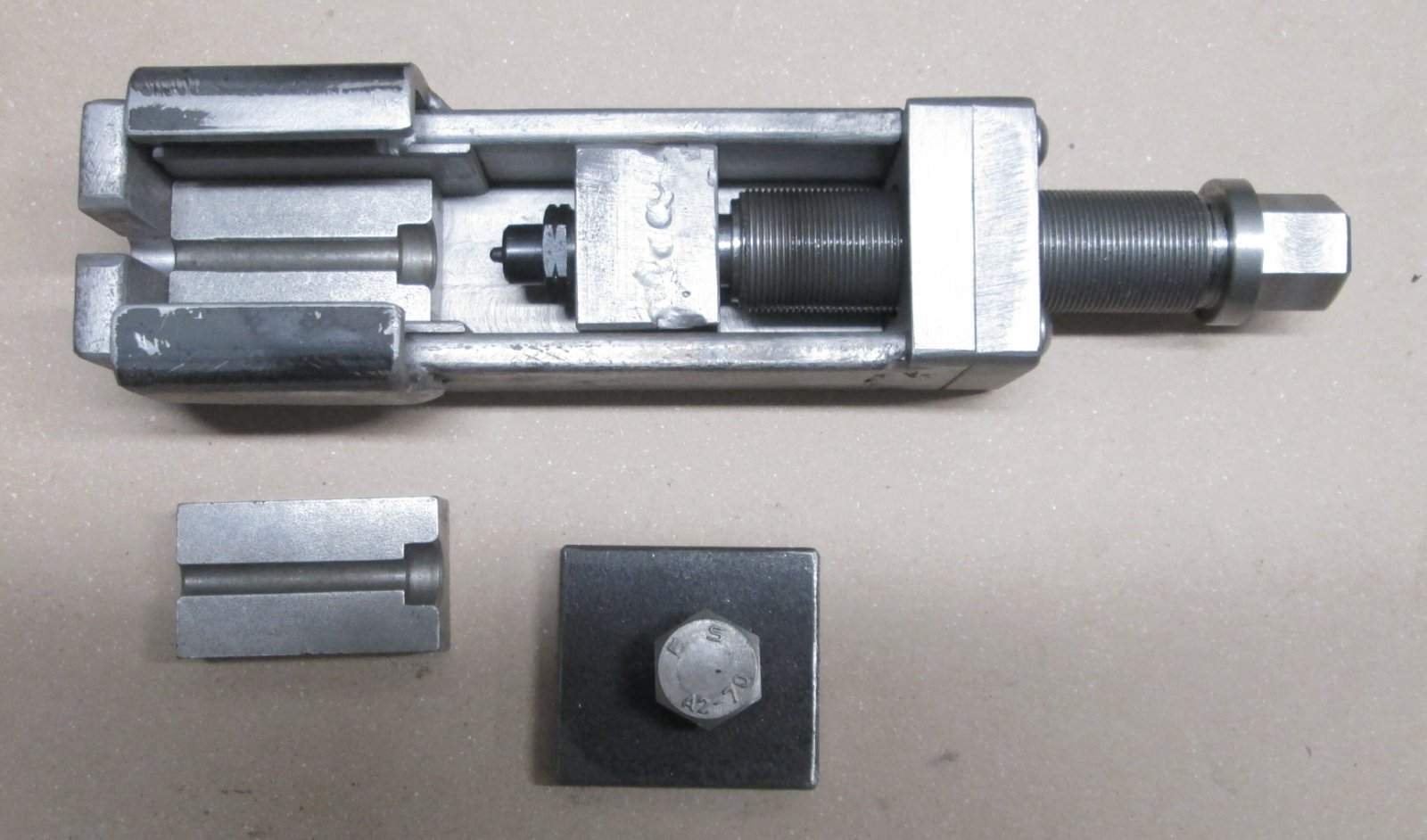

This is the main part of the tool, just about complete. (The punch and dies in the picture are DIN style, not Citroen)

The first attempt at flaring a piece of steel pipe was a bit disappointing
06_first flare.JPG

I'd diverged from my original plan a little, deciding to use the later style of screw-in punches, as this would make it easier to incorporate an extraction mechanism.
What I didn't realise until late in the process is that the new punch is narrower than the original one and a very loose fit in the dies, hence the lop-sided flare.
(Original Pleiades punch on the left, new style on the right)
07_problem definition.JPG

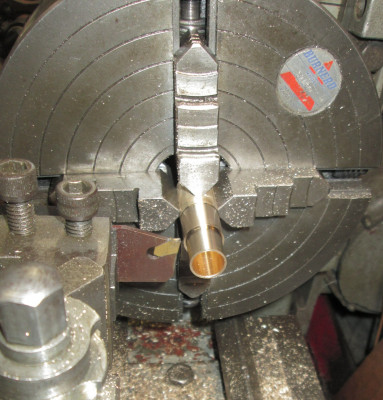

So, I made a sleeve to bring the diameter back to the same as the original punch
08_turning a sleeve.JPG


This is a close up of the punch holder, showing how it fits over the compression screw. The idea is that the punch is pulled back as the screw is unwound.
09_punch extraction.JPG

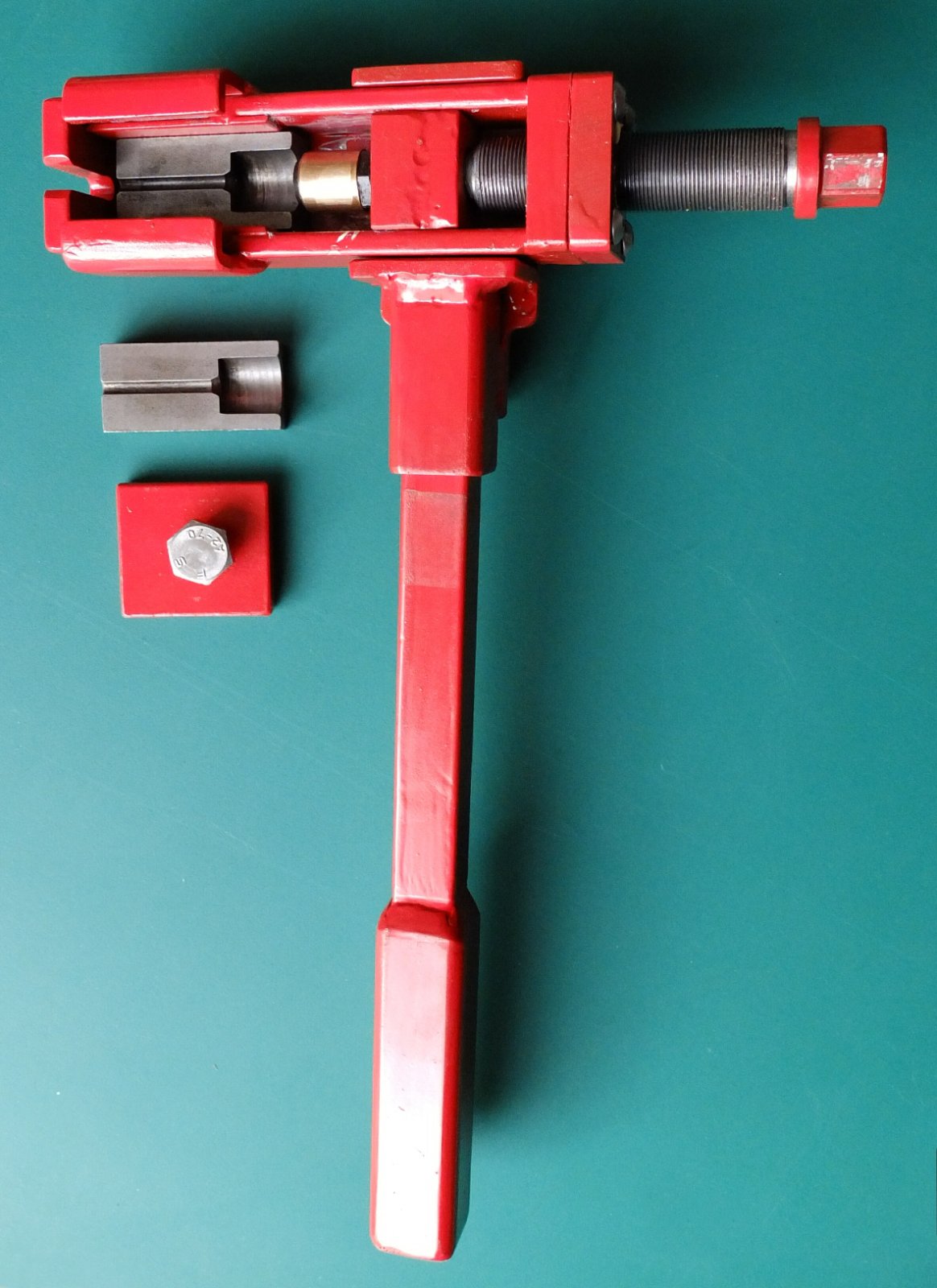

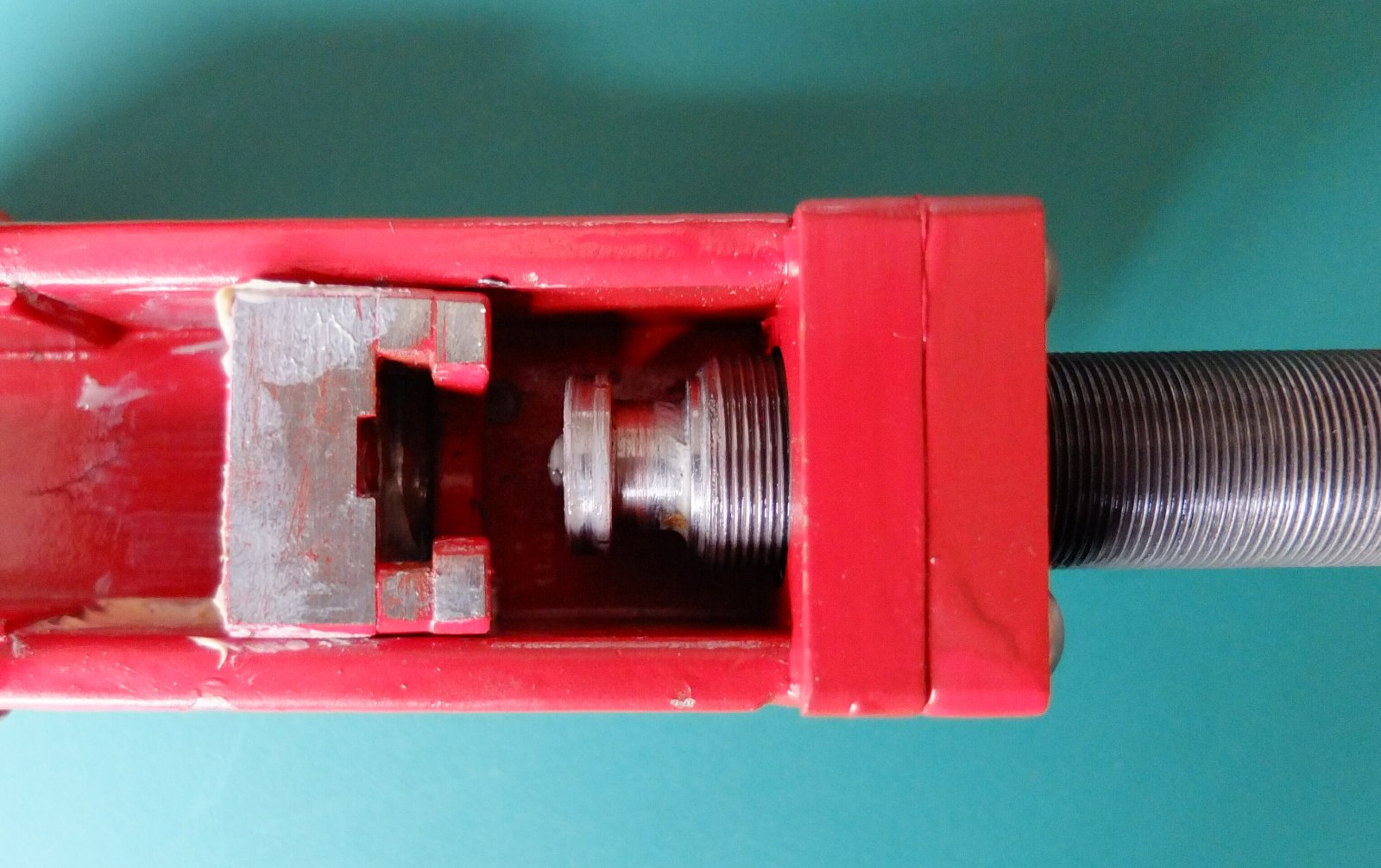

The completed tool, with a quick coat of spray paint
10_painted + complete.JPG

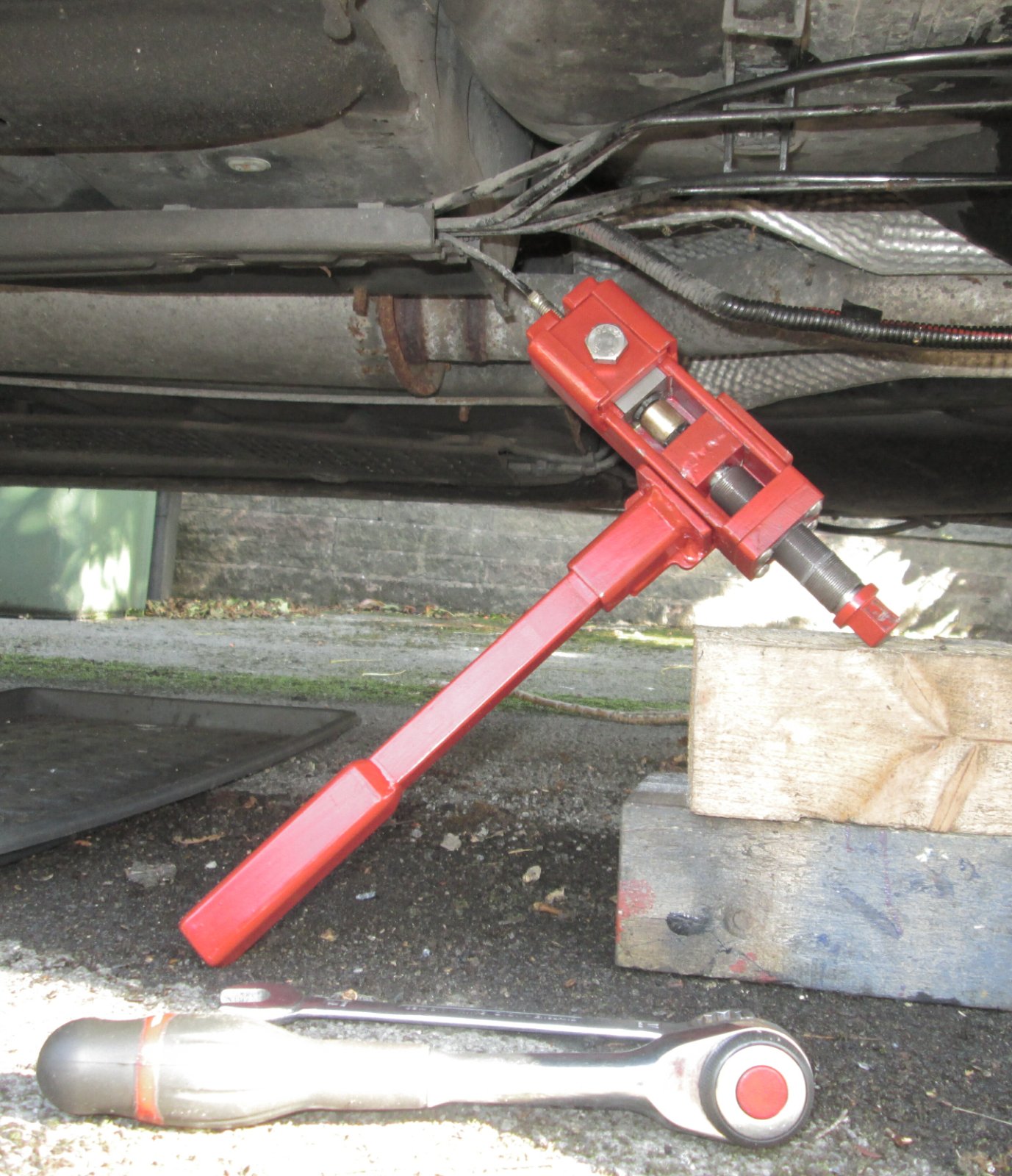

In use today
11_in use.JPG

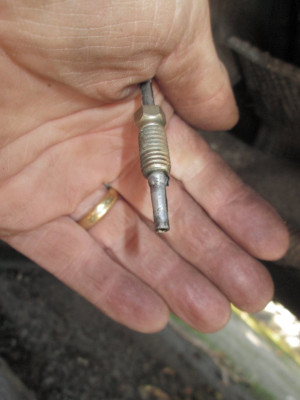

The result
12_on-car flare.JPG

At the risk of sounding smug, I was pretty chuffed with the result :-)
Last edited by CitroenCrazy on 27 Sep 2020, 21:41, edited 2 times in total.

User avatar
bobins
Donor 2020
Posts: 3395
Joined: 05 Jul 2012, 18:07
x 982

Re: DIY on-car flaring tool

Post by bobins »

Appearing on eBay soon ? :lol:

User avatar
Paul-R
Donor 2020
Posts: 4153
Joined: 07 May 2009, 16:24
x 426

Re: DIY on-car flaring tool

Post by Paul-R »

CitroenCrazy wrote:
27 Sep 2020, 19:29
At the risk of sounding smug, I was pretty chuffed with the result
Frankly, you've every right to feel smug. That's a fabulous bit of kit you've created.

User avatar
NewcastleFalcon
Posts: 12594
Joined: 25 Feb 2009, 11:40
x 1171

Re: DIY on-car flaring tool

Post by NewcastleFalcon »

Top work CitroenCrazy well done. I have put a link to your post on the Toolbag Tales, Homemade and improvised tools thread

REgards Neil

User avatar
mickthemaverick
Donor 2019
Posts: 4008
Joined: 11 May 2019, 17:56
x 1185

Re: DIY on-car flaring tool

Post by mickthemaverick »

Brilliant piece of work. :clap: Now I know where to come if I get rusty pipes!! :-D

User avatar
white exec
Moderating Team
Posts: 6240
Joined: 21 Dec 2015, 13:46
x 1051

Re: DIY on-car flaring tool

Post by white exec »

Superb work. I feel sure I'll be needing to make something like that at some point.

User avatar
CitroenCrazy
Donor 2020
Posts: 124
Joined: 20 Mar 2005, 19:17
x 41

Re: DIY on-car flaring tool

Post by CitroenCrazy »

Ahhh, thanks guys. Blushes.........

Available on loan to anyone local.

Gibbo2286
Donor 2020
Posts: 4700
Joined: 08 Jun 2011, 18:04
x 833

Re: DIY on-car flaring tool

Post by Gibbo2286 »

The Chinese will have copies on sale soon.

Online
Hell Razor5543
NOT Alistair or Simon
Posts: 10713
Joined: 01 Apr 2012, 09:47
x 1053

Re: DIY on-car flaring tool

Post by Hell Razor5543 »

Gibbo2286 wrote:
28 Sep 2020, 09:10
The Chinese will have copies on sale soon.
You mean they haven't already?

User avatar
CitroJim
A very naughty boy
Posts: 42146
Joined: 30 Apr 2005, 23:33
x 1238

Re: DIY on-car flaring tool

Post by CitroJim »

Absolutely first class :D Most excellent :D
