DS4 brake change

This is the Forum for all your DS Automobiles Technical Questions, Problems or Advice.

Moderator: RichardW

Jjj
Donor 2020
Posts: 11
Joined: 14 Mar 2020, 21:03

DS4 brake change

Post by Jjj »

does anyone have info about doing brakes on DS4 1.6 2016 hdi front and rear with pull wire electro handbrake new to forum thanks

Jjj
Donor 2020
Posts: 11
Joined: 14 Mar 2020, 21:03

Re: DS4 brake change with electric pull wire h brake

Post by Jjj »

:) :)

Hell Razor5543
NOT Alistair or Simon
Posts: 11325
Joined: 01 Apr 2012, 09:47
x 1249

Re: DS4 brake change

Post by Hell Razor5543 »

Sorry about the delay in anybody getting back to you. I cannot offer any advise (other than to wait for somebody with the right knowledge to see this thread).

Oh, :welc: to the Forum, by the way.

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 22607
Joined: 15 Sep 2015, 19:38
x 2341

Re: DS4 brake change

Post by GiveMeABreak »

Jjj wrote:
18 Mar 2020, 11:28
does anyone have info about doing brakes on DS4 1.6 2016 hdi front and rear with pull wire electro handbrake new to forum thanks
I may be able to help you out with a procedure, but first I need to know the VIN. Once I've confirmed exact specs., I'll let you know.

Jjj
Donor 2020
Posts: 11
Joined: 14 Mar 2020, 21:03

Re: DS4 brake change

Post by Jjj »

The vin is VF7**************[VIN obfuscated, can be read by forum staff]. 1.6 blue hdi 120s&s 2016

Jjj
Donor 2020
Posts: 11
Joined: 14 Mar 2020, 21:03

Re: DS4 brake change

Post by Jjj »

Hell Razor5543 wrote:
01 Apr 2020, 11:14
Sorry about the delay in anybody getting back to you. I cannot offer any advise (other than to wait for somebody with the right knowledge to see this thread).

Oh, :welc: to the Forum, by the way.
Thanks

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 22607
Joined: 15 Sep 2015, 19:38
x 2341

Re: DS4 brake change

Post by GiveMeABreak »

Ok, so you will need access to a diagnostic tool like Diagbox to put the electronic handbrake in service mode, and then after the rear pads have been replaced, to undertake the cable re-packing procedure and calibration. You'll also need the caliper wind back tool.

If you want the part info / guide have a read below first.
A response to your question will require detailed vehicle information that requires you to have made a current contribution to the Forum.
Donate

Further Information

Jjj
Donor 2020
Posts: 11
Joined: 14 Mar 2020, 21:03

Re: DS4 brake change

Post by Jjj »

Does this mean you've checked my vin and I definitely need diagbox I ve sent info about car thanks marc

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 22607
Joined: 15 Sep 2015, 19:38
x 2341

Re: DS4 brake change

Post by GiveMeABreak »

Hi John, yes, the procedure requires a suitable diagnostic tool that can do this - Diagbox is the software that the dealers use. Other garages may have advanced diagnostics that can perform the operation too. The handbrake has to be put into service mode in order that the brake cables can be released from the mechanism. After they are hooked back up the procedures need to be followed to correctly re-tension the brake cables and calibrate the system - which is a guided procedure in Diagbox.

I can put up the 'how to' for the mechanical replacement part of the operation, but you will need to sort out the other part or you could end up with a fault. I've also sent you an email regarding your message. Sorry it's a bit late - I've been rearranging the house today!

Jjj
Donor 2020
Posts: 11
Joined: 14 Mar 2020, 21:03

Re: DS4 brake change

Post by Jjj »

Thanks for your time will follow up your email Marc the brake change is no problem it's the diagnosis and resetting of handbrake after doing change thanks john

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 22607
Joined: 15 Sep 2015, 19:38
x 2341

Re: DS4 brake change

Post by GiveMeABreak »

Hi John, leave this with me and I'll put something up here shortly for you.

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 22607
Joined: 15 Sep 2015, 19:38
x 2341

Re: DS4 brake change

Post by GiveMeABreak »

DS4 DV6FC Teves Assembly Front Disc Pad Replacement

Removing

Note: If the brake fluid reservoir is at maximum level, remove its filter and partially drain the reservoir with the aid of a clean syringe in order to avoid it overflowing.

Release the front wheel bolts.
Lift and support the vehicle with front wheels suspended.

Remove:
  • The front wheel bolts
    The front wheels
DS4 Front Brake A.PNG
DS4 Front Brake B.PNG

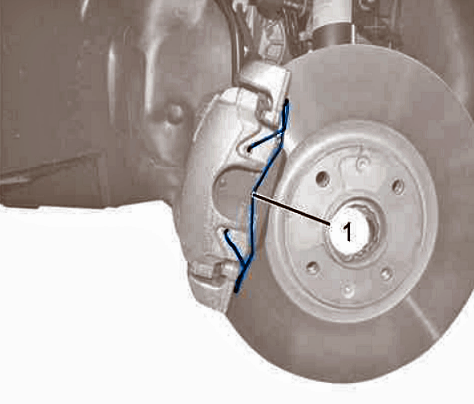

Remove the Spring shown at (1)Remove:
  • The plugs (at "a")
  • The brake caliper bolts (2)
Take care not to twist the brake hose.

Move aside and suspend the brake caliper (3).
Remove the brake pads.

Refitting

Push the piston fully home in its housing using a FACOM D60A type clamp. Note:
Insert a shim between the FACOM D60A pliers and the brake pad in order to push the piston fully back into its housing.


Check the brake fluid level.

Refit:
  • The brake pads
  • The brake caliper (3)
  • The brake caliper bolts (2)
  • The plugs (at "a")
  • The spring (1)
Tightening Torques:
DS4 Front Brake Torques.PNG
ReferenceDescriptionTightening torques
(1)Bolts (Front Brake Caliper Support) (*)Pre-tighten to 9 daNm

Angular Tightening of 45°
(2)Bolts (Front Brake Caliper)2.7 daNm
(3)Bleed Screw(s)1 daNm
(4)Bolts (Front Brake Disc)1 daNm
(5)Union (Hose / Front Brake caliper)2.2 daNm
(6)Bolts (Front Wheel Sensor)0.8 daNm
(*) Always to be replaced whenever removed

Essential: Apply the brakes several times, gently and progressively, with the engine running, before driving the vehicle.

Check the brake fluid level and top up if necessary.

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 22607
Joined: 15 Sep 2015, 19:38
x 2341

Re: DS4 brake change

Post by GiveMeABreak »

DS4 DV6FC Assembly Rear Disc Pad Replacement
DS4 Rear Brake A.PNG
DS4 Rear Brake A.PNG (44.54 KiB) Viewed 211 times
Piston Wind Back Tool and Adaptor
Removing

Note: If the brake fluid reservoir is at maximum level, remove its filter and partially drain the reservoir with the aid of a clean syringe in order to avoid it overflowing.

Untighten the rear wheel bolts.
Slacken the parking brake Note - ensure you manually disengage the electric parking brake after the ignition is switched off (consult the manual). It is important that the handbrake is not re-engaged by the system when the ignition is switched off or you will not be able to release the cable from the yoke. It is then essential to disconnect the battery so there is no chance of accidentally turning the ignition on and the handbrake re-engaging!

Follow the BSI Reset / Battery Disconnect / Reconnect Procedure here before disconnecting the battery.

Note: For vehicles fitted with an electric handbrake, disconnect the battery.

Vehicles with Electric Handbrake
DS4 Rear Brake B.PNG
DS4 Rear Brake C.PNG
Detach the end piece of the cable (1) from the yoke (2).Detach the cable end piece (4) from the brake caliper (3).
Press on the ring (at "a").
Release the cable from the brake caliper (3).
DS4 Rear Brake D.PNG
DS4 Rear Brake E.PNG
Remove the bolt (5) (Apply a counter-torque (at "b")).
Tilt the brake caliper (3) upwards.

Note: Do not open the braking circuit on the caliper.

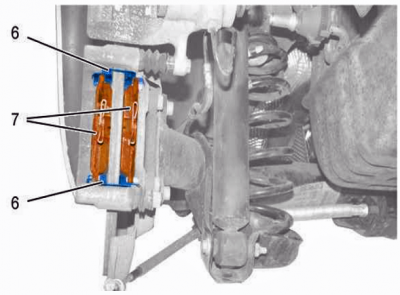

Take down:
  • The brake pads (7)
  • The noise reduction shims (6)

Refitting

Rear Brake Torques
DS4 Rear Brake G.PNG
ReferenceDescriptionTightening torques
(1)bolts ( rear brake caliper) (*)3,5 daNm
(2)bolts (Rear brake caliper support) (*)Pre-tighten to 3 daNm;Angular tightening of 35°
(3)Union (Hose / rear brake caliper)1,5 daNm
(4)bleed screw(s)1 daNm
(*) Always to be replaced whenever removed
DS4 Rear Brake F.PNG
Turn and push back the piston of the brake caliper (3) (Clockwise) using the piston wind back tool.

Watch the level of the brake fluid.
CAUTION: The sound-deadening pads (6) must be changed when you replace the brake pads (7).

Fit:
  • The noise reduction shims (6)
    The brake pads (7)
Position the brake caliper (3).

Caution: At each removal, systematically replace the bolts (5)

Refit bolt (5) (Apply a counter-torque (at "b")).
Clip the ring (at "a").
Engage the cable end piece (4) on the brake caliper (3).

Electronic Parking Brake

Engage the end piece of the cable (1) in the yoke (2).

Fit:
  • The rear wheels
  • The rear wheel bolts
  • Return the vehicle to its wheels.
Follow the relevant part of the BSI Reset / Battery Disconnect / Reconnect Procedure

Caution: Apply the brakes several times, gently and progressively, with the engine running, before driving the vehicle.

Check the brake fluid level and top up if necessary.

For vehicles fitted with an electric handbrake

Using the diagnostic equipment:
  • Carry out the parking brake cables packing procedure
  • Carry out the electric parking brake calibration procedure
  • Read and clear the fault codes
  • Activate the electric handbrake control.
  • Check the locking of the rear wheels.

Jjj
Donor 2020
Posts: 11
Joined: 14 Mar 2020, 21:03

Re: DS4 brake change

Post by Jjj »

Thanks for the info on rear brakes are the Pistons handed in the way you turn near side piston or off side piston Do you need left and right hand retractors. I haven't got diagbox so it will likely be Citroen job but info still appreciated John

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 22607
Joined: 15 Sep 2015, 19:38
x 2341

Re: DS4 brake change

Post by GiveMeABreak »

They are turned clockwise using the tool John in the table above, only on the rears.
