AM6 Gearbox Valve Block Replacement

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
User avatar
DHallworth
Donor 2023
Posts: 2382
Joined: 20 Nov 2005, 17:05
Location: Glasgow
My Cars:
x 119

AM6 Gearbox Valve Block Replacement

Post by DHallworth »

Due to walking away from the C6 I went to see last week, part of me thinks I'm better off with the car I know and sorting it out...

I've had my 3.0HDi 407 Coupe for 3.5 years now and just recently it's started banging into gears, primarily, 3rd and 4th. I spoke to a gearbox place this morning who can supply the parts and they reckon that there's a very high likelihood that the fault lies within the valve block that's mounted on the front of the gearbox.

Apparently the gearbox in my car is the Aisin Warner TF80SC. I can get a new valve block for £525 + VAT from them and I've found one on eBay for similar money. Both are brand new.

Looking under the car, it looks like I'd need to drop the sump off the gearbox and then take the valve block off. Does anyone know any more information about doing the job though? The gearbox will need filling afterwards but I'm not sure how you check the level on it, I've also read the ECU will need reinitialised for the new valve block as well.

If anyone can shed any light on the process I'd be grateful.

Thanks,

David.
'98 Xantia Activa V6 :-D
'00 XM V6 Exclusive
'09 C5 2.7 HDi Exclusive
‘10 C5 3.0 HDi Exclusive
'12 C6 3.0 HDi Exclusive
'15 C4 BlueHDi Feel
User avatar
NewcastleFalcon
Posts: 24563
Joined: 25 Feb 2009, 10:40
Location:
My Cars:
x 6866

Re: AM6 Gearbox Valve Block Replacement

Post by NewcastleFalcon »

The same box is fitted to many cars and you are welcome to pick out what you can from my own Aisin TF80-SC story on this thread on the Vectra C forum. Maybe a couple of links there which could be useful. Have run the box for 160,000 miles since the rebuild. In Vauxhall circles it is known as an AF40-6 but its the same box.

https://www.vectra-c.com/forum/showthre ... ledge-AF40

Parts catalogue Automatic Choice link
https://www.automaticchoice.com/en/tran ... -80sc-af40

Sonnax Valve body illustration
https://www.automaticchoice.com/uploads ... f-80sc.pdf

Sussex Autoparts OE Valve Bodies
https://www.sussexautos.co.uk/valvebodies.php



REgards Neil
Only One AA Box left
687 Trinity, Jersey
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: AM6 Gearbox Valve Block Replacement

Post by GiveMeABreak »

I'll put a guide as it relates to your specific Coupe shortly David - I have the VIN already.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: AM6 Gearbox Valve Block Replacement

Post by GiveMeABreak »

Ok so this is the Procedure to:

Remove and Refit the AM6 Hydraulic Block and Solenoid Valves

This relates to a Peugeot 407 Coupe 3.0 HDi and is in 2 parts, the actual removal and refitting part and the draining and refilling of the AM6. I have therefore edited these together so that they flow logically (I hope)!


Lift and support the vehicle.
Disconnect the ancillaries battery. (BSI Reset / Battery Disconnect / Reconnect Procedure)
Remove:
  • The air filter casing
  • The protective panel under the engine
Next the AM6 box has to be partially drained (the oil change is partial, since the converter cannot be totally drained).

AM6 Drain Procedure

Recommended Tool
DH DRF A.PNG
Topping up Cylinder
Note: The gearbox must be drained when the oil is hot (60 °C minimum), to eliminate the impurities suspended in the oil.
DH DRF B.PNG

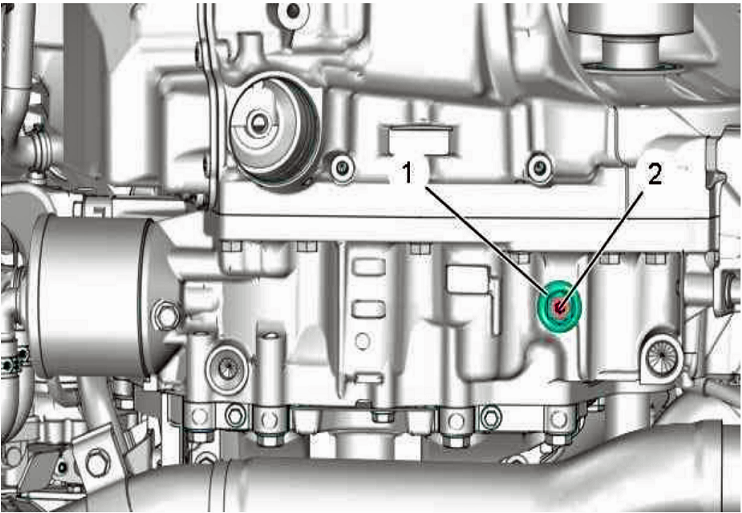

Remove:
The protective panel under the engine
The top-up plug (2) using a TORX socket wrench
The oil overflow and drainage plug (1) using a 6 -sided wrench

Note: Approximately 3 litres of oil should flow out.

Hydraulic Block Solenoid Valve Procedure continues:

Move the power steering circuit to one side (according to engine).
DH A.PNG
DH B.PNG
CAUTION: The casing of the hydraulic block contains about 0.5 l of oil.

Remove:
  • The 11 hydraulic block housing fixing bolts
  • The hydraulic block casing
Note: The hydraulic block housing is fitted using jointing compound.
Unplug:

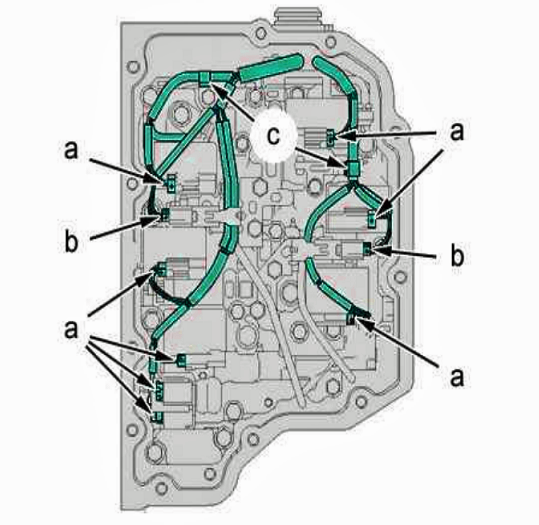

  • The 8 solenoid valve connectors (at "a") using a thin screwdriver
  • The 2 connectors of the speed sensors (at "b")
Unclip the electrical harness (at "c").
DH C.PNG
DH D.PNG
Detach the 2 connectors from the speed sensors (at "d") using a thin screwdriver.N.B.: The oil temperature sensor (3) is integral with the electrical harness.
Remove:
  • The (2) bolt
  • The bracket (1)
  • The oil temperature sensor (3)
DH E.PNG
DH F.PNG
Retain the electrical harnesses on the box casing (at "e") using pieces of adhesive tape.Remove:
  • The bolts (4)
  • The cover (5)
DH G.PNG
DH H.PNG

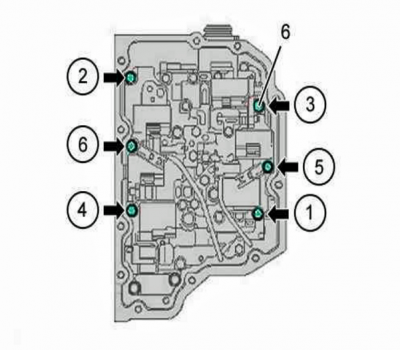

Remove the 6 bolts (6) (In the order from 1 to 6).CAUTION: Handle the hydraulic block with care
and protect it against any source of contamination.

CAUTION: Keep in place the manual valve
of the hydraulic valve block.
[/b]

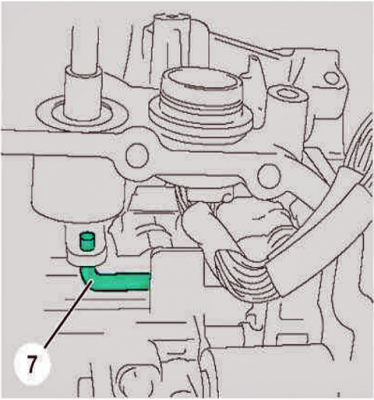

Remove the hydraulic block housing, disengaging the rod (7).
Location of the solenoid valves in the hydraulic block
DH I.PNG
(8) Torque converter bypass pressure modulation solenoid valve .
(9) Clutch pressure modulation solenoid valve "C3".
(10) Brake pressure modulation solenoid valve "B1".
(11) "S1" sequential solenoid valve.
(12) "S2" sequential solenoid valve.
(13) Line pressure modulation solenoid valve.
(14) Clutch pressure modulation solenoid valve "C2".
(15) Clutch pressure modulation solenoid valve "C1".
Refitting

Note! Tightening Torques below are specific to the generation of the AM6 fitted to the 407. Check the Oil cooler shape to determine which you have fitted and use the appropriate table:

Tightening Torques

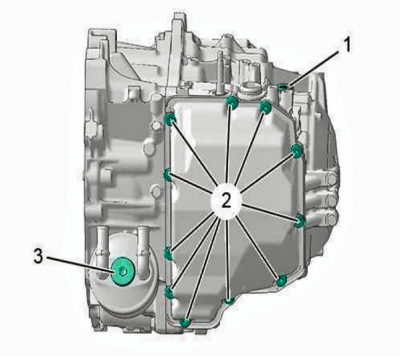

DH AM6 Non 3Rd Gen.PNG
All AM6 Versions Except 3rd Generation

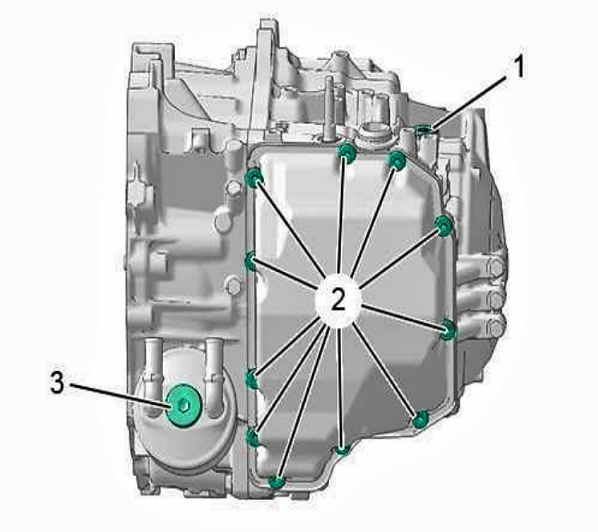

DH AM6 3Rd Gen.PNG
3rd Generation AM6 only
ReferenceDesignationTightening torque
(1)Plug (Oil filler cap)4 daNm
(2)bolts (Hydraulic block housing)1,5 daNm
(3)bolts (Heat exchanger)4,2 daNm
ReferenceDesignationTightening torque
(4)Plug (Oil filler cap)4 daNm
(5)bolts (Hydraulic block housing)1,5 daNm
(6)bolts (Heat exchanger)1,5 daNm
DH J.PNG
Refit the hydraulic block, engaging rod (7) in the selector lever.
CAUTION: Do not pinch the electrical harnesses of the speed sensors.

Refit:
  • The 6 bolts (6) (Finger tighten)
  • The cover (5) (With a new seal)
  • The 2 bolts (4) (Finger tighten)
  • The oil temperature sensor (3)
  • The bracket (1)
  • The (2) bolt
Clip in place:
  • The 2 connectors of the speed sensors (at "d")
  • The electrical harness (at "c")
Connect:
  • The 2 connectors of the speed sensors (at "b")
  • The 8 solenoid valve connectors (at "a")

Cautions:
  1. Check the positioning and the fixings of the wiring harness .
  2. Check that the gear selection control functions in all the positions.
  3. Clean and degrease the seal faces of the casings in order to obtain surfaces that are dry and free of traces of sealing paste.
  4. Apply a strip of Loctite 5910 - Quik Gasket sealing paste on the gearbox casing.
Refit:
  • The hydraulic block casing
  • The 11 hydraulic block housing fixing bolts
Position the power steering circuit (according to engine).
Refit:
  • The air filter housing
  • The protective panel under the engine
Reconnect the ancillaries battery. (Refer to Battery reconnection procedure earlier in the Procedure)

Refilling the AM6

Refit:
  • The oil overflow and drainage plug (1) (equipped with a new seal)
  • The top-up plug (2) using a TORX socket wrench
DH DRF C.PNG
Remove:
  • The air filter housing
  • The filler cap (3)
Use tool [0340].
CAUTION: The oil type "AW-1" in AT6 and AM6 gearboxes with engine version Euro 5 is specific and cannot be replaced with oil type ""JWS 3309"".

Dry gearbox oil capacity: 7 litres (approx.).
Type of oil (Red):
  • EURO 5 engine: AW-1 oil
  • EURO 4 engine: JWS 3309 ESSO oil
Volume of oil remaining after draining: 4 litres (approx.).
Quantity of oil to be replaced: 3 litres (approx.).

Refit the filler plug (3) (equipped with a new seal).
Initialise the used oil counter (follow the diagnostic tool procedure).

Check The Oil Level

Prior conditions:
  • Vehicle level
  • Check that the gearbox is not in downgrade mode
  • Remove the filler plug (3)
  • Add 0.5 additional litres of oil in the gearbox
  • Apply the brakes firmly and move the lever through the various selector positions
  • Gear lever in position "P"
  • Engine running at idle
  • Oil temperature 60°C (+8 to -2 °C) (measuring of parameters using a diagnostic tool)
Remove the oil level plug (2).

Stream of oil then reducing to a sequence of drips:
  • Refit the oil level plug (2).
Sequence of drips or nothing
  • Refit the oil level plug (2).
  • Stop the engine.
  • Add 0.5 additional litres of oil in the gearbox.
  • Repeat the top-up procedure.
Note: The level of oil is correct when the stream of oil becomes drop by drop.
Refit the oil level plug (2) (equipped with a new seal).

Check the oil level (continued)
Refit:
  • The filler cap (3) (equipped with a new seal)
  • The air filter box
  • The protective panel under the engine
Too high a fluid level can cause:
  • Overheating of the fluid
  • Fluid leaks
Too low a level will lead to destruction of the gearbox.
Please Don't PM Me For Technical Help

Marc
User avatar
myglaren
Forum Admin Team
Posts: 25366
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Re: AM6 Gearbox Valve Block Replacement

Post by myglaren »

Daunting.
It would be simpler to construct a space shuttle in your garden shed.
User avatar
DHallworth
Donor 2023
Posts: 2382
Joined: 20 Nov 2005, 17:05
Location: Glasgow
My Cars:
x 119

Re: AM6 Gearbox Valve Block Replacement

Post by DHallworth »

Thanks Marc, it looks as though as long as I follow those instructions methodically, not to bad a job.

I can't work out whether or not to take a chance on a valve block (£525 + VAT), take a risk on a second hand box from eBay and remove the valve block (£250) or I've just been told tonight I can buy the solenoids in pairs as well. I've not looked and not found a price for them yet.

David.
'98 Xantia Activa V6 :-D
'00 XM V6 Exclusive
'09 C5 2.7 HDi Exclusive
‘10 C5 3.0 HDi Exclusive
'12 C6 3.0 HDi Exclusive
'15 C4 BlueHDi Feel
User avatar
DHallworth
Donor 2023
Posts: 2382
Joined: 20 Nov 2005, 17:05
Location: Glasgow
My Cars:
x 119

Re: AM6 Gearbox Valve Block Replacement

Post by DHallworth »

'98 Xantia Activa V6 :-D
'00 XM V6 Exclusive
'09 C5 2.7 HDi Exclusive
‘10 C5 3.0 HDi Exclusive
'12 C6 3.0 HDi Exclusive
'15 C4 BlueHDi Feel
User avatar
DHallworth
Donor 2023
Posts: 2382
Joined: 20 Nov 2005, 17:05
Location: Glasgow
My Cars:
x 119

Re: AM6 Gearbox Valve Block Replacement

Post by DHallworth »

Well, I went to remove the valve block last night and very quickly established that the valve block isn't the issue - the oil cooler has burst and the results look to be pretty catastrophic.

viewtopic.php?f=14&t=29757&p=624445#p624445

David.
'98 Xantia Activa V6 :-D
'00 XM V6 Exclusive
'09 C5 2.7 HDi Exclusive
‘10 C5 3.0 HDi Exclusive
'12 C6 3.0 HDi Exclusive
'15 C4 BlueHDi Feel
citroenxm
Posts: 8061
Joined: 30 Dec 2004, 23:10
Location: Somewhere in North Wales, Anglesey
My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto

2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising
x 70

Re: AM6 Gearbox Valve Block Replacement

Post by citroenxm »

I wanted to reserect this post simply because of Marc's amazing detail above.

We have a 2006 2.0 16v hdi 6 speed c5..

When cold it's well perfect... all gears.. reverse.. perfect..

When hot she bangs into R .. from D ... on the change from D to R there's a pause... then bang

So.. something I assume is sticking in the valve block when warm. Its had two fluid changes. But my Q is which valve or solinoid is for R .. ?

Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project

A very sad...
1994 XM 2.1 d auto
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: AM6 Gearbox Valve Block Replacement

Post by GiveMeABreak »

I believe that many who have these replaced, have the entire valve block replaced done Paul as it covers the lot.

Have a look at the symptoms to diagnose here Paul, Eurocarcare.net have a good description of what you are experiencing:

https://www.eurocarcare.net/blog/am6c-g ... ssues.html
Please Don't PM Me For Technical Help

Marc
citroenxm
Posts: 8061
Joined: 30 Dec 2004, 23:10
Location: Somewhere in North Wales, Anglesey
My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto

2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising
x 70

Re: AM6 Gearbox Valve Block Replacement

Post by citroenxm »

It's worse now with new fluid.. floating revs.. banging in 4th to 5th. Etc.. so.. I'm gonna get the valve block out.

I watched a video on you tube and there appears to be no soft gaskets in the valve block unlike the zf4hp18 valve block. I watched a fella rebuild a whole box including assembling the 3 half's of the valve block was quite interesting.
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project

A very sad...
1994 XM 2.1 d auto
serazinm
Posts: 1
Joined: 19 Jun 2023, 09:45
Location: Slovenia
My Cars: Citroen C6 2.7
ex: C5 Mk2, C5 Mk1, XM, BX TZD, GA, GS, Ami supoer, AMI8

Re: AM6 Gearbox Valve Block Replacement

Post by serazinm »

citroenxm wrote: 26 Jan 2022, 17:46 I wanted to reserect this post simply because of Marc's amazing detail above.

We have a 2006 2.0 16v hdi 6 speed c5..

When cold it's well perfect... all gears.. reverse.. perfect..

When hot she bangs into R .. from D ... on the change from D to R there's a pause... then bang

So.. something I assume is sticking in the valve block when warm. Its had two fluid changes. But my Q is which valve or solinoid is for R .. ?


Hello !

I have exactly the same symptoms on my Citroen C6 2.7 with 200.000 kmon the clock.
Can somebody confirm, that replacing the hydraulic valve plate will solve the problem ?
Any cheaper solution?

Many thx and best regards,
Matjaz, Slovenia
Post Reply
