DS5 Fuse Allocation for Glove Box

[nayan2217]

Hi All,

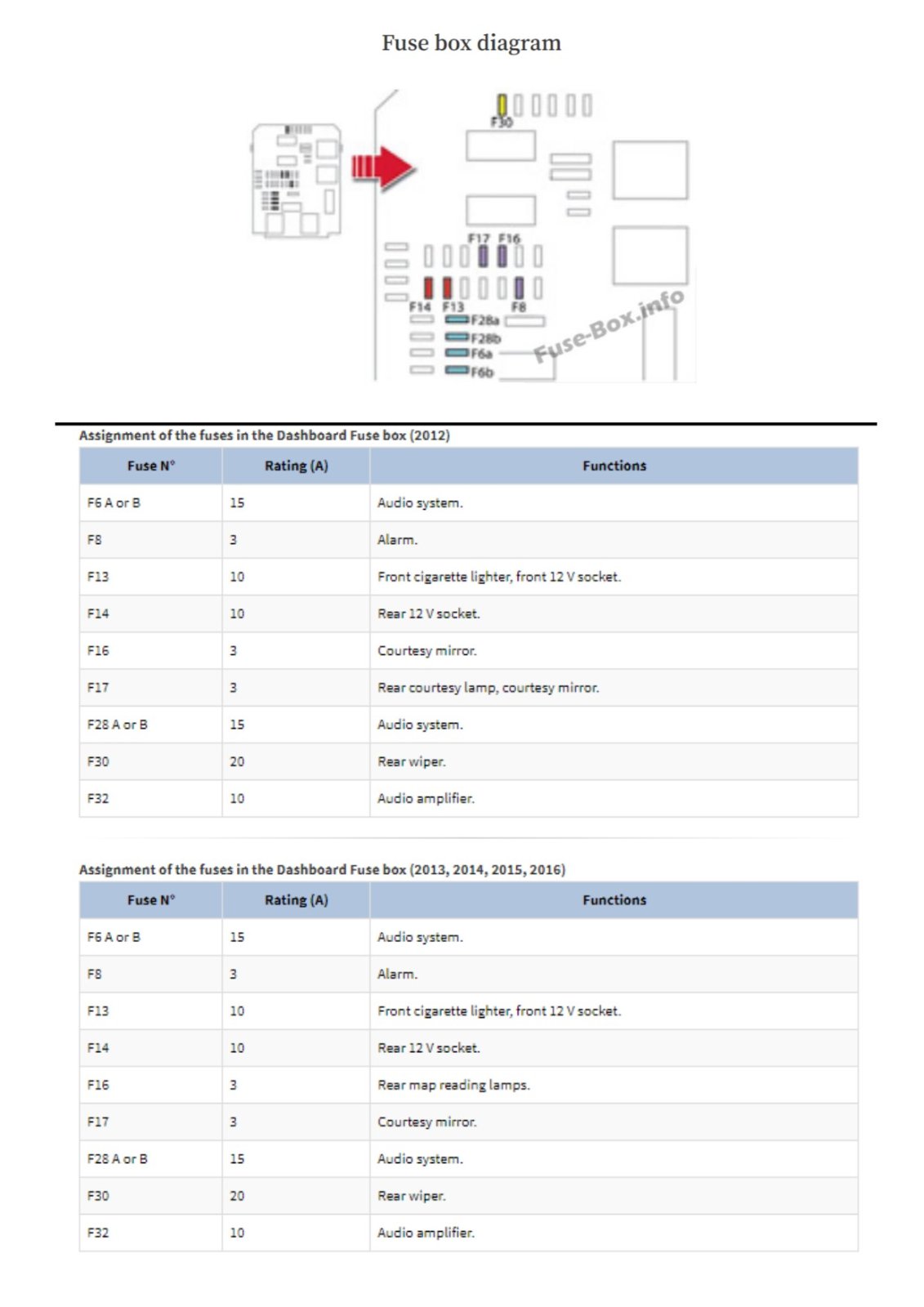

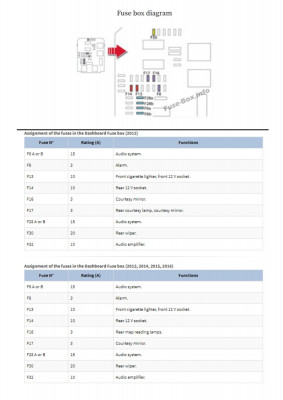

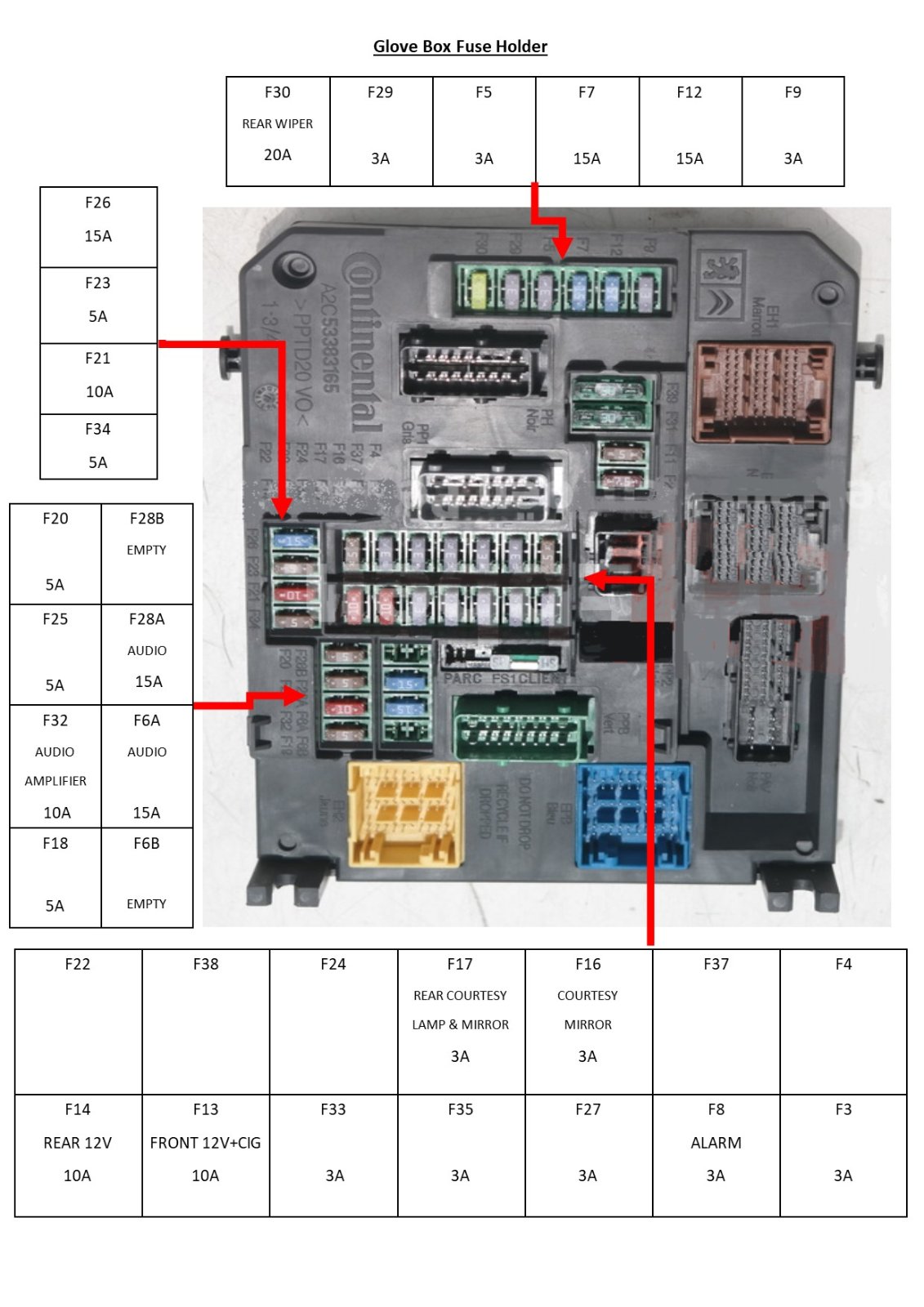

I've attached a list of fuse allocations for the fuses in the glovebox.
It isn't complete but I thought it might be useful & handy, also if anyone out there knows the missing fuses, please let me know and I can update.
P.S.: I need to know the location for the fuse for the front passenger electric seats as I think mine has blown, so if anyone has this information.

Regards
Nayan2217

[Hell Razor5543]

I believe that (because of the load) the fuses for the seats are in the engine bay fuse box (and there may also be a maxi fuse, which is hidden from normal view).

[nayan2217]

Thanks for pointing me in a possible direction.
I will start trying to find more information about the fuse box in the engine compartment.

[GiveMeABreak]

Pop your VIN up and I can telly exactly where they are.

[nayan2217]

Hi Marc,
My VIN is VF7**************[VIN obfuscated, can be read by forum staff]

Thanks
nayan2217

[GiveMeABreak]

Right:

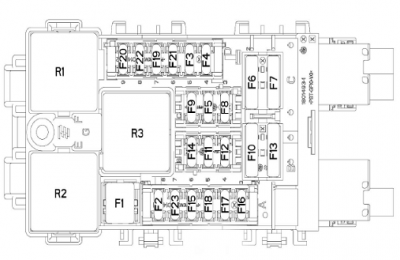

BFH3 Fusebox (Cabin Fusebox)

Click Images to Zoom

F9: Front Heated Seats
F10: Passenger seat motors + switches
F13: Driver's Seat Memorisation Control Unit - Driver's Massage Control Unit

[nayan2217]

Hi Marc,
Managed to have a look today at the fuse box in the engine compartment.
Unfortunately to me it looks nothing like the one you sent me.

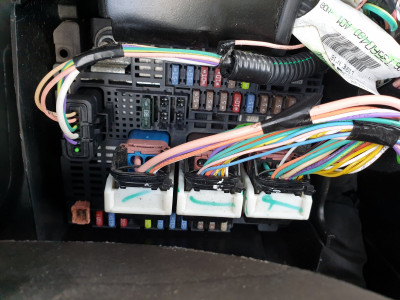

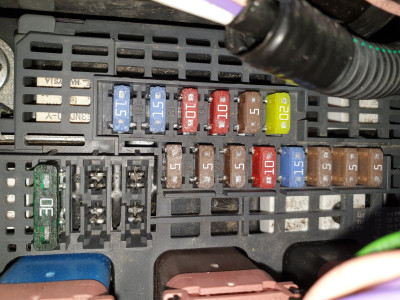

I've attached some photos of it.

Regards
nayan2217

[GiveMeABreak]

Ok, so that's because the diagram I sent you is not for the engine fuse box.

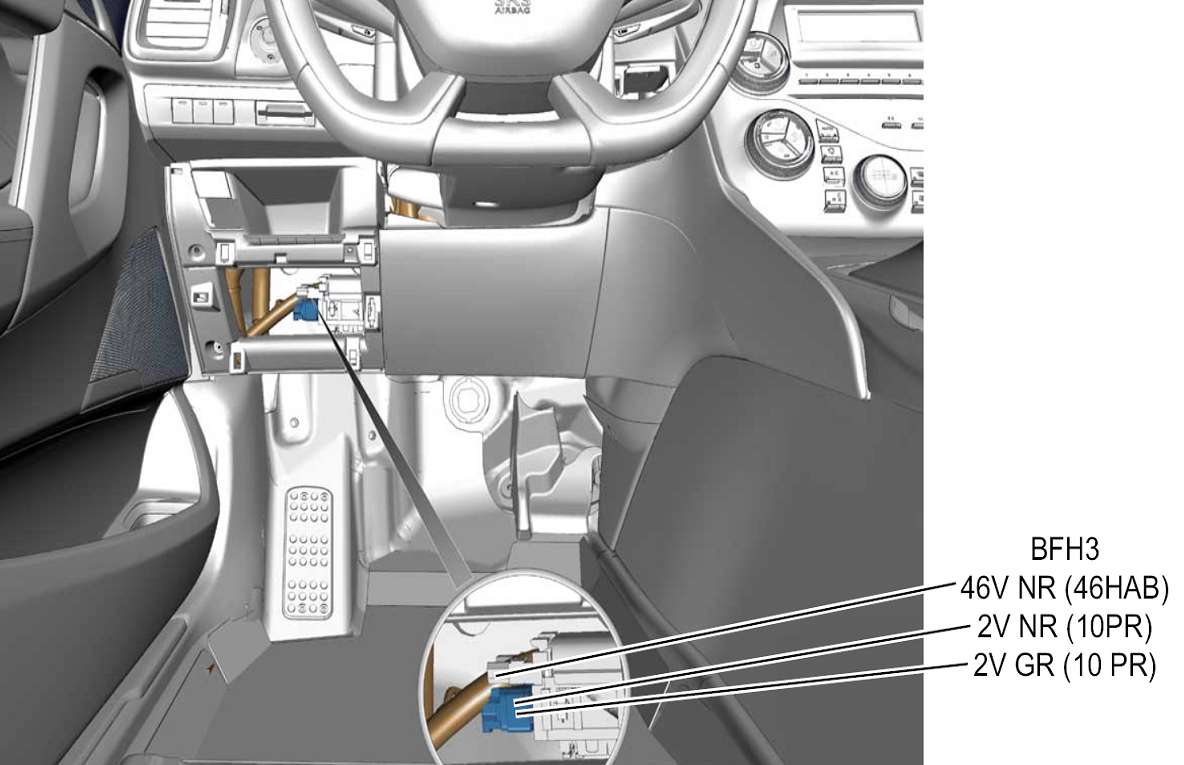

BFH3 Fusebox (Cabin Fusebox)

The diagram I sent you is for one of the inside cabin fuseboxes.

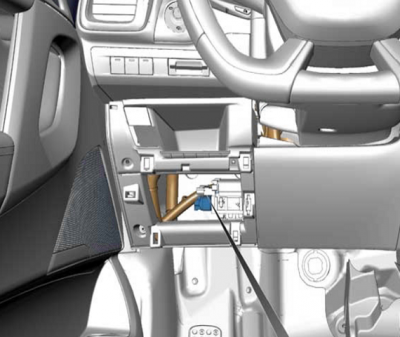

This picture shows Left Hand Drive, so will be in the passenger glovebox in a RHD:

[nayan2217]

Hi Marc,
I opened the panel inside to glove box & can't see BFH3 Fusebox (Cabin Fusebox).

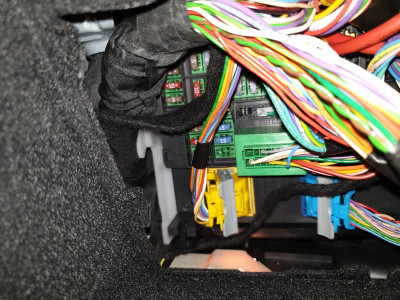

The only panel I can see is A2C53383165 BSI (photo below need to rotate it 180).
Do I need to remove the whole glove box?

Really sorry,
nayan2217

[GiveMeABreak]

Yes, where the BSI is. There are several small fuse compartments that surround the BSI. I know it is cramped there but you need to be careful too. Look to the sides, below and above, but it will be marked and will be there.

The additional fuse box may be covered as in the diagram above, with the cover as (2)

[nayan2217]

Thanks Marc,
I’ll have to look for it when I’ve got a day free.

Cheers
nayan2217

[mustixashk]

hi ı need 2012 ds5 passenger seat fuse locatıon please help me my seat motor ıs not workıng
