DS5 Fuse Allocation for Glove Box
Hi All,
I've attached a list of fuse allocations for the fuses in the glovebox.
It isn't complete but I thought it might be useful & handy, also if anyone out there knows the missing fuses, please let me know and I can update.
P.S.: I need to know the location for the fuse for the front passenger electric seats as I think mine has blown, so if anyone has this information.
Regards
Nayan2217
I've attached a list of fuse allocations for the fuses in the glovebox.
It isn't complete but I thought it might be useful & handy, also if anyone out there knows the missing fuses, please let me know and I can update.
P.S.: I need to know the location for the fuse for the front passenger electric seats as I think mine has blown, so if anyone has this information.
Regards
Nayan2217
-
- Donor 2023
- Posts: 13743
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 3007
Re: DS5 Fuse Allocation for Glove Box
I believe that (because of the load) the fuses for the seats are in the engine bay fuse box (and there may also be a maxi fuse, which is hidden from normal view).
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
Re: DS5 Fuse Allocation for Glove Box
Thanks for pointing me in a possible direction.
I will start trying to find more information about the fuse box in the engine compartment.
I will start trying to find more information about the fuse box in the engine compartment.
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: DS5 Fuse Allocation for Glove Box
Pop your VIN up and I can telly exactly where they are.
Please Don't PM Me For Technical Help
Marc
Marc
Re: DS5 Fuse Allocation for Glove Box
Hi Marc,
My VIN is VF7**************[VIN obfuscated, can be read by forum staff]
Thanks
nayan2217
My VIN is VF7**************[VIN obfuscated, can be read by forum staff]
Thanks
nayan2217
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: DS5 Fuse Allocation for Glove Box
Right:
BFH3 Fusebox (Cabin Fusebox)
Click Images to Zoom F9: Front Heated Seats
F10: Passenger seat motors + switches
F13: Driver's Seat Memorisation Control Unit - Driver's Massage Control Unit
BFH3 Fusebox (Cabin Fusebox)
Click Images to Zoom F9: Front Heated Seats
F10: Passenger seat motors + switches
F13: Driver's Seat Memorisation Control Unit - Driver's Massage Control Unit
Please Don't PM Me For Technical Help
Marc
Marc
Re: DS5 Fuse Allocation for Glove Box
Hi Marc,
Managed to have a look today at the fuse box in the engine compartment.
Unfortunately to me it looks nothing like the one you sent me.
I've attached some photos of it. Regards
nayan2217
Managed to have a look today at the fuse box in the engine compartment.
Unfortunately to me it looks nothing like the one you sent me.
I've attached some photos of it. Regards
nayan2217
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: DS5 Fuse Allocation for Glove Box
Ok, so that's because the diagram I sent you is not for the engine fuse box.
This picture shows Left Hand Drive, so will be in the passenger glovebox in a RHD:
The diagram I sent you is for one of the inside cabin fuseboxes.
This picture shows Left Hand Drive, so will be in the passenger glovebox in a RHD:
Please Don't PM Me For Technical Help
Marc
Marc
Re: DS5 Fuse Allocation for Glove Box
Hi Marc,
I opened the panel inside to glove box & can't see BFH3 Fusebox (Cabin Fusebox).
The only panel I can see is A2C53383165 BSI (photo below need to rotate it 180).
Do I need to remove the whole glove box?
Really sorry,
nayan2217
I opened the panel inside to glove box & can't see BFH3 Fusebox (Cabin Fusebox).
The only panel I can see is A2C53383165 BSI (photo below need to rotate it 180).
Do I need to remove the whole glove box?
Really sorry,
nayan2217
Last edited by myglaren on 11 Oct 2019, 17:57, edited 1 time in total.
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: DS5 Fuse Allocation for Glove Box
Yes, where the BSI is. There are several small fuse compartments that surround the BSI. I know it is cramped there but you need to be careful too. Look to the sides, below and above, but it will be marked and will be there.

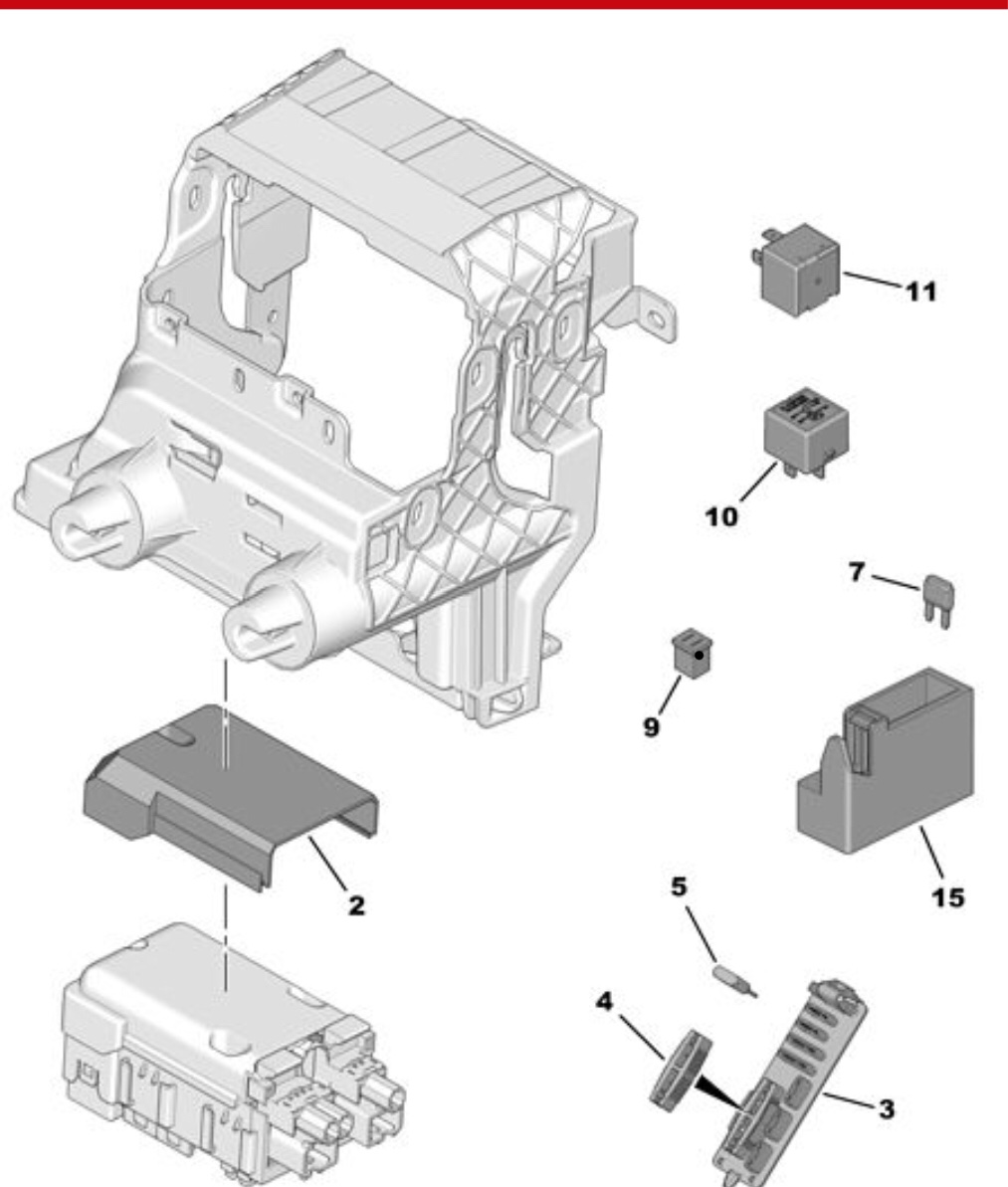

The additional fuse box may be covered as in the diagram above, with the cover as (2)
The additional fuse box may be covered as in the diagram above, with the cover as (2)
Please Don't PM Me For Technical Help
Marc
Marc
Re: DS5 Fuse Allocation for Glove Box
Thanks Marc,
I’ll have to look for it when I’ve got a day free.
Cheers
nayan2217
I’ll have to look for it when I’ve got a day free.
Cheers
nayan2217
-
- New User
- Posts: 1
- Joined: 11 Feb 2021, 19:42
- Location: turkey
- My Cars: 2012 citroen ds5
Re: DS5 Fuse Allocation for Glove Box
hi ı need 2012 ds5 passenger seat fuse locatıon please help me my seat motor ıs not workıng
Re: DS5 Fuse Allocation for Glove Box
Heating of my driver seat stopped operating, I would like to check the fuse, my car is left handed. If I understood well, this should be fuse F9? I managed to access cabin fuse box (which is beneath area of steering wheel as per Marc photo), although it is messy with cables, I can not see F9 anywhere?
Marc, your last post shows photo of BSI, is there aditional fusebox around it? If so, I am not sure from what side should I access? Not sure if I should remove front mask of BSI unit?
Marc, your last post shows photo of BSI, is there aditional fusebox around it? If so, I am not sure from what side should I access? Not sure if I should remove front mask of BSI unit?
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: DS5 Fuse Allocation for Glove Box
Yes Fuse F9 located in the Cabin Relay Fusebox (BFH3) shown above, but - this fuse controls both heated seats for passenger and driver, so if the passenger one is working it's not the fuse.
Most likely it is the heated pad that has failed - and these mostly fail on the driver's side as the seat is the one more often used, which causes wear and failure of the heated seat pad components.
Most likely it is the heated pad that has failed - and these mostly fail on the driver's side as the seat is the one more often used, which causes wear and failure of the heated seat pad components.
Please Don't PM Me For Technical Help
Marc
Marc
Re: DS5 Fuse Allocation for Glove Box
Thx Marc for prompt respond. I guess your picture is not targeting F9 fuse, as there are some other markings, but your aim to show generally where it is located. I will give it again in-depth look in this fuse box to notice it clearly and try to reach it. My wife told me passenger seat was heating, I will double check this by myself as well. If it is operating as you said, I guess, unfortunately, seat pad is dead and maybe replacing complete driver's seat with the second hand would be reasonable solution, but I doubt I will do this.
