Going to do my clutch C3 MK2 2011, tips?

Post by ultra2extreme »

Hi guys, going to do my biggest job yet, dreaded clutch!! Now as i understand it, the steps go a bit like this

Wheels off
Drive shafts out
everything on top of the gearbox out (battery box, ECU, air pipes etc)
Starter out
Slave cylinder out
crank sensor out
Prop up engine under sump
Undo gearbox mounts

Gearbox off

replace clutch and pressure plate thingy using alignment tool

everything back on

save money.

:D

Any tips or advice? ive got about 2 full days to do it with access to a nice warm dry well lit garage but itll be on stands jacks. I do have air tools.

Never done a clutch but if you dont do one you never will right?

Also any help with parts appreciated

VIN: VF7**************[VIN obfuscated, can be read by forum staff]
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Going to do my clutch C3 MK2 2011, tips?

Post by GiveMeABreak »

When are you planning to do it? - I can put a procedure up for you tomorrow if it will help?
Please Don't PM Me For Technical Help

Marc
RichardW
Forum Treasurer
Posts: 10814
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: Going to do my clutch C3 MK2 2011, tips?

Post by RichardW »

Probably one of the engine to gearbox bolts is fitted from the engine side, and is behind the exhaust cat, so you need to remove that. You need to remove the flexi exhaust pipe under the engine. It may well be necessary to remove the subframe to get the box out. Getting to the top bolt on the starter (at least in 1.6 guise) on this engine is a complete git!!
Richard W
ultra2extreme
Posts: 27
Joined: 28 May 2019, 22:40
Location: Wales Cwm Cou
My Cars: C3 II HDi 2011
x 1

Re: Going to do my clutch C3 MK2 2011, tips?

Post by ultra2extreme »

GiveMeABreak wrote: 10 Jan 2020, 23:55 When are you planning to do it? - I can put a procedure up for you tomorrow if it will help?
Not for a week or so will need a weekend without the kids! A guide would be great!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Going to do my clutch C3 MK2 2011, tips?

Post by GiveMeABreak »

Ok, I'll put something up today for you.
Please Don't PM Me For Technical Help

Marc
ultra2extreme
Posts: 27
Joined: 28 May 2019, 22:40
Location: Wales Cwm Cou
My Cars: C3 II HDi 2011
x 1

Re: Going to do my clutch C3 MK2 2011, tips?

Post by ultra2extreme »

RichardW wrote: 11 Jan 2020, 12:56 Probably one of the engine to gearbox bolts is fitted from the engine side, and is behind the exhaust cat, so you need to remove that. You need to remove the flexi exhaust pipe under the engine. It may well be necessary to remove the subframe to get the box out. Getting to the top bolt on the starter (at least in 1.6 guise) on this engine is a complete git!!
Thanks for those tips m8! Im on the 1.4 unsure how diff this will be, willing to bet its no easier haha
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Going to do my clutch C3 MK2 2011, tips?

Post by GiveMeABreak »

Procedure for Removal and Refitting Clutch on a C3 (A51)

Tools:
clutch A.PNG
0217: Clutch Mechanism Compression Tool
0217-A: Clutch Mechanism Compressor
0217-B2Z: Retaining Rod (∅ 8mm)
0217-Cx*: Clutch Centring Drift
Note: The exact centring drift will vary with engine type.
In this case 0217-C6Z is the correct one for the DV4C
engine that the member has.
Removing

Pre-requisite - remove the gearbox See the procedure a few posts down:

Gearbox Removal

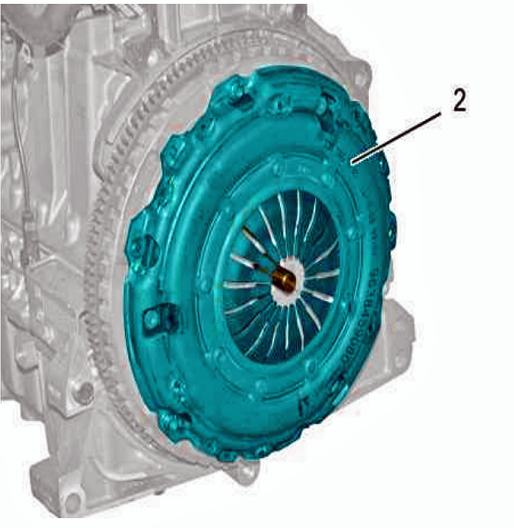

clutch B.PNG
clutch C.PNG

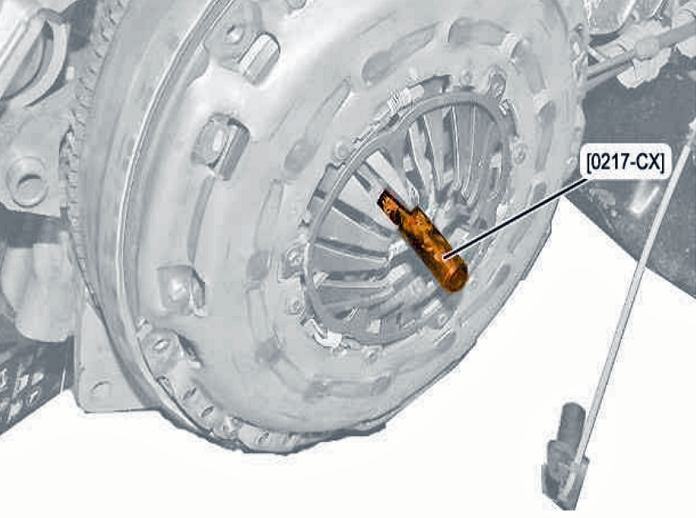

Fit the tool [0217-CX].Remove the 3 bolts (1) (Every second bolt).
Position the tools [0217-A] and [0217-B2Z] on the clutch mechanism (2).
CAUTION: Some flywheels have through threads.
Do not allow the threads of the 3 retaining rods to protrude when screwing -
Risk of deformation of the secondary flywheel.


Screw in the 3 retaining rods [0217-B2Z] in place of the fixing screws (1). Do not allow the threads to protrude.

CAUTION: When compressing the clutch mechanism, do not cross a
hard point when tightening the central screw of the tool [0217-A].
The tightening must not exceed 10 turns clockwise.


Compress the clutch mechanism (2) with the central bolt of tool [0217-A] (at "a").
Finish removing the remaining bolts (1).
Release the clutch mechanism (2) by moving the central bolt of the tool [0217-A] (at "a").

Remove tools [0217-A] and [0217-B2Z].
Remove:
  • The clutch mechanism (2)
  • The clutch disc
Preparation for removal
Checking - Cleaning

Visually check:
  • The flywheel face for damage or scores
  • The flywheel for wear
  • The condition of the starter ring gear
  • The clutch mechanism (2)
If there is oil in the clutch mechanism (2):
  • Check the condition of the crankshaft seal ring
  • Check the condition of the primary shaft seal ring
CAUTION: Do not reuse a clutch disc whose hub has traces of oxidation or traces of grease.

Deoxidise and degrease the following parts using a degreaser (LOTIWAR TCE 10 - Mechanical cleaner):
  • The clutch housing
  • The primary shaft
  • The clutch bearing guide (according to equipment)
  • The clutch fork (according to equipment)
N.B .: In the event of significant corrosion,
use a wire brush without damaging the parts.


Greasing
CAUTION: Strictly observe the lubrication step.
clutch D.PNG
CAUTION: Protect the interior of the clutch housing from splashes of grease.

Vehicles equipped with a gearbox that has a mechanical clutch bearing:

Spray a little grease MOLYCOTE G-RAPID PLUS (aerosol) on the splines
of the primary shaft and on the clutch bearing guide tube (at "b" and "c").

Vehicles equipped with a gearbox that has a hydraulic clutch bearing:

Grease the splines of the primary shaft with
MOLYCOTE G-RAPID PLUS (at "c").


CAUTION: Do not soil the clutch disc lining - Risk of skating.

Establish the clutch disk (3) on the spline shaft and perform multiple translations to distribute the grease.
Remove the clutch disc.
clutch E.PNG
CAUTION: An excess of grease will contaminate the clutch friction
plate and cause noise in neutral, slipping or juddering of the clutch.


"d": Traces of grease present on a clutch disc polluted due to excess grease.
"e": Traces of grease present on a clutch housing polluted due to excess grease.

CAUTION: Clean any grease that may be projected onto the rotating friction.

Remove the surplus grease on the top of the grooves and the end of the input shaft using a cloth.

Note: The film of grease deposited on the rotating elements must
be as thin as possible to avoid splashing.
Refitting

CAUTION : Observe the tightening torque values.
clutch F.PNG
clutch G.PNG
CAUTION: When refitting, place the face of the clutch disc,
where the N° PSA 96 XXX XXX 80 is marked, gearbox end.


Refit the clutch disc (3).
Centre the clutch disc (3) using tool [0217-CX].
CAUTION: The clutch mechanism and disc are paired
at the factory and cannot be replaced separately.


CAUTION: Any fitting of a clutch mechanism with automatic free
play adjustment (whether new or re-used) must compulsorily be performed
using the compression tool [0217].


Refit the clutch mechanism (2).

N.B.: Do not remove the tool [0217-CX].
Clutch H.PNG
CAUTION : No resetting of the clutch wear adjustment is permitted.

Position the tools [0217-A] and [0217-B2Z] on the clutch mechanism (2).
Screw in the 3 retaining rods [0217-B2Z] in place of the fixing screws (1) Do not allow the threads to protrude.
Tighten the 3 bolts (1) by hand.
clutch I.PNG
Gradually compress the clutch mechanism (2) until it contacts the primary flywheel (at "f").
Check the absence of friction:
  • Apply a light force on the clutch disc (3) to control the rotation; Using a thin, flat screwdriver
  • In case of difficult or impossible rotation, continue the compression operation
    of the clutch mechanism very gradually until rotation
    (1/8 th of a turn on the tool screw [0217-B2Z])
If it is impossible to check the absence of friction (inaccessible clutch disc),
ighten the central screw of the tool [0217-B2Z] by a maximum of two additional turns.

Tighten the 3 bolts (1) to the specified torque.
Unscrew the center bolt of the tool [0217-A] (at "a") by several turns to detension the clutch mechanism (2).
Remove tools [0217-A], [0217-B2Z] and [0217-CX].
Refit and tighten the remaining 3 bolts (1).
Refit the gearbox.

Torque Settings - Clutch
Clutch J.PNG
(1) Clutch friction plate.
(2) Clutch mechanism.
(3) Clutch mechanism fixing screws (2).
ReferenceDesignationTightening torque
(3)bolts (Clutch mechanism / Engine flywheel)2 daNm
Please Don't PM Me For Technical Help

Marc
RichardW
Forum Treasurer
Posts: 10814
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: Going to do my clutch C3 MK2 2011, tips?

Post by RichardW »

Citroen.service wrote:Pre-requisite - remove the gearbox
There's a Haynes-ism if I ever saw one!! :rofl2:

I think that was the bit the OP was interested in really.... :lol:
Richard W
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Going to do my clutch C3 MK2 2011, tips?

Post by GiveMeABreak »

I didn't ask as that's another marathon and was hoping he could do that bit! :-D

@ ultra2extreme: If you need the gearbox removal bit too, let me know...


Oh, sod it, I'll put that up as I suspect he'll need it anyway :-D

Topic Temporarily locked for gearbox procedure to be created.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Going to do my clutch C3 MK2 2011, tips?

Post by GiveMeABreak »

Gearbox Removal / Refitting C3 (A51) Manual 5 Speed Box

Note: Always replace the 2 x Gearbox Centring Pins.

Official Tooling
GB A.PNG
GB B.PNG
0216-G2: Forks for Removing Gearbox Control Rods0012-Z:
Lower Engine Support Crossmember
"a" : Transverse engine support bar
"b" : support
"c" : Safety bolt
"d" : Longitudinal engine support bar
"e" : bolts
"f" : engine support
"g" : bolts
"h" : bolts
"j" : Pliers
Removing

CAUTION: The transmission is removed from under the vehicle.
  • Place the vehicle on a two-post ramp.
  • Set the gearbox in neutral.
  • Disconnect the ancillaries battery.
  • Lift and support the vehicle.
  • Drain gearbox.
Remove:
  • The front wheels
  • The front left-hand splash-shield (/)
  • The drive shafts (/)
GB C.PNG
GB D.PNG
Remove:
  • The air inlets and resonator (1)
  • The engine management ECU
  • The ancillaries battery cover (2)
  • The service battery
Release and move aside the electrical harnesses attached to the service battery tray.
Remove the ancillaries battery support.
Unclip and move aside the ancillaries
battery electrical harness sheathing (4).
Disconnect the connector (at "a").
Remove the earth wire (3).
GB E.PNG
GB F.PNG
Uncouple using tool [0216-G2]:
  • The gear engagement cable ball-joint (5)
  • The gear selection cable ball-joint (6)
Unlock the gear engagement and selection control cables cable stop (at "b").
Move aside all of the gearbox control cables .
Uncouple the gear engagement lever rod from the lever ( as "c").
Pivot the gearchange transfer earth (7).
Remove the securing bolts from the starter .
Move aside the starter without disconnecting it
(Suspend it using an iron wire).
Remove the bolts (8).
Move aside the hydraulic clutch control slave cylinder (9)
(Without opening the hydraulic circuit).
GB G.PNG
GB H.PNG
Remove:
  • The bolts (11)
  • The stabiliser bar (10)
Remove:
  • The bolts (12)
  • The reaction link (13)
GB I.PNG
GB J.PNG
Remove:
  • The nut (14)
  • The stud (15)
  • The (16) bolt
Position:
  • The clamps "j" of tool [0012-Z] on the vehicle body sill ( each side)
  • The crossbar "a" of tool [0012-Z] on the clamps "j" of tool [0012-Z]
GB K.PNG
GB L.PNG
Position the support "b" of tool [0012-Z] in place of the reaction link rod (13).
Fit and tighten the bolt (12).
Position:
  • The longitudinal bar "d" of tool [0012-Z] on the support "b"
    of tool [0012-Z] using the screw "g".
  • The longitudinal bar "d" of tool [0012-Z] on the crossbar "a"
    of tool [0012-Z] using the screw "h".
  • The safety bolt "c" on bolt "g"
  • The support "f" of the tool [0012-Z] under the engine
    sump using the bolts "e"
N.B.: To raise or lower the engine-gearbox assembly, operate the bolt "e".
GB M.PNG
GB N.PNG

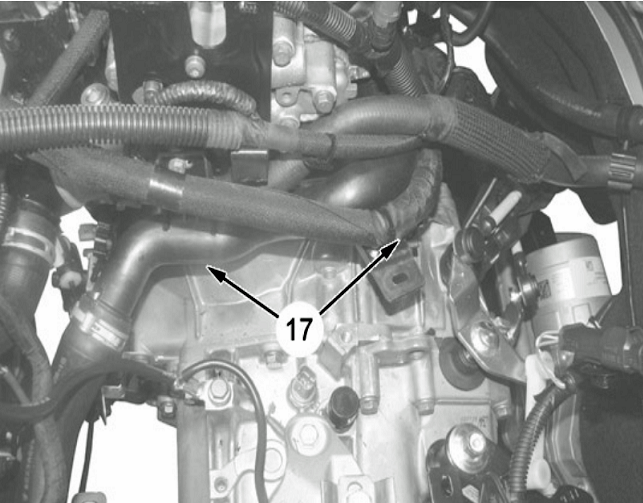

Remove the engine-gearbox coupling bolts (17).Remove:
  • The 2 bolts (18)
  • The gearbox
  • The bracket (19)
Refitting

CAUTION: Adhere to the tightening torques.
GB Torque A.PNG
ReferenceDesignationTightening torque
(1)Engine/gearbox coupling5,5 daNm
CAUTION: Always replace the gearbox centring pins.

Check:
  • That there is no leak at the crankshaft seal
  • There are no oil leaks at the stop guide
  • The state of wear of the clutch
  • The state of wear of the declutch bearing
CAUTION: Clean the input shaft completely along its entire length, over its entire periphery and in the grooves.

Protect the interior of the clutch housing from splashes of grease.
Apply the recommended grease uniformly on the stop guide and the input shaft.
Grease the fingers of the clutch fork.

N.B. : Use MOLYCOTE G-RAPID PLUS grease.

Remove the surplus grease on the top of the grooves and the end of the input shaft using a cloth.
CAUTION: An excess of grease will contaminate the clutch friction plate and cause noise in neutral, slipping or juddering of the clutch.

CAUTION: If the clutch disc is reused, the disc hub must be free of traces of oxidation.

N.B.: Check the presence of new gearbox centring pins.


Clean the bolt threads.
When refitting, the thrust must be on its guide and positioned by the throw-out fork.

CAUTION: Do not crush the starter motor electrical harness while refitting the gearbox.

Attach the gearbox to the engine.
Refit:
  • The engine-gearbox coupling bolts (17)
  • The (16) bolt
  • The stud (15)
  • The nut (14)
  • The bracket (19)
  • The 2 bolts (18)
  • The starter motor
  • The fixing screws of the starter
  • Remove the tool [0012-Z].
Refit:
  • The reaction link (13)
  • The bolts (12)
  • The stabiliser bar (10)
  • The bolts (11)
Reposition the hydraulic clutch control slave cylinder (9).
Refit the bolts (8).
Attach the gear engagement and selection cable sleeve stops (at "b").

N.B.:The sleeve stops are locked automatically on refitting. Check that the cable stops are locked correctly.

Couple up:
  • The gear engagement cable ball-joint (5)
  • The gear selection cable ball-joint (6)
Position: The gearchange transfer earth (7).
Couple up: The gearchange transfer rod ( as "c").

Refit the fixing: Earth lead (3).
Connect the connector ( as "a").
Reclip the ancillaries battery electrical harness sheathing (4).
Refit the ancillaries battery support .
Secure the electrical harnesses attaching to the service (ancillaries) battery tray .

Refit:
  • The air inlets and resonator (1)
  • The engine management ECU
  • The service battery
CAUTION: Perform the operations that are required following a reconnection of the ancillaries battery.
Reconnect the ancillaries battery.

Refit:
  • The ancillaries battery cover (2)
  • The drive shafts (/)
  • The front left-hand splash-shield (/)
  • The front wheels
Fill the gearbox via the breather opening: 2 litres.
Initialise the various ECUs.
Remove the vehicle from the ramp.

Here endeth the lesson.... :wink:
Please Don't PM Me For Technical Help

Marc
ultra2extreme
Posts: 27
Joined: 28 May 2019, 22:40
Location: Wales Cwm Cou
My Cars: C3 II HDi 2011
x 1

Re: Going to do my clutch C3 MK2 2011, tips?

Post by ultra2extreme »

Amazing, thank you @GiveMeABreak !!

Could someone explain the special tool for pressure plate removal? ive never seen a special tool for removing a clutch assembly and ive always seen people use a universal alignment too for refitting, which i have. Is this one of those things only dealers do? or are some clutches "special"?

TIA!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Going to do my clutch C3 MK2 2011, tips?

Post by GiveMeABreak »

No worries.

The tool's function is to improve the centering of the friction plate and to eliminate engine jerks, vibrations and noise, by compressing the clutch mechanism when tightening the fixing bolts.

PSA have the main tool and there is a different part ([Cx]) with the centring drift 'x' varying according to engine. They use this across the range of PSA engines when doing the clutch.
Please Don't PM Me For Technical Help

Marc
ultra2extreme
Posts: 27
Joined: 28 May 2019, 22:40
Location: Wales Cwm Cou
My Cars: C3 II HDi 2011
x 1

Re: Going to do my clutch C3 MK2 2011, tips?

Post by ultra2extreme »

Thanks for that m8! Good info! Is it mandatory to do the job? Or will i get similar result with a universal alignment tool?

I have this one https://www.ebay.co.uk/itm/UNIVERSAL-CL ... SwQodZb3jZ
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Going to do my clutch C3 MK2 2011, tips?

Post by GiveMeABreak »

All I can see is that they designed it for a purpose, so it must be to both aid alignment (which other tools can do as you have found, but also to eliminate issues like juddering as described). I'm sure there are garages that don't use this sort of thing - so difficult to compare - but I would suspect it is to avoid the issue in the first place as a result of fitting.
Please Don't PM Me For Technical Help

Marc
ultra2extreme
Posts: 27
Joined: 28 May 2019, 22:40
Location: Wales Cwm Cou
My Cars: C3 II HDi 2011
x 1

Re: Going to do my clutch C3 MK2 2011, tips?

Post by ultra2extreme »

Ok m8 thanks for that, i get ya. Thing with these special tools is, as i've seen them for other things like locking cam pulleys on timing belts etc, where the heck do you get them? i search the part numbers the handbooks mention and you get nothing
Post Reply
