How to remove the interior rearview mirror on C4 B7?
Moderator: RichardW
- Cutac
- Posts: 348
- Joined: 28 Aug 2016, 19:36
- Location: Croatia
- My Cars: 2011 B7 Citroen C4 1.4 VTi
2006 Citroen C4 2.0 VTS - x 20
How to remove the interior rearview mirror on C4 B7?
Hello,
I'd like to install an aliexpress rearview mirror with a screen for a backup camera. To do so, I'd need to take my current mirror off so I can see what type of mount it's using, but I don't know how to remove the mirror and fear of breaking the windshield.
So, quite simply, how to remove the regular interior mirror on C4 B7?
Thanks
P.S.
these are brackets offered by aliexpress seller
I'd like to install an aliexpress rearview mirror with a screen for a backup camera. To do so, I'd need to take my current mirror off so I can see what type of mount it's using, but I don't know how to remove the mirror and fear of breaking the windshield.
So, quite simply, how to remove the regular interior mirror on C4 B7?
Thanks
P.S.
these are brackets offered by aliexpress seller
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: How to remove the interior rearview mirror on C4 B7?
Just a few to choose from then! Once you have removed it as shown, you should have a better idea of the type of fixing you need.
It's recommended to use Battery disconnection procedure before removing the sensitive sensor:
BSI Rest / Battery Disconnect / Reconnect Procedure
It's recommended to use Battery disconnection procedure before removing the sensitive sensor:
BSI Rest / Battery Disconnect / Reconnect Procedure

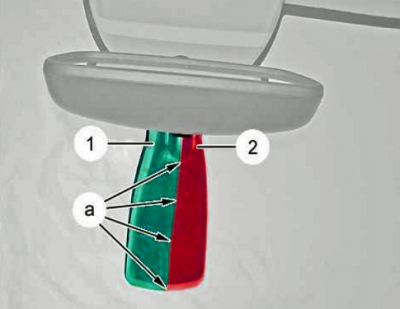

Unclip: The 2 trim cowlings (1), (2) ( as "a") using trim tools. Detach and remove: The 2 trim cowlings (1), (2). |
Disconnect the connector ( as "b"). Unclip: The securing clip 3 ( as "c"). Detach:
Caution: Protect the contact cushion of the rain/sunlight bi-sensor with a transparent adhesive strip; Store the rain/sunlight bi-sensor in an envelope. |
Disconnect the connector ( as "a"). |
Unclip: The interior mirror (1) (In the direction of the arrow - Anti-clockwise). Remove: The interior mirror (1). |
Please Don't PM Me For Technical Help
Marc
Marc
- Cutac
- Posts: 348
- Joined: 28 Aug 2016, 19:36
- Location: Croatia
- My Cars: 2011 B7 Citroen C4 1.4 VTi
2006 Citroen C4 2.0 VTS - x 20
Re: How to remove the interior rearview mirror on C4 B7?
Thanks for the tutorial!
But, I've tried pulling it off but it doesn't budge, and I'm afraid I'll break the windscreen. I'm going to go to the dealer and ask the tech there.
But, I've tried pulling it off but it doesn't budge, and I'm afraid I'll break the windscreen. I'm going to go to the dealer and ask the tech there.
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: How to remove the interior rearview mirror on C4 B7?
Have you twisted it anti-clockwise first - it’s locked into place so needs twisting in the direction shown?
Please Don't PM Me For Technical Help
Marc
Marc
- Paul-R
- Donor 2023
- Posts: 6916
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1369
Re: How to remove the interior rearview mirror on C4 B7?
The arrow shows twisting clockwise. Which is correct?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: How to remove the interior rearview mirror on C4 B7?
It is very clear to me - 9 o'clock to 3 o'clock arrow head is to the right as is the description - anticlockwise - as you are facing the mirror
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2023
- Posts: 2625
- Joined: 24 May 2007, 10:11
- Location: poole dorset uk
- Lexia Available: Yes
- My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff] - x 378
Re: How to remove the interior rearview mirror on C4 B7?
GiveMeABreak wrote: ↑21 Jul 2019, 18:31 It is very clear to me - 9 o'clock to 3 o'clock arrow head is to the right as is the description - anticlockwise - as you are facing the mirror
Have to agree with the above
- Paul-R
- Donor 2023
- Posts: 6916
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1369
Re: How to remove the interior rearview mirror on C4 B7?
Have to still disagree. Rotating from 9-o'-clock to 3-o'-clock is very definitely clockwise! But, hey-ho.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: How to remove the interior rearview mirror on C4 B7?
Not when it says anticlockwise
Please Don't PM Me For Technical Help
Marc
Marc
- Paul-R
- Donor 2023
- Posts: 6916
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1369
Re: How to remove the interior rearview mirror on C4 B7?
But the diagram shows the arrow clockwise.
What am I missing here?Detach: •The securing clip 3 (In the direction of the arrow )
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: How to remove the interior rearview mirror on C4 B7?
Your having a Specsavers moment. You’re looking at the wrong diagram!
We’re all talking about the last picture in the sequence....
We’re all talking about the last picture in the sequence....
Please Don't PM Me For Technical Help
Marc
Marc
- Paul-R
- Donor 2023
- Posts: 6916
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1369
Re: How to remove the interior rearview mirror on C4 B7?
Ah, that was not all clear. I'll get my coat.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
- Cutac
- Posts: 348
- Joined: 28 Aug 2016, 19:36
- Location: Croatia
- My Cars: 2011 B7 Citroen C4 1.4 VTi
2006 Citroen C4 2.0 VTS - x 20
Re: How to remove the interior rearview mirror on C4 B7?
Ohhh...
Thanks for that, I'm ashamed to admit, but I thought I was supposed to pull it/twist it downwards towards the rear of the car.
I'll try turning it tomorrow
Thanks for that, I'm ashamed to admit, but I thought I was supposed to pull it/twist it downwards towards the rear of the car.
I'll try turning it tomorrow
-
- Donor 2024
- Posts: 34
- Joined: 27 Aug 2019, 07:50
- Location: Somerset
- My Cars: Citroen C4 Picasso Exclusive 2014
- x 2
Re: How to remove the interior rearview mirror on C4 B7?
hi ya,
Would anyone happen to have the removal illustration for the rest of the windscreen trim please.
In particular I'm looking for the 2nd mini mirror and interior light cluster above the winscreen.
Basically I have installed a Dashcam and want to hide the power cable in the trim
Can't stand cable ties and seeing the wire exposed..... it just looks pants
Cheers
Zane
Would anyone happen to have the removal illustration for the rest of the windscreen trim please.
In particular I'm looking for the 2nd mini mirror and interior light cluster above the winscreen.
Basically I have installed a Dashcam and want to hide the power cable in the trim
Can't stand cable ties and seeing the wire exposed..... it just looks pants
Cheers
Zane
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: How to remove the interior rearview mirror on C4 B7?
I just tucked my wiring along the roof headlining above the windscreen, and down inside the A pillar, then into the dashboard side covering and from there you have your earthing points and access to the fusebox for use with a piggy back fuse.
Please Don't PM Me For Technical Help
Marc
Marc
