How to remove the interior rearview mirror on C4 B7?

Post by Cutac »

Hello,

I'd like to install an aliexpress rearview mirror with a screen for a backup camera. To do so, I'd need to take my current mirror off so I can see what type of mount it's using, but I don't know how to remove the mirror and fear of breaking the windshield.
So, quite simply, how to remove the regular interior mirror on C4 B7?

Thanks :)

P.S.
these are brackets offered by aliexpress seller
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: How to remove the interior rearview mirror on C4 B7?

Post by GiveMeABreak »

Just a few to choose from then! Once you have removed it as shown, you should have a better idea of the type of fixing you need. :-D

It's recommended to use Battery disconnection procedure before removing the sensitive sensor:

BSI Rest / Battery Disconnect / Reconnect Procedure
Cutac Trim A.PNG
Unclip: The 2 trim cowlings (1), (2) ( as "a") using trim tools.
Detach and remove: The 2 trim cowlings (1), (2).
Cutac Trim B.PNG
Disconnect the connector ( as "b").
Unclip: The securing clip 3 ( as "c").
Detach:
  • The securing clip 3 (In the direction of the arrow )
  • The rain/sunlight bi-sensor (4)
Remove the rain/sunlight bi-sensor (4).

Caution: Protect the contact cushion of the rain/sunlight bi-sensor
with a transparent adhesive strip; Store the rain/sunlight bi-sensor in an envelope.

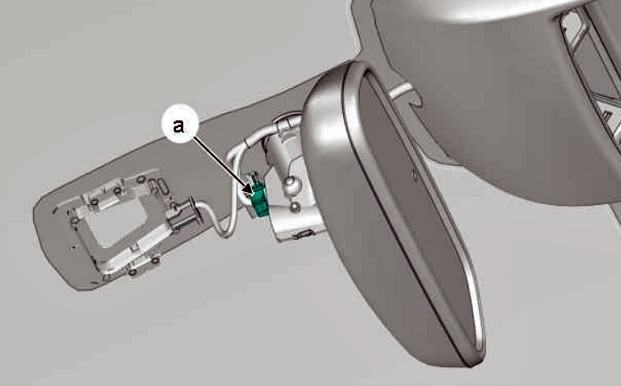

Cutac Trim C.PNG
Disconnect the connector ( as "a").
Cutac Trim D.PNG
Unclip: The interior mirror (1) (In the direction of the arrow - Anti-clockwise).
Remove: The interior mirror (1).
Please Don't PM Me For Technical Help

Marc
User avatar
Cutac
Posts: 348
Joined: 28 Aug 2016, 19:36
Location: Croatia
My Cars: 2011 B7 Citroen C4 1.4 VTi
2006 Citroen C4 2.0 VTS
x 20

Re: How to remove the interior rearview mirror on C4 B7?

Post by Cutac »

Thanks for the tutorial!

But, I've tried pulling it off but it doesn't budge, and I'm afraid I'll break the windscreen. I'm going to go to the dealer and ask the tech there.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: How to remove the interior rearview mirror on C4 B7?

Post by GiveMeABreak »

Have you twisted it anti-clockwise first - it’s locked into place so needs twisting in the direction shown?
Please Don't PM Me For Technical Help

Marc
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: How to remove the interior rearview mirror on C4 B7?

Post by Paul-R »

The arrow shows twisting clockwise. Which is correct?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: How to remove the interior rearview mirror on C4 B7?

Post by GiveMeABreak »

It is very clear to me - 9 o'clock to 3 o'clock arrow head is to the right as is the description - anticlockwise - as you are facing the mirror
Please Don't PM Me For Technical Help

Marc
admiral51
Donor 2023
Posts: 2625
Joined: 24 May 2007, 10:11
Location: poole dorset uk
Lexia Available: Yes
My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff]
x 378

Re: How to remove the interior rearview mirror on C4 B7?

Post by admiral51 »

GiveMeABreak wrote: 21 Jul 2019, 18:31 It is very clear to me - 9 o'clock to 3 o'clock arrow head is to the right as is the description - anticlockwise - as you are facing the mirror

Have to agree with the above :)
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: How to remove the interior rearview mirror on C4 B7?

Post by Paul-R »

Have to still disagree. Rotating from 9-o'-clock to 3-o'-clock is very definitely clockwise! But, hey-ho.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: How to remove the interior rearview mirror on C4 B7?

Post by GiveMeABreak »

Not when it says anticlockwise
Please Don't PM Me For Technical Help

Marc
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: How to remove the interior rearview mirror on C4 B7?

Post by Paul-R »

But the diagram shows the arrow clockwise.
Detach: •The securing clip 3 (In the direction of the arrow )
What am I missing here?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: How to remove the interior rearview mirror on C4 B7?

Post by GiveMeABreak »

Your having a Specsavers moment. You’re looking at the wrong diagram!

We’re all talking about the last picture in the sequence....
Please Don't PM Me For Technical Help

Marc
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: How to remove the interior rearview mirror on C4 B7?

Post by Paul-R »

Ah, that was not all clear. I'll get my coat.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
Cutac
Posts: 348
Joined: 28 Aug 2016, 19:36
Location: Croatia
My Cars: 2011 B7 Citroen C4 1.4 VTi
2006 Citroen C4 2.0 VTS
x 20

Re: How to remove the interior rearview mirror on C4 B7?

Post by Cutac »

Ohhh...
Thanks for that, I'm ashamed to admit, but I thought I was supposed to pull it/twist it downwards towards the rear of the car.
I'll try turning it tomorrow :mrgreen:
zane2g2
Donor 2024
Posts: 34
Joined: 27 Aug 2019, 07:50
Location: Somerset
My Cars: Citroen C4 Picasso Exclusive 2014
x 2

Re: How to remove the interior rearview mirror on C4 B7?

Post by zane2g2 »

hi ya,
Would anyone happen to have the removal illustration for the rest of the windscreen trim please.
In particular I'm looking for the 2nd mini mirror and interior light cluster above the winscreen.
Basically I have installed a Dashcam and want to hide the power cable in the trim :-)
Can't stand cable ties and seeing the wire exposed..... it just looks pants :-)
Cheers
Zane
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: How to remove the interior rearview mirror on C4 B7?

Post by GiveMeABreak »

I just tucked my wiring along the roof headlining above the windscreen, and down inside the A pillar, then into the dashboard side covering and from there you have your earthing points and access to the fusebox for use with a piggy back fuse.
