C3 Picasso Antenna access
Hi.
This is my first post here. Thank you for letting me join.
I have an issue with the radio reception on my 2011 C3 Picasso. I am sure its the Antenna.
A couple of questions, Does this antenna have an amplifier and how do you gain access to it via the headlining?
Any help in how to remove sufficient lining would be most helpful.
Thanks in advance.
This is my first post here. Thank you for letting me join.
I have an issue with the radio reception on my 2011 C3 Picasso. I am sure its the Antenna.
A couple of questions, Does this antenna have an amplifier and how do you gain access to it via the headlining?
Any help in how to remove sufficient lining would be most helpful.
Thanks in advance.
Cheers Trevor
-
- Donor 2023
- Posts: 13745
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 3008
Re: C3 Picasso Antenna access
Hi, and to the Forum. Nice avatar (Not now Kato, you fool! ).
While I cannot offer any useful advice, might I suggest you type the vehicle VIN here? This will allow Forum staff (I am NOT Forum staff) to get more detailed information on your vehicle (provided the relevant manufacturer has granted the Forum staff access to their data). The Forum software will, for security reasons, obscure it so only Forum staff can read it (like this; VF7**************[VIN obfuscated, can be read by forum staff] ). Please do not put any spaces in the VIN, or post up any photographs of it, as the software will not recognise and protect it.
While I cannot offer any useful advice, might I suggest you type the vehicle VIN here? This will allow Forum staff (I am NOT Forum staff) to get more detailed information on your vehicle (provided the relevant manufacturer has granted the Forum staff access to their data). The Forum software will, for security reasons, obscure it so only Forum staff can read it (like this; VF7**************[VIN obfuscated, can be read by forum staff] ). Please do not put any spaces in the VIN, or post up any photographs of it, as the software will not recognise and protect it.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
- Murphyv310
- (Donor 2021)
- Posts: 22
- Joined: 08 Aug 2021, 18:52
- Location: Kilmarnock, Scotland
- My Cars: Picasso C3 1.4 Vti (present car)
Previous cars. ZX Estate, Visa 17D, AX 14D, Visa Club, Dyane, 2CV AZL, GSA, GS Estate. - x 1
Re: C3 Picasso Antenna access
Many thanks Hell Razor.
Here is my Vin VF7**************[VIN obfuscated, can be read by forum staff]
Hope this helps.
Here is my Vin VF7**************[VIN obfuscated, can be read by forum staff]
Hope this helps.
Cheers Trevor
- Murphyv310
- (Donor 2021)
- Posts: 22
- Joined: 08 Aug 2021, 18:52
- Location: Kilmarnock, Scotland
- My Cars: Picasso C3 1.4 Vti (present car)
Previous cars. ZX Estate, Visa 17D, AX 14D, Visa Club, Dyane, 2CV AZL, GSA, GS Estate. - x 1
Re: C3 Picasso Antenna access
Hi.
Just bumping this thread. Anyone able to help, before I start ripping things out I shouldn't?
Just bumping this thread. Anyone able to help, before I start ripping things out I shouldn't?
Cheers Trevor
- GiveMeABreak
- Forum Admin Team
- Posts: 37411
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C3 Picasso Antenna access
Hi Trevor
It isn't an easy affair....
The headlining has to come off officially. At the rear, the grab handles and the seat belt guides also have to be removed as well as the interior light. Officially, the whole headlining should be removed, which would also mean the front grab rails and sun visors as per the following:

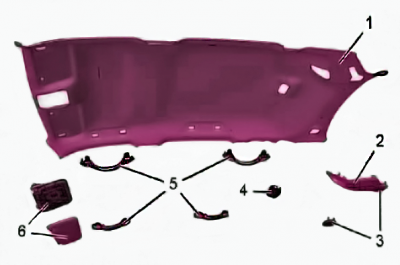

(1) Headlining.
