C3 Picasso Antenna access

Post by Murphyv310 »

Hi.
This is my first post here. Thank you for letting me join.
I have an issue with the radio reception on my 2011 C3 Picasso. I am sure its the Antenna.
A couple of questions, Does this antenna have an amplifier and how do you gain access to it via the headlining?
Any help in how to remove sufficient lining would be most helpful.
Thanks in advance.
Cheers Trevor :-D
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: C3 Picasso Antenna access

Post by Hell Razor5543 »

Hi, and :welc: to the Forum. Nice avatar (Not now Kato, you fool! :lolhit: ).

While I cannot offer any useful advice, might I suggest you type the vehicle VIN here? This will allow Forum staff (I am NOT Forum staff) to get more detailed information on your vehicle (provided the relevant manufacturer has granted the Forum staff access to their data). The Forum software will, for security reasons, obscure it so only Forum staff can read it (like this; VF7**************[VIN obfuscated, can be read by forum staff] ). Please do not put any spaces in the VIN, or post up any photographs of it, as the software will not recognise and protect it.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
Murphyv310
(Donor 2021)
Posts: 22
Joined: 08 Aug 2021, 18:52
Location: Kilmarnock, Scotland
My Cars: Picasso C3 1.4 Vti (present car)

Previous cars. ZX Estate, Visa 17D, AX 14D, Visa Club, Dyane, 2CV AZL, GSA, GS Estate.
x 1

Re: C3 Picasso Antenna access

Post by Murphyv310 »

Many thanks Hell Razor.
Here is my Vin VF7**************[VIN obfuscated, can be read by forum staff]
Hope this helps.
Cheers Trevor :-D
User avatar
Murphyv310
(Donor 2021)
Posts: 22
Joined: 08 Aug 2021, 18:52
Location: Kilmarnock, Scotland
My Cars: Picasso C3 1.4 Vti (present car)

Previous cars. ZX Estate, Visa 17D, AX 14D, Visa Club, Dyane, 2CV AZL, GSA, GS Estate.
x 1

Re: C3 Picasso Antenna access

Post by Murphyv310 »

Hi.
Just bumping this thread. Anyone able to help, before I start ripping things out I shouldn't?
Cheers Trevor :-D
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C3 Picasso Antenna access

Post by GiveMeABreak »

Hi Trevor

It isn't an easy affair....

The headlining has to come off officially. At the rear, the grab handles and the seat belt guides also have to be removed as well as the interior light. Officially, the whole headlining should be removed, which would also mean the front grab rails and sun visors as per the following:
C3 Pic Headlining.PNG
(1) Headlining.
(2) Seat belt guide (rear).
(3) The mounting cover of the child seat attachment cover.
(4) Rear interior lamp.
(5) Grab handles.
(6) Sun visor.

But to do all that involves removing the quarter panel trims, the screen pillar trim pads and the roof console etc.

Whether you can get to it partially without doing this I can't tell you, but thios is the base and the immediate aerial wiring:
C3 Pic Aerial Base.PNG
The aerial base nut is shown at (1).

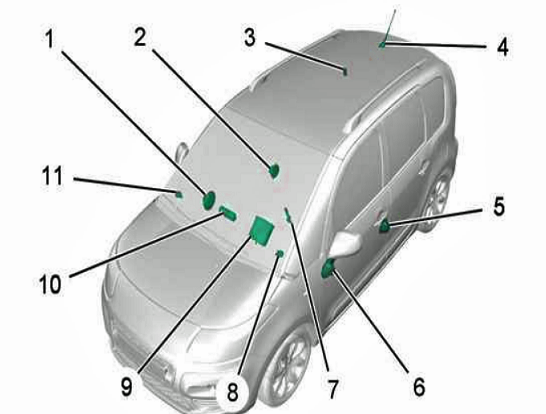

Looking at the following the aerial module is located at (3), so may not be possible to access without fully removing the headlining.
C3 Pic Aerial Module.PNG
But having looked at the wiring, you may not have item (3) as that may be for additional equipment - I can't be 100% sure.

Here's the unit again, so you may be able to get to this without all the removal if you can find a way in....
C3 Pic Aerial B.PNG
Please Don't PM Me For Technical Help

Marc
User avatar
Murphyv310
(Donor 2021)
Posts: 22
Joined: 08 Aug 2021, 18:52
Location: Kilmarnock, Scotland
My Cars: Picasso C3 1.4 Vti (present car)

Previous cars. ZX Estate, Visa 17D, AX 14D, Visa Club, Dyane, 2CV AZL, GSA, GS Estate.
x 1

Re: C3 Picasso Antenna access

Post by Murphyv310 »

Hi Marc.
Many thanks for the helpful diagrams. I'll need to now reconsider if I'll go down this route.
Seems like a big job.
Cheers Trevor :-D
Online
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: C3 Picasso Antenna access

Post by Paul-R »

What exactly is the problem with the reception? Is it restricted to one waveband or does it affect all?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
Murphyv310
(Donor 2021)
Posts: 22
Joined: 08 Aug 2021, 18:52
Location: Kilmarnock, Scotland
My Cars: Picasso C3 1.4 Vti (present car)

Previous cars. ZX Estate, Visa 17D, AX 14D, Visa Club, Dyane, 2CV AZL, GSA, GS Estate.
x 1

Re: C3 Picasso Antenna access

Post by Murphyv310 »

Hi.
Both AM medium wave and FM are poor. The original Citroen headunit was very poor but a Pioneer unit I've fitted is a bit better on both bands. I did wonder if the supply to the antenna amp was missing.
My car is the base model, no aircon, fancy radio etc.
Cheers Trevor :-D
Online
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: C3 Picasso Antenna access

Post by Paul-R »

Ah, so you've changed from the standard PSA unit to an aftermarket radio. That puts a different slant on things.

AFAIK the aerial units have amplifiers and require a power feed to them, as you have already said. The method of delivering the power changes according to the model. Some have a separate wire to the amplifier and others have 12v inserted into the aerial co-ax. It's possible that the amplifier isn't being powered up even assuming that the Pioneer has the option to power an amplifier.

Marc or Wheeler should be able to tell you which type of power feed the amplifier has from the VIN.

Further thoughts. You said that the problem was worse when the original radio was in. Did you try anything to make it better or did you jump straight to the Pioneer. What model was the original radio?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
Murphyv310
(Donor 2021)
Posts: 22
Joined: 08 Aug 2021, 18:52
Location: Kilmarnock, Scotland
My Cars: Picasso C3 1.4 Vti (present car)

Previous cars. ZX Estate, Visa 17D, AX 14D, Visa Club, Dyane, 2CV AZL, GSA, GS Estate.
x 1

Re: C3 Picasso Antenna access

Post by Murphyv310 »

Hi.
The reason for going to the Pioneer was for phone connectivity and MP3 from a memory stick. I didnt realise the aerial could be Bias T fed via the coax.
The original radio is a Bosch PSA N1 MP3 DXM
Also marked Bosch CM RD4 N1 MP3-03 96 669 595 77 dated 10-03-11
Cheers Trevor :-D
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C3 Picasso Antenna access

Post by GiveMeABreak »

Original kit is a basic RD4, mono tuner - so 1 active aerial and that's it, no USB connecting box or hands free kit.
Please Don't PM Me For Technical Help

Marc
User avatar
Murphyv310
(Donor 2021)
Posts: 22
Joined: 08 Aug 2021, 18:52
Location: Kilmarnock, Scotland
My Cars: Picasso C3 1.4 Vti (present car)

Previous cars. ZX Estate, Visa 17D, AX 14D, Visa Club, Dyane, 2CV AZL, GSA, GS Estate.
x 1

Re: C3 Picasso Antenna access

Post by Murphyv310 »

Yes Mark
Cheers Trevor :-D
Online
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: C3 Picasso Antenna access

Post by Paul-R »

GiveMeABreak wrote: 14 Aug 2021, 14:06 Original kit is a basic RD4, mono tuner - so 1 active aerial and that's it, no USB connecting box or hands free kit.
Yes but what kind of feed is the 12v power for the amplifier? Is the amplifier a separate unit or in the base of the antenna unit?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C3 Picasso Antenna access

Post by GiveMeABreak »

Not shown as a separate amp so fed from RD4 originally I suspect.
Please Don't PM Me For Technical Help

Marc
User avatar
Murphyv310
(Donor 2021)
Posts: 22
Joined: 08 Aug 2021, 18:52
Location: Kilmarnock, Scotland
My Cars: Picasso C3 1.4 Vti (present car)

Previous cars. ZX Estate, Visa 17D, AX 14D, Visa Club, Dyane, 2CV AZL, GSA, GS Estate.
x 1

Re: C3 Picasso Antenna access

Post by Murphyv310 »

So if its not showing an amp it's just a straight aerial directly fed to the radio antenna socket.
Cheers Trevor :-D
