Injector Clamp Torque Setting

Unread post by essa »

Hey, I'm after the Injector clamp bolt torque setting for a C3 2011 1.4hdi Vin No: VF7**************[VIN obfuscated, can be read by forum staff].

I'm struggling to find the setting, hope some one can help.

thankyou
User avatar
GiveMeABreak
(Donor 2016)
Posts: 42019
Joined: 15 Sep 2015, 19:38
x 6920

Re: Injector Clamp Torque Setting

Unread post by GiveMeABreak »

Here you go:

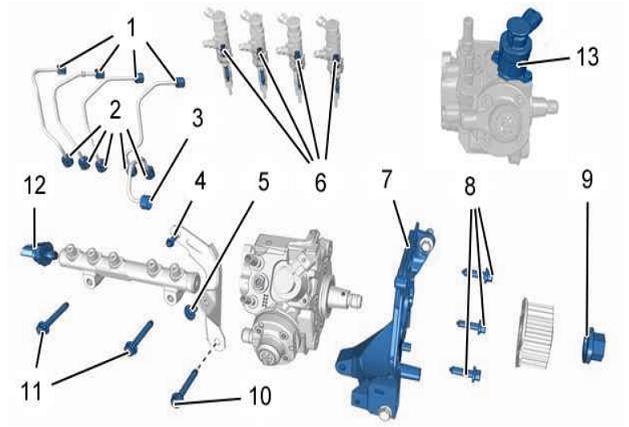

DV4C Torques.PNG
ReferenceDesignationStageTightening Torque
(1)Connections (Diesel Injector)Pre-Tighten2 Danm
(1)"Tightening2,5 Danm
(2)Connections (Fuel High Pressure Pipes / Fuel High Pressure Common Injection Rail)Pre-Tighten2 Danm
(2)"Tightening2,5 Danm
(3)Union (High-Pressure Fuel Pipe / Fuel High Pressure Pump)Pre-Tighten2 Danm
(3)"Tightening2,5 Danm
(4)Bolts (Fuel High Pressure Pump Rear Bracket)Tightening1 Danm
(5)Bolts (Fuel High Pressure Pump Rear Bracket)Tightening1 Danm
(6)Bolts (Diesel Injector Fixing Flange)Pre-Tighten0,7 Danm
(6)"Angular Tightening80°
(7)Bolts (Fuel High Pressure Pump Front Bracket)Tightening2 Danm
(8)Bolts (Fuel Injection Pump / Bracket )Tightening2 Danm
(9)Fuel Injection Pump Pulley NutTightening5 Danm
(10)Bolts (Fuel High Pressure Pump Rear Bracket)Tightening2 Danm
(11)Bolts (Fuel High Pressure Common Injection Rail / Engine Block)Tightening2 Danm
(12)Fuel High Pressure SensorTightening4,5 Danm
(13)Bolts (Fuel Pressure Regulator / Fuel High Pressure Pump)Pre-Tighten0,3 Danm
(13)"Tightening0,7 Danm
Please Don't PM Me For Technical Help

Marc
essa
Posts: 18
Joined: 08 Jul 2021, 08:49

Re: Injector Clamp Torque Setting

Unread post by essa »

thankyou very much @GiveMeABreak, so I guess its number 6 I'm looking at for the clamp bolts what 0.7 danm in nm? is that 7nm?
Last edited by essa on 14 Jul 2021, 09:00, edited 1 time in total.
Steve Walsh
Donor 2024
Posts: 671
Joined: 25 Oct 2019, 07:20
x 461

Re: Injector Clamp Torque Setting

Unread post by Steve Walsh »

7nm
5.6 ft/lb
61.9 in/lb
Thanx to all the admins & knowledgeable people that make this the best forum on the interweb. BUT COME BACK MARC , We miss you! =D> =D> =D>
essa
Posts: 18
Joined: 08 Jul 2021, 08:49

Re: Injector Clamp Torque Setting

Unread post by essa »

7nm + 80 degree thankyou
