Citroen relay fuel issue

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Stuwie93
Posts: 7
Joined: 28 Dec 2020, 14:45

Citroen relay fuel issue

Post by Stuwie93 »

Hi all.
I have a 2.2 2007 Citroen relay. Does anyone know where I can find a fuse/relay diagram?
I need to find the fuel pump relay and the only diagrams I can find don't match.
The fuse box under the bonnet has a diagram inside the box but where it says the relays should be there's nothing. The lid must be a generic part so my relays are located somewhere else.

User avatar
white exec
Moderating Team
Posts: 6421
Joined: 21 Dec 2015, 13:46
x 1086

Re: Citroen relay fuel issue

Post by white exec »

Hi, and welcome to the forum.
If you could post your VIN (which will appear masked, except to forum staff), it will help us post the correct diagrams.

Stuwie93
Posts: 7
Joined: 28 Dec 2020, 14:45

Re: Citroen relay fuel issue

Post by Stuwie93 »

VF7**************[VIN obfuscated, can be read by forum staff]. Thanks for the quick reply 👍

Stuwie93
Posts: 7
Joined: 28 Dec 2020, 14:45

Re: Citroen relay fuel issue

Post by Stuwie93 »

Does anyone know the location of the relay? I see there's one on the inside of the wing behind the headlight but other than that can't see any obvious ones

Online
wheeler
Posts: 4535
Joined: 21 Sep 2002, 19:07
x 190

Re: Citroen relay fuel issue

Post by wheeler »

whats the last 8 digits of the VIN?
It will be in the under bonnet fusebox behind the LH headlamp.
Relay T10
The last 8 digits of the VIN will confirm.
Attachments
relay box.jpg
Last edited by wheeler on 30 Dec 2020, 17:17, edited 1 time in total.

Stuwie93
Posts: 7
Joined: 28 Dec 2020, 14:45

Re: Citroen relay fuel issue

Post by Stuwie93 »

11087974 o okay. So it's just one of the smaller relays. I was expecting a big one on its own.

Online
wheeler
Posts: 4535
Joined: 21 Sep 2002, 19:07
x 190

Re: Citroen relay fuel issue

Post by wheeler »

I have updated the previous picture, the position is the same but it may be marked as either R7 or T10.
Attachments

Stuwie93
Posts: 7
Joined: 28 Dec 2020, 14:45

Re: Citroen relay fuel issue

Post by Stuwie93 »

Top stuff. Thank you so much

Stuwie93
Posts: 7
Joined: 28 Dec 2020, 14:45

Re: Citroen relay fuel issue

Post by Stuwie93 »

Do you have the full list. I've got it working but would like to make sure all the others are okay whilst I'm in there.

Stuwie93
Posts: 7
Joined: 28 Dec 2020, 14:45

Re: Citroen relay fuel issue

Post by Stuwie93 »

Could you tell me what R4/t17 is for? I've temporarily used the relay from there. Been for a drive and the van seems fine so either it's not important or something wasn't working before there either

Online
wheeler
Posts: 4535
Joined: 21 Sep 2002, 19:07
x 190

Re: Citroen relay fuel issue

Post by wheeler »

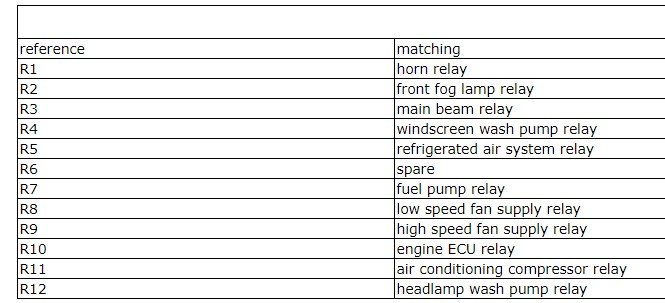

R1-R12 are on the last pic I posted.
