Vacuum solenoid, C5 car diesel. Correct hose locations

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

belaprops
Posts: 37
Joined: 05 Dec 2019, 23:20

Vacuum solenoid, C5 car diesel. Correct hose locations

Post by belaprops »

Hi All,

I'm desperate to solve a few problems of my C5, through here i found a few, but after spending good money on a new part it's still not right.

So I'm trying to find out what the physical hose connections are for the vacuum system, mainy the ERG solenoid.
The engine schematics show a 4 solenoid set up and tracing the hose is not possible. My C5 is a 3 solenoid setup

So my finding was that the ERG hose, which seems to have a green ring printed on the end was on the port which did not have the green rubber ring located, also the diameter of the hose was different than the vac hose which made it slip off easily.

So logic says the hoses were switched, but it could be the case that it did not follow the colour coding to be correct.

The pic shows the valve, and how I found it when I removed it.

I hope someone has a working engine and the right connections so I can get this solved so I can the solve the other errors I have on the car diagnostics

Many thankz
Last edited by GiveMeABreak on 22 May 2020, 17:30, edited 2 times in total.
Reason: Deleted the 2 duplicate images

User avatar
GiveMeABreak
Forum Admin Team
Posts: 19505
Joined: 15 Sep 2015, 19:38
x 1875

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by GiveMeABreak »

Here's the actual function:
DWCTED4 Solenoid Valve.PNG
(1) Proportional electrovalve.
"a" Vacuum inlet.
"b" Vacuum outlet.
"c" breather.
"d" 2-way black connector.

Make: BITRON/PIERBURG

The solenoid valve is a solenoid valve that is normally closed.

User avatar
KennyW
donor 2020
Posts: 1858
Joined: 17 Jan 2006, 22:22
x 35

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by KennyW »

Here is the diagram from service citroen which I have saved prior to the changes

EGR vacuum circuit.jpg
It shows the vaccum pipes and where they fit on the solenoid valves.

Kenny

belaprops
Posts: 37
Joined: 05 Dec 2019, 23:20

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by belaprops »

Thanks Kenny !!

belaprops
Posts: 37
Joined: 05 Dec 2019, 23:20

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by belaprops »

Solving the vacuum hoses has now given me another problem,
There is an oily substance coming from the hose connecting the exhaust cooler to the EGR manifold,
Any suggestion to fault find this or shall I put a new post for this.

User avatar
KennyW
donor 2020
Posts: 1858
Joined: 17 Jan 2006, 22:22
x 35

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by KennyW »

Is that hose showing a little oil or is it blocked?

Kenny

belaprops
Posts: 37
Joined: 05 Dec 2019, 23:20

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by belaprops »

I can't find any blockage, other than the mechanical valve in the manifold.
I just removed the lower hose under the engine and a pool of ..I presume oil ... ran out.

So some where after the plastic ducting goes up in the engine it's adding oil to the exhaust return.

User avatar
KennyW
donor 2020
Posts: 1858
Joined: 17 Jan 2006, 22:22
x 35

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by KennyW »

Okay, I'm trying to figure which hose you are referring to.

Kenny

belaprops
Posts: 37
Joined: 05 Dec 2019, 23:20

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by belaprops »

Sorry, I wish I could use the tech term.
The 2 inch hose which runs from the EGR manifold (in reverse) then connected to the small radiator which I guess cools the exhaust, then on the bottom off the radiator goes onto a plastic pipe which then connects with a small rubber house to a metal pipe going up again.
The bottom hose had a pool of oil in it, which then found it's way up to the EGR valve, but it seeped Thru the to connection of the radiator, probably of the pressure when the EGR valve was close.

So that's what happened when I replaced the EGR control solenoid and connected the vacuum hoses correctly.

It's seems the previous owners did not look after the engine very well. But am determined to get it back perfect.

User avatar
KennyW
donor 2020
Posts: 1858
Joined: 17 Jan 2006, 22:22
x 35

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by KennyW »

If you could photograph the pipe concerned as I still can't understand which hose you refer to.

There are several hoses in and around the EGR valve.

belaprops
Posts: 37
Joined: 05 Dec 2019, 23:20

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by belaprops »

I will do that, thanks for the support. First thing in the morning.

Cheers

belaprops
Posts: 37
Joined: 05 Dec 2019, 23:20

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by belaprops »

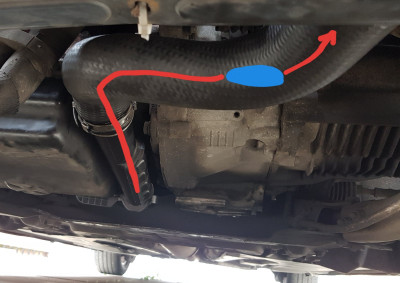

Here are the photo to illustrate the fault. The blue illustrate where the oil was finding it way out and where I found a pool of oil in the hose.
I might have the terminology incorrect.
Attachments

User avatar
KennyW
donor 2020
Posts: 1858
Joined: 17 Jan 2006, 22:22
x 35

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by KennyW »

Bela,

Okay I know the hose you refer to, these are the turbo air hoses.
Turbo air piping.jpg
Now I believe you can get a little oil here, some of the other guys and gals will be able to confirm or not.

Kenny

belaprops
Posts: 37
Joined: 05 Dec 2019, 23:20

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by belaprops »

Thanks Kenny,
Hose 3 does not exists on my engine , both ends are blanked off as per original design

So if understand correctly, the turbo is pushing air from the air filter into the manifold , part 7,
So where is it getting oil from, the error codes are saying something is wrong in this system.
Maybe some one can guide me towards finding this, I'm desperate to get this engine tip top again.

If hose 3 is a bypass of the heat exchanger, then the error code P14A4, confirming the bypass is jammed shut makes me believe the system is unaware of the setup.

I'm not sure that the LIN error communication with a node of the alternator network has something to do with.

The codes are the latest from the FAPlite app .
Attachments

User avatar
GiveMeABreak
Forum Admin Team
Posts: 19505
Joined: 15 Sep 2015, 19:38
x 1875

Re: Vacuum solenoid, C5 car diesel. Correct hose locations

Post by GiveMeABreak »

Here's a few more descriptors for some of those codes:

U1401: Alternator LIN network - recording the a fault on a slave node of the LIN network. Meaning there is a communication fault between ECUs detected for 3 secs.

Downgrade Modes whilst fault active:
  • Reversible deactivation of the vehicle speed limiter
  • Reversible deactivation of the vehicle cruise control
  • Reversible deactivation of the vehicle speed curbing
The battery warning light should be on with this fault on the dash.

Symptoms: Engine hesitating, cutting out, Starting problem, Lack of power

Suspect Area: Engine ECU

P0A1A: Alternator: Alternator communication fault. Alternator communication fault detected.

Again, battery warning light should be lit on dash.

Symptoms: Engine hesitating, cutting out, Starting problem

Suspect Areas: Alternator, Engine ECU.

P14A4: EGR exchanger by-pass: Confirmed locked shut (R.H. side) - Closed position of the EGR exchanger by-pass switch not reached after 4 seconds even though the control is below 5 %.

Whilst the fault is active, the by-pass of the EGR gasses is in operation.

Conditions for disappearance of the fault: Driving for 5 minutes from a cold engine, until the coolant temperature reaches 80°C.

Symptoms: None obvious.

Suspect Areas:
  • EGR exchanger bypass - By-pass locked shut - Electrical harness
  • EGR exchanger bypass control solenoid valve: Failure of the solenoid valve - Electrical harness
  • EGR exchanger bypass position repeat: Electrical harness
  • Vacuum circuit
P129F: Air circuit: Quantity of fresh air above the reference value (APV). The measured air flow is greater than the reference by more than 80 mg/stroke for 8 seconds.

Symptoms:
  • Diesel fuel consumption a bit higher
  • Fluid leak / Smells
  • Engine overheating with illumination of the engine coolant temperature indicator light
  • Noise
  • Engine hesitating, cutting out
  • Lack of power
Suspect Areas: atmospheric pressure sensor
  • Air flow meter
  • Air mixer
  • Turbocharger air cooler
  • The variable geometry of the turbocharger is locked ; Turbocharger discharge insufficient
  • Turbocharger solenoid valve
  • Position indicator of the turbocharger
  • Exhaust gas recycling valve
  • Electric EGR valve position copy sensor
  • EGR exchanger bypass
  • Exhaust gas recirculation line
  • Electrical harnesses
