Citroen C5 2009 EGR valve

Post by Sufii »

Hi
My car is making extremely loud noise from the exhaust and have lost all power. Mechanic told me that the EGR valve which is broken.
Someone know or can explain how to change this one? Don’t even know where it’s located.

Citroen c5 1,6 Diesel engine.

User avatar
GiveMeABreak
Forum Admin Team
Posts: 20409
Joined: 15 Sep 2015, 19:38
x 2018

Re: Citroen C5 2009 EGR valve

Post by GiveMeABreak »

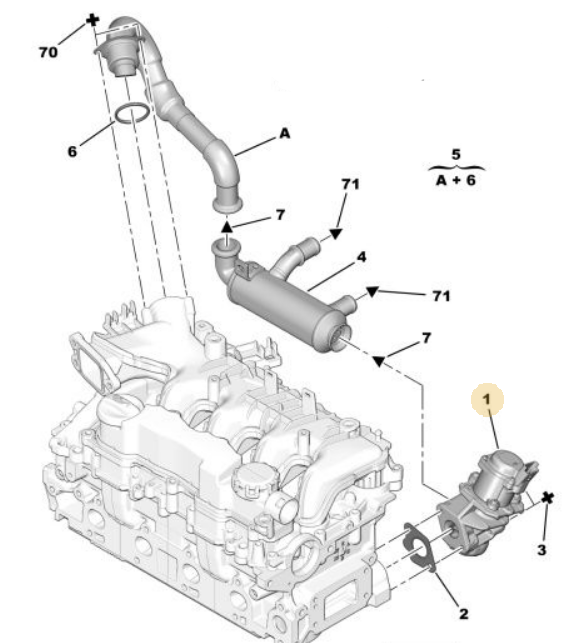

This is the location on your engine, item (1):
X7 16 EGR.PNG
I'll put a guide up shortly.

User avatar
GiveMeABreak
Forum Admin Team
Posts: 20409
Joined: 15 Sep 2015, 19:38
x 2018

Re: Citroen C5 2009 EGR valve

Post by GiveMeABreak »

Remove the engine cover.
Disconnect the battery. (BSI Reset / Battery Disconnect / Reconnect Procedure)

Remove:
  • The upper integrated air intake system
  • The fuel filter (/)
  • The fuel filter support
Your model has the heat exchanger.
Sufii B.PNG
Sufii C.PNG
Remove:
  • The fixing (7)
  • The clic clips (6), using circlip pliers
Release: The exhaust gas recycling heat exchanger (Without opening the cooling system) .
Remove: The air filter housing support .
Disconnect the connector ( as "a").
Remove:
  • The 2 bolts (9)
  • The exhaust gas recirculation solenoid valve (8)
Refitting
Note: At refitting, all the removed seals must be replaced with new seals. Use clips with screws (Specific to Service). Ensure that there are no foreign bodies in the intake circuit.

Check: The union of the turbocharger air inlet .
Always replace:
  • The metal seal
  • The clic clips (6)
Refit:
  • The exhaust gas recirculation solenoid valve (8)
  • The 2 bolts (9), tighten to 1 ± 0,1 daN.m
Reconnect the connector (at "a").

Refit:
  • The air filter housing support
  • The exhaust gas recycling heat exchanger
  • The clic clips (6) (new)
  • The fixing (7)
Refit:
  • The fuel filter support, tighten to 0,8 ± 0,1 daN.m
  • The fuel filter (/)
  • The upper integrated air intake system
Reconnect the battery. (follow relevant section of procedure linked to above)
Refit the engine style cover.

Sufii
Posts: 81
Joined: 13 Nov 2018, 00:01
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

Is that possible to do all that only from the engine room? Without lifting the car up.

User avatar
GiveMeABreak
Forum Admin Team
Posts: 20409
Joined: 15 Sep 2015, 19:38
x 2018

Re: Citroen C5 2009 EGR valve

Post by GiveMeABreak »

Well you'll need to get to the back of the engine - but you shouldn't need to raise the car up.

User avatar
Timmo
Posts: 1257
Joined: 11 Jul 2011, 15:41
x 52

Re: Citroen C5 2009 EGR valve

Post by Timmo »

I had to do the egr on the good ladies partner 1.6hdi, hers like yours, lost all power and got LOUD, turned out to have jammed closed and blown the core plug off the bottom,
Typical on modern engines that to do the job, quite a few other bits need to be removed for access, but it is doable as the car sits, a little handier on the back ache if it's on a pair of ramps too, the 2 securing bolts have a fine thread and tiny bolt head, 8mm socket I seem to remember, you can get a bolted version of the sprung clamp used to secure the metal pipes to the egr, makes it a lot easier if like me you can never get those sprung clamps back on!

Sufii
Posts: 81
Joined: 13 Nov 2018, 00:01
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

Thanks for good explanation and help. I finally got it out, only needed to take of one clip. Going to Citroen tomorrow to buy new click clips and gasket.

But what is the part number of this part?

User avatar
Timmo
Posts: 1257
Joined: 11 Jul 2011, 15:41
x 52

Re: Citroen C5 2009 EGR valve

Post by Timmo »

16283J is the part number for the clamp I used,

Sufii
Posts: 81
Joined: 13 Nov 2018, 00:01
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

Not for the clamp, but the EGR valve?

Sufii
Posts: 81
Joined: 13 Nov 2018, 00:01
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

My engine code is 9hz

Sufii
Posts: 81
Joined: 13 Nov 2018, 00:01
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

Ok guys, changed the EGR valve, but now the engine has lost power and are very diffucult to start for some weird reason.
The part number on that EGR i removed was 9685640480 and I replaced it with 9672880080. Can someone please help me to get known with the differences?

And also, one of the pipes were unplugged from the fuel filter, and my father managed to crank the engine a few times. I tried to get the air from the fuel lines, but Im not sure if Im doing it right.
Pumping that pump in the engine, and then taking off that screw on the fuel filter. And repeating the same step.

User avatar
GiveMeABreak
Forum Admin Team
Posts: 20409
Joined: 15 Sep 2015, 19:38
x 2018

Re: Citroen C5 2009 EGR valve

Post by GiveMeABreak »

The EGR has to be the same type for your engine. I'll check your VIN and I'll tell you the correct one. Also, when you do get the right one and fit it, you will need to reset the auto adaptives using Diagbox.

Edit: Right, you need part number: 1618NR - I have checked with another supplier and
9672880080 is compatible. So go into Diagbox and the repair menu and tell the system you have replaced it.

Sufii
Posts: 81
Joined: 13 Nov 2018, 00:01
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

hmmm, for now I only have Deplhi diagnostic programme, Is it possible to download Diagbox for free?
And you think that after programming the new EGR, the car will behave normal?

User avatar
GiveMeABreak
Forum Admin Team
Posts: 20409
Joined: 15 Sep 2015, 19:38
x 2018

Re: Citroen C5 2009 EGR valve

Post by GiveMeABreak »

It won’t work without the VCI hardware.

Maybe your own diagnostic tool can do it, but I can’t help you with that system, but I do know it needs to be done or you will have issues.

Sufii
Posts: 81
Joined: 13 Nov 2018, 00:01
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

I’ve programmed the EGR but don’t think that is the problem.
I’ve tried to crank the engine while the fuel pipes to the filter were disconnected. Can it be caused air in the fuel lines because of that?
The fuel won’t reach even the fuel filter, I’ve tried that little pump in the engine.
