XUD 9 oil leak

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.

Moderator: RichardW

User avatar
boxerbean
Posts: 44
Joined: 04 Aug 2017, 11:45
x 7

XUD 9 oil leak

Post by boxerbean » 27 Apr 2018, 20:42

She's a squirter!

Weeping oil in the area behind the fuel pump, cleaned it off for a better look, here's the pic I took after a couple of minutes idling.
Any suggestions of possible cause/remedy appreciated.

Thanks.

User avatar
CitroJim
A very naughty boy
Posts: 41564
Joined: 30 Apr 2005, 23:33
x 1052

Re: XUD 9 oil leak

Post by CitroJim » 28 Apr 2018, 05:17

There is an oil gallery right by there so it could be a failure of the head gasket causing it... It's not common but I have seen it once before...

Just before you condemn the gasket though, slip off the cambelt covers and check the camshaft oil seal is good and the oil is not coming from these and creeping down and exiting where you see it...

User avatar
white exec
Moderating Team
Posts: 4692
Joined: 21 Dec 2015, 13:46
x 630

Re: XUD 9 oil leak

Post by white exec » 28 Apr 2018, 08:05

IIRC, there's an O-ring sitting in the head gasket, right in that corner. It's the high-pressure oilway that takes oil to the camshaft and valvegear. As the HG ages, the O-ring can bake hard and go leaky.

Overheating of the cylinder head doesn't help, which is why coolant level and thorough bleeding are important, to eliminate air pockets (=hotspots) in the head.

If removing the head, get it checked for flatness before refitting.

User avatar
boxerbean
Posts: 44
Joined: 04 Aug 2017, 11:45
x 7

Re: XUD 9 oil leak

Post by boxerbean » 28 Apr 2018, 08:54

Urgh, I have a feeling the guys who fitted the engine overheated it - would explain my leaking heater matrix. Better have another cuppa before I go and have a look under the cam cover.

User avatar
Pug_XUD_KeenAmateur
donor 2018
Posts: 1067
Joined: 22 Apr 2013, 17:24
x 144

Re: XUD 9 oil leak

Post by Pug_XUD_KeenAmateur » 28 Apr 2018, 10:32

the structure of the vehicle itself to the left of the second (Overview) pic looks somewhat less than pretty. Just a mention to make sure the van's structurally sound before potentially chucking loads of money at it.

RichardW
Forum Treasurer
Posts: 8920
Joined: 07 Aug 2002, 17:12
x 315

Re: XUD 9 oil leak

Post by RichardW » 28 Apr 2018, 10:38

Head gasket, almost certainly 😣
Leak from there was the end of my first Xantia TD.

User avatar
boxerbean
Posts: 44
Joined: 04 Aug 2017, 11:45
x 7

Re: XUD 9 oil leak

Post by boxerbean » 28 Apr 2018, 10:49

Just removed the cambelt cover, camshaft oil seal is fine. looks like the head gasket. :(

Keen amateur, thanks for pointing that out, it's the van in my profile pic, I've been working my way around the numerous faults and on a bit of a learning curve to say the least - even old campers go for daft money so I'm sorta stuck with it.

If anyone lives near Brampton and likes swearing you're welcome to come and fix the head for me!

User avatar
CitroJim
A very naughty boy
Posts: 41564
Joined: 30 Apr 2005, 23:33
x 1052

Re: XUD 9 oil leak

Post by CitroJim » 28 Apr 2018, 12:05

boxerbean wrote:
28 Apr 2018, 10:49
If anyone lives near Brampton and likes swearing you're welcome to come and fix the head for me!


Swearing definitely improves the outcome of the job ;)

RichardW
Forum Treasurer
Posts: 8920
Joined: 07 Aug 2002, 17:12
x 315

Re: XUD 9 oil leak

Post by RichardW » 28 Apr 2018, 13:40

It's not such a bad job... hardest bit is that access to the inlet manifold bolts is nigh on impossible (or at least it is on an engine set up for overhead intercooler) - and this means removing the head complete with the turbo - which is very heavy. I did it on my own on a BX TD, but I would either use 2 people or preferably a hoist of some sort if I was doing it again. If you're not in any rush 2 or 3 evenings to lift the head, a light skim, 2 or 3 evenings to put it back together.

User avatar
boxerbean
Posts: 44
Joined: 04 Aug 2017, 11:45
x 7

Re: XUD 9 oil leak

Post by boxerbean » 28 Apr 2018, 13:52

I'm going to have a go at it, thought there might be a thread on here of someone doing one so I could just join the dots.

User avatar
CitroJim
A very naughty boy
Posts: 41564
Joined: 30 Apr 2005, 23:33
x 1052

Re: XUD 9 oil leak

Post by CitroJim » 28 Apr 2018, 14:15

There is and plenty of experience of the job on here... Just go ahead and ask any questions you like ;)

User avatar
boxerbean
Posts: 44
Joined: 04 Aug 2017, 11:45
x 7

Re: XUD 9 oil leak

Post by boxerbean » 28 Apr 2018, 19:39

Ok, how do I remove the exhaust manifold studs?
😁

MikeT
Posts: 4838
Joined: 11 Jun 2007, 16:17
x 185

Re: XUD 9 oil leak

Post by MikeT » 28 Apr 2018, 20:34

Locknut two nuts on the end of the studs and undo with spanner

ekjdm14
donor 2018
Posts: 1621
Joined: 19 Jan 2015, 18:42
x 164

Re: XUD 9 oil leak

Post by ekjdm14 » 29 Apr 2018, 12:56

Just a note that you'd be well advised to use new head bolts on reassembly, not essential according to the BoL but with White's engine I got a set of Elring ones for £20 and it seemed rude not to at that price... Also used an Elring steel head gasket that was £14 since it's a known good brand & does away with any silicone/Viton O-rings too. (make sure to either fit a gasket with the same number of notches as original, or better still measure piston protrusion to ascertain the thickness needed).

User avatar
boxerbean
Posts: 44
Joined: 04 Aug 2017, 11:45
x 7

Re: XUD 9 oil leak

Post by boxerbean » 29 Apr 2018, 14:36

Thanks for the advice everyone.

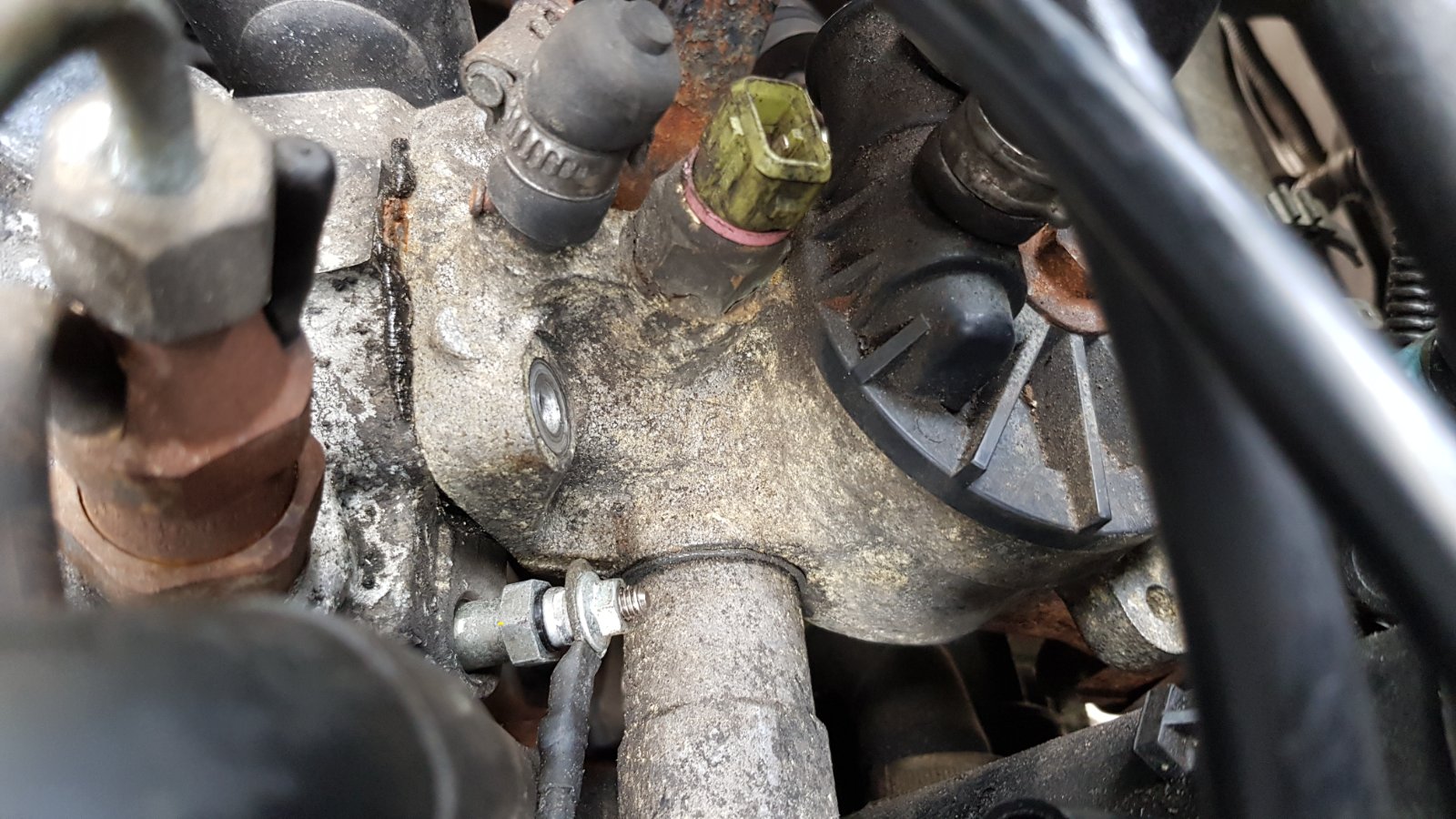

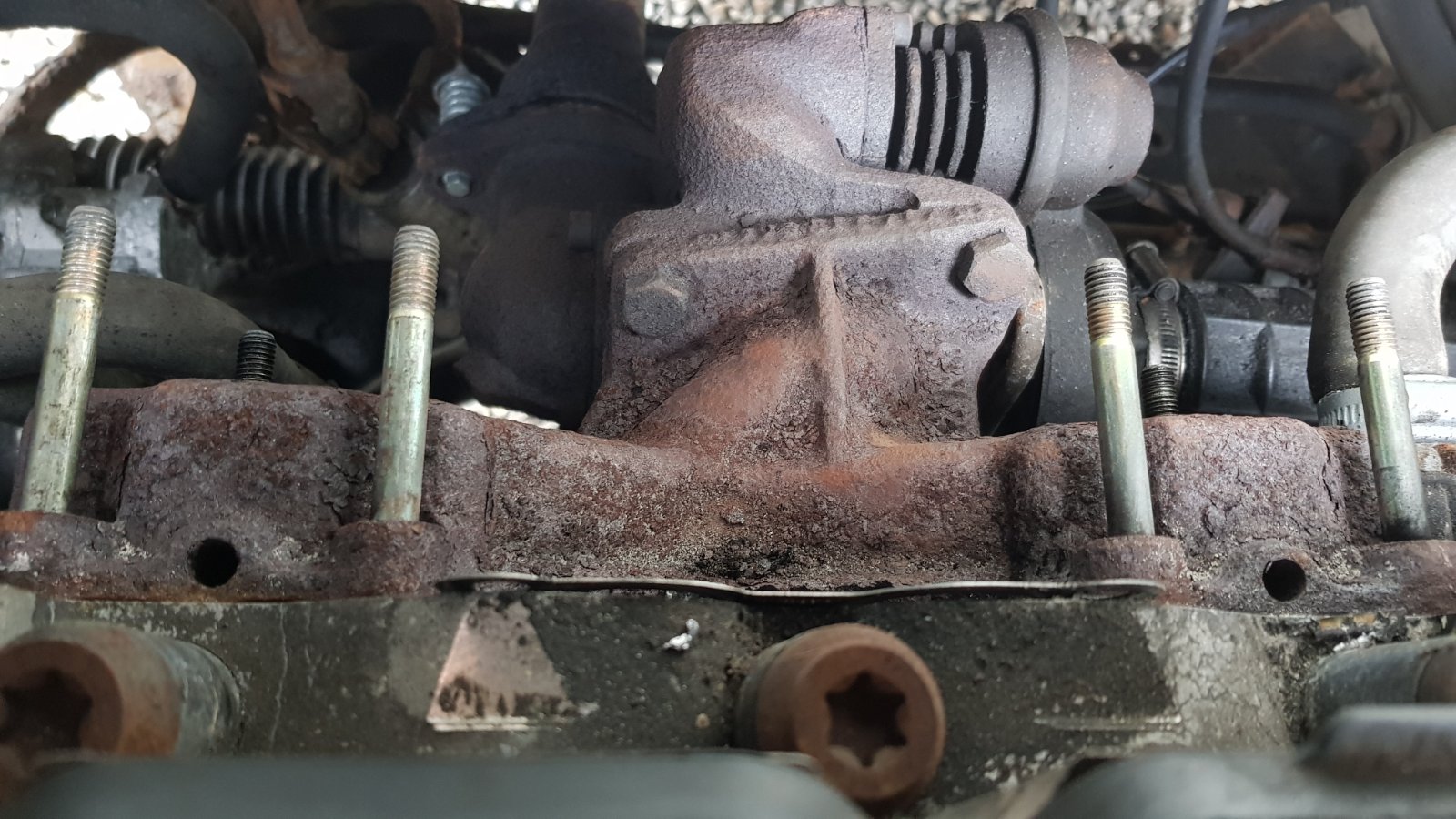

Struggling to remove this, thermostat housing?

Removed 2 6mm Allen bolts it rocks but won't pull out, is it a case of pull harder or am I missing something?
