Thanks marc, sorry aswellGiveMeABreak wrote: ↑29 May 2022, 15:18 I've merged all these topics together as it was becoming messy.
@Husky - please keep all the stereo-related issues in this topic, thanks
Refitting 206cc car cd stereo thing !
Moderator: RichardW
- Huskyxantia
- Donor 2023
- Posts: 2039
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Refitting 206cc car cd stereo thing !
Husky.
- Huskyxantia
- Donor 2023
- Posts: 2039
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Refitting 206cc car cd stereo thing !
Cheers, then when there identified i can locate them to correct pinswheeler wrote: ↑29 May 2022, 10:48I updated this a bit on the parts request thread, PSA dont prioritise wire colours but use the codes printed on the wire for identification.Huskyxantia wrote: ↑29 May 2022, 09:16 Anyone know color wire to which pin , im not finding much on my searches.
You can see some already in the pictures, BE10C for example is the battery live. Identify the codes on the wires then we can work out what goes where.
Husky.
- Huskyxantia
- Donor 2023
- Posts: 2039
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Refitting 206cc car cd stereo thing !
Looks a bit different to minexantia_v6 wrote: ↑29 May 2022, 10:59 You may find this helpful
https://images.app.goo.gl/2GD5knAUobTUQUcVA
Husky.
- Huskyxantia
- Donor 2023
- Posts: 2039
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Refitting 206cc car cd stereo thing !

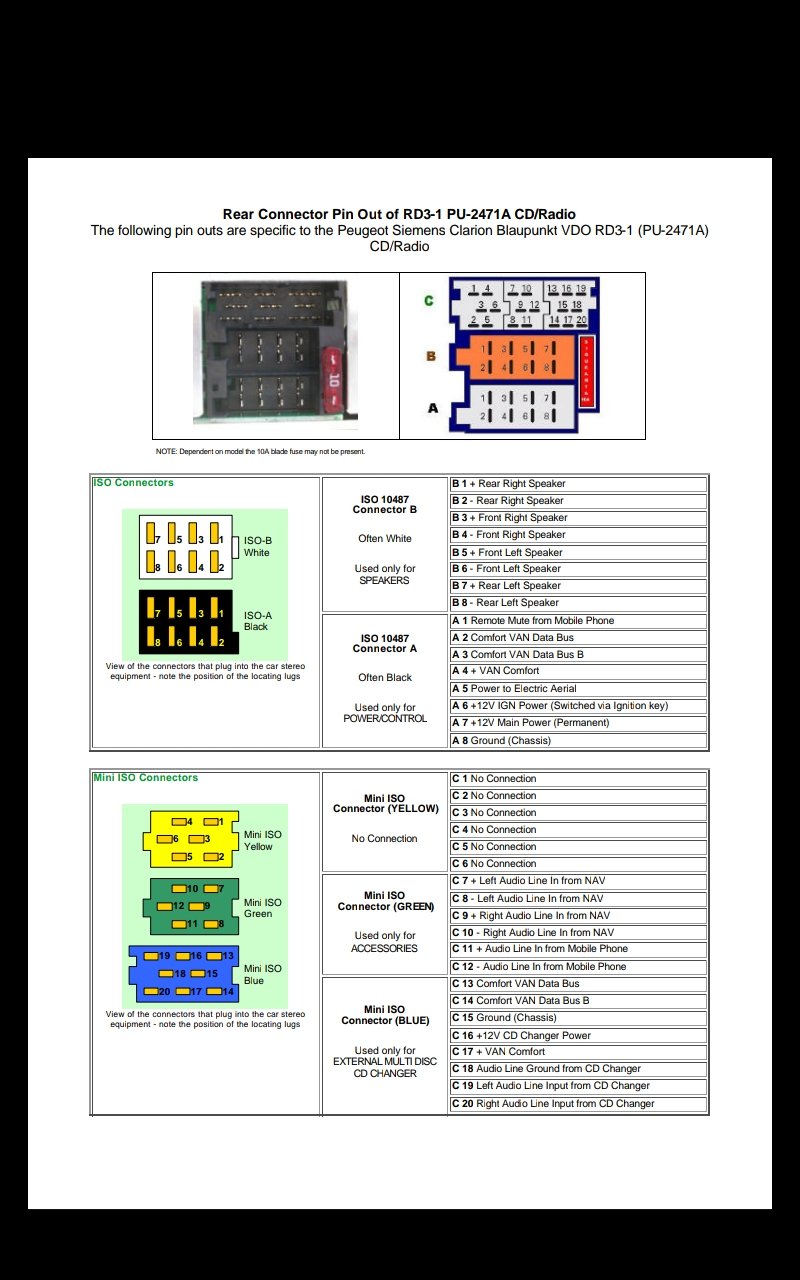

Searching around ive found this, looks like it maybe mine im not sure.
Rd3 1 unit is rd3 01 the same ? Mines pu2859a,c
This attachment says pu2471a .. this is doing my head in big time is the pu numbers for car and is the rd numbers for the systems ? Now to find color of car loom to iso pin e.g red pin number 1 , black pin number 5 and so on , while im in the car now pulling my hair out .
Rd3 1 unit is rd3 01 the same ? Mines pu2859a,c
This attachment says pu2471a .. this is doing my head in big time is the pu numbers for car and is the rd numbers for the systems ? Now to find color of car loom to iso pin e.g red pin number 1 , black pin number 5 and so on , while im in the car now pulling my hair out .
Husky.
- GiveMeABreak
- Forum Admin Team
- Posts: 37302
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5712
Re: Refitting 206cc car cd stereo thing !
Your 'RD3' is the PSA designation for the Head unit.
Bear in mind you are pulling off generic stuff from the internet that may not be applicable - especially as on your vehicle you have the HiFi amplifier fitted, therefore the connections from the head unit go to the AMP as per my official diagram and then on to the speakers.
Colours may not be the same as PSA wiring colours change. You need to focus on the PIN numbers at the connections and their designations and not the colours.
I've just seen your pics above and as you can see the wiring codes are printed on the insulation sleeving. This will confirm the wiring codes on my diagram. So in one of the pictures of the red wires it shows '8454' which corresponds to '8454 : Ampli + switch command' as shown.
Bear in mind you are pulling off generic stuff from the internet that may not be applicable - especially as on your vehicle you have the HiFi amplifier fitted, therefore the connections from the head unit go to the AMP as per my official diagram and then on to the speakers.
Colours may not be the same as PSA wiring colours change. You need to focus on the PIN numbers at the connections and their designations and not the colours.
I've just seen your pics above and as you can see the wiring codes are printed on the insulation sleeving. This will confirm the wiring codes on my diagram. So in one of the pictures of the red wires it shows '8454' which corresponds to '8454 : Ampli + switch command' as shown.
Please Don't PM Me For Technical Help
Marc
Marc
- Huskyxantia
- Donor 2023
- Posts: 2039
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Refitting 206cc car cd stereo thing !
I know only BE10C as wheeler posted is battery live how do i find what the other codes on the wires do ?
Ok rechecked the wire codes & as follows
BE11A WHITE
XE24*D BLUE
CE18*D GREEN
MC30R GREEN/YELLOW
8454D 64AO RED
I have now found a yellow and an orange wire in the speaker loom taped off see attached photo, codes are what looks like as follows 6002 orange wire.
Ecce yellow wire
Ok rechecked the wire codes & as follows
BE11A WHITE
XE24*D BLUE
CE18*D GREEN
MC30R GREEN/YELLOW
8454D 64AO RED

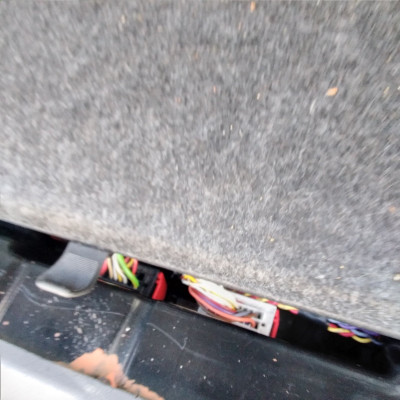

I have now found a yellow and an orange wire in the speaker loom taped off see attached photo, codes are what looks like as follows 6002 orange wire.
Ecce yellow wire
Last edited by Huskyxantia on 30 May 2022, 16:50, edited 1 time in total.
Husky.
- GiveMeABreak
- Forum Admin Team
- Posts: 37302
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5712
Re: Refitting 206cc car cd stereo thing !
Please Don't PM Me For Technical Help
Marc
Marc
- Huskyxantia
- Donor 2023
- Posts: 2039
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Refitting 206cc car cd stereo thing !
Pin 6 if im right on my diagram is 8454 ignition live ?
Husky.
- GiveMeABreak
- Forum Admin Team
- Posts: 37302
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5712
Re: Refitting 206cc car cd stereo thing !
Can we confirm you are working with the Head Unit and also the equaliser Amplifier first of all as these 2 are linked together.
The speaker outputs from the head unit (8 pin white connector) go to the amp (16 pin black connector) and from there to the speakers.
In addition, the amplifier has the battery positive on pin 9 and the earth on pin 16 (This will be the 16 pin black connector on the amplifier).
8454 on pin 7 of the same connector on the amp is the switched positive. So this is the ignition positive that is connected to pin 5 of the audio head unit 8 pin black connector.
The speaker outputs from the head unit (8 pin white connector) go to the amp (16 pin black connector) and from there to the speakers.
In addition, the amplifier has the battery positive on pin 9 and the earth on pin 16 (This will be the 16 pin black connector on the amplifier).
8454 on pin 7 of the same connector on the amp is the switched positive. So this is the ignition positive that is connected to pin 5 of the audio head unit 8 pin black connector.
Please Don't PM Me For Technical Help
Marc
Marc
- Huskyxantia
- Donor 2023
- Posts: 2039
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Refitting 206cc car cd stereo thing !
Yes i believe so, ive fitted the rear speaker box as that was ripped out and its been wired back up was easy as the old sockets were there to use. The head unit arrived a few days ago so im hoping to get it up and running so the car is original.
Husky.
Re: Refitting 206cc car cd stereo thing !
OK I dont have a stereo diagram for your specific car but just had a look at a late Xsara model which should be very similar & also seems to tie up with that RD3 diagram you posted although all terminals may not be used on every model.
you should have
battery live this wire code identifier should start with a B. pin 7
your VAN+ supply that goes live when the network is awake. pin 4
Data & Data B wires, these wire codes should start with a 9 7 are normally a twisted pair. pins 2 & 3
Earth wire starts with MC. pin 8
amp switch on wire 8454 (listed as electric aerial output on your picture) Pin 5 (not this will normally be powered from the stereo itself & probably not an ignition live so you may not see any power on this wire till the radio is plugged in)
there will likely be no true ignition live at your radio as its switched on via the multiplex network, this is part of the reason why some people can have issues installing aftermarket radios & the VAN+ (pin 4) wire often gets mistaken for an ignition live.
you should have
battery live this wire code identifier should start with a B. pin 7
your VAN+ supply that goes live when the network is awake. pin 4
Data & Data B wires, these wire codes should start with a 9 7 are normally a twisted pair. pins 2 & 3
Earth wire starts with MC. pin 8
amp switch on wire 8454 (listed as electric aerial output on your picture) Pin 5 (not this will normally be powered from the stereo itself & probably not an ignition live so you may not see any power on this wire till the radio is plugged in)
there will likely be no true ignition live at your radio as its switched on via the multiplex network, this is part of the reason why some people can have issues installing aftermarket radios & the VAN+ (pin 4) wire often gets mistaken for an ignition live.
- Huskyxantia
- Donor 2023
- Posts: 2039
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Refitting 206cc car cd stereo thing !
So in laymans terms as that comes from french i belive.
If i saw what wheeler said with a simple drawing i could follow that as to be very honest my IQ is just above that of a worn out road , if thats possible thanks and even more thanks .. Brain is numb !
If i saw what wheeler said with a simple drawing i could follow that as to be very honest my IQ is just above that of a worn out road , if thats possible thanks and even more thanks .. Brain is numb !
Husky.
- Huskyxantia
- Donor 2023
- Posts: 2039
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
- Huskyxantia
- Donor 2023
- Posts: 2039
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Refitting 206cc car cd stereo thing !
Wire codes and its color
Ok ive written down the complete string of text on each wire as to double check and the attached are my findings..
Sorry im a pain but my understanding is poor
Ok ive written down the complete string of text on each wire as to double check and the attached are my findings..
Sorry im a pain but my understanding is poor
Husky.
- Huskyxantia
- Donor 2023
- Posts: 2039
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
