C4 Picasso 2017 Hot Air Only on Driver Side

Post by chrisnasulea »

Hi everyone,

I'm very happy to have found this forum! I seem to be having the same problem Janko was describing in this post: viewtopic.php?t=64206
With the heating turned all the way up on both sides I only get hot air on the driver's side. On the passenger's side the air coming in feels like outside air - cold, winter air.

So, I assume the heater matrix is all clogged up and needs replacing. Can you please help me with a suitable part number for my VIN: VF7**************[VIN obfuscated, can be read by forum staff]

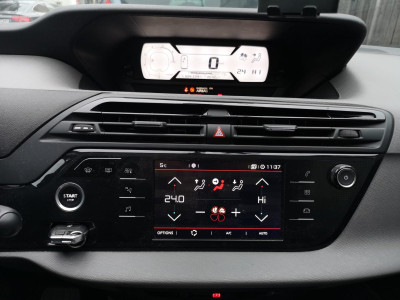

I'm also including two pictures of the dashboard as I've seen Picassos with very different layouts on YouTube.

Thank you,

Chris
Attachments
WhatsApp Image 2022-01-10 at 12.05.18 PM (2).jpeg
WhatsApp Image 2022-01-10 at 12.05.18 PM (1).jpeg
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by Hell Razor5543 »

Hi, and :welc: to the forum. It is likely that a flap control has failed for some reason. It looks like your C4P has dual zone climate control. There are flaps that manage the air flow for each side, and if the 'heat' flap stops working on one side that side can no longer adjust the air temperature. It is very unlikely the heater matrix is blocked, as it is used to provide the initial heat for both sides.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by GiveMeABreak »

This vehicle does NOT have dual zone A/C. It is simply regulated for the whole vehicle, hence why there is only one heating control on the touch screen.

The heater matrix can become blocked on one side which can cause this, or it may well be the air mixing or air distribution. Before you go any further, it may well be worth getting a diagnostic first to determine the causes or at least try and rule out the electrical issue.
Please Don't PM Me For Technical Help

Marc
RichardW
Forum Treasurer
Posts: 10814
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by RichardW »

GiveMeABreak wrote: 10 Jan 2022, 13:14 This vehicle does NOT have dual zone A/C. It is simply regulated for the whole vehicle, hence why there is only one heating control on the touch screen.
It does... see the first photo where there are separate temperature scales on the left and right of the screen.
Richard W
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by GiveMeABreak »

I think I had 2 other vehicles on servicebox :roll: and it hadn't cleared the previous one, so yes, I stand corrected James, post amended, thanks Richard.
Please Don't PM Me For Technical Help

Marc
RichardW
Forum Treasurer
Posts: 10814
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by RichardW »

It might not have separate for the rear, but the front definitely is
Richard W
chrisnasulea
(Donor 2022)
Posts: 7
Joined: 10 Jan 2022, 09:55
Location: Romania
My Cars: Citroen C4 Picasso 2017
Citroen Berlingo 2010
Renault Megane 2004
x 1

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by chrisnasulea »

Thank you everyone for your input!

I am going to take the car to a friend's garage in the morning to hook it up to a tester and see if there's any information about failing servos or other electrical issues.

We're probably also going to search for the passenger side hot air flap to see what state it's in. If you have any suggestions as to where that flap might be it will be greatly appreciated. He may already know where to look but more info is always better than less info.

Thanks,

Chris
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by GiveMeABreak »

I'm afraid it's not that simple if you are going down that road Chris. The flaps are controlled by stepper motors (5) for both the air distribution and air mixing on each side. The 'flaps' are driven by the motors using control rods (14):
C4 Flaps.JPG
Getting to the main heater unit / evaporator is a fascia removal (dash out job). There are some components you may be able to get to by removing either side of the footwell panel trims.
Please Don't PM Me For Technical Help

Marc
chrisnasulea
(Donor 2022)
Posts: 7
Joined: 10 Jan 2022, 09:55
Location: Romania
My Cars: Citroen C4 Picasso 2017
Citroen Berlingo 2010
Renault Megane 2004
x 1

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by chrisnasulea »

It sounds expensive. :)

We won't be removing any dashboards tomorrow. I can't imagine the plastic surviving the procedure in our current sub-zero temperatures without access to a heated garage.

I'll come back here and post some updated info after we have a look at whatever error codes may be showing on the tester.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by GiveMeABreak »

The only downside to testing is that it can only show whether the flap motors are operating or not - I don't believe it can show if the flap is physically moving as that's a mechanical gearing issue. So although the motor spindles may be operating, that won't help if the spindle gears are worn.

When did you last have the coolant system drained and refilled? That may be worth looking at first and if there is a blockage in the heater core they can sometimes force it out via the matrix water pipes when flushing the system through. Worst case scenario is you end up with new coolant and a clean system. If that doesn't sort it then you can investigate further.
Please Don't PM Me For Technical Help

Marc
chrisnasulea
(Donor 2022)
Posts: 7
Joined: 10 Jan 2022, 09:55
Location: Romania
My Cars: Citroen C4 Picasso 2017
Citroen Berlingo 2010
Renault Megane 2004
x 1

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by chrisnasulea »

Hello again,

No error codes were found using the tester.

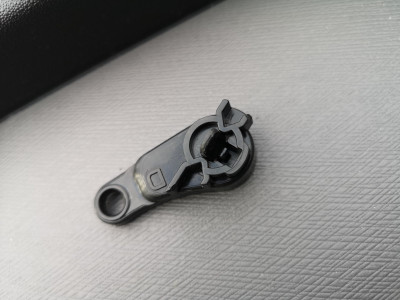

We opened the panels under the glove compartment and found a part had broken off from the heating unit. I've circled the place where it used to be attached in the 1st picture in red.
I've left the car at my friend's garage and he will try to improvise something to either reattach it or to at least force it to be stuck in the hot position instead of being stuck in the cold position.

Does anyone happen to have access to the instructions for the replacement of the heating unit?

Thanks,

Chris
User avatar
mickthemaverick
Donor 2024
Posts: 13523
Joined: 11 May 2019, 17:56
Location: Hertford
My Cars: 70+ former cars (list available) including 11 Citroens, 3 Renaults
Current cars: 2004 Subaru Legacy 2.5 SEn, 1994 Mazda MX3
x 6011

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by mickthemaverick »

Hi Chris,
You may find this video helpful from a similar vehicle :)

I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by GiveMeABreak »

@ Mick - Mick those are completely different systems to the C4 Picasso (B78). That 407 does not have the same mechanism at all :wink:

chrisnasulea wrote: 12 Jan 2022, 17:41 Hello again,

No error codes were found using the tester.

We opened the panels under the glove compartment and found a part had broken off from the heating unit. I've circled the place where it used to be attached in the 1st picture in red.

I've left the car at my friend's garage and he will try to improvise something to either reattach it or to at least force it to be stuck in the hot position instead of being stuck in the cold position.

Does anyone happen to have access to the instructions for the replacement of the heating unit?

Thanks,

Chris
It's a fascia off to get the heating unit out. Those control arms are on the diagram item (14) that I mentioned earlier.

Item (14) is the Air Conditioning Control Kit, part number: 9821297680, available from Citroen, priced (UK Sterling £112.64).
Please Don't PM Me For Technical Help

Marc
User avatar
mickthemaverick
Donor 2024
Posts: 13523
Joined: 11 May 2019, 17:56
Location: Hertford
My Cars: 70+ former cars (list available) including 11 Citroens, 3 Renaults
Current cars: 2004 Subaru Legacy 2.5 SEn, 1994 Mazda MX3
x 6011

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by mickthemaverick »

GiveMeABreak wrote: 12 Jan 2022, 18:21 @ Mick - Mick those are completely different systems to the C4 Picasso (B78). That 407 does not have the same mechanism at all :wink:

It's a fascia off to get the heating unit out. Those control arms are on the diagram item (14) that I mentioned earlier.

Item (14) is the Air Conditioning Control Kit, part number: 9821297680, available from Citroen, priced (UK Sterling £112.64).
Fair enough Marc, I thought there were similarities in the flap mechanisms which may have been helpful but obviously not!! I stand corrected! :)
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C4 Picasso 2017 Hot Air Only on Driver Side

Post by GiveMeABreak »

No worries, these Picasso ones are a bit more Carlos Fandango-designed with the long control arms that seem to be brittle by the looks of it.
Please Don't PM Me For Technical Help

Marc
