C4 Picasso 2015 (B78 plate) Heating problems
Moderator: RichardW
-
- Posts: 5
- Joined: 22 Dec 2019, 17:42
- Location: Slovenia
- My Cars: C4 Picasso 2015
- x 1
C4 Picasso 2015 (B78 plate) Heating problems
Hi everyone,
i have big problems with heating in my C4 picasso...when i set driver side to max and passenger side to max, hot air is coming only from driver's right side panel (let wheel car) in the middle panel there is almost none heating, and on the right side from both air vents there's cold air. Cold air also blow from both rear vents.
Any ideas what could problem be ?
thanks a lot
Janko
i have big problems with heating in my C4 picasso...when i set driver side to max and passenger side to max, hot air is coming only from driver's right side panel (let wheel car) in the middle panel there is almost none heating, and on the right side from both air vents there's cold air. Cold air also blow from both rear vents.
Any ideas what could problem be ?
thanks a lot
Janko
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: C4 Picasso 2015 (B78 plate) Heating problems
Hi Janko
You'll probably find that this is down to the air mixing flap motors. Depending on system fitted, there will be both air distribution and air mixing flaps. Sometimes the plastic cogs or the spindles wear out. So the motor turns the spindle to adjust the flaps, but where the plastic is worn, it just turns and can't move the flap - so the air mixing remains at the same setting (when engine warms up of course).
If you post your VIN up I can check the system you have fitted.
You'll probably find that this is down to the air mixing flap motors. Depending on system fitted, there will be both air distribution and air mixing flaps. Sometimes the plastic cogs or the spindles wear out. So the motor turns the spindle to adjust the flaps, but where the plastic is worn, it just turns and can't move the flap - so the air mixing remains at the same setting (when engine warms up of course).
If you post your VIN up I can check the system you have fitted.
Please Don't PM Me For Technical Help
Marc
Marc
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: C4 Picasso 2015 (B78 plate) Heating problems
I have your private message -

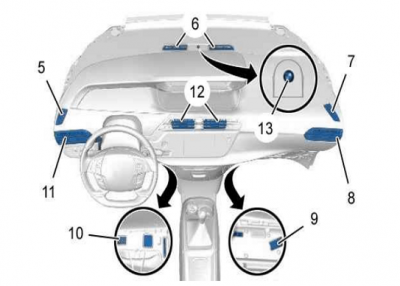

Have a look at this diagram and using the numbers, can you make it clear which vents are hot or cold when both left and right heating controls are set to hot temperature(when the car has warmed up of course).
This will help identify if it is the right or left mixer flap reduce that is likely to be faulty. Once I know this I will be able to put something together for you (possibly not today as we have guests):
Have a look at this diagram and using the numbers, can you make it clear which vents are hot or cold when both left and right heating controls are set to hot temperature(when the car has warmed up of course).
This will help identify if it is the right or left mixer flap reduce that is likely to be faulty. Once I know this I will be able to put something together for you (possibly not today as we have guests):
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 5
- Joined: 22 Dec 2019, 17:42
- Location: Slovenia
- My Cars: C4 Picasso 2015
- x 1
Re: C4 Picasso 2015 (B78 plate) Heating problems
Marc,
i'll write down marks with specific number tomorrow when i'll go back from work (car will be well warmed up) - today i won't use car anymore -
thanks a lot for your efforts
Janko
i'll write down marks with specific number tomorrow when i'll go back from work (car will be well warmed up) - today i won't use car anymore -
thanks a lot for your efforts
Janko
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: C4 Picasso 2015 (B78 plate) Heating problems
No worries. It may be the actual motor reduce unit itself - but you won't know whether the motor or the spindle until you get it out or into the area to test. Diagbox can test the actuators - but won't be able to check whether the spindle or gearing has snapped of course.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 5
- Joined: 22 Dec 2019, 17:42
- Location: Slovenia
- My Cars: C4 Picasso 2015
- x 1
Re: C4 Picasso 2015 (B78 plate) Heating problems
Marc (and others) hi..
today i checked the temperature coming out from vents and all i can say is,that only from vent number 11 above the air is properly heated (all setting left and right were applied to HIGH)..there is also some not so cold air coming from vent number 12 (on the left side - right side is cold as hell) and 10. Every other opening (also at the back) is giving very cold air (AC on or off no matter)
any suggestions what to check ? Maybe matrix heater or something like that ? Flaps,motor,etc
tnx
Janko from Slovenia
today i checked the temperature coming out from vents and all i can say is,that only from vent number 11 above the air is properly heated (all setting left and right were applied to HIGH)..there is also some not so cold air coming from vent number 12 (on the left side - right side is cold as hell) and 10. Every other opening (also at the back) is giving very cold air (AC on or off no matter)
any suggestions what to check ? Maybe matrix heater or something like that ? Flaps,motor,etc
tnx
Janko from Slovenia
-
- Posts: 5
- Joined: 22 Dec 2019, 17:42
- Location: Slovenia
- My Cars: C4 Picasso 2015
- x 1
Re: C4 Picasso 2015 (B78 plate) Heating problems
just update...today plastics were removed and all the flaps are ok - moving (thankfully) - motor is working ok,both hoses going to heater matrix are warm - so i and friend thought it might be Temperature sensor ? (when we rotate it a little bit,sometimes hot air is coming also from the right size,sometimes not..there is also other sensor on the matrix side - first one is this
http://www.easyautoparts.eu/en/sparepar ... 0100-denso
second one is this
https://www.ebay.co.uk/p/2014-CITROEN-G ... /646615541
worth checking ?
tnx
http://www.easyautoparts.eu/en/sparepar ... 0100-denso
second one is this
https://www.ebay.co.uk/p/2014-CITROEN-G ... /646615541
worth checking ?
tnx
-
- Posts: 5
- Joined: 22 Dec 2019, 17:42
- Location: Slovenia
- My Cars: C4 Picasso 2015
- x 1
Re: C4 Picasso 2015 (B78 plate) Heating problems
update...heater matrix was changed and everything is ok...cost - 150EUR
Re: C4 Picasso 2015 (B78 plate) Heating problems
Hi. I have the same problem with my heating. Both sides are setting to HIGH, but the hot air blowing from the passenger side only. Driver side and rear blowing could. Anyone can suggest me some idea? Thanks
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: C4 Picasso 2015 (B78 plate) Heating problems
This sounds like your air mixing motor control is faulty. If I understand you correctly, your fan speeds are working at all speeds low to high, but the heat is only coming from the left (passenger side), and cold at the right and rear?
Post your VIN up, so we can identify the correct mechanism for your C4 Picasso.
Post your VIN up, so we can identify the correct mechanism for your C4 Picasso.
Please Don't PM Me For Technical Help
Marc
Marc
Re: C4 Picasso 2015 (B78 plate) Heating problems
Right. I took off the plastic cover and looked the flaps at all modes from high to low and they are working(moving)
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: C4 Picasso 2015 (B78 plate) Heating problems
You misunderstand. Those are not what I'm talking about. There are (depending on options fitted) both air mixing and air distribution flaps that are for the most part electronically controlled by stepper motors and these are buried in the heating unit inside the dash, they are not on the fascia. That's why I need your VIN as there are different heating systems fitted, and that will tell me which system you have. I can't help you without this basic information.
Please Don't PM Me For Technical Help
Marc
Marc
Re: C4 Picasso 2015 (B78 plate) Heating problems
My vin
VF7**************[VIN obfuscated, can be read by forum staff]
Hopefully will help. Thanks
VF7**************[VIN obfuscated, can be read by forum staff]
Hopefully will help. Thanks
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: C4 Picasso 2015 (B78 plate) Heating problems

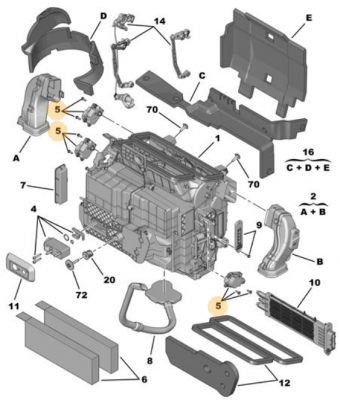

Ok, so the motors I referred to are items (5) in the diagram.
The one on the right, and the lower one of the 2 on the left are for the air mixing function of the heater. These mix the hot and cold air.
The one on the right, and the lower one of the 2 on the left are for the air mixing function of the heater. These mix the hot and cold air.
Please Don't PM Me For Technical Help
Marc
Marc
Re: C4 Picasso 2015 (B78 plate) Heating problems
Thanks for diagram. I will have a look tomorrow if they have any signs of life.
