noise from front Passenger side / failing GPS aerial

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
jgra1
(Donor 2021)
Posts: 4625
Joined: 27 Nov 2005, 19:07
Location: Kent / Susssex
My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong
x 39

noise from front Passenger side / failing GPS aerial

Post by jgra1 »

hi all :-D

sorry for the twin post!

In recent days my X7 2.0 Hdi has been making a noise from something under the passenger side headlight.. it's hard to describe but some kind of leak or electrovalve maybe? any idea what lies beneath? It happens at any time, and maybe contributing to economy mode but I am not sure..

Also, I noticed my GPS stopped reading elevation a few months ago, and now gets confused with my location - I presume the aerial or wiring is suspect, where is the GPS receiver itself?

thanks as always,
John
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: noise from front Passenger side / failing GPS aerial

Post by GiveMeABreak »

The GPS receiver is built into the NG4 John. But, before doing anything else regarding the GPS, make sure you have turned OFF the Synchronise Time with GPS setting as this was required on the Harman units to counter the GPS N Week Rollover bug, which can cause positioning issues.

Not Sure about the other issue, but electrovalve noises can be from the EGR valve doing the self-cleaning check / anti-stick strategy when the ignition is switched off.
Please Don't PM Me For Technical Help

Marc
jgra1
(Donor 2021)
Posts: 4625
Joined: 27 Nov 2005, 19:07
Location: Kent / Susssex
My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong
x 39

Re: noise from front Passenger side / failing GPS aerial

Post by jgra1 »

thanks Marc..

Sync is turned off now, wasn't until recently.. now it appears greyed out anyway... I hadnt really noticed this setting until a few weeks ago, i think that's when I turned it off (my time was also a bit all over the place! still is)

Noise def coming from under the headlight, I may have a closer look and see what's in there, will grab a video maybe too :) (unless you have one of your top diagrams showing what could be down there? :)
It really only started a couple of weeks ago, never heard this before from this part of car)
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: noise from front Passenger side / failing GPS aerial

Post by GiveMeABreak »

You don't have directional headlamps so won't have the dynamic headlamp corrector unit - so still may be one of the headlamp adjustment motors if you can't identify anything else and it's coming from under the headlamp.

At night, aim the vehicle if you can against a wall and turn the headlamps on and with engine running, try forcefully sitting in the boot a few times and keeping an eye on the headlamp correction to see if it is adjusting ok.
Please Don't PM Me For Technical Help

Marc
jgra1
(Donor 2021)
Posts: 4625
Joined: 27 Nov 2005, 19:07
Location: Kent / Susssex
My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong
x 39

Re: noise from front Passenger side / failing GPS aerial

Post by jgra1 »

hi all, after some time away from this, including last week out of the country, I have come back and the car is still making the noise :rofl2: it now sounds like a steam engine waiting at a platform, and can be heard from 50 meters..

I just removed the battery, and the noise continues.. I now know where it's coming from, a leak from a black box under Passenger headlamp, and next to the horn... I suspect it's an easy fix once I have removed it, access is tough though.

Marc, would you be so kind to grab a diagram showing its location/ID for me? - just curious really :-D

Below from another post Marc, sounds like the offending item... I can stop the noise if I wiggle harness?? but battery not even connected to car! are there Vac pipes going into it?

The Headlamp beam correction unit is either under the left hand light unit or under the battery housing (depending on engine).

halogen headlight corrector X7_zpsvibud734.png
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: noise from front Passenger side / failing GPS aerial

Post by GiveMeABreak »

Hi John - no, not an annual fee - Donor status remains, but is for up to 2 years.

This is the location, item (15).
C5 X7 John Head Lamp Corrector.PNG
I've put up the removal refitting guide for the headlamp correction unit in the Member's resources section, link below:


C5 X7 - Removing Refitting Halogen Beam Corrector Unit


Anything else, let me know.
Please Don't PM Me For Technical Help

Marc
jgra1
(Donor 2021)
Posts: 4625
Joined: 27 Nov 2005, 19:07
Location: Kent / Susssex
My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong
x 39

Re: noise from front Passenger side / failing GPS aerial

Post by jgra1 »

thanks Marc!

that doesn't look anything like my noisy part! I will try and take a pic..
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: noise from front Passenger side / failing GPS aerial

Post by GiveMeABreak »

Yes best to do that so I can see what I can see John.
Please Don't PM Me For Technical Help

Marc
jgra1
(Donor 2021)
Posts: 4625
Joined: 27 Nov 2005, 19:07
Location: Kent / Susssex
My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong
x 39

Re: noise from front Passenger side / failing GPS aerial

Post by jgra1 »

quite a large metal box with something inside, looks like 3 or 4 wires going in..


User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: noise from front Passenger side / failing GPS aerial

Post by GiveMeABreak »

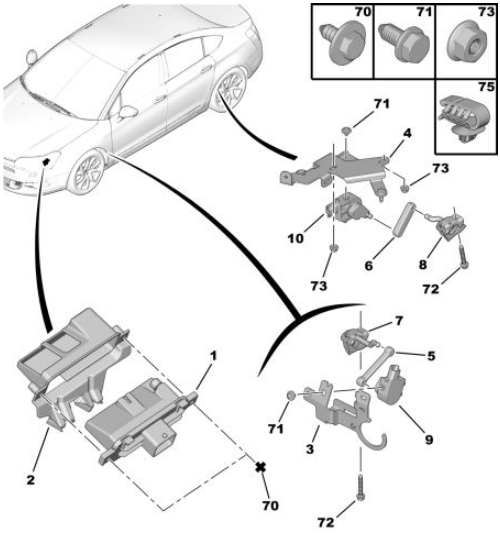

Ok, so this is the Dynamic Headlamp Beam Correction Unit and I should of realised that with Hydractive Suspension you will have this fitted. It will either be this unit that is either fitted under the battery or under the left headlamp depending on engine.
