What is this for?

Post by Romtag »

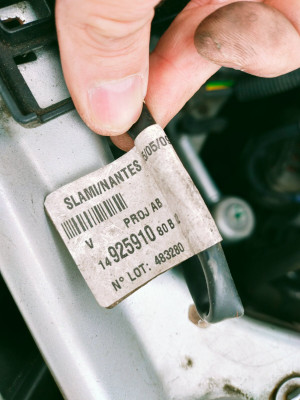

Whilst doing some maintenance on the 807 I came across two zipped tied wires at the front of the car.

I've attached pictures of coding for them in the hope that you lovely FCF boffins can tell me what they are.

Secretly hoping it's the plugs for the front parking sensors 🤔
Attachments
Mark
Owner of a 2013 308 SW
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: What is this for?

Post by GiveMeABreak »

Unfortunately not, those are the wiring connectors for the front fog lights.

See on the Diagram item (1) - this is the harness in your picture. Harness (2) below that is for the front obstacle detection.
Please Don't PM Me For Technical Help

Marc
Romtag
Donor 2023
Posts: 105
Joined: 07 Apr 2021, 21:01
Location: Tamworth
My Cars: Drives a 2013 308 SW
x 7

Re: What is this for?

Post by Romtag »

Thanks Marc!

I will have to get under the car to trace the wiring for the sensors then.

Thanks again 👍
Mark
Owner of a 2013 308 SW
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: What is this for?

Post by GiveMeABreak »

You may not have it - but it's a possibility - before they got tight!
Please Don't PM Me For Technical Help

Marc
Romtag
Donor 2023
Posts: 105
Joined: 07 Apr 2021, 21:01
Location: Tamworth
My Cars: Drives a 2013 308 SW
x 7

Re: What is this for?

Post by Romtag »

I have the sensors but they don't engage.. it's the nordwest model and I think you checked and said I should have them. The sensor ECU has both sets of wires (front and back) but they just don't work.. no errors either .... Annoying!
Mark
Owner of a 2013 308 SW
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: What is this for?

Post by GiveMeABreak »

Ah yes, of course, with so many issues I can't always remember on the spot :lol:

So my feelings (and apologies if I've said this before or you've already done this), are to check with PP2000 / Diagbox if the system has been disabled in the BSI. Some people have been known to do this if they don't want to replace a faulty sensor. If memory serves I think you already checked the loom out at the rear. I don't see it being a fuse as this 20A fuse also controls the Audio / Display / Alarm Sliding Door control unit etc.
Please Don't PM Me For Technical Help

Marc
Romtag
Donor 2023
Posts: 105
Joined: 07 Apr 2021, 21:01
Location: Tamworth
My Cars: Drives a 2013 308 SW
x 7

Re: What is this for?

Post by Romtag »

Yeah.. nearly £1200 into repairs and maintenance costs so far....

Including, new left wing mirror, new air-conditioning pipes, new coolant pipes, full service.

Had towbar fitted bit because of hacked wiring that's also been complicated to finish!

Where and what is the best route to go down with PP, I know I need hardware and software.

See lots of stuff on eBay and Ali Express but not comfortable without understanding more...
Mark
Owner of a 2013 308 SW
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: What is this for?

Post by GiveMeABreak »

I and many members bought mine from Easydiagnostics - link here for a member discount:

viewtopic.php?t=60112

You need a laptop yourself preferably with Windows 7 and it must be a 32 bit version of the operating system as PP2000 won't work on 64 bit operating systems natively.

The hardware is a VCI, that should be a good quality full chip revision C clone. The software is modified to work for us on the aftermarket so ins not sanctioned or officially available from PSA. If you do get one, update it to version 7.58 only and you should be fine.
Please Don't PM Me For Technical Help

Marc
wheeler
Posts: 6849
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 718

Re: What is this for?

Post by wheeler »

Are your reverse lights working as they should?
Romtag
Donor 2023
Posts: 105
Joined: 07 Apr 2021, 21:01
Location: Tamworth
My Cars: Drives a 2013 308 SW
x 7

Re: What is this for?

Post by Romtag »

wheeler wrote: 08 Jul 2021, 18:08 Are your reverse lights working as they should?
We'll, yesterday everything stopped working, but as the mechanic untangled it all they started working again. Why do you ask?
Mark
Owner of a 2013 308 SW
wheeler
Posts: 6849
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 718

Re: What is this for?

Post by wheeler »

The reverse light switch is used to trigger the parking sensors on, if the reverse lights are working ok this means the reverse switch is working.
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: What is this for?

Post by Hell Razor5543 »

The other thing the reverse switch can do is to tell the cabin ventilation system to switch over to recycle (from taking in outside air), so it does not draw in exhaust fumes as you reverse over them.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
Romtag
Donor 2023
Posts: 105
Joined: 07 Apr 2021, 21:01
Location: Tamworth
My Cars: Drives a 2013 308 SW
x 7

Re: What is this for?

Post by Romtag »

wheeler wrote: 08 Jul 2021, 20:23 The reverse light switch is used to trigger the parking sensors on, if the reverse lights are working ok this means the reverse switch is working.
Aaah yes the reverse parking sensor are fine, it's just the front ones.. to all extents the car doesn't see them.

I don't know anyone with PP locally so can't investigate further, other than checking the wiring loom.
Mark
Owner of a 2013 308 SW
Romtag
Donor 2023
Posts: 105
Joined: 07 Apr 2021, 21:01
Location: Tamworth
My Cars: Drives a 2013 308 SW
x 7

Re: What is this for?

Post by Romtag »

Hell Razor5543 wrote: 08 Jul 2021, 20:37 The other thing the reverse switch can do is to tell the cabin ventilation system to switch over to recycle (from taking in outside air), so it does not draw in exhaust fumes as you reverse over them.
Really? That's surprisingly smart for Peugeot! 😂
Mark
Owner of a 2013 308 SW
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: What is this for?

Post by Hell Razor5543 »

Romtag wrote: 08 Jul 2021, 21:07
wheeler wrote: 08 Jul 2021, 20:23 The reverse light switch is used to trigger the parking sensors on, if the reverse lights are working ok this means the reverse switch is working.
Aaah yes the reverse parking sensor are fine, it's just the front ones.. to all extents the car doesn't see them.

I don't know anyone with PP locally so can't investigate further, other than checking the wiring loom.
There are some Forum members who have the Lexia equipment and may be able to help out. Please be aware that some of these members have 'gone quiet' do may not respond to a PM. Here is a link to the map;

https://www.frenchcarforum.co.uk/forum/ ... hp?t=56452
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
Post Reply
