What is this for?
Whilst doing some maintenance on the 807 I came across two zipped tied wires at the front of the car.

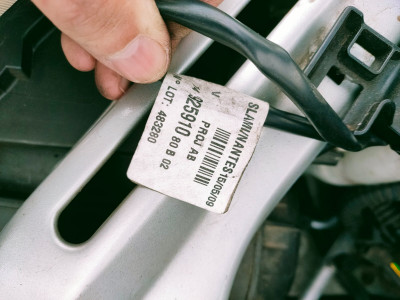

I've attached pictures of coding for them in the hope that you lovely FCF boffins can tell me what they are.
Secretly hoping it's the plugs for the front parking sensors
I've attached pictures of coding for them in the hope that you lovely FCF boffins can tell me what they are.
Secretly hoping it's the plugs for the front parking sensors
Mark
Owner of a 2013 308 SW
Owner of a 2013 308 SW
- GiveMeABreak
- Forum Admin Team
- Posts: 37014
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: What is this for?
Unfortunately not, those are the wiring connectors for the front fog lights.

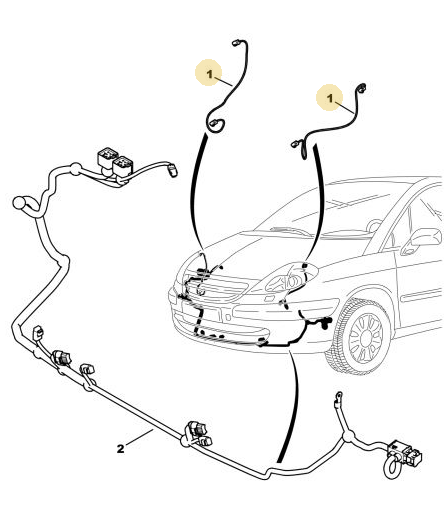

See on the Diagram item (1) - this is the harness in your picture. Harness (2) below that is for the front obstacle detection.
See on the Diagram item (1) - this is the harness in your picture. Harness (2) below that is for the front obstacle detection.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2023
- Posts: 105
- Joined: 07 Apr 2021, 21:01
- Location: Tamworth
- My Cars: Drives a 2013 308 SW
- x 7
Re: What is this for?
Thanks Marc!
I will have to get under the car to trace the wiring for the sensors then.
Thanks again
I will have to get under the car to trace the wiring for the sensors then.
Thanks again
Mark
Owner of a 2013 308 SW
Owner of a 2013 308 SW
- GiveMeABreak
- Forum Admin Team
- Posts: 37014
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: What is this for?
You may not have it - but it's a possibility - before they got tight!
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2023
- Posts: 105
- Joined: 07 Apr 2021, 21:01
- Location: Tamworth
- My Cars: Drives a 2013 308 SW
- x 7
Re: What is this for?
I have the sensors but they don't engage.. it's the nordwest model and I think you checked and said I should have them. The sensor ECU has both sets of wires (front and back) but they just don't work.. no errors either .... Annoying!
Mark
Owner of a 2013 308 SW
Owner of a 2013 308 SW
- GiveMeABreak
- Forum Admin Team
- Posts: 37014
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: What is this for?
Ah yes, of course, with so many issues I can't always remember on the spot
So my feelings (and apologies if I've said this before or you've already done this), are to check with PP2000 / Diagbox if the system has been disabled in the BSI. Some people have been known to do this if they don't want to replace a faulty sensor. If memory serves I think you already checked the loom out at the rear. I don't see it being a fuse as this 20A fuse also controls the Audio / Display / Alarm Sliding Door control unit etc.
So my feelings (and apologies if I've said this before or you've already done this), are to check with PP2000 / Diagbox if the system has been disabled in the BSI. Some people have been known to do this if they don't want to replace a faulty sensor. If memory serves I think you already checked the loom out at the rear. I don't see it being a fuse as this 20A fuse also controls the Audio / Display / Alarm Sliding Door control unit etc.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2023
- Posts: 105
- Joined: 07 Apr 2021, 21:01
- Location: Tamworth
- My Cars: Drives a 2013 308 SW
- x 7
Re: What is this for?
Yeah.. nearly £1200 into repairs and maintenance costs so far....
Including, new left wing mirror, new air-conditioning pipes, new coolant pipes, full service.
Had towbar fitted bit because of hacked wiring that's also been complicated to finish!
Where and what is the best route to go down with PP, I know I need hardware and software.
See lots of stuff on eBay and Ali Express but not comfortable without understanding more...
Including, new left wing mirror, new air-conditioning pipes, new coolant pipes, full service.
Had towbar fitted bit because of hacked wiring that's also been complicated to finish!
Where and what is the best route to go down with PP, I know I need hardware and software.
See lots of stuff on eBay and Ali Express but not comfortable without understanding more...
Mark
Owner of a 2013 308 SW
Owner of a 2013 308 SW
- GiveMeABreak
- Forum Admin Team
- Posts: 37014
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: What is this for?
I and many members bought mine from Easydiagnostics - link here for a member discount:
viewtopic.php?t=60112
You need a laptop yourself preferably with Windows 7 and it must be a 32 bit version of the operating system as PP2000 won't work on 64 bit operating systems natively.
The hardware is a VCI, that should be a good quality full chip revision C clone. The software is modified to work for us on the aftermarket so ins not sanctioned or officially available from PSA. If you do get one, update it to version 7.58 only and you should be fine.
viewtopic.php?t=60112
You need a laptop yourself preferably with Windows 7 and it must be a 32 bit version of the operating system as PP2000 won't work on 64 bit operating systems natively.
The hardware is a VCI, that should be a good quality full chip revision C clone. The software is modified to work for us on the aftermarket so ins not sanctioned or officially available from PSA. If you do get one, update it to version 7.58 only and you should be fine.
Please Don't PM Me For Technical Help
Marc
Marc
Re: What is this for?
Are your reverse lights working as they should?
-
- Donor 2023
- Posts: 105
- Joined: 07 Apr 2021, 21:01
- Location: Tamworth
- My Cars: Drives a 2013 308 SW
- x 7
Re: What is this for?
We'll, yesterday everything stopped working, but as the mechanic untangled it all they started working again. Why do you ask?
Mark
Owner of a 2013 308 SW
Owner of a 2013 308 SW
Re: What is this for?
The reverse light switch is used to trigger the parking sensors on, if the reverse lights are working ok this means the reverse switch is working.
-
- Donor 2023
- Posts: 13727
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 2993
Re: What is this for?
The other thing the reverse switch can do is to tell the cabin ventilation system to switch over to recycle (from taking in outside air), so it does not draw in exhaust fumes as you reverse over them.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
-
- Donor 2023
- Posts: 105
- Joined: 07 Apr 2021, 21:01
- Location: Tamworth
- My Cars: Drives a 2013 308 SW
- x 7
Re: What is this for?
Aaah yes the reverse parking sensor are fine, it's just the front ones.. to all extents the car doesn't see them.
I don't know anyone with PP locally so can't investigate further, other than checking the wiring loom.
Mark
Owner of a 2013 308 SW
Owner of a 2013 308 SW
-
- Donor 2023
- Posts: 105
- Joined: 07 Apr 2021, 21:01
- Location: Tamworth
- My Cars: Drives a 2013 308 SW
- x 7
Re: What is this for?
Really? That's surprisingly smart for Peugeot!Hell Razor5543 wrote: ↑08 Jul 2021, 20:37 The other thing the reverse switch can do is to tell the cabin ventilation system to switch over to recycle (from taking in outside air), so it does not draw in exhaust fumes as you reverse over them.
Mark
Owner of a 2013 308 SW
Owner of a 2013 308 SW
-
- Donor 2023
- Posts: 13727
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 2993
Re: What is this for?
There are some Forum members who have the Lexia equipment and may be able to help out. Please be aware that some of these members have 'gone quiet' do may not respond to a PM. Here is a link to the map;
https://www.frenchcarforum.co.uk/forum/ ... hp?t=56452
