C4 Pic 2014 Exclusive (B87) - Replacing Coolant

Post by zane2g2 »

Good afternoon all :-)

Just a quick question.

I have C4 Pic 2014 Exclusive (B87) and I'm going to give it a big birthday service soon.
I'm a capable mechanic type person, but I'm just wondering if there is a specific process in replacing the Coolant/Anti freeze.

Any help would be most appreciated

Cheers
Zane
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: C4 Pic 2014 Exclusive (B87) - Replacing Coolant

Post by Hell Razor5543 »

One thing to make sure of is NOT to mix coolant types. Sometimes doing so can result in the mixture turning to sludge!
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: C4 Pic 2014 Exclusive (B87) - Replacing Coolant

Post by GiveMeABreak »

zane2g2 wrote: 10 Feb 2021, 12:13 Good afternoon all :-)

Just a quick question.

I have C4 Pic 2014 Exclusive (B87) and I'm going to give it a big birthday service soon.
I'm a capable mechanic type person, but I'm just wondering if there is a specific process in replacing the Coolant/Anti freeze.

Any help would be most appreciated

Cheers
Zane
Hi Zane

There is an official process to change the coolant and degassing / bleeding. These are almost identical procedures to many PSA vehicles and can be found in the donating members Resources Section: The one below is identical to your C4 Picasso (B78), but will need a min £10 Forum donation to access, which will also provide you with official part numbers and parts diagrams for up to 2 years. Details in the table at the end of my post.

viewtopic.php?t=64036
A response to your question by a Forum Admin will require detailed vehicle information that requires you to have made a current contribution to the Forum.
Donate

Further Information
Please Don't PM Me For Technical Help

Marc
zane2g2
Donor 2024
Posts: 34
Joined: 27 Aug 2019, 07:50
Location: Somerset
My Cars: Citroen C4 Picasso Exclusive 2014
x 2

Re: C4 Pic 2014 Exclusive (B87) - Replacing Coolant

Post by zane2g2 »

Hi Marc

Many thanks, I'll glad sort a donation right away :)

I plan on totally emptying the system and refill with new coolant..... just hope I have enough.
I'll check before I start :)

Cheers
Zane
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: C4 Pic 2014 Exclusive (B87) - Replacing Coolant

Post by GiveMeABreak »

Thanks for your Forum donation Zane.

Your membership has automatically been upgraded and you should now have access to that section.

I have checked the procedure for your vehicle and it is identical to the one I linked to for the C5 X7. You have a Euro 5 vehicle - so note this when it comes to the degassing section and follow the bit for NON EURO 6 vehicles.
Please Don't PM Me For Technical Help

Marc
zane2g2
Donor 2024
Posts: 34
Joined: 27 Aug 2019, 07:50
Location: Somerset
My Cars: Citroen C4 Picasso Exclusive 2014
x 2

Re: C4 Pic 2014 Exclusive (B87) - Replacing Coolant

Post by zane2g2 »

Think I'm going to have to get the garage to do it as I don't have a vacuum tool or the filling cylinder thing :-(

Any idea where the bleed screw is for my vehicle.

Cheers
Zane
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: C4 Pic 2014 Exclusive (B87) - Replacing Coolant

Post by GiveMeABreak »

It should be on the Outlet Housing, but....

There can be 3 variations of these and depending on which one you have, there may already have been a modification.

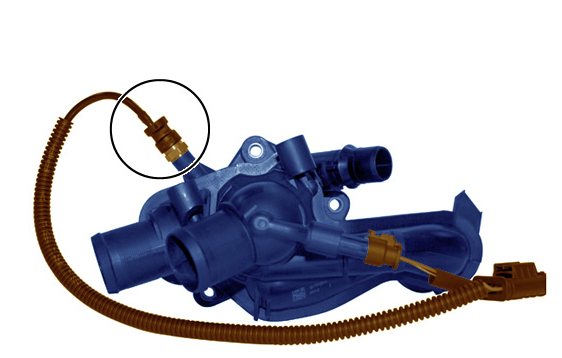

This one shows the bleed screw that has been removed and replaced with the engine coolant temperature sensor and wire modification:
Please Don't PM Me For Technical Help

Marc
zane2g2
Donor 2024
Posts: 34
Joined: 27 Aug 2019, 07:50
Location: Somerset
My Cars: Citroen C4 Picasso Exclusive 2014
x 2

Re: C4 Pic 2014 Exclusive (B87) - Replacing Coolant

Post by zane2g2 »

Cheers Marc

As always, very much appreciated :-)
