LMH leak

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
kiwifrog
(Donor 2020)
Posts: 95
Joined: 24 Jun 2016, 22:37
Location: NewZealand
My Cars: 93 Xantia 1.9 TD
66 VW Panelvan
93 ST1100 Honda m/c
x 2

LMH leak

Post by kiwifrog »

I have really annoying leak coming from the right front corner of my mk1 Xantia, where there are no hydraulic lines ?? It dosnt leak while the motor is running, only when the motor is turned off and the suspension sinks. There is a lot of oil on the tray / shelf below the washer fluid reservoir, I cleaned that area, ran the motor and turned it off and within a few minutes observed oil flowing down that tray towards the front of the car. I thought it might be the high pressure line for the strut, its dry where it enters the strut but appearsImage wet further down ?? Could this line have fractured and where does that line terminate ?
User avatar
KennyW
(Donor 2022)
Posts: 2499
Joined: 17 Jan 2006, 21:22
Location: Letham, Fife
My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate
x 132

Re: LMH leak

Post by KennyW »

Where exactly is the wet patch ?. A photo would help but one possibility is the rubber leak off pipe at hydraulic strut. If it's not on right it causes a small leak.

Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: LMH leak

Post by white exec »

One more vote for that. The strut leak-back/return rubber pipe is the usual suspect.
Chris
kiwifrog
(Donor 2020)
Posts: 95
Joined: 24 Jun 2016, 22:37
Location: NewZealand
My Cars: 93 Xantia 1.9 TD
66 VW Panelvan
93 ST1100 Honda m/c
x 2

Re: LMH leak

Post by kiwifrog »

The wet patch is under the bumper on the right hand side, it's running down that tray / shelf in the pic. Is that return line under much pressure?
admiral51
Donor 2023
Posts: 2625
Joined: 24 May 2007, 10:11
Location: poole dorset uk
Lexia Available: Yes
My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff]
x 378

Re: LMH leak

Post by admiral51 »

The pics are not the right way in my thread but my leak was below the clamp line.
front strut return pipe leak
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: LMH leak

Post by GiveMeABreak »

kiwifrog wrote: 10 Aug 2020, 19:54 The wet patch is under the bumper on the right hand side, it's running down that tray / shelf in the pic. Is that return line under much pressure?
If it's the leak back pipes from the strut, then no pressure.
Please Don't PM Me For Technical Help

Marc
kiwifrog
(Donor 2020)
Posts: 95
Joined: 24 Jun 2016, 22:37
Location: NewZealand
My Cars: 93 Xantia 1.9 TD
66 VW Panelvan
93 ST1100 Honda m/c
x 2

Re: LMH leak

Post by kiwifrog »

GiveMeABreak wrote: 10 Aug 2020, 22:17
kiwifrog wrote: 10 Aug 2020, 19:54 The wet patch is under the bumper on the right hand side, it's running down that tray / shelf in the pic. Is that return line under much pressure?
If it's the leak back pipes from the strut, then no pressure.
Would the oil be forced out of the return line as the suspension sank, if the line wasn't fitted securely?
kiwifrog
(Donor 2020)
Posts: 95
Joined: 24 Jun 2016, 22:37
Location: NewZealand
My Cars: 93 Xantia 1.9 TD
66 VW Panelvan
93 ST1100 Honda m/c
x 2

Re: LMH leak

Post by kiwifrog »

Found it, damaged high pressure line to the strut, right behind the 90 degree clip that secures the line to the inner wing, I can see this is going to be a mission to fix.....Image
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: LMH leak

Post by xantia_v6 »

Your pictures are not visble, I think that the site that is hosting them needs a login. Perhaps you can upload the files to this server?

I assume that this is a non-hydractive car. I have seen a split pipe successfully repaired by cutting it at the point of the leak, then cutting a repair section from a steel pipe with an id that would just slide over the damaged pipe. The overlapping joint was then braised. As far as I know the repair has not failed yet.
kiwifrog
(Donor 2020)
Posts: 95
Joined: 24 Jun 2016, 22:37
Location: NewZealand
My Cars: 93 Xantia 1.9 TD
66 VW Panelvan
93 ST1100 Honda m/c
x 2

Re: LMH leak

Post by kiwifrog »

Yes non hydractive mk1 Xantia, the line is in a very tight spot and disappears into the firewall, sorry about the pics, all I know how to do is copy and paste...
kiwifrog
(Donor 2020)
Posts: 95
Joined: 24 Jun 2016, 22:37
Location: NewZealand
My Cars: 93 Xantia 1.9 TD
66 VW Panelvan
93 ST1100 Honda m/c
x 2

Re: LMH leak

Post by kiwifrog »

Is this visible?
Hell Razor5543
Donor 2023
Posts: 13726
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: LMH leak

Post by Hell Razor5543 »

The picture is not visible to me. If (below the text entry box) you click on "Full Editor & Preview" you will then be presented with extra options, including the option to upload attachments.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: LMH leak

Post by white exec »

That's right:
Hit Full Editor & Preview
then Add File
Choose your file (photo), which will then appear in a list.
Position the cursor in your post where you want the phototo appear, and hit Place in Line.

Hit Preview to see what the post then looks like, and if ok, finally hit Submit.

The List allows several photos to be added to a post, and the empty box allows a caption for each, if desired.
Chris
Online
User avatar
myglaren
Forum Admin Team
Posts: 25360
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Re: LMH leak

Post by myglaren »

kiwifrog wrote: 12 Aug 2020, 06:32 Image
Is this visible?
If I right-click on the word "Image" it opens the picture in a Google Photo's page.
kiwifrog
(Donor 2020)
Posts: 95
Joined: 24 Jun 2016, 22:37
Location: NewZealand
My Cars: 93 Xantia 1.9 TD
66 VW Panelvan
93 ST1100 Honda m/c
x 2

Re: LMH leak

Post by kiwifrog »

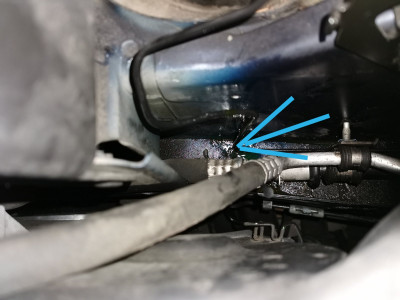

How this?
