Re: 307cc DPF fluid top up, pouch or tank?

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
clydeowenp
(Donor 2020)
Posts: 48
Joined: 09 Aug 2015, 18:32
Location: Margate, Kent, UK
My Cars: 2000 Citroen Xantia Hdi Exclusive Estate (waiting repair, burst hydraulic pipe sent it through a hedge!)
1995 Peugeot 106 Roland Garros (converted from petrol to 1.4 diesel)
1963 Triumph based Spartan Roadster kit car 2.5 litre.
2002 Peugeot 307 Rapier 2.0 HDi (In daily use)
2006 Peugeot 307cc Hdi Sport (Getting it ready for the summer)
x 15

Re: 307cc DPF fluid top up, pouch or tank?

Post by clydeowenp »

I brought my 307cc from an independent dealer in London, price had been reduced several times as dealer took it in PX. He doesn't usually sell diesel cars due to the LEZ and ULEZ charges making them difficult to sell. Car was to be sold with new MOT but failed on emissions, their mechanic eventually got it to pass after several attempts. Dealer took it home to test it but it went into limp mode on the motorway showing an anti pollution fault.. They changed the fuel and air filters and reset the codes but when I arrived they hadn't tested it. I didn't think that would cure it, however, they offered me a further discount if I took it as is. I took a chance as they had done several advisories which saved me a fair few quid.

I drove the car home but after about half an hour on the motorway it lost power, still doing 70mph but no power to overtake, anti pollution warning came up a few minutes later. I wasn't far from the services so i pulled in and phoned the RAC thinking they may be able to fix it or tell me what the problem was. RAC tried to do a forced regeneration but got a message saying this was not possible as DPF fluid was low. They advised me not to drive it as it may cause damage so they recovered me home.

I'm sure I can solve this with some help from FCF but my first problem is finding a workshop manual. Haynes manual doesn't cover 307cc, sport or 16v models, anyone know where I can get one? I thought locating the DPF tank or pouch would be a good start so I rang the Peugeot dealer to find out if it has a tank or pouch and how much the fluid is. They told me it has a pouch Part No. 9690680808 so I jacked the car up yesterday to locate it and the DPF filter, please see photos. I assume the silencer shaped thing is the DPF filter and the steel pipe connecting to the exhaust in front of it is to do with the pressure sensing system and assume there's another one the other side of the filter. I thought I'd remove, clean and check it and if necessary replace it. Looks like it's held together with 4 nuts and looks easy to remove, rusty nuts & bolts permitting. I'm also assuming the small black box behind the fuel tank is the DPF tank, but dealer said it's a pouch, is the pouch inside this box or it the box the tank? It seems to have a quick fit connector with a small pipe at one end and and a connector with 3 wires above it which I assume is a sensor. I removed the strap but something on top seems to be holding it, tried to see if I can get access from inside, under the back seat, but not been able to work out how the seat is fixed in. Looks like there are fixings round the edge of the box (tank) which makes me think this is a box with removable cover that holds the pouch. To get this out looks like I may need to remove the strengthening brace which doesn't look like it's been removed for years! I don't want to force anything as I'm afraid if I break something it'll be expensive or not available.

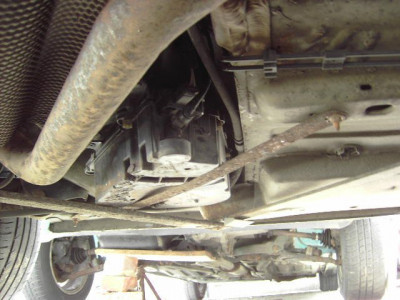

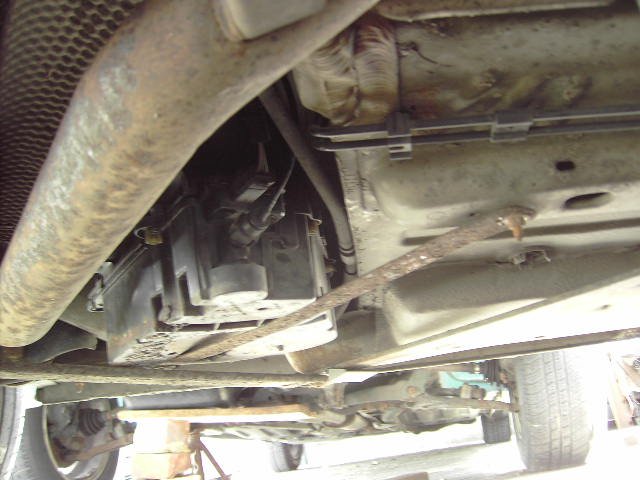

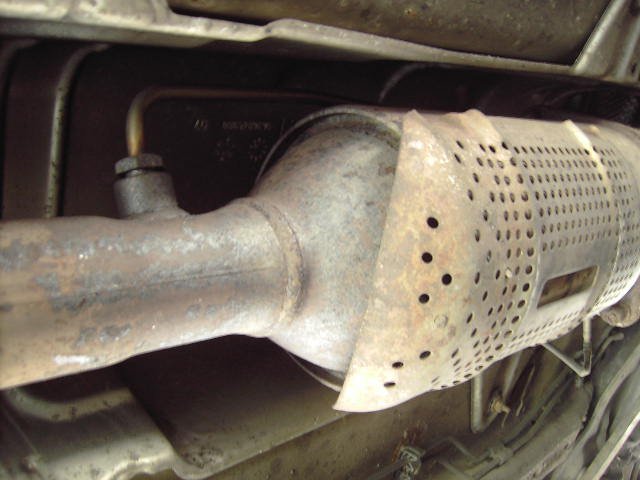

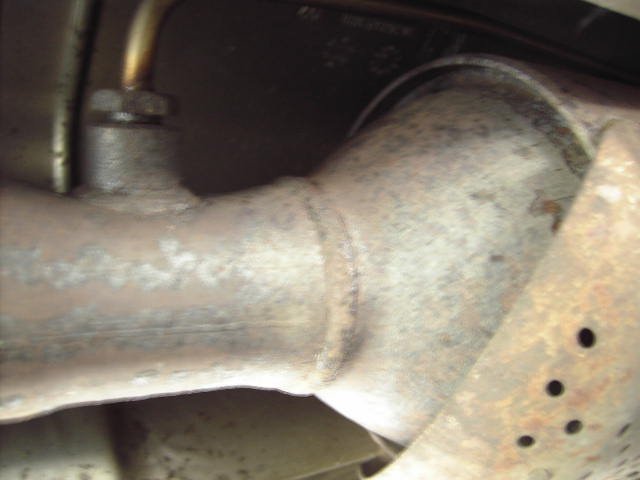

I'm assuming the object in the photos is the DPF filter but where is the cat? I'm assuming it has one.
Vin No. is VF3**************[VIN obfuscated, can be read by forum staff]
I've not had a car with DPF filter before and don't have a manual to read up on it, utube not much help so please excuse my lack of knowledge of this system.
Last edited by GiveMeABreak on 17 Jul 2020, 11:47, edited 1 time in total.
Reason: Fixed Images and combined into original post.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Re: 307cc DPF fluid top up, pouch or tank?

Post by GiveMeABreak »

You do have a pouch system in this vehicle, but the part number you have is not a a valid part number.

Be aware that you will need access to a 'Lexio Kit' with Peugeot Planet 2000 or Diagbox software in order to reset the additive counter after you replace the pouch. If you don't, the Engine ECU will not be aware that you have replaced the pouch, and as a consequence you will still be in reduced power mode and have the fault codes.

Before taking the DPF off, again, you really should get it diagnosed with the same equipment to see whether the filter itself is ok. This will depend on mileage of course. Cleaning it needs extreme care as if you damage the special cement inside it will break up and become useless. You can never fully clean these anyway as they are highly porous. The engine oil deposits, carbon and Cerine from the additive cannot be fully removed by cleaning.

As you probably know by now Clyde, PSA charge us for parts info from March this year, so if you want accurate parts info and parts diagrams, a £10 Forum donation is required that will cover you for up to 2 years. Details below:
A response to your question by a forum admin will require detailed vehicle information that requires you to have made a current contribution to the Forum.
Donate

Further Information
Please Don't PM Me For Technical Help

Marc
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Re: 307cc DPF fluid top up, pouch or tank?

Post by Hell Razor5543 »

Special cement or special ceramic, Marc?
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Re: 307cc DPF fluid top up, pouch or tank?

Post by GiveMeABreak »

Cement

Original Silicon Carbide DPFs are used by the majority of manufacturers. There are smaller DPF cores and larger DPF cores. Where the DPF uses larger cores, they are made in segments and due to the high coefficient of linear expansion, a special cement is used to hold them together that allows them to expand. High pressure washers or bashing these about can damage the cement and ruin the DPF.
Please Don't PM Me For Technical Help

Marc
clydeowenp
(Donor 2020)
Posts: 48
Joined: 09 Aug 2015, 18:32
Location: Margate, Kent, UK
My Cars: 2000 Citroen Xantia Hdi Exclusive Estate (waiting repair, burst hydraulic pipe sent it through a hedge!)
1995 Peugeot 106 Roland Garros (converted from petrol to 1.4 diesel)
1963 Triumph based Spartan Roadster kit car 2.5 litre.
2002 Peugeot 307 Rapier 2.0 HDi (In daily use)
2006 Peugeot 307cc Hdi Sport (Getting it ready for the summer)
x 15

Re: 307cc DPF fluid top up, pouch or tank?

Post by clydeowenp »

Done now, no internet or landline since Friday PM so unable to do anything! Lorry hit the telegraph pole up the road and ripped out the wires, which BT idiots had run up the road side of the pole!
Sorry, typed the number in wrong, number dealer wrote down for me was 9678080680, don't know where the other number came from. I found this number in ebay listings but the vehicle compatibility checker says it won't fit my car.
I've heard that there are at least 2 types of fluid and one aftermarket manufacturer claims their fluid is suitable for all. Don't want to pay dealer prices if I can avoid it but I don't want to use anything that may cause damage, is there a cheaper alternative? I've also heard the pouches are prone to leaking, is this an issue on my car?
I've looked on ebay and from what I can see the DPF is secured to the cat with 4 nuts & bolts, is that correct? After reading your comments I think I'll leave the DPF well alone until it causes a problem, then I'll try to clean it and if that fails or I break it I'll replace it. The utube video I watched of how to clean a DPF showed it being treated very roughly and cleaned with a jet wash! After reading your comments I'm glad I didn't follow that procedure!
I think I need to start with the fluid pouch, which I assume is inside the black box next to the fuel tank. I'm assuming it will be easier to separate the 2 halves of the the housing if I take it off the car but how do I take it off? Seems to be held at the top but don't want to force it, some instructions and an exploded diagram would be a great help.
Once I get this sorted out I'm sure I'll need help with many other things, especially as I can't get a workshop manual. I recon over the next 2 years I'll well & truly get more than my £10 worth!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Re: 307cc DPF fluid top up, pouch or tank?

Post by GiveMeABreak »

That's more like it :-D 9678080680 is correct and that is a pouch and the additive is called Eolys 176. It is currently selling at Peugeot for £184.44 inc. VAT.

Normally with the rigid reservoirs, certain generations of additives cannot be mixed together or it will cause damage to the system. In your case you have a soft pouch, so the whole thing is replaced, which negates this problem.

So Eolys 176 is no longer sold, and Powerflex is the fluid that is specified for the part number and comes in a 3 litre soft pouch.

I'll put something up tomorrow for you on how to replace the pouch.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Re: 307cc DPF fluid top up, pouch or tank?

Post by GiveMeABreak »

I actually found this to demonstrate getting the tank off - so will be quicker for you to see. Now bear in mind that these 'chaps' have refilled the pouch - which is not recommended - not least because the pouch can tear getting it in and out of the assembly and this stuff is nasty being toxic. You don't want this on your skin or to breathe the fumes and it's combustible.

So you can just replace the pouch and reattach everything - t hen of course you will need to reset the additive counter to zero using Peugeot Planet 2000 or Diagbox.

Please Don't PM Me For Technical Help

Marc
clydeowenp
(Donor 2020)
Posts: 48
Joined: 09 Aug 2015, 18:32
Location: Margate, Kent, UK
My Cars: 2000 Citroen Xantia Hdi Exclusive Estate (waiting repair, burst hydraulic pipe sent it through a hedge!)
1995 Peugeot 106 Roland Garros (converted from petrol to 1.4 diesel)
1963 Triumph based Spartan Roadster kit car 2.5 litre.
2002 Peugeot 307 Rapier 2.0 HDi (In daily use)
2006 Peugeot 307cc Hdi Sport (Getting it ready for the summer)
x 15

Re: Re: 307cc DPF fluid top up, pouch or tank?

Post by clydeowenp »

Watched the video and seems straightforward. Video shows a cover over the fluid pouch housing, should mine have one? If so then it's missing, could you give me a part number?

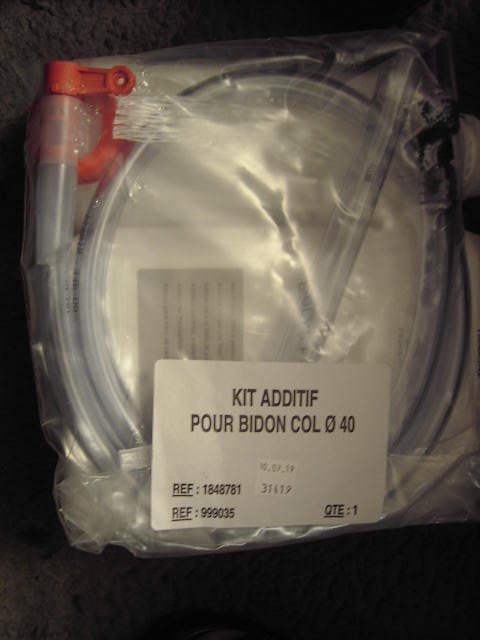

I know topping up isn't recommended but I got a genuine Peugeot top up kit for £60, new, unused and seals not broken. Whether I use it or not depends on what I find when I take it apart. If I don't use it I'm sure I can move it on and get my money back, seen these listed for over £150.
