Parking sensor in front of a 2009 C5 x7 tourer.

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
Tiagovp
Posts: 42
Joined: 16 Jan 2020, 16:15
Location: Portugal
My Cars: Citroen C5 tourer 2009 1.6hdi 110hp
x 2

Parking sensor in front of a 2009 C5 x7 tourer.

Post by Tiagovp »

Hello everyone.

My c5 tourer only has a parking sensor at the rear. In the front there is not. Has anyone done a DYS ( do yourself) sensor assembly on the front where you can get some ideas?
Thank you for your help.

greetings
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by GiveMeABreak »

You can't retrofit the OEM system as the harness won't be there and you will also need a different parking assistance ECU and the parking space gap measurement switch - so not practical as you won't have the correct wiring loom or ECU.
Please Don't PM Me For Technical Help

Marc
Tiagovp
Posts: 42
Joined: 16 Jan 2020, 16:15
Location: Portugal
My Cars: Citroen C5 tourer 2009 1.6hdi 110hp
x 2

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by Tiagovp »

Hello Marc.

Thanks for the answer. I may not have expressed myself well about the sensor.
I wanted to put one already with a reading unit. I leave an example:



greetings
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by GiveMeABreak »

Ok, so you want to fit an aftermarket one.

All I would say is don't attempt to wire it into the vehicle's existing wiring systems or you may cause faults in other systems. These vehicles are multiplexed - so send coded signals on the various data networks to the various ECUs on the vehicle. Tapping into one of these networks can cause a breakdown. If you are thinking about fitting one, then make sure it is compatible with CAN vehicles or can be wired in such a way as not to interfere with the vehicle's systems.

Citroen did provide 2 after-sales reverse parking assistance systems (one a sticky strip inside the rear bumper and another that had ultra sonic sensors drilled into the rear bumper), but nothing for the front.

Obviously the rear system needed to tap into the reversing light wiring to activate, but there won't be anything like that on front, so I guess it may be permanently active on the front.
Please Don't PM Me For Technical Help

Marc
elcustardo
(Donor 2020)
Posts: 76
Joined: 05 Feb 2018, 10:13
Location: Edinburgh
My Cars: Picasso C4 VTR+ 1.8 petrol: Deceased
C5 VTR+ 1.8 Petrol
x 9

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by elcustardo »

I would think a switched feed from the battery would make sense for the front.
We had Peugeot vans at work a few years ago with permanently live front sensors.
Real PITA as they would be set of by exhaust smoke(worse in winter),people walking inbetween vehicles etc. Worse if you are in stop/start traffic and forget to leave a big enough gap.

I just fitted an aftermarket kit to the rear that has smaller sensors so fits in the OEM holes perfectly.
Got mine on Amazon for 19.99 with UK stock.

ladotg
(Donor 2020)
Posts: 17
Joined: 10 Jan 2020, 15:33
Location: TOMISLAVGRAD
My Cars: C5 1.6 hdi
x 2

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by ladotg »

I bought the car 6 months ago. The front parking sensors don't work for me. I disassembled and saw that the ECU was for rear sensors only (no input for white connector). I also have some cable you can see in the picture. Can I buy a new ECU? What is this other cable for?
Thank you!
Attachments

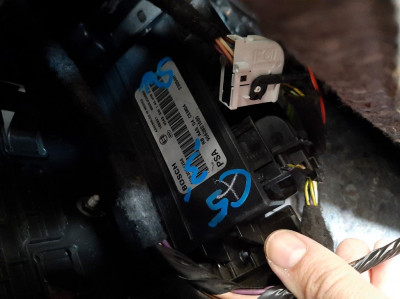

parking-ecu (4).jpg
parking-ecu (3).jpg
parking-ecu (2).jpg
parking-ecu (1).jpg
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by GiveMeABreak »

The parking assistance ECUs are different depending on options. You will also need the correct wiring harness - but you'll need to explain a little more about the car.

Are you saying it looks like the car has factory fitted front and rear sensors and the 2 sensors on the front wings for the parking space gap measurement?

If this is the case, it may be that a previous owner has replaced the parking assistance ECU with the wrong one.

What is the year of the C5, the trim level (VTR, VTR+ Exclusive), Saloon or Tourer, the VIN would be best.
Please Don't PM Me For Technical Help

Marc
ladotg
(Donor 2020)
Posts: 17
Joined: 10 Jan 2020, 15:33
Location: TOMISLAVGRAD
My Cars: C5 1.6 hdi
x 2

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by ladotg »

Thanks for answer.
Year in 2011, saloon.
My vin is: VF7**************[VIN obfuscated, can be read by forum staff]
There are front parking sensor on front boomper.
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by Hell Razor5543 »

I wonder if the front bumper has been replaced in the past, the replacement was sourced from a scrap car (same colour), and it had sensors fitted to it?
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ladotg
(Donor 2020)
Posts: 17
Joined: 10 Jan 2020, 15:33
Location: TOMISLAVGRAD
My Cars: C5 1.6 hdi
x 2

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by ladotg »

Yes, maybe. It was replaced but it have all wire for parking assistance also.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by GiveMeABreak »

So your car had front and rear assistance originally. That ECU in your picture is the wrong one.

If you want the correct part number, I'll need to look it up for you, but unfortunately PSA charge for this data now from 16th March 2020. Please see the info below - a Forum donation will cover you for up to 2 years for parts info etc.
A response to your question will require detailed vehicle information that requires you to have made a current contribution to the Forum.
Donate

Further Information
Please Don't PM Me For Technical Help

Marc
User avatar
Sloppysod
Donor 2024
Posts: 965
Joined: 23 May 2015, 23:35
Location: North Wales
My Cars: Citroens
1 x GS, 1 x GSX (Banger raced), 1 x GSA,
2 x CX Famililles, 1 x CX GTI,
BX, XM, Xantia, C5 Mk1,
C4 (Coupe), C4 (B7),
C5 (X7)

Renault
R4 Van
Fuego
Clio Campas
x 212

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by Sloppysod »

Hi, I fitted OEM front parking sensors to my 2011 C5, Exclusive so it can be done, however:
  • as Marc said you will need, Citroen ECU, the Peugeot 405 ECU's are similar but will not work on A C5, as they ony register 4 sensors and not 6. Trust me I found out the hard way.
  • Front sensors, either OEM or from online shopping sites (E**y/Am***n)
  • The Front behind bumber wiring harness,
  • Sensor Supports for the Side sensors, look similar to those in photo by elcustardo
  • Sensor Supports for the two positions in the front grille (I got these printed as they are expensive)
  • Sensor supports, for the outer front sensor, these are two peices of plastic cowl(OEM)
  • Patients as fitting it knuckle grinding.
  • You will also have to drilled the side holes in you bumper, without damaging the paint and get the two sensors for here coloured to match you car or it will look naff
  • Using diagnostic equipment 'Tell' the radio & display that they have been fitted.
I looked into fitting aftermarket ones and could not find a way to get all the sensor wires into the cabin without drilling a new hole.

And "If this is the case, it may be that a previous owner has replaced the parking assistance ECU with the wrong one." - is it the correct, for the model, front bumper! #-o
Stu 🏴󠁧󠁢󠁷󠁬󠁳󠁿

"Some cause happiness wherever they go, others whenever they go"Oscar Wilde (1854-1900)

Major interventions
C5 Steering rack @ 58,000 mi
4 discs & Pads @ 63,585 mi
2 (AM6) oil exchanges @ 58,876 & 72,378 mi
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by GiveMeABreak »

Hi Stu - I've already confirmed he has OEM factory fitted front and rear so he should have everything already there - but the Parking Assistance ECU has obviously been replaced at some point - as the part number on the unit in his photo is not for this vehicle.
Please Don't PM Me For Technical Help

Marc
Gibbo2286
(Donor 2020)
Posts: 7171
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by Gibbo2286 »

The blue ink marker scribble would suggest it's from a dismantler, so wrong choice?
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Parking sensor in front of a 2009 C5 x7 tourer.

Post by GiveMeABreak »

Yes, wrong choice Eric.
Please Don't PM Me For Technical Help

Marc
Post Reply
