Rneg Myway to Navidrive

This unit is the RT4 and RT5 system and is made by Magneti Marelli
Main differences between RT4 & RT5 - RT5 has Bluetooth Hands Free, faster Navigation calculation and on C4 & C4 Picasso only, USB ports and a High-Res screen.

Moderator: GiveMeABreak

Post Reply
goggi10
Posts: 38
Joined: 04 Feb 2017, 14:40
Location: Belgrade
My Cars: Citroen C5 2012

Rneg Myway to Navidrive

Post by goggi10 »

Hi,
I have rneg system on my c5 can i update it to Navidrive (rt5) becausw i havw found one cheep. Will it be a problem to switch from rneg Myway to navidrive.

Thx
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Rneg Myway to Navidrive

Post by EDC5 »

I have done this myself and it is a straight swap.

There are several options that need changing in the BSI however as the RT5 also has telematic abilities. Without doing this I had some erratic behaviour from the unit.

You will also need to fit a GSM antenna if you intend to use that feature of the RT5.
goggi10
Posts: 38
Joined: 04 Feb 2017, 14:40
Location: Belgrade
My Cars: Citroen C5 2012

Re: Rneg Myway to Navidrive

Post by goggi10 »

is it better then rneg Myway and i dont plan to use GSM i will use Bluetooth for phone calls. My question is can i use disply from rneg or i need a special disply for navidrive.

THX
goggi10
Posts: 38
Joined: 04 Feb 2017, 14:40
Location: Belgrade
My Cars: Citroen C5 2012

Re: Rneg Myway to Navidrive

Post by goggi10 »

and can u tell me what needs to be changed to BSI because here in Serbia anybody who can do me this properly
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Rneg Myway to Navidrive

Post by EDC5 »

Yes, the screens are the same for both the Rneg and the navidrive.
I can't remember off the top of my head what I had to change but they are pretty obvious if you go through all of the options in the BSI. Remember to record your initial settings before changing anything in the BSI.
goggi10
Posts: 38
Joined: 04 Feb 2017, 14:40
Location: Belgrade
My Cars: Citroen C5 2012

Re: Rneg Myway to Navidrive

Post by goggi10 »

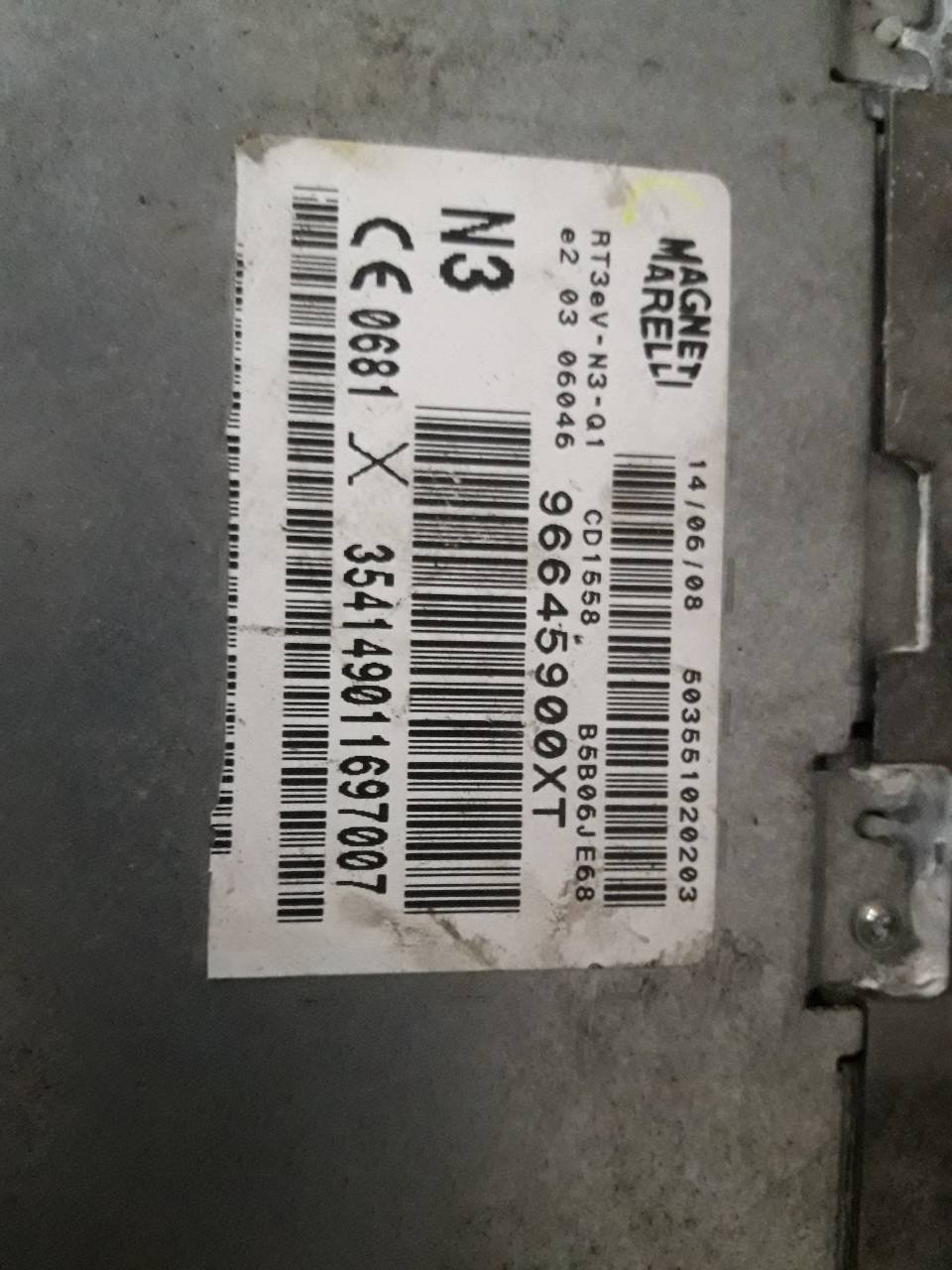

Thnks m8 bur now am confused seller sent me this and i dont know is it rt4 or rt5
Attachments
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Rneg Myway to Navidrive

Post by EDC5 »

RT3ev is infact a RT4, so no bluetooth I'm afraid :oops:
goggi10
Posts: 38
Joined: 04 Feb 2017, 14:40
Location: Belgrade
My Cars: Citroen C5 2012

Re: Rneg Myway to Navidrive

Post by goggi10 »

damm it was just 100 eur :(
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Rneg Myway to Navidrive

Post by EDC5 »

That is still very cheap for a RT4, I paid £280 but it did include the screen and wiring loom that I needed at the time.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Rneg Myway to Navidrive

Post by GiveMeABreak »

The Difference is that the RT5 can use the high Res screen and has bluetooth. If it's RT4 it will have software version 7.x and RT5 will have software version 8.x. Also, check out the rear of the unit for the other way to identify it.
RT4RT5
Please Don't PM Me For Technical Help

Marc
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Rneg Myway to Navidrive

Post by EDC5 »

Interesting, does the rearrangement of the FM connectors mean that the RT5 has a different FM tuner subsystem? If this is the case I'd like to hear it as I feel the FM side of things lets the RT4 down and isn't a patch on the Harman sourced Rneg in my view.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Rneg Myway to Navidrive

Post by GiveMeABreak »

Hard to say Elis without ripping the 2 apart and looking at the guts - but they no doubt had to rearrange some things to fit the Bluetooth module in and the different graphics chip maybe.

FM is a tricky one - sometimes around Cardigan Bay my FM is like listening to LW out at sea, (either that or the Russians are jamming me)! Other times further inland it is crystal clear.
Please Don't PM Me For Technical Help

Marc
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Rneg Myway to Navidrive

Post by EDC5 »

GiveMeABreak wrote: 01 Apr 2018, 18:34 Hard to say Elis without ripping the 2 apart and looking at the guts - but they no doubt had to rearrange some things to fit the Bluetooth module in and the different graphics chip maybe.

FM is a tricky one - sometimes around Cardigan Bay my FM is like listening to LW out at sea, (either that or the Russians are jamming me)! Other times further inland it is crystal clear.


Haha, if I were you I'd avoid sushi and people with pointy umbrellas :lol:

My old rneg could change fm channel instantly unlike any other radio I have ever used. I just wish there was a way to play music from SD card as I would have kept it.
