C1 2011 electrical issue

Post by Nickolm »

Hiya all

Hiya all,

Car was sitting for 1 month with cracked manifold. Manifold changed today. Battery black terminal disconnected. All good fitting new one.

When battery reconnected and car started all appeared good. Then discovered heater, power steering, wipers and electric windows not functioning. Head lights and indicators working and car. Radio works.

Any ideas?
Thanks Matthew
Checked fuses in engine bay and behind steering column fascia. These all came up green on the meter.

No other connectors were disconnected during manifold switch. Dashboard light show abs light, handbrake, p/s and seatbelt.

Any ideas or more info needed.
wheeler
Posts: 6948
Joined: 21 Sep 2002, 19:07
x 752

Re: C1 2011 electrical issue

Post by wheeler »

Are you getting a good charging voltage from the alternator with the engine running? shouldn't really be any less than 13.8v
Surely this has to be either a fuse blown or a main connector left undone/not put back in correctly?
Was it the inlet or exhaust manifold out of curiosity?
Would really need to take a look at a wiring diagram to see what is common to all the faults, would need your VIN to do this.
Nickolm
Posts: 8
Joined: 29 Dec 2023, 22:34

Re: C1 2011 electrical issue

Post by Nickolm »

Thanks for the reply. Will check the charging of battery in a while. Literally did not remove any connector at all. Tested all fuses I could get to apart from two of the three hidden ones on back of steering column.
Will also try a fault finding gadget later. Sorry. Teacher not mechanic!
Agree has to be some kind of fuse or connector but didn't undo any connectors.
Was 3 pipe into cat conv manifold change. Only connector on that was on top of manifold and that was done.
wheeler
Posts: 6948
Joined: 21 Sep 2002, 19:07
x 752

Re: C1 2011 electrical issue

Post by wheeler »

A quick check on the PS & wipers circuits suggest in the under bonnet fuse box both share Maxi fuse 1 & fuse 4 and in the instrument panel they share fuse 12
Nickolm
Posts: 8
Joined: 29 Dec 2023, 22:34

Re: C1 2011 electrical issue

Post by Nickolm »

Thanks. Will download a diagram and make this my second check after battery charging
Nickolm
Posts: 8
Joined: 29 Dec 2023, 22:34

Re: C1 2011 electrical issue

Post by Nickolm »

Hiya

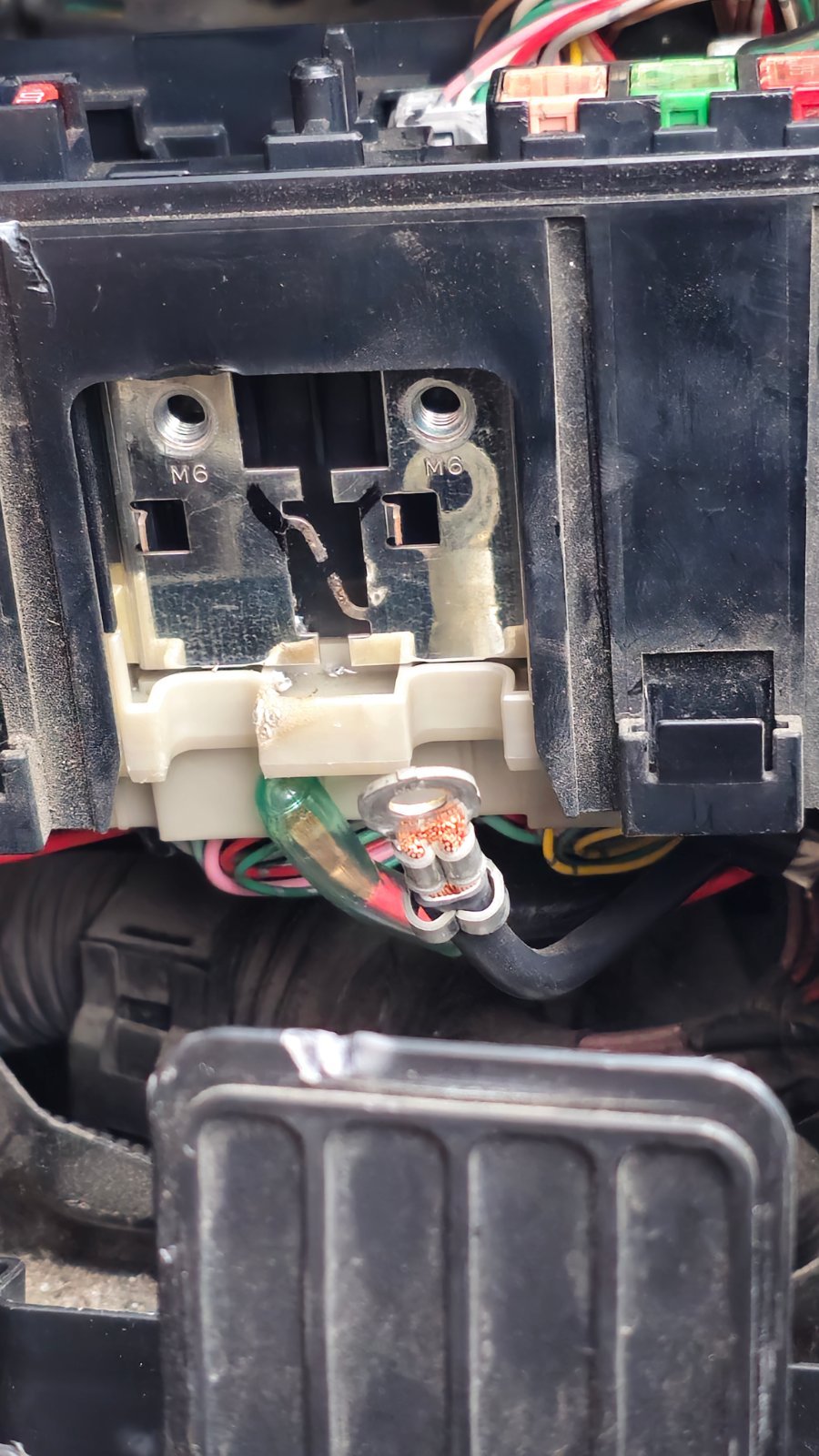

Battery not charging. Alternator seems okay. Took off top cover of fuse box in engine bay and a large metal strip between two chunky wires had broken. I assume this is a secret fuse. Doesn't seem anyway of replacing it? Soldered on a wire with fuse to join. Put in 20a fuse to test. Connected everything back up and issue resolved.
Does anyone know what the fuse strip would have been rated for?
Last edited by myglaren on 01 Jan 2024, 18:17, edited 1 time in total.
Reason: Image rotated
wheeler
Posts: 6948
Joined: 21 Sep 2002, 19:07
x 752

Re: C1 2011 electrical issue

Post by wheeler »

Nickolm wrote: 01 Jan 2024, 17:11
Does anyone know what the fuse strip would have been rated for?

The fusible link is rated at 120 Amps.
Nickolm
Posts: 8
Joined: 29 Dec 2023, 22:34

Re: C1 2011 electrical issue

Post by Nickolm »

Does anyone know if this fusible link part can be purchased? Thinking my solder and fuse temp fix might not do it for long!
Thanks
wheeler
Posts: 6948
Joined: 21 Sep 2002, 19:07
x 752

Re: C1 2011 electrical issue

Post by wheeler »

The parts picture is not very clear but there is a 120A fuse listed but its £40.41 :shock:
We still dont know why its blown, could be expensive if it just pops again tomorrow.
Personally i would just buy a 120A strip fuse & make it fit.
Something like this > https://www.ebay.co.uk/itm/196060128825
Nickolm
Posts: 8
Joined: 29 Dec 2023, 22:34

Re: C1 2011 electrical issue

Post by Nickolm »

Was thinking the same thing. Will try and source one tomorrow and keep my fingers crossed.
Thanks for taking the time to research and respond. I appreciate it 🙏😊
Nickolm
Posts: 8
Joined: 29 Dec 2023, 22:34

Re: C1 2011 electrical issue

Post by Nickolm »

Found bolt on fuse strip on Amazon. 4 for a fiver
Job done. Many thanks 👍
