C5 3.0 HDI Torque Figures

[DHallworth]

Evening all,

I’m in the process of changing the timing belt on the C5.

The belt is changed and tensioned but I’m struggling to find the torque settings for the water pump bolts, the idlers, tensioners, etc. There’s nothing at all about them in the pages from the workshop manual I have.

Does anyone know where I can find the torque settings?

Thanks,
David.

[GiveMeABreak]

Here you go:

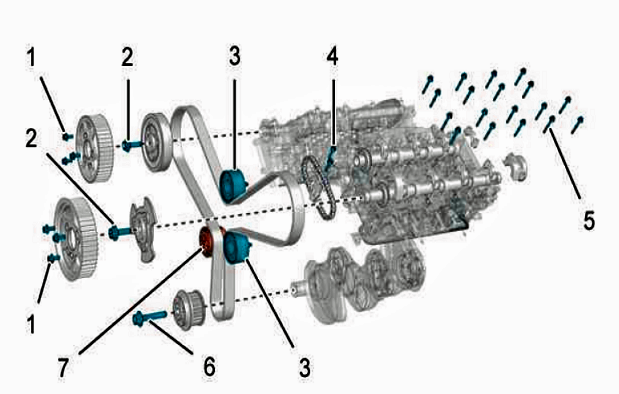

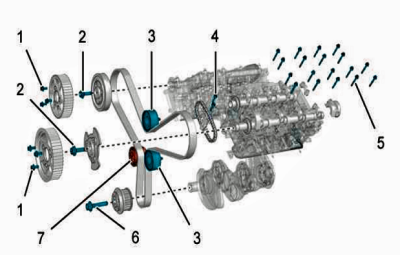

Reference	Designation	Tightening procedure
(1)	Bolts - Camshaft Pulleys	Tightening torque to 2,3 da.Nm
(2)	Camshaft Pulley Hub Screws	Tightening torque to 8 da.Nm
(2)	Camshaft Pulley Hub Screws	Angular tightening to 90°
(3)	Timing Belt Idler Roller Bolt	Tightening torque to 4,5 da.Nm
(4)	Camshaft Timing Chain Tensioner Bolt	Tightening torque to 0,9 da.Nm
(5)	Camshaft Bearing Bolts (*)	Pre-tighten to 0,5 daNm
(5)	Camshaft Bearing Bolts (*)	Tightening torque to 0,9 da.Nm
(6)	Screw Fixing The Timing Pinion To The Crankshaft	Tightening torque to 30 da.Nm
(6)	Screw Fixing The Timing Pinion To The Crankshaft	Angular tightening to 90°
(7)	Timing Belt Tensioner Roller Bolt	Tightening torque to 2,6 da.Nm

[DHallworth]

Amazing, thank you very much!

That’s great peace of mind.

David.

[DHallworth]

If I could be really cheeky, you don’t have the tightening sequence and torque figures for the sump bolts, do you?

Thanks,
David.

[GiveMeABreak]

I just realised I missed off the timing Cover...

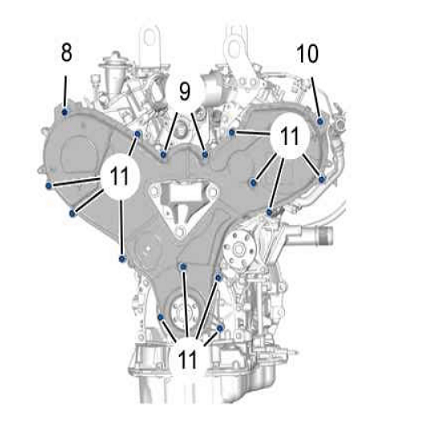

Reference	Designation	Tightening procedure
(8)	nut - Timing cover	Tightening torque to 0,9 da.Nm
(9)	bolts M6x36 - Timing cover	Tightening torque to 0,9 da.Nm
(10)	bolts M6x30 - Timing cover	Tightening torque to 0,9 da.Nm
(11)	bolts M6x32 - Timing cover	Tightening torque to 0,9 da.Nm

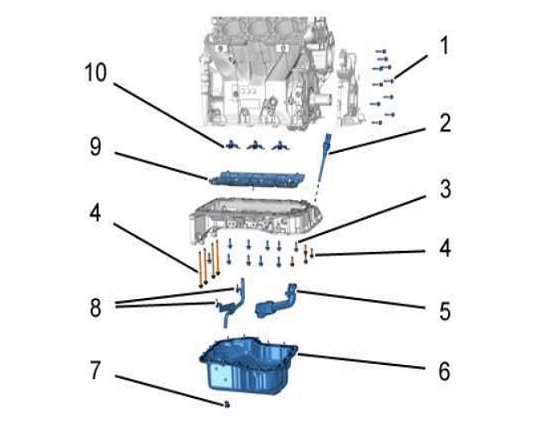

Reference	Designation	Tightening procedure
(1)	Bolts - Oil Pump (*)	Pre-tighten to 0,4 daNm
(1)	Bolts - Oil Pump (*)	Tightening torque to 0,9 da.Nm
(2)	Oil Level Sensor	Tightening torque to 2,7 da.Nm
(3)	Bolts M8 - Engine Sump (*)	Pre-tighten to 1 daNm
(3)	Bolts M8 - Engine Sump (*)	Tightening torque to 2,3 da.Nm
(4)	Bolts M6 - Engine Sump (*)	Pre-tighten to 0,4 daNm
(4)	Bolts M6 - Engine Sump (*)	Tightening torque to 0,9 da.Nm
(5)	Oil Suction Strainer	Tightening torque to 0,9 da.Nm
(6)	Bolts - Sump (*)	Pre-tightening to 0,4 da.Nm
(6)	Bolts - Sump (*)	Tightening torque to 0,9 da.Nm
(7)	Drain Plug	Tightening torque to 2,3 da.Nm
(8)	Lower Dipstick Guide Tube	Tightening torque to 0,9 da.Nm
(9)	Oil Deflector	Tightening torque to 0,9 da.Nm
(10)	Piston Skirt Spray Jets	Tightening torque to 1 da.Nm

[DHallworth]

Thank you Marc, really appreciate your help as always.

David.
