C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by zane2g2 »

Evening all,

Just a quick one (Hopefully :rofl2: )

My passenger side indicator light stopped working some time ago.
So... knowing it was a sealed light I purchased a new one and went about replacing it.
So I took the wing mirror apart in the normal way that is to replace the unit.
Put it back together & went to test it.... bosh.... still not working.
I've tested the old & new light unit, and they both work (Bang head against wall).

The thing is does anyone know why just the mirror light isn't working?
ALL of the indicators lights around the car work fine.

Cheers all,
Zane
User avatar
Dormouse
(Donor 2022)
Posts: 2010
Joined: 15 Apr 2021, 14:32
Location: Kingdom of Fife
My Cars: Peugeot 3008 Hybrid4, Fiat Ducato, Morris Mini.
plus notable cars I have owned :- Studebaker 1921, Daimler Consorts, Mercedes 220 Pontoon, Simca 1301, Austin Metropolitan, lots and lots of Minis, both steel and fibreglass bodied, Fiat 500F, Citroen GSA's, Skoda Estelle 120 Rally replica, DKW 1000S, Triumph Herald Estate, Warwick GT (very briefly)
x 666

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by Dormouse »

I wonder if you have a multi switch on that door and if there are any faults with it. The wiring harnesses to the mirror go through the multi connectors in that area.
zane2g2
Donor 2024
Posts: 34
Joined: 27 Aug 2019, 07:50
Location: Somerset
My Cars: Citroen C4 Picasso Exclusive 2014
x 2

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by zane2g2 »

DO you know where there are any connectors on for the door or a wiring schematic for the wing mirror/ door?
Dormouse wrote: 14 Oct 2021, 21:50 I wonder if you have a multi switch on that door and if there are any faults with it. The wiring harnesses to the mirror go through the multi connectors in that area.
User avatar
Dormouse
(Donor 2022)
Posts: 2010
Joined: 15 Apr 2021, 14:32
Location: Kingdom of Fife
My Cars: Peugeot 3008 Hybrid4, Fiat Ducato, Morris Mini.
plus notable cars I have owned :- Studebaker 1921, Daimler Consorts, Mercedes 220 Pontoon, Simca 1301, Austin Metropolitan, lots and lots of Minis, both steel and fibreglass bodied, Fiat 500F, Citroen GSA's, Skoda Estelle 120 Rally replica, DKW 1000S, Triumph Herald Estate, Warwick GT (very briefly)
x 666

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by Dormouse »

you need some of the moderators for diagrams/schematics but, if you lift the electric window switch module out you see the harnesses. You probably won't be able to get much access but is worth a look before you pull door trim off to get access
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by GiveMeABreak »

The first place to check is the connection between the door and the A Pillar section where the wires are fed through. There will be a flexible protector that you will need to remove to check the condition of the wires as this is a common stress place for them to break or start to break causing intermittent failure of equipment like the mirrors, locking etc.
Please Don't PM Me For Technical Help

Marc
zane2g2
Donor 2024
Posts: 34
Joined: 27 Aug 2019, 07:50
Location: Somerset
My Cars: Citroen C4 Picasso Exclusive 2014
x 2

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by zane2g2 »

Hi Marc,

Would you happen to have an exploded view of the front passenger door at all please.
I'd like to see what I need to disassemble to check this break in the wiring.
I don't want to go pulling on the flexible rubber boot then cause further damage.

Many Thanks
Zane
GiveMeABreak wrote: 14 Oct 2021, 23:04 The first place to check is the connection between the door and the A Pillar section where the wires are fed through. There will be a flexible protector that you will need to remove to check the condition of the wires as this is a common stress place for them to break or start to break causing intermittent failure of equipment like the mirrors, locking etc.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by GiveMeABreak »

Ok, I've highlighted in Red Arrows where the clips are, to give you a better idea where they are when you pry them off:

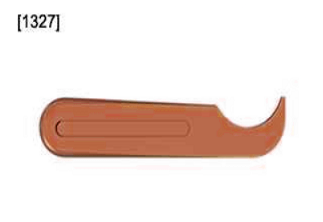

You'll need a trim removal tool or something like this:
Zane Tool A.PNG
Zane Tool B.PNG

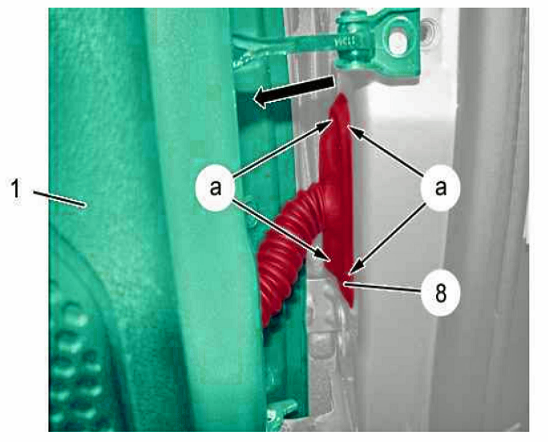

CAUTION : Detach the sleeve with care.
Unclip the sleeve (8) (at "a") Using tool [1327].
Detach (In the direction of the arrow ) :
The sleeve (8)
Zane Tool C.PNG

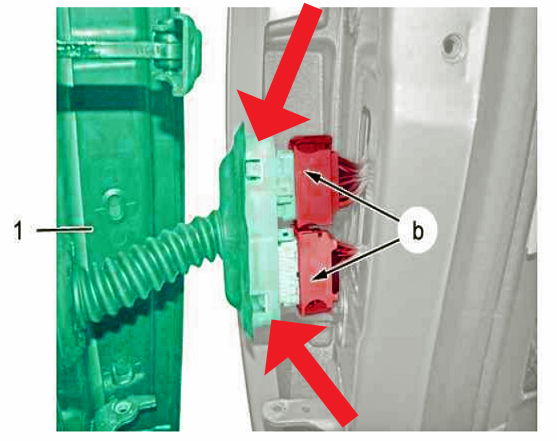

This is where the connectors are where I have used red arrows.
Zane Tool D.PNG

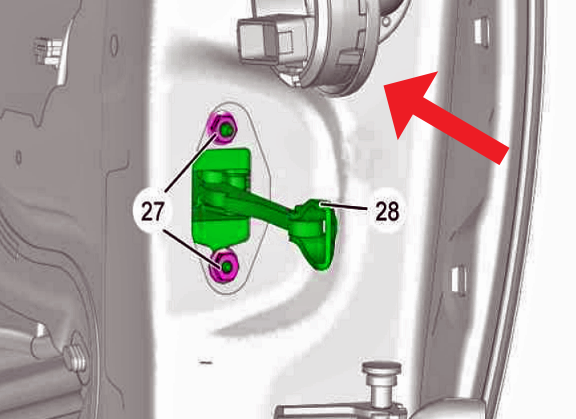

As for the door side this is what is on the other side of the connector - an electrical connector - but again the red arrow shows where the trim clip is that you need to push in as you release it.
Please Don't PM Me For Technical Help

Marc
zane2g2
Donor 2024
Posts: 34
Joined: 27 Aug 2019, 07:50
Location: Somerset
My Cars: Citroen C4 Picasso Exclusive 2014
x 2

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by zane2g2 »

Thats brilliant marc,

Thanks for doing that.
I had the ipad in the car ready to take stuff apart using the instructions.
Thought I'd give the mirror unit the once over first.
Removed the the top part of the cover & removed the light unit & tested the light.
All good, so I lnow the light was ok. I then saw that the wiring goes into the hinge section of the mirror unit so thought I'd check that out.
Removed the 2 torx screws that hold the mirror unit on to the door, popped the mirror unit it off.
and bosh..... 2 broken wires.
resoldered and put some shrink tub over the joins.
Tested everything ..... and bosh... it works :-)
Put back together... sorted.

Damn I got lucky :-D :-D
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by GiveMeABreak »

No worries - had to be the wiring really - just in another location! Glad you have it sorted.
Please Don't PM Me For Technical Help

Marc
robbie2015
Posts: 3
Joined: 02 Feb 2023, 00:26
Location: Brisbane, Australia
My Cars: 2015 C4 Grand Picasso
x 4

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by robbie2015 »

Huge thanks to Marc and Zane2g2 for the very helpful guidance on the mirror indicator not working on my 2015 C4GP. First - I tested the light before getting a new one, and yes, it was working. Before reading above I removed the door panel. No access to the right area though. What wiring I could see was in good condition.

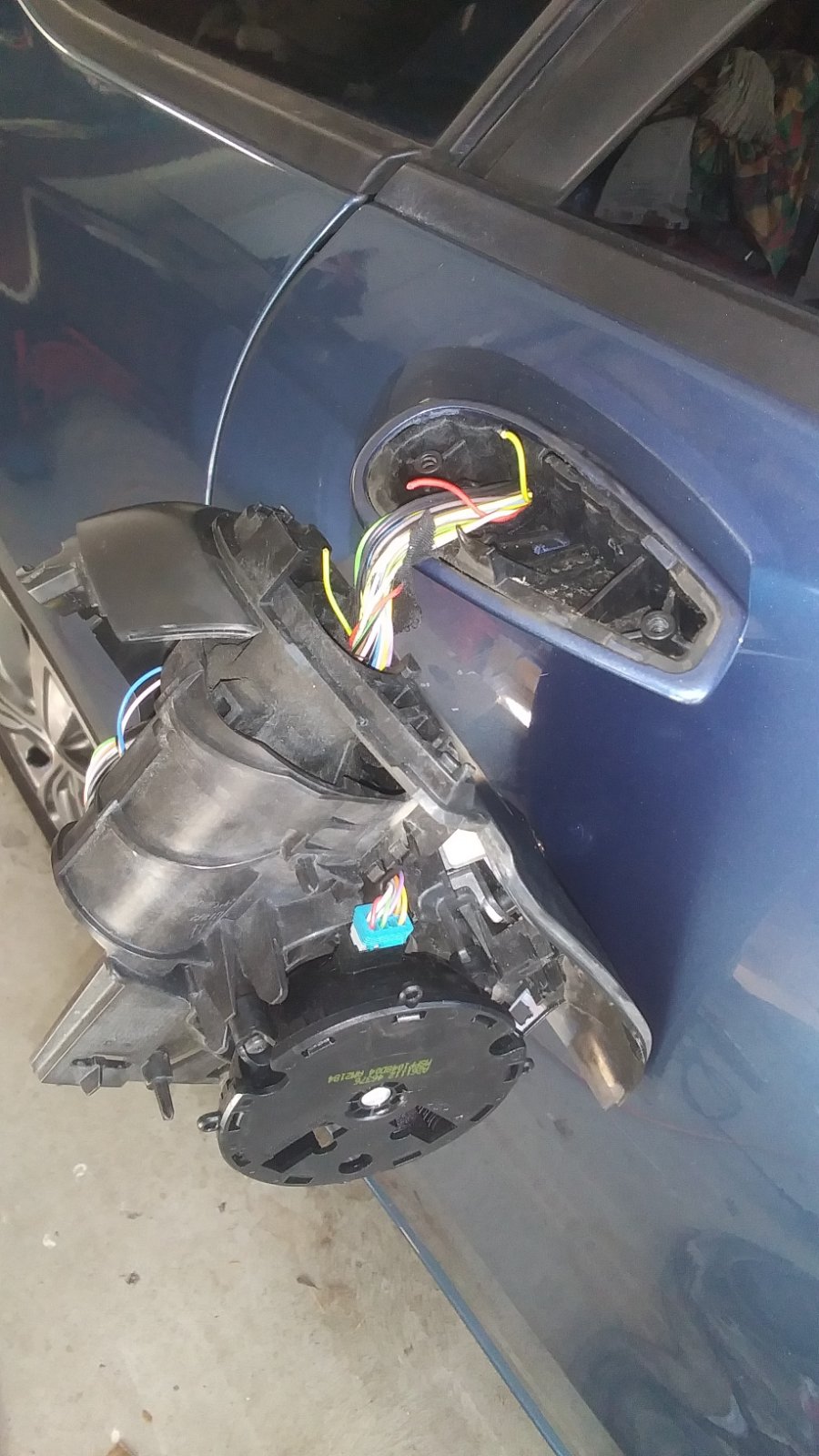

Then I read above and tackled the mirror itself. Had already removed the mirror once by undoing the bolt inside the door, but couldn't see any broken wires. Then Zane2g2 mentioned Tork screws to remove the mirror. What? Where? Then I found them under the swivel part of the mirror. Took them, out, and whaddyaknow, two broken wires as described above. I was inclined to blame the harness in the door jamb which was going to be difficult to check, but now don't have to. Repaired the wires and all working again. I can't thank you enough for the great advice on tackling this job. I'd hate to think what Citroen might have charged. Most of the time I spent on this (couple days) was researching and pulling off the door panel and tearing hair out. Once I found this post, the actual repair only took a about an hour and I wouldn't have had to touch the door panel. I also found a good Youtube video on pulling the mirror apart. It all helped.

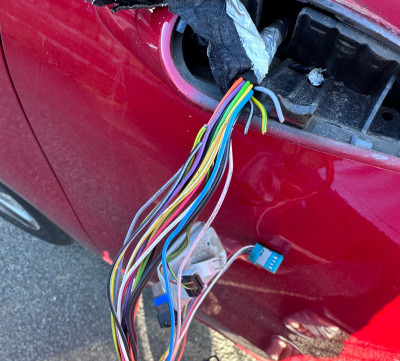

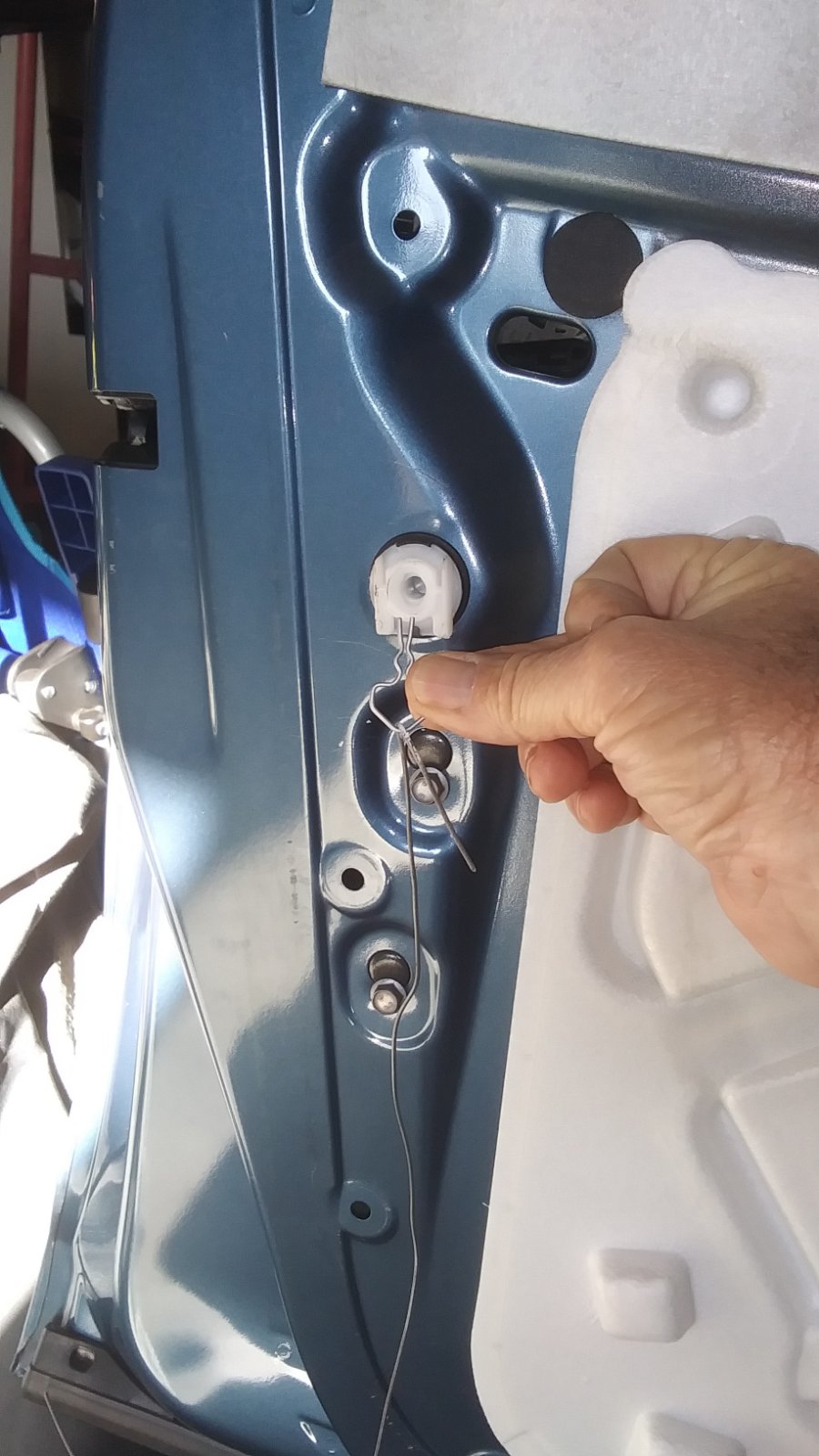

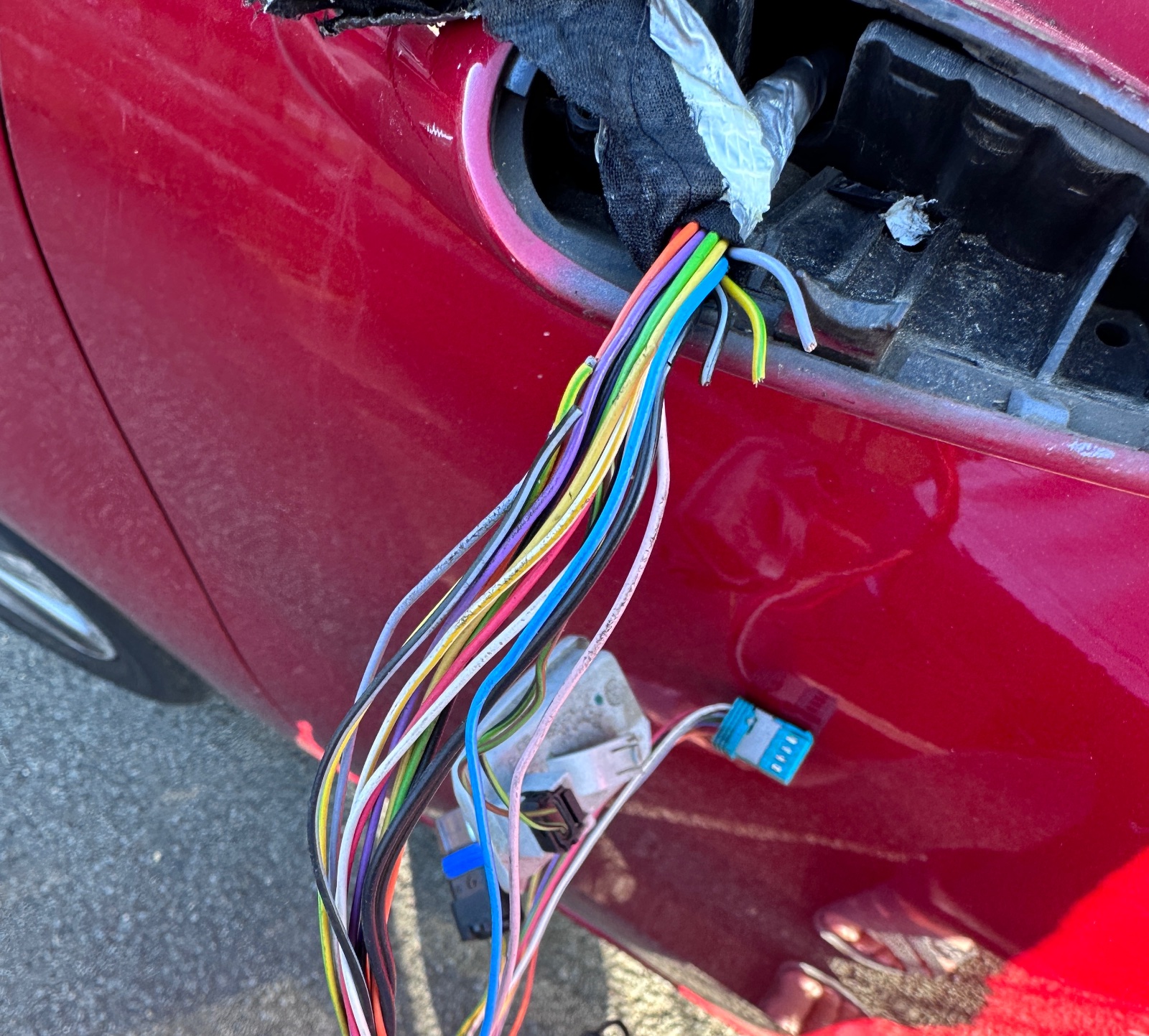

I've included a photo of the broken wires, plus a photo of a tricky door trim clip about an inch or so in from the side edge of the door. It was not a standard pull out clip refusing to let go. Looked inside in what small gap I could make to find a clip held in place by a wire circlip similar to that used in the good old days to hold a manual window winder handle on. I got a length of wire, formed a hook, pulled down on the wire clip, and everything just came apart. Luckily I had resisted the urge to just pull harder on that clip. All other clips popped out nicely using a door trim removal tool, and no clips broke.

Alll in all a very satisfying job. Thanks.
Attachments
I'll never again buy a car that uses Adblue.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by GiveMeABreak »

Thanks for updating the thread and for the pictures - bound to be a help to others. :wink:
Please Don't PM Me For Technical Help

Marc
wiseguy
Donor 2023
Posts: 3
Joined: 06 Jun 2023, 13:02
Location: manchester
My Cars: citroen c4 grand picasso airdream exclusive plus 2014

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by wiseguy »

this thread is very helpful for me . its helps a lot . specially robbies picture persuades me strip down wing mirror to check similar faults. indicator repeater , blind spot alert were not working.

after seen robbie’s posted pic i stripped wing mirror and found 3 wires were broken. each wire was connected to 3 different thing. one with repeater ,one with blind spot sensor and one with mirror motor.

after rejoins the cuts wing mirror function as it have to.
BobbyC19
Posts: 1
Joined: 05 Jan 2024, 14:28
Location: Vienna / Austria
My Cars: Citroen C4 Grand Picasso MK2 - 2.0 BlueHDI - 110 kW

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by BobbyC19 »

Hi, all! Does anyone have the OEN of the mirror wiring harness? The wires on mine are severely damaged. Was thinking to buy a new harness if not too expensive
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by GiveMeABreak »

We can help if you need an original, genuine part number or part diagram, and can't already find the info you need on the Forum. For this service, we do ask for a membership upgrade for official parts data as we are in turn charged for this. It will cover you for future part number requests for up to 2 years, so excellent value.

If interested, links are below, then provide your vehicle's VIN in full, which will be masked automatically when you submit your post.
A response to your question by a Forum Admin requiring parts or specific vehicle information requires you
to have made a current contribution
(Min. £10 / €11.48 or equivalent) to the Forum.
To Upgrade Your Membership & Donate Click Here

For Further Information About Vehicle Parts and VIN Numbers Click Here
Please Don't PM Me For Technical Help

Marc
Althesandie
Donor 2024
Posts: 13
Joined: 15 Nov 2023, 10:34
Location: South Shields
My Cars: Citroen c4 grand Picasso exclusive 2015
x 4

Re: C4 Pic 2014 Exclusive (B87) - Wing Mirror Indicator Not Working

Post by Althesandie »

Exact same problem on my 2015 exclusive. Found three wires broken and did the same of soldering etc. That is passenger and driver side I have done now.
Just wonder if making a harness with silicone covered cables would be better but for now, it works!
