Cooling Fan Replacement

Post by art_60 »

Hi all,
I am new to this forum. I have a 2014 C4 Picasso GR EXCL, and the air con has stopped working when stationary. I have Checked the radiator cooling fan and it is definitely U/S. The motor is mechanically free but the windings are open circuit. Have applied voltage to the motor and still no joy.
I have purchased a replacement, but cannot see a way to remove the failed unit. The fan is fitted behind the radiator, rather than in front of it. All the information I can find shows the fan assembly mounted in front of the radiator. Can anyone supply a replacement procedure?

Thanks
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Cooling Fan Replacement

Post by GiveMeABreak »

If you pop your VIN up for me (automasked on post submission) I will take a look at the system you have and see if I have something to assist.
Please Don't PM Me For Technical Help

Marc
art_60
Posts: 15
Joined: 03 Aug 2021, 08:56
Location: Cheshire
My Cars: C4 Picasso Gran EX
C5 Picasso
x 4

Re: Cooling Fan Replacement

Post by art_60 »

Thanks,
How do I automask, as new to this.
many thanks
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Cooling Fan Replacement

Post by Hell Razor5543 »

The VIN will automatically be auto-masked by the forum security software. Type it in here, without any spaces, and the software will do its' job (like this; VF7**************[VIN obfuscated, can be read by forum staff] ). Please do not post a picture of the VIN, as the software cannot recognise and auto-mask it.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
art_60
Posts: 15
Joined: 03 Aug 2021, 08:56
Location: Cheshire
My Cars: C4 Picasso Gran EX
C5 Picasso
x 4

Re: Cooling Fan Replacement

Post by art_60 »

thanks
VIN is VF7**************[VIN obfuscated, can be read by forum staff]
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Cooling Fan Replacement

Post by GiveMeABreak »

It is definitely mounted behind the radiator, but are you sure you want to tackle this? The bumper, headlights and transverse section need to come off to get it out. The dealer would have it on a lift to remove and replace all this.
Please Don't PM Me For Technical Help

Marc
art_60
Posts: 15
Joined: 03 Aug 2021, 08:56
Location: Cheshire
My Cars: C4 Picasso Gran EX
C5 Picasso
x 4

Re: Cooling Fan Replacement

Post by art_60 »

Thanks
Yep, gonna give it a try anyway. Took my wifes car to a dealer (Renault) to get a front window actuator fault looked at...they charged £150 to make a video that detailed all the other faults on the car, and quoted £1300 for the other repair work, and another £650 to fix window. I asked how much to video a christening, and could they recommend any one that could fix a window actuator, and repaired it myself. Dealers have lost touch with the customer completely. I think they are run by money orientated staff rather than mechanical engineers.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Cooling Fan Replacement

Post by GiveMeABreak »

The reason I asked if you wanted to go ahead with it yourself is that I may be able to get some guidance up for you if that is the case. Leave it with me and I'll put something up this morning.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Cooling Fan Replacement

Post by GiveMeABreak »

Once you have the vehicle in position, you should disconnect the battery following the BSI Reset / Battery Disconnect / Reconnect Procedure as the fan may kick in with the engine not running, as part of the post cooling operation.

Once you have taken off the following:
  • The front bumper
  • The air resonator (according to equipment)
  • The air filter housing (according to equipment)
  • The headlamps
Pic Cool A.PNG
Pic Cool B.PNG

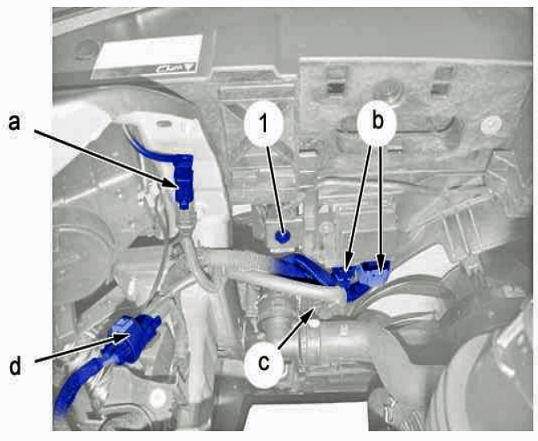

Disconnect the connectors at "b", "d".
Disconnect and unclip the connector (at "a").
Remove the bolt (1).
Unclip the electrical harness (at "c").

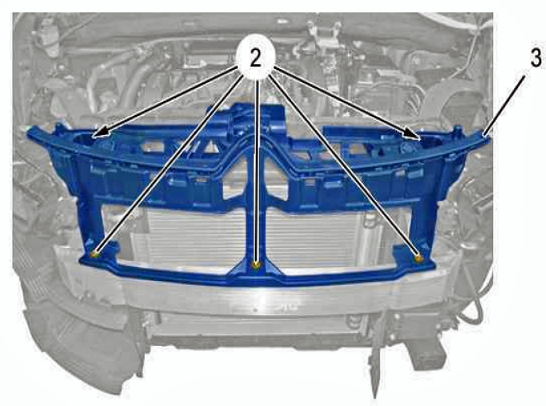

Remove:
  • The bolts (2)
  • Transverse front section (3)
Pic Cool C.PNG
Pic Cool D.PNG
Separate the release cable from the engine cover.

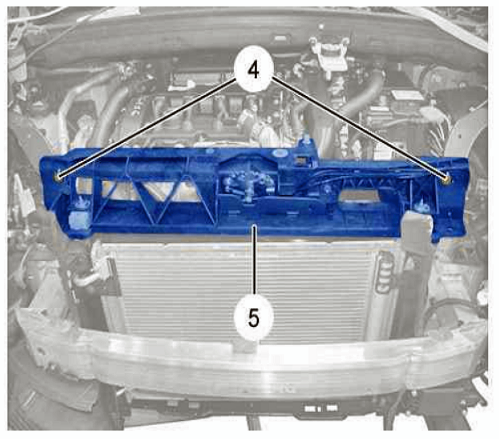

Remove:
  • The bolts (4)
  • The upper crossmember (5)
  • Uncouple the radiator degas pipe.

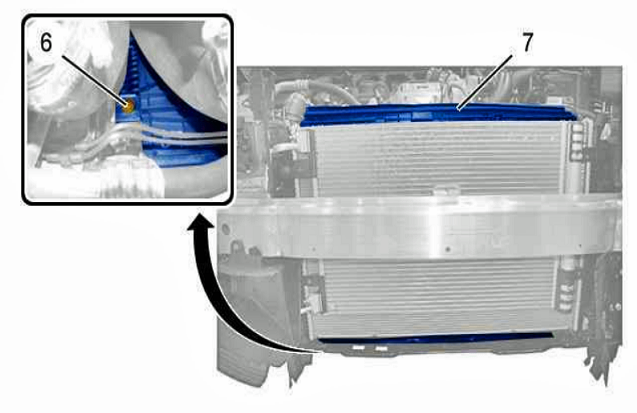

Remove:
  • The (6) bolt
  • The cooling fan (7) (Upwards)
Pic Cool E.PNG
Pic Cool F.PNG

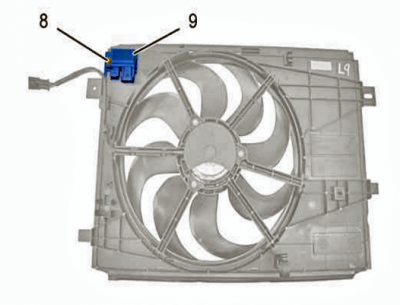

Remove:
  • The (8) bolt
  • The cooling fan electric control unit (9)
Refitting

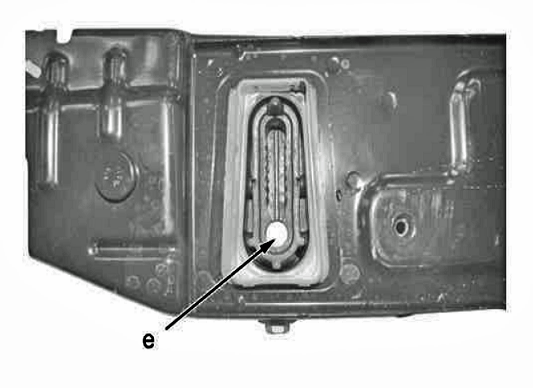

CAUTION: Position the engine cooling radiator studs (at "e").


Refit:
  • The cooling fan electric control unit (9)
  • The (8) bolt
  • The cooling fan (7)
  • The bolts (1), (6)
  • The upper crossmember (5)
  • The bolts (4)
Reconnect the radiator degas pipe.
Position the bonnet release cable.

Refit:
  • Transverse front section (3)
  • The bolts (2)
Clip the electrical harness (at "c").
Connect and secure the connector (at "a").
Connect the connectors (at "b", "d").

Refit:
  • The headlamps
  • The air filter housing (according to equipment)
  • The air resonator (according to equipment)
  • The front bumper


Then follow the battery reconnection part of the BSI Reset / Battery Disconnect / Reconnect Procedure

Check and top up the coolant fluid level if necessary.
Start the engine; Wait for the fan assembly to cut in then cut out.
Stop the engine.
Please Don't PM Me For Technical Help

Marc
art_60
Posts: 15
Joined: 03 Aug 2021, 08:56
Location: Cheshire
My Cars: C4 Picasso Gran EX
C5 Picasso
x 4

Re: Cooling Fan Replacement

Post by art_60 »

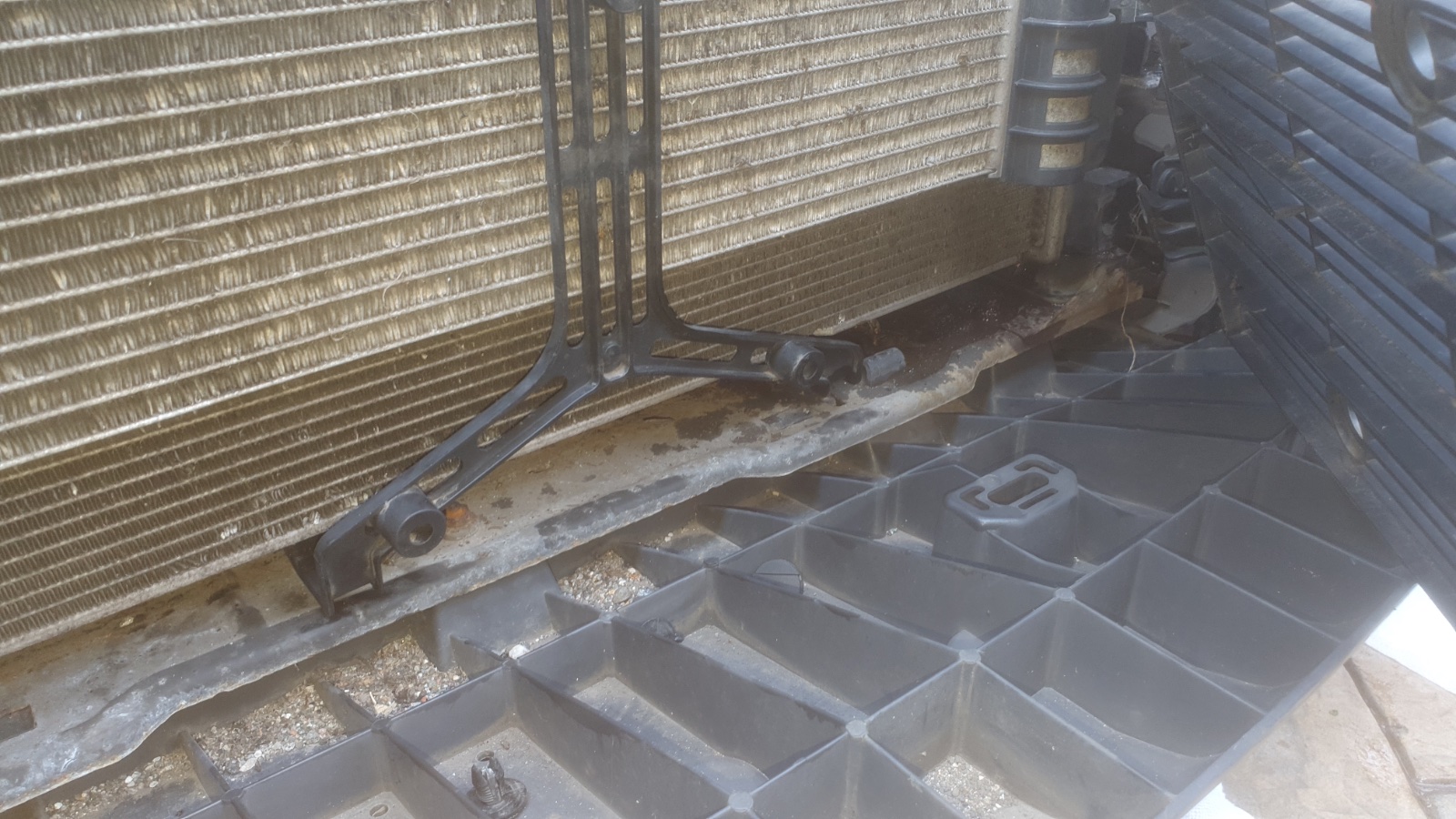

Thanks for the replies all. I have managed to get the fan replaced. My set up was different to the Pics supplied, and I gave up in trying to take out the complete cowl assembly as it looked like I would need to drain down and disconnect the radiator hoses. Also I broke the bottom clips trying to separate the Plastic clamp assembly from the plastic fan housing see attached pic. So decided to just change the failed fan. So removed the 3 off 8mm bolts. It was tight getting it out and putting the new one in. But ,managed it. Just hope that I have not disturbed the bottom radiator seating. But I now have a cooling fan that functions and have air con when stopped.
Attachments
art_60
Posts: 15
Joined: 03 Aug 2021, 08:56
Location: Cheshire
My Cars: C4 Picasso Gran EX
C5 Picasso
x 4

Re: Cooling Fan Replacement

Post by art_60 »

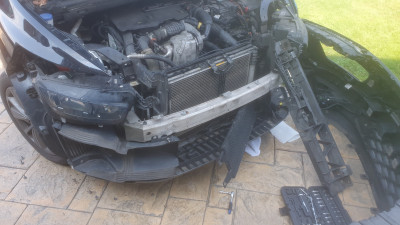

Sorry here is a better pic
Attachments
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Cooling Fan Replacement

Post by GiveMeABreak »

Glad you found a compromise to get it sorted. :wink:
Please Don't PM Me For Technical Help

Marc
art_60
Posts: 15
Joined: 03 Aug 2021, 08:56
Location: Cheshire
My Cars: C4 Picasso Gran EX
C5 Picasso
x 4

Re: Cooling Fan Replacement

Post by art_60 »

Thanks peeps for all your help. GMAB you're a star.
