C4 Picasso (B78) 2014 rear shock absorber - how to access top?

Post by danlat1415 »

My passenger side rear shock absorber is loose at the top.

I can't see how to access the top of the rear shock absorber as it goes behind the wheel arch trim.

Does anyone know how to access the top of the shock absorber?
Do I need to remove the wheel arch trim, or do I access it from inside the boot, and take off the side panel?

I need to get this tightened up asap.

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 24374
Joined: 15 Sep 2015, 19:38
x 2665

Re: C4 Picasso (B78) 2014 rear shock absorber - how to access top?

Post by GiveMeABreak »

Ok, so you access the top of the rear strut from the boot:
Dan A.PNG
Remove:
  • The boot carpet (4)
  • The boot end trim (5)
Dan B.PNG
Remove (According to equipment):
  • The bolt (6)
  • The cover (7)
Move aside the trim (8)

Dan C.PNG
The nut is then exposed at (9) above.

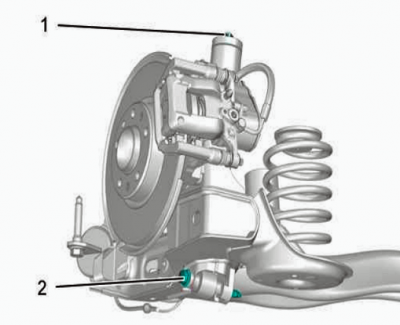

Dan D.PNG

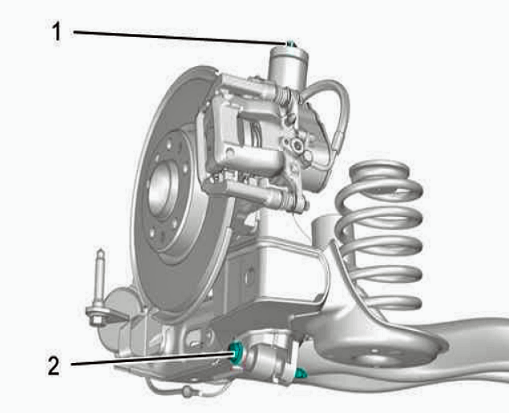

Torque:

The Nut at (1) needs to be tightened to 4,5 daNm

danlat1415
Posts: 59
Joined: 06 Jul 2019, 08:17
x 5

Re: C4 Picasso (B78) 2014 rear shock absorber - how to access top?

Post by danlat1415 »

Thanks very much.
I managed to get it sorted.

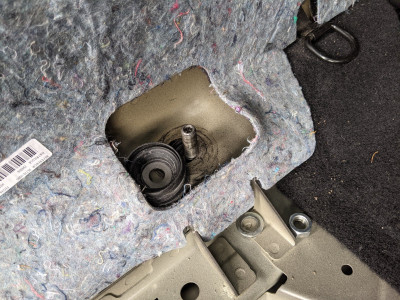

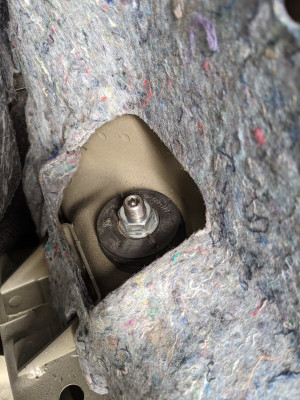

I found the problem - the top mount had come completely loose and come off completely, so the top of the strut was just rattling around unattached to anything.

The garage must have hand tightened it and forgot to use tool on that bolt.
It got replaced about 2 years ago, so it must have shaken free slowly over time.

The driver side was fine.
Attachments

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 24374
Joined: 15 Sep 2015, 19:38
x 2665

Re: C4 Picasso (B78) 2014 rear shock absorber - how to access top?

Post by GiveMeABreak »

No problem, just as well you clocked it when you did!

Hell Razor5543
Donor 2021
Posts: 11664
Joined: 01 Apr 2012, 09:47
x 1394

Re: C4 Picasso (B78) 2014 rear shock absorber - how to access top?

Post by Hell Razor5543 »

I will bet the handling will improve slightly.
