C4 Picasso (B78) 2014 rear shock absorber - how to access top?

Post by danlat1415 »

My passenger side rear shock absorber is loose at the top.

I can't see how to access the top of the rear shock absorber as it goes behind the wheel arch trim.

Does anyone know how to access the top of the shock absorber?
Do I need to remove the wheel arch trim, or do I access it from inside the boot, and take off the side panel?

I need to get this tightened up asap.
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5647

Re: C4 Picasso (B78) 2014 rear shock absorber - how to access top?

Post by GiveMeABreak »

Ok, so you access the top of the rear strut from the boot:
Dan A.PNG
Remove:
  • The boot carpet (4)
  • The boot end trim (5)
Dan B.PNG
Remove (According to equipment):
  • The bolt (6)
  • The cover (7)
Move aside the trim (8)

Dan C.PNG
The nut is then exposed at (9) above.
Dan D.PNG
Torque:

The Nut at (1) needs to be tightened to 4,5 daNm
Please Don't PM Me For Technical Help

Marc
danlat1415
Donor 2024
Posts: 124
Joined: 06 Jul 2019, 08:17
Location: Lancashire
My Cars: Citroen C4 Picasso MK2 1.6 HDi (semi auto Deisel)
x 18

Re: C4 Picasso (B78) 2014 rear shock absorber - how to access top?

Post by danlat1415 »

Thanks very much.
I managed to get it sorted.

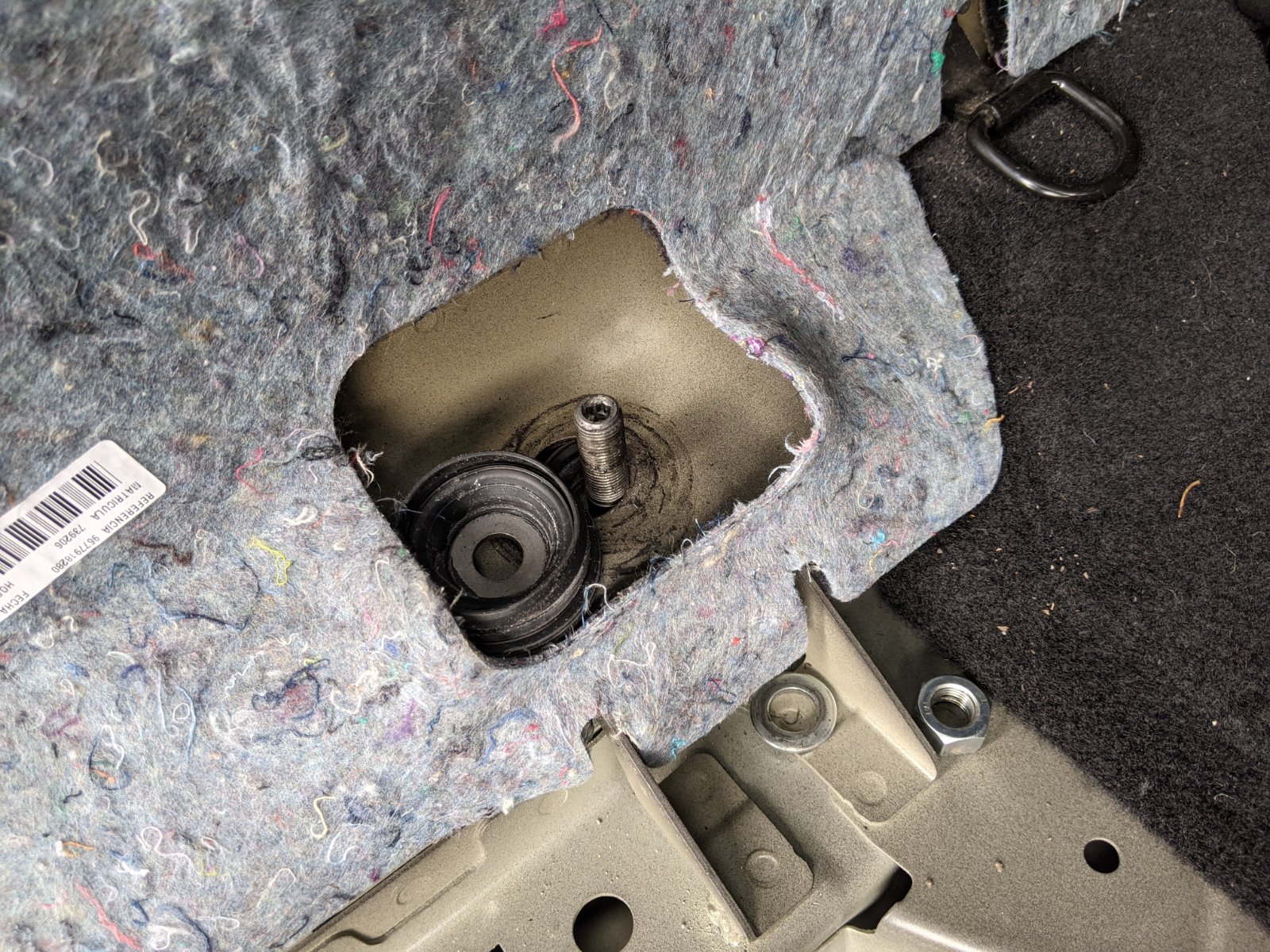

I found the problem - the top mount had come completely loose and come off completely, so the top of the strut was just rattling around unattached to anything.

The garage must have hand tightened it and forgot to use tool on that bolt.
It got replaced about 2 years ago, so it must have shaken free slowly over time.

The driver side was fine.
Attachments
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5647

Re: C4 Picasso (B78) 2014 rear shock absorber - how to access top?

Post by GiveMeABreak »

No problem, just as well you clocked it when you did!
Please Don't PM Me For Technical Help

Marc
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: C4 Picasso (B78) 2014 rear shock absorber - how to access top?

Post by Hell Razor5543 »

I will bet the handling will improve slightly.
