1997 Citroen Xsara hatchback SX TD wiring diagrams

Unread post by Agent29 »

Hi.

Can anyone provide me with, or let me know where I can source correct wiring diagrams for this model?

The Haynes manual and other online diagrams are different to the wiring in my car.
Top
wheeler
Posts: 7583
Joined: 21 Sep 2002, 19:07
x 949

Re: 1997 Citroen Xsara hatchback SX TD wiring diagrams

Unread post by wheeler »

Which particular circuits are you after?
What is your RP number? This should be stencilled onto one of the strut tops on a 97 model.
Top
Agent29
Posts: 29
Joined: 15 Apr 2021, 06:14
x 2

Re: 1997 Citroen Xsara hatchback SX TD wiring diagrams

Unread post by Agent29 »

Hi, on the OS strut there is 7659-FV, I believe the paint code is on the NS strut. I am looking for the blower / aircon diagrams.

many thanks.
Top
wheeler
Posts: 7583
Joined: 21 Sep 2002, 19:07
x 949

Re: 1997 Citroen Xsara hatchback SX TD wiring diagrams

Unread post by wheeler »

Here you go.
Component codes can be found here > https://www.frenchcarforum.co.uk/wiki/E ... ring_Codes
Attachments

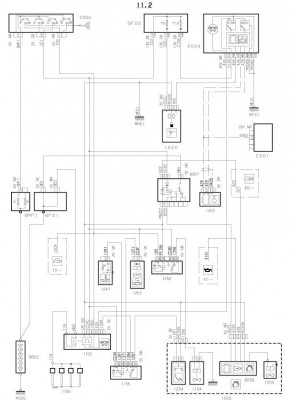

Xsara AC.jpg
Top
Agent29
Posts: 29
Joined: 15 Apr 2021, 06:14
x 2

Re: 1997 Citroen Xsara hatchback SX TD wiring diagrams

Unread post by Agent29 »

Thankyou very much. This diagram correlates perfectly with my vehicle.
Top
Agent29
Posts: 29
Joined: 15 Apr 2021, 06:14
x 2

Re: 1997 Citroen Xsara hatchback SX TD wiring diagrams

Unread post by Agent29 »

Is it possible to supply the glow plug heating system with relay please? yet another gremlin has surfaced.
Top
wheeler
Posts: 7583
Joined: 21 Sep 2002, 19:07
x 949

Re: 1997 Citroen Xsara hatchback SX TD wiring diagrams

Unread post by wheeler »

here you go.
Attachments
xsara glow plugs.jpg
