1997 Citroen Xsara hatchback SX TD wiring diagrams

Post by Agent29 »

Hi.

Can anyone provide me with, or let me know where I can source correct wiring diagrams for this model?

The Haynes manual and other online diagrams are different to the wiring in my car.
wheeler
Posts: 6848
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: 1997 Citroen Xsara hatchback SX TD wiring diagrams

Post by wheeler »

Which particular circuits are you after?
What is your RP number? This should be stencilled onto one of the strut tops on a 97 model.
Agent29
Posts: 29
Joined: 15 Apr 2021, 06:14
Location: Huntingdon
My Cars: 1994 Peugeot 205 STDT, 1997 Citroen Xsara SX TD.
Gone but not forgotten:
1999 Xsara VTS
1997 Citroen ZX SX TD
1990 Citroen BX TGD Auto
1991 Citroen TXD Auto
1987 Citroen RD Auto
1991 Peugeot 309 GLD
x 2

Re: 1997 Citroen Xsara hatchback SX TD wiring diagrams

Post by Agent29 »

Hi, on the OS strut there is 7659-FV, I believe the paint code is on the NS strut. I am looking for the blower / aircon diagrams.

many thanks.
wheeler
Posts: 6848
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: 1997 Citroen Xsara hatchback SX TD wiring diagrams

Post by wheeler »

Here you go.
Component codes can be found here > https://www.frenchcarforum.co.uk/wiki/E ... ring_Codes
Attachments
Xsara AC.jpg
Agent29
Posts: 29
Joined: 15 Apr 2021, 06:14
Location: Huntingdon
My Cars: 1994 Peugeot 205 STDT, 1997 Citroen Xsara SX TD.
Gone but not forgotten:
1999 Xsara VTS
1997 Citroen ZX SX TD
1990 Citroen BX TGD Auto
1991 Citroen TXD Auto
1987 Citroen RD Auto
1991 Peugeot 309 GLD
x 2

Re: 1997 Citroen Xsara hatchback SX TD wiring diagrams

Post by Agent29 »

Thankyou very much. This diagram correlates perfectly with my vehicle.
Agent29
Posts: 29
Joined: 15 Apr 2021, 06:14
Location: Huntingdon
My Cars: 1994 Peugeot 205 STDT, 1997 Citroen Xsara SX TD.
Gone but not forgotten:
1999 Xsara VTS
1997 Citroen ZX SX TD
1990 Citroen BX TGD Auto
1991 Citroen TXD Auto
1987 Citroen RD Auto
1991 Peugeot 309 GLD
x 2

Re: 1997 Citroen Xsara hatchback SX TD wiring diagrams

Post by Agent29 »

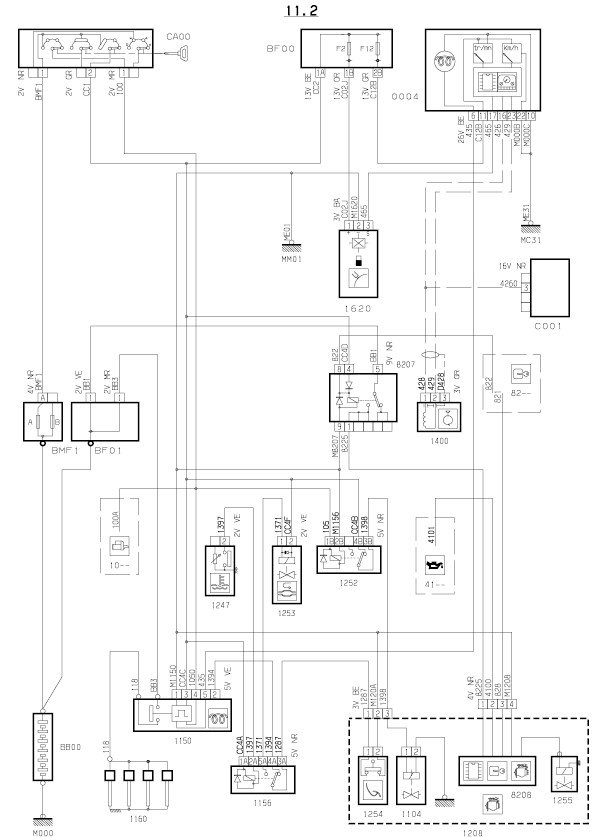

Is it possible to supply the glow plug heating system with relay please? yet another gremlin has surfaced.
wheeler
Posts: 6848
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: 1997 Citroen Xsara hatchback SX TD wiring diagrams

Post by wheeler »

here you go.
Attachments
xsara glow plugs.jpg
