C4 Grand Picasso 2015 (B78) Heater matrix part no

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Gabriel_M
Donor 2020
Posts: 3
Joined: 08 Jan 2021, 10:21

C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by Gabriel_M »

Hi all

New user (just donated as well, such a great forum) and I have a fairly recently bought C4 GP 2015 B78 1.6 Blue DHi EAT6.

I have no heat in the cabin though(just a little bit on the left side, drivers side is stone cold). The engine does not overheat and checked the coolant level, which is ok (looks brown and nasty - will replace as soon as the weather gets better).

First thing I would kindly ask: does anyone know the part no for the heater matrix? I would like to replace that as the first port of call, but can't find it on any of the usual car parts websites (ECP, Mister Auto etc).

Secondly: do you know of a good guide to replace the collant?

Many thanks in advance
Gabriel
Last edited by Gabriel_M on 08 Jan 2021, 13:21, edited 1 time in total.

RichardW
Forum Treasurer
Posts: 9341
Joined: 07 Aug 2002, 17:12
x 396

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by RichardW »

Hi Gabriel

Welcome along!

If you post up the VIN (it will hide itself) we can look up the part number for the matrix. However, it seems pretty unlikely it is blocked up on something this new, unless it's done interstellar mileage! More likely it is a fault with something in the electronic control system / one of the flaps. Pretty sure the matrix is accessible from the passenger foot well - if you pop out the trim panel under the dash you should be able to see the pipes, and feel if they are getting hot.

Gabriel_M
Donor 2020
Posts: 3
Joined: 08 Jan 2021, 10:21

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by Gabriel_M »

Many thanks for the reply.

VIN: VF7**************[VIN obfuscated, can be read by forum staff]

Yeah, good point about checking the pipes first, saves me having to take it out. Will reply as soon as I know more, but in the meantime, the part no would be really useful (at least it prepares me for the potential wallet raid).

Mileage is about 75k, by the way.

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 22036
Joined: 15 Sep 2015, 19:38
x 2236

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by GiveMeABreak »

Hi Gabriel

Thanks for your donation.

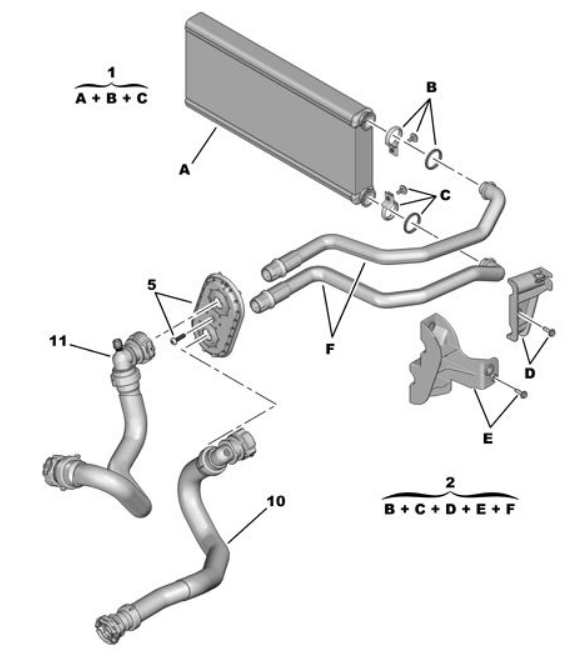

The original matrix part number was 1609730580, but this has been replaced with a new part: 9821299980, so I would use the later part number. The latest part number is currently priced at £182.63 inc. VAT direct from Citroen for a genuine OEM one. This is for item (1) on the diagram, which also includes the fittings 'B' & 'C'.

Gabriel_M
Donor 2020
Posts: 3
Joined: 08 Jan 2021, 10:21

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by Gabriel_M »

Thank you!

Do you guys know a good guide for replacing the coolant? Does not look straightforward looking at it.

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 22036
Joined: 15 Sep 2015, 19:38
x 2236

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by GiveMeABreak »

As you are a Donor, you can access the Resources section, where I have put up the coolant replacement guide for several engines.

The guide is exactly the same procedure, word for word for your car as it is for the DW10BTED4 engine - link below. The only difference it the coolant system pipes and parts will be different.

viewtopic.php?t=64036

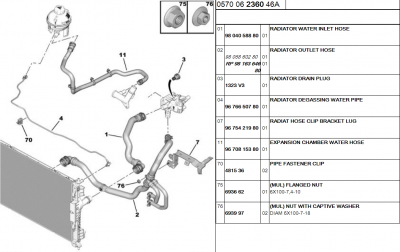

This is the cooling diagram for your car, but otherwise follow the procedure above.
Gab Cooling.PNG
