C4 Grand Picasso 2015 (B78) Heater matrix part no

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
Gabriel_M
(Donor 2021)
Posts: 13
Joined: 08 Jan 2021, 09:21
Location: Reading
My Cars: Citroen B78 C4 Grand Picasso Exclusive 1.6 BlueHDi (2015)
x 1

C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by Gabriel_M »

Hi all

New user (just donated as well, such a great forum) and I have a fairly recently bought C4 GP 2015 B78 1.6 Blue DHi EAT6.

I have no heat in the cabin though(just a little bit on the left side, drivers side is stone cold). The engine does not overheat and checked the coolant level, which is ok (looks brown and nasty - will replace as soon as the weather gets better).

First thing I would kindly ask: does anyone know the part no for the heater matrix? I would like to replace that as the first port of call, but can't find it on any of the usual car parts websites (ECP, Mister Auto etc).

Secondly: do you know of a good guide to replace the collant?

Many thanks in advance
Gabriel
Last edited by Gabriel_M on 08 Jan 2021, 12:21, edited 1 time in total.
RichardW
Forum Treasurer
Posts: 10814
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by RichardW »

Hi Gabriel

Welcome along!

If you post up the VIN (it will hide itself) we can look up the part number for the matrix. However, it seems pretty unlikely it is blocked up on something this new, unless it's done interstellar mileage! More likely it is a fault with something in the electronic control system / one of the flaps. Pretty sure the matrix is accessible from the passenger foot well - if you pop out the trim panel under the dash you should be able to see the pipes, and feel if they are getting hot.
Richard W
Gabriel_M
(Donor 2021)
Posts: 13
Joined: 08 Jan 2021, 09:21
Location: Reading
My Cars: Citroen B78 C4 Grand Picasso Exclusive 1.6 BlueHDi (2015)
x 1

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by Gabriel_M »

Many thanks for the reply.

VIN: VF7**************[VIN obfuscated, can be read by forum staff]

Yeah, good point about checking the pipes first, saves me having to take it out. Will reply as soon as I know more, but in the meantime, the part no would be really useful (at least it prepares me for the potential wallet raid).

Mileage is about 75k, by the way.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by GiveMeABreak »

Hi Gabriel

Thanks for your donation.

The original matrix part number was 1609730580, but this has been replaced with a new part: 9821299980, so I would use the later part number. The latest part number is currently priced at £182.63 inc. VAT direct from Citroen for a genuine OEM one. This is for item (1) on the diagram, which also includes the fittings 'B' & 'C'.
Please Don't PM Me For Technical Help

Marc
Gabriel_M
(Donor 2021)
Posts: 13
Joined: 08 Jan 2021, 09:21
Location: Reading
My Cars: Citroen B78 C4 Grand Picasso Exclusive 1.6 BlueHDi (2015)
x 1

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by Gabriel_M »

Thank you!

Do you guys know a good guide for replacing the coolant? Does not look straightforward looking at it.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by GiveMeABreak »

As you are a Donor, you can access the Resources section, where I have put up the coolant replacement guide for several engines.

The guide is exactly the same procedure, word for word for your car as it is for the DW10BTED4 engine - link below. The only difference it the coolant system pipes and parts will be different.

viewtopic.php?t=64036

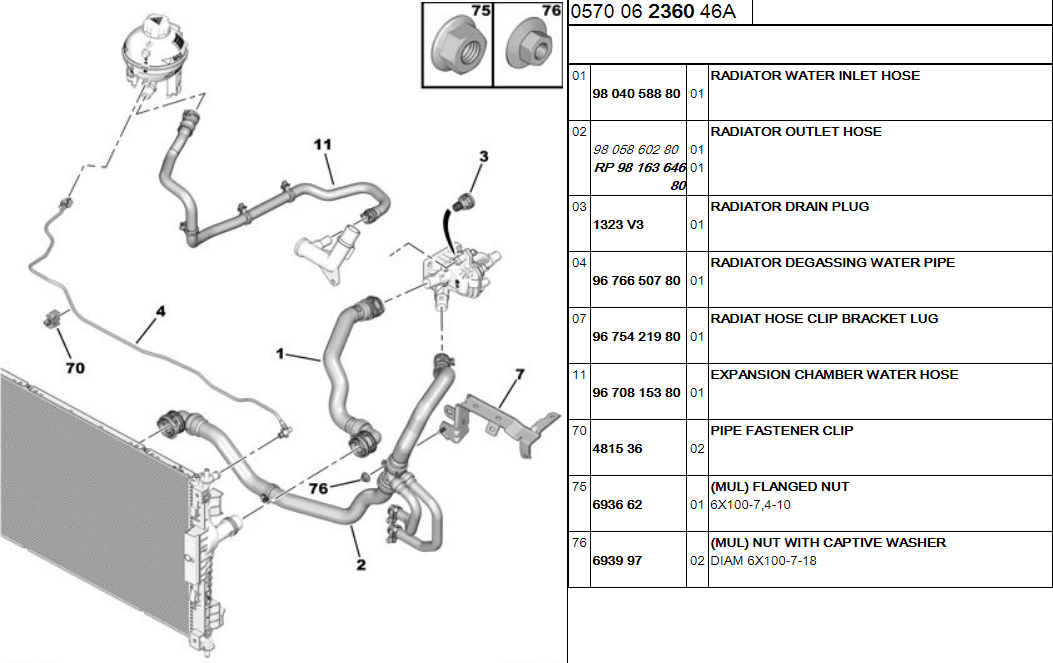

This is the cooling diagram for your car, but otherwise follow the procedure above.
Gab Cooling.PNG
Please Don't PM Me For Technical Help

Marc
Gabriel_M
(Donor 2021)
Posts: 13
Joined: 08 Jan 2021, 09:21
Location: Reading
My Cars: Citroen B78 C4 Grand Picasso Exclusive 1.6 BlueHDi (2015)
x 1

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by Gabriel_M »

Hi all, sorry for taking some time to reply. Just to confirm the outcome, it proved to be (like for so many others) the heater matrix that is clogged.

Tried to clear the blockage/sediments using some radiator cleaner, but with limited success. It's now back on the car. I am trying to avoid paying for a new one (not cheap!) and plan to persist with trying to clear the old one. I heard something about using citric acid and hot water, left overnight in the heater matrix, repeated if necessary.

Any tips or feedback on this approach?
LOONEYMAN
Posts: 4
Joined: 03 May 2023, 22:10
Location: surrey london
My Cars: 2017 citroen c4 grand picasso 2.0bluehdi

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by LOONEYMAN »

hi im new to site just trying to figure it out,i have a 2017 c4 gp similar problem mine blows out hot air pasanger side [duel control ] and stone cold drivers side, ive cheacked the flaps in heater box threre fine coolant is fine, need to get it sorted before the cold hits again, thanks
Gabriel_M
(Donor 2021)
Posts: 13
Joined: 08 Jan 2021, 09:21
Location: Reading
My Cars: Citroen B78 C4 Grand Picasso Exclusive 1.6 BlueHDi (2015)
x 1

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by Gabriel_M »

I would remove the heater matrix and check it by pouring hot water (not boiling, so less risk to scald yourself) into it, if the bottom does not get hot within a few seconds, which I guess will be the case, then you have a clogged heater matrix, like I had. In that case, just buy a new one. Might be able to find one on eBay, new, for less than what Citroen charge (a lot!).
LOONEYMAN
Posts: 4
Joined: 03 May 2023, 22:10
Location: surrey london
My Cars: 2017 citroen c4 grand picasso 2.0bluehdi

Re: C4 Grand Picasso 2015 (B78) Heater matrix part no

Post by LOONEYMAN »

thanks gabriel_m ill give it a try at weekend
