C4 Grand Picasso 2007 hdi 1.6 auto non crank

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Wildrat
Posts: 7
Joined: 09 Jun 2020, 18:56

C4 Grand Picasso 2007 hdi 1.6 auto non crank

Unread post by Wildrat »

Hi hope someone can help have issue with starting on wife’s car
Have had issues recently with getting to select gears before starting and only working in manual mode.
Believe this is from bad battery?
But has now failed to start have fitted new Bosh Battery and starter but still no start checked fuses and dash is all good just no start, non crank at all. no click.
Does anyone have any pointers or the starting circuit diagram?
Am engineer but bit difficult without road map?
Thanks John :?

wheeler
Posts: 4097
Joined: 21 Sep 2002, 19:07
x 130

Re: C4 Grand Picasso 2007 hdi 1.6 auto non crank

Unread post by wheeler »

Is it a proper auto or EGS?
Is the gear selector on the dash showing its in N or P?
Have you tried direct feeding the starter to see if it cranks?

Wildrat
Posts: 7
Joined: 09 Jun 2020, 18:56

Re: C4 Grand Picasso 2007 hdi 1.6 auto non crank

Unread post by Wildrat »

EGS
Gear showing correctly
Starter new and tested

wheeler
Posts: 4097
Joined: 21 Sep 2002, 19:07
x 130

Re: C4 Grand Picasso 2007 hdi 1.6 auto non crank

Unread post by wheeler »

Does the engine start when you direct feed the starter?
To get a wiring diagram I need the RP number from the tyre pressure label.

Wildrat
Posts: 7
Joined: 09 Jun 2020, 18:56

Re: C4 Grand Picasso 2007 hdi 1.6 auto non crank

Unread post by Wildrat »

I will do so tonight thanks m8

Wildrat
Posts: 7
Joined: 09 Jun 2020, 18:56

Re: C4 Grand Picasso 2007 hdi 1.6 auto non crank

Unread post by Wildrat »

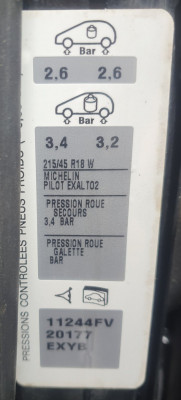

Sorry bit to wet down here but is this the info ?
Attachments
jeannies car.jpg

Hell Razor5543
NOT Alistair or Simon
Posts: 10356
Joined: 01 Apr 2012, 09:47
x 945

Re: C4 Grand Picasso 2007 hdi 1.6 auto non crank

Unread post by Hell Razor5543 »

11244FV. If the decoder is right your car stated production on 22nd August 2007 in the Vigo factory, Spain

wheeler
Posts: 4097
Joined: 21 Sep 2002, 19:07
x 130

Re: C4 Grand Picasso 2007 hdi 1.6 auto non crank

Unread post by wheeler »

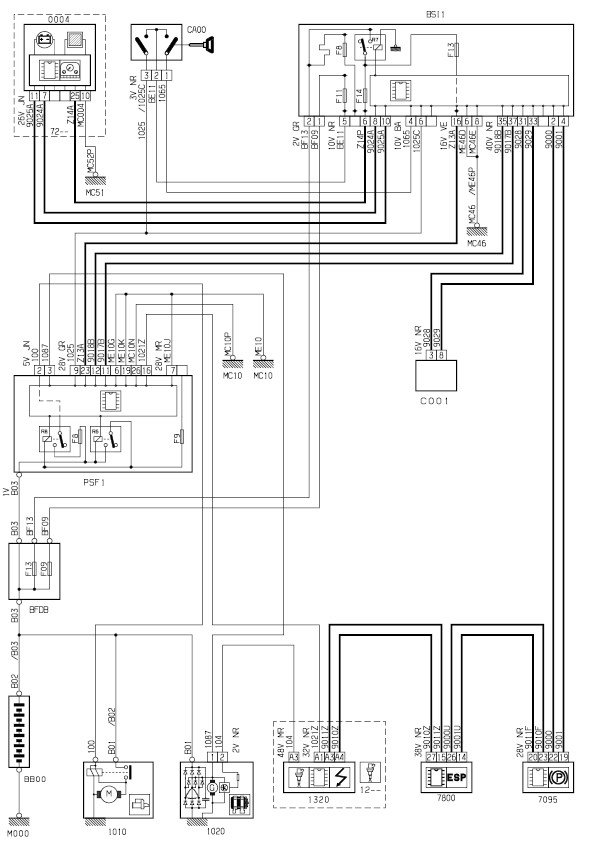

1010 = starter motor
PSF1 = under bonnet fusebox
1320 = injection ECU
Attachments

Wildrat
Posts: 7
Joined: 09 Jun 2020, 18:56

Re: C4 Grand Picasso 2007 hdi 1.6 auto non crank

Unread post by Wildrat »

Thanks a lot will try to trace issue now

Wildrat
Posts: 7
Joined: 09 Jun 2020, 18:56

Re: C4 Grand Picasso 2007 hdi 1.6 auto non crank

Unread post by Wildrat »

Noticed I have power on both sides of fuse 8 starter ? looking at diag! its through an relay would that be part of the BSI ? solid state ? if so would that be the issue

wheeler
Posts: 4097
Joined: 21 Sep 2002, 19:07
x 130

Re: C4 Grand Picasso 2007 hdi 1.6 auto non crank

Unread post by wheeler »

The starter relay is integral to the under bonnet fusebox (PSF1).
Cranking needs to be authorised first though. Does the engine start if you direct feed the starter with the ignition on?
