Boxer 2 TPS

Post by jgra1 »

hi all, whilst trying to get the van out of the barn for its mot yesterday, I lost any use of the accelerator (dead pedal) and caused the EML. subsequent gentle pressed of the pedal will extinguish the light and the revs will rise a little, then back to no throttle/revs and light on again. Having idle speed only, I managed to get it parked again and got my lexia on to it.

Planet reports
Accelerator pedal signal 2 Coherence fault, which repeats after a code clear; also an open-circuit flowmeter error seems to come up at the same time.

question : shall I just replace the pedal box and hope that is the obvious cause? I did remove it, open it, and one of the 4 tangs was not aligned with its track.. despite putting that back in place the issue continues?
the TPS has about 6 wires connected, and 4 tracks, with 2 pairs of 'tangs' aligned..

I am getting readings of 0%, up to about 10% and even saw 21% throttle open - but this number goes back to zero straight away.. I don't know if that is normal.. I would have thought the 'open' % would remain like that until you move the pedal somewhere else.

Finally, for no good reason I was looking at an inlet butterfly, vac operated. It's always open, sits between the Intercooler pipe and inlet manifold.. what is this part for? if open when idleing

thanks as always
J

ps 2.2 8 valve HDI, mostly based on the 2.0 HDi it seems. 2004

User avatar
GiveMeABreak
Forum Admin Team
Posts: 19524
Joined: 15 Sep 2015, 19:38
x 1886

Re: Boxer 2 TPS

Post by GiveMeABreak »

VIN please John so I can confirm system.

jgra1
Posts: 4480
Joined: 27 Nov 2005, 20:07
x 18

Re: Boxer 2 TPS

Post by jgra1 »

VIN

VF3**************[VIN obfuscated, can be read by forum staff]
Last edited by GiveMeABreak on 15 Mar 2020, 14:14, edited 1 time in total.
Reason: Edited to include full VIN

User avatar
GiveMeABreak
Forum Admin Team
Posts: 19524
Joined: 15 Sep 2015, 19:38
x 1886

Re: Boxer 2 TPS

Post by GiveMeABreak »

1 short john, last 8 as a minimum should cut it.

jgra1
Posts: 4480
Joined: 27 Nov 2005, 20:07
x 18

Re: Boxer 2 TPS

Post by jgra1 »

try a 1 first ? :)

User avatar
GiveMeABreak
Forum Admin Team
Posts: 19524
Joined: 15 Sep 2015, 19:38
x 1886

Re: Boxer 2 TPS

Post by GiveMeABreak »

Ok, I've amended your original post to include the full VIN now for Staff reference.

jgra1
Posts: 4480
Joined: 27 Nov 2005, 20:07
x 18

Re: Boxer 2 TPS

Post by jgra1 »

thanks Marc

User avatar
GiveMeABreak
Forum Admin Team
Posts: 19524
Joined: 15 Sep 2015, 19:38
x 1886

Re: Boxer 2 TPS

Post by GiveMeABreak »

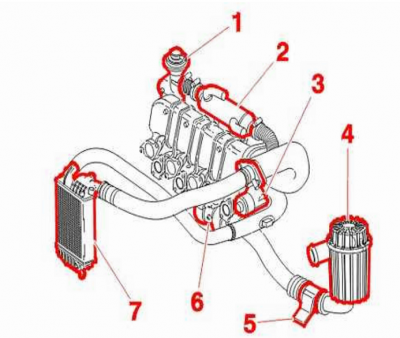

It's a bit early, so data is minimal, but this is the air supply and I think you may be referring to the Air Doser:

John Air Supply.PNG
ReferenceDesignationmake
(1)EGR valvePURFLUX
(2)Water/recirculated gas exchangerVALEO
(3)Air regulating flapMAGNETTI MARELLI 48W7
(4)Air cleaner-
(5)Air flow meterSIEMENS
(6)turbochargerKKK 03
(7)Air/air intercoolerVALEO

jgra1
Posts: 4480
Joined: 27 Nov 2005, 20:07
x 18

Re: Boxer 2 TPS

Post by jgra1 »

yes that thing.. what is its job in life? I was surprised to see it basically always open at idle, but maybe it shuts and blocks the air inlet for pollution control under certain circumstances ?

jgra1
Posts: 4480
Joined: 27 Nov 2005, 20:07
x 18

Re: Boxer 2 TPS

Post by jgra1 »

in service box but struggling to find a wiring diagram for the accelerator .. looking in the injection system, and for fun the cruise control area

User avatar
GiveMeABreak
Forum Admin Team
Posts: 19524
Joined: 15 Sep 2015, 19:38
x 1886

Re: Boxer 2 TPS

Post by GiveMeABreak »

Let me see what I can dig up

User avatar
GiveMeABreak
Forum Admin Team
Posts: 19524
Joined: 15 Sep 2015, 19:38
x 1886

Re: Boxer 2 TPS

Post by GiveMeABreak »

This is the best I can do, 1261 is the TPS - wiring codes unavailable though.


jgra1
Posts: 4480
Joined: 27 Nov 2005, 20:07
x 18

Re: Boxer 2 TPS

Post by jgra1 »

thanks Marc, ordered a second hand pedal assembly. From that pic it looks like there isn't much about the accelerator system except the pedal and the ECU itself, I am praying it's the former!

will update post in a day or two..

jgra1
Posts: 4480
Joined: 27 Nov 2005, 20:07
x 18

Re: Boxer 2 TPS

Post by jgra1 »

a few mins of researching and I get this snippet below.. either way, the doser is not relevant to anything much :) - I was on some red herring there . as for why mine is open at shut off and idle, no idea.. no care :) bigger fish to fry in the world.



'I believe at idle speed they close, say, by half forcing greater egr recirc and then they slam-shut when you switch off to choke the engine of air so that it doesn't stop with that old Diesel 'shudder' due to high compression. Diesels don't have a throttle butterfly to vary the air inlet volume rather it is just a big hole where each intake stroke takes in the same amount of air regardless of the throttle position - as such they do shut-down with a bit of a shudder.'

jgra1
Posts: 4480
Joined: 27 Nov 2005, 20:07
x 18

Re: Boxer 2 TPS

Post by jgra1 »

the new pedal assembly didn't make any difference, but was cheap enough as a quick test..
the fact that the MAF is coming up with an error has got my attention. in my simple terms, the ECU knows one of the two items isn't playing ball, and is blaming both for it

if that fails, then I have to suspect the ECU really..

will update..
