Front Sphere

Post by froggy »

Hi, need to order the front sphere, for my S1 Xantia, which sits by the rad. whats its official name ? cheers Terry.
Hell Razor5543
Donor 2021
Posts: 12018
Joined: 01 Apr 2012, 09:47
x 1513

Re: Front Sphere

Post by Hell Razor5543 »

That is the accumulator sphere.

Removing it can be tricky if it is tight. Drop the suspension to its lowest setting, and turn the engine off. There is, on the accumulator mechanism, a bolt with a raised head. Turn this bolt through 360 degrees (do NOT undo it completely, as there is a small sealing ball bearing under it, and removing the bolt will allow it to make a bid for freedom!). Once the whistling has stopped the hydraulics are no longer under pressure. You can now (carefully) remove the sphere, but it may well be tight (so you may need force, which is tricky considering how close it is to the radiator).
User avatar
white exec
Moderating Team
Posts: 7388
Joined: 21 Dec 2015, 13:46
x 1450

Re: Front Sphere

Post by white exec »

Just to be sure, either post a photo of the sphere in question, or post your VIN.
IIRC, both Accumulator sphere and Hydractive centre sphere are up front near radiator.
Hell Razor5543
Donor 2021
Posts: 12018
Joined: 01 Apr 2012, 09:47
x 1513

Re: Front Sphere

Post by Hell Razor5543 »

Ah, I didn't think of that!

However, as Froggys' signature suggests a Series 1 LX Xantia I might still be right.
User avatar
white exec
Moderating Team
Posts: 7388
Joined: 21 Dec 2015, 13:46
x 1450

Re: Front Sphere

Post by white exec »

Could be Hydractive, or not, I thought.
User avatar
xantia_v6
Forum Admin Team
Posts: 7909
Joined: 09 Nov 2005, 23:03
x 513

Re: Front Sphere

Post by xantia_v6 »

In the Xantia range only VSX, Athena, Activa and Exclusive spec had hydractive. About 90% of Xantias didn't have it.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 26087
Joined: 15 Sep 2015, 19:38
x 3000

Re: Front Sphere

Post by GiveMeABreak »

Froggy has an XUD9TE (1.9 TD) S1, so no Hydractive Suspension, so he's referring to the front Accumulator Sphere.

So Citroen part: 95666763 (400CM3 62 BARS) includes gasket,
or their cheaper equivalent part: E587001, includes seal.
User avatar
froggy
Donor 2021
Posts: 590
Joined: 05 Jul 2010, 20:24
x 1

Re: Front Sphere

Post by froggy »

Its leaking from the seal. what is the best option, take off and clean seal and replace or new seal or finally new sphere ?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 26087
Joined: 15 Sep 2015, 19:38
x 3000

Re: Front Sphere

Post by GiveMeABreak »

The seals should always be replaced when the spheres come off, but I'd certainly get some new seals first of all.

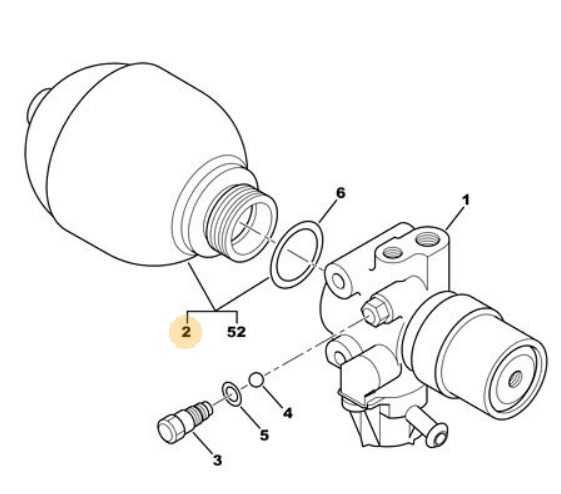

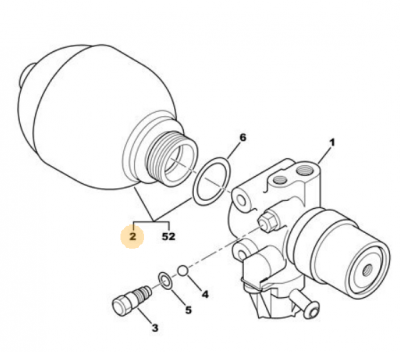

The seal item number (6) in the above diagram is part number: 527215 (37.4 X 42 X 2.6). In the UK they are £5.88 each from Citroen inc. our 20% VAT, to give you an idea.
User avatar
froggy
Donor 2021
Posts: 590
Joined: 05 Jul 2010, 20:24
x 1

Re: Front Sphere

Post by froggy »

cheers
Hell Razor5543
Donor 2021
Posts: 12018
Joined: 01 Apr 2012, 09:47
x 1513

Re: Front Sphere

Post by Hell Razor5543 »

Normally (but NOT always) a replacement sphere will come with a replacement seal. The exception to this is the anti sink sphere (which uses a tube seal). Just make sure that the seal is properly seated before tightening up the sphere, otherwise you can pinch and split it (you can guess how I know this).
User avatar
xantia_v6
Forum Admin Team
Posts: 7909
Joined: 09 Nov 2005, 23:03
x 513

Re: Front Sphere

Post by xantia_v6 »

And (just in case no-one told you), the seal is fitted into the recess in the regulator body before fitting the sphere, not fitted to the sphere neck and screwed on.
