308 HDi (90) T7 accelerator pedal for speed limiter

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
tmead
Donor 2023
Posts: 187
Joined: 06 Jul 2010, 23:30
Location: Cambridge UK
My Cars: Currently own:
308 1.6 HDi 90
Toyota Aygo
Toyota proace
208 1.2 Allure
x 10

308 HDi (90) T7 accelerator pedal for speed limiter

Post by tmead »

Hi all, I know this topic has been touched on many times, but I cant find an answer by searching on the forum !

Does anybody know which part number accelerator pedal will allow the speed limiter function to work on a 308 HDi (T7) ? I retrofitted a cruise / limiter stalk and turned it on in PP2000 - cruise now has been working fine for ages. The stalk has a limiter option, but it doesn't work, even when enabled in both BSI and ECU. I also get errors logged about accelerator pedal coherence if I turn on the limiter. I'm assuming that the pedal needs changing to make this work.

I've seen references to a separate switch that clicks when the pedal hits the floor (the pedal assy has a space just under the hinge for a small microswitch that would do this). I dont know if this wires back through the single connector on the pedal unit or a separate connector? If so, is it a simple on/off switch or something more complex, switching between low and high resistance ? Anybody with access to electrical schematics able to help with this one ?

I have taken a look on Servicebox, and there's only one pedal I can identify with a reference to limiter function, and that's 1601-V6. I just don't know how to find out which model that was fitted in !

Tim
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: 308 HDi (90) T7 accelerator pedal for speed limiter

Post by Paul-R »

If you post you VIN then one of the staff (probably Marc!) will be able to see what pedal you have fitted. The VIN will be masked so only staff can see it.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
tmead
Donor 2023
Posts: 187
Joined: 06 Jul 2010, 23:30
Location: Cambridge UK
My Cars: Currently own:
308 1.6 HDi 90
Toyota Aygo
Toyota proace
208 1.2 Allure
x 10

Re: 308 HDi (90) T7 accelerator pedal for speed limiter

Post by tmead »

Thanks for that, but I think that the current pedal doesn't support limiter function, so the crucial question is what model I need to grab a pedal from to make the limiter work.
I'll look up the VIN on the docs tonight. A cookies and cache refresh on servicebox means its no longer there !
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: 308 HDi (90) T7 accelerator pedal for speed limiter

Post by GiveMeABreak »

There is a 'safety zone' built into compatible accelerator pedal potentiometers that allow a 'kick down' mode to override the limiter in an emergency. But as you have discovered not all pedals are the same. I'll still need your VIN to determine your current vehicle 'level' and build date.

1601V6 is compatible - but it doesn't work like that in reverse. You need to locate the part number not the vehicle. It's that part number that you want regardless of vehicle:

So here is what you want:

https://www.ebay.co.uk/itm/Throttle-Acc ... SwnoldbZMC
Please Don't PM Me For Technical Help

Marc
tmead
Donor 2023
Posts: 187
Joined: 06 Jul 2010, 23:30
Location: Cambridge UK
My Cars: Currently own:
308 1.6 HDi 90
Toyota Aygo
Toyota proace
208 1.2 Allure
x 10

Re: 308 HDi (90) T7 accelerator pedal for speed limiter

Post by tmead »

VIN is VF3**************[VIN obfuscated, can be read by forum staff], which shows an accelerator pedal of 1601 AY. I don't see any reference to this either being OK for limiter use or not?
RichardW
Forum Treasurer
Posts: 10813
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: 308 HDi (90) T7 accelerator pedal for speed limiter

Post by RichardW »

If you just do a generic search then you see:

01

1601 AY

01
ACCELERATOR PEDAL
- BVM5 AND WITHOUT SPEED CONTROL
01
- BVM6 AND WITHOUT SPEED CONTROL
1601 V6
01
- REGULATOR AND SPEED LIMIT
01
- 6-SPEED CONTROLLED MANUAL GEARBOX
01
- BVA

So there does appear to be some difference relating to speed limiter (and presumably kick down function since V6 is specified for autos (BVA).

I'm pretty sure I've got a 1601V6 in the garage - I took it off my 307 when I scrapped it as someone was looking for one. I'll get a pic of the connector so that you can compare it with the one on your car.
Richard W
tmead
Donor 2023
Posts: 187
Joined: 06 Jul 2010, 23:30
Location: Cambridge UK
My Cars: Currently own:
308 1.6 HDi 90
Toyota Aygo
Toyota proace
208 1.2 Allure
x 10

Re: 308 HDi (90) T7 accelerator pedal for speed limiter

Post by tmead »

Thanks for looking into this. I'll scrabble under the dash and take a look at some point - might take a few days before I can get to it.
tmead
Donor 2023
Posts: 187
Joined: 06 Jul 2010, 23:30
Location: Cambridge UK
My Cars: Currently own:
308 1.6 HDi 90
Toyota Aygo
Toyota proace
208 1.2 Allure
x 10

Re: 308 HDi (90) T7 accelerator pedal for speed limiter

Post by tmead »

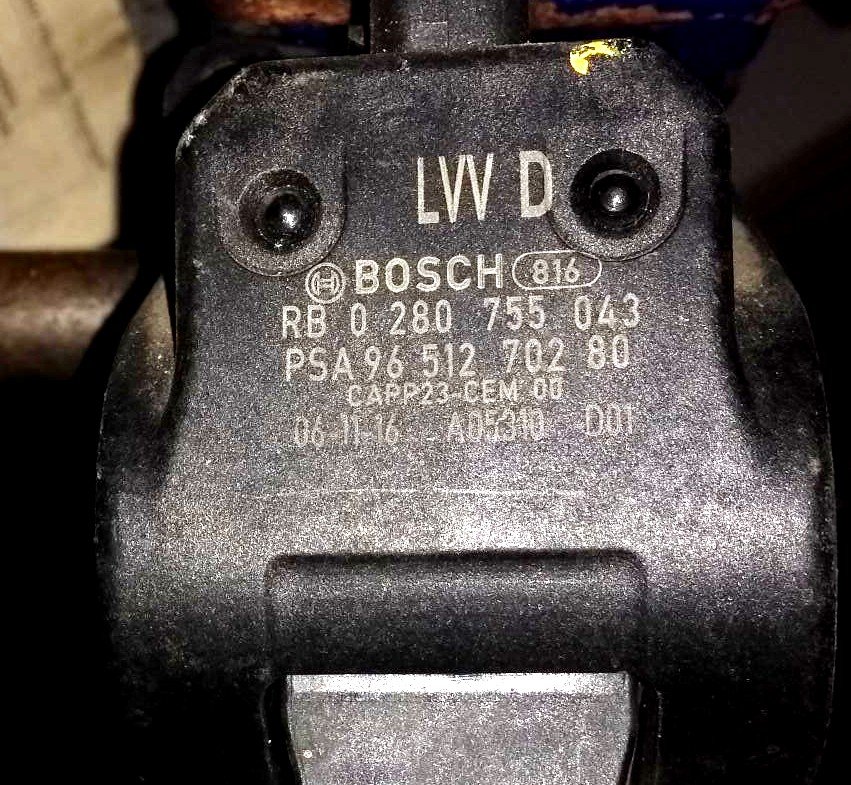

A while ago a collection of spares I picked up included a throttle pedal with a part number of 9681434380-00. I don't know how to cross reference this number to a 1601 type number on the parts diagrams. This shows on ebay as a unit that is widely used for both petrol and diesel, 207 and 307 and i think 308. I've just never been sure that it will work or even fit on my 308 !
RichardW
Forum Treasurer
Posts: 10813
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: 308 HDi (90) T7 accelerator pedal for speed limiter

Post by RichardW »

Here's the numbers on mine, different to that you posted:

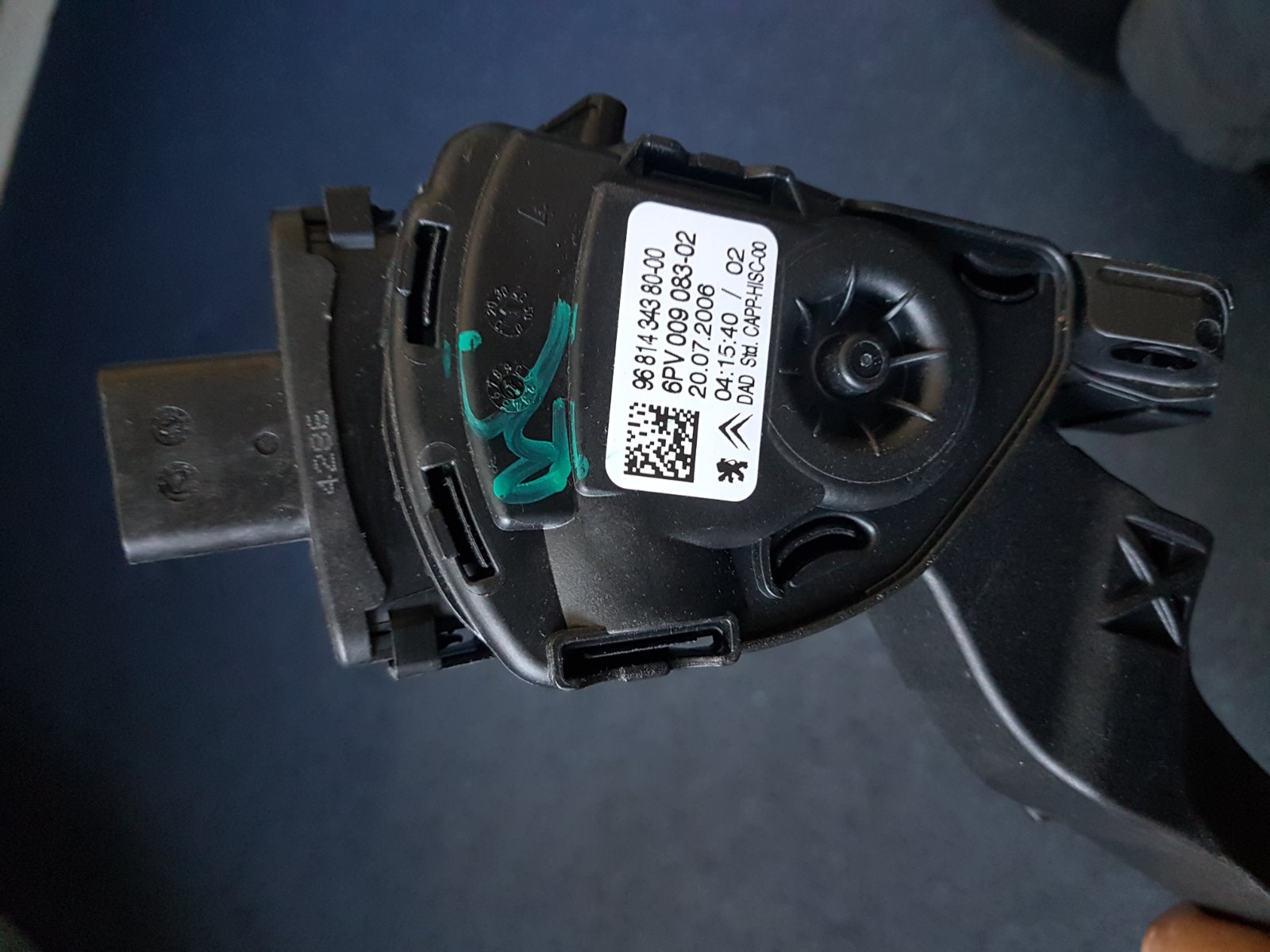

part no.jpg

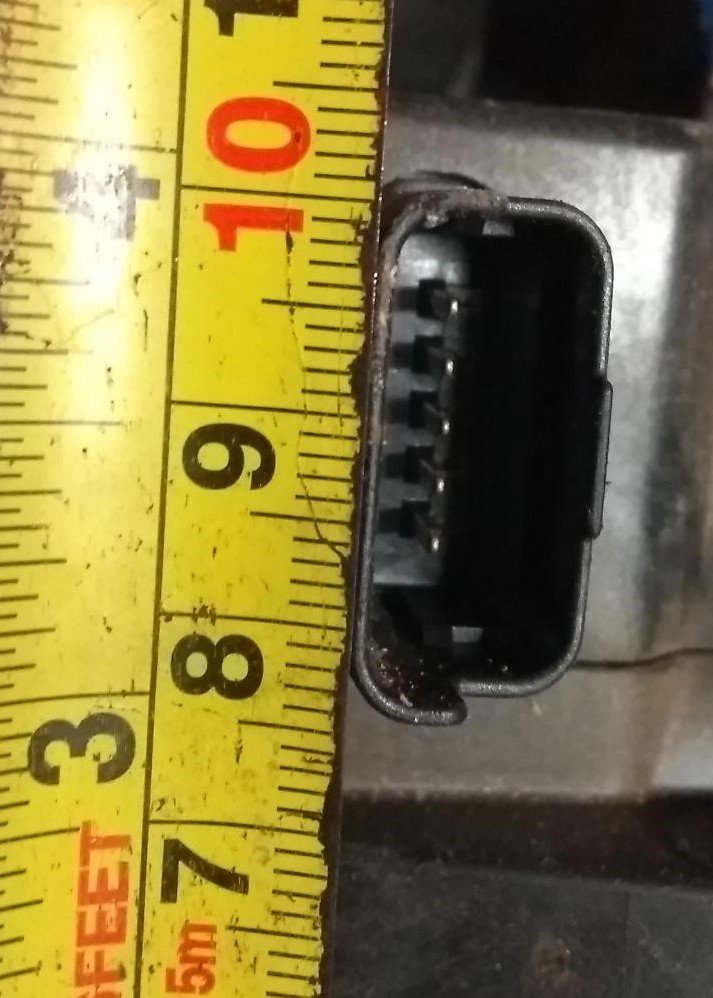

And the detail of the connector
