Where are these fuses? C5 X7

Post by atr »

Hi
I'm looking for the fuse that protects the rear cigarette lighter. according to the "driver's manual" supplied with the vehicle (in my case it is a C5 X7 saloon, petrol, year 2010) it says that there is a fuse box on the battery (?) on all vehicles except V6 HDi, this fuse box contains four fuses - F6 rated 25A for the rear cigarette lighter (the one that I'm looking for).
F7 rated 15A for the fog lights.
F8 rated 20A for diesel additional burner (I hope that you know what it is).
F9 rated 30A for the electric parking brake.
I'm ashamed to admit that I couldn't find anything like that.
Thanx for your help.
Avi
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Where are these fuses? C5 X7

Post by GiveMeABreak »

It's here Avi - on the side of the battery inside the Red BFDB Fuse Box shown:
Avi Fuse 1.png
Avi Fuse 3.png

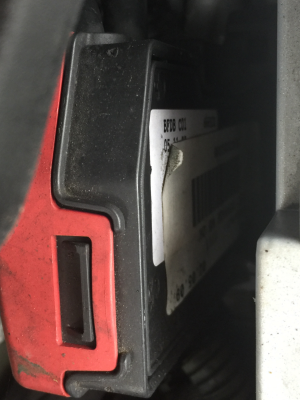

Avi Fuse 2.png
Please Don't PM Me For Technical Help

Marc
User avatar
petef
Posts: 193
Joined: 23 Jul 2006, 20:46
Location: Lochwinnoch,Scotland and Dordogne, France
My Cars: DS DS5, C4 Coupe, DS23 Pallas, Xantia Activa
x 11

Re: Where are these fuses? C5 X7

Post by petef »

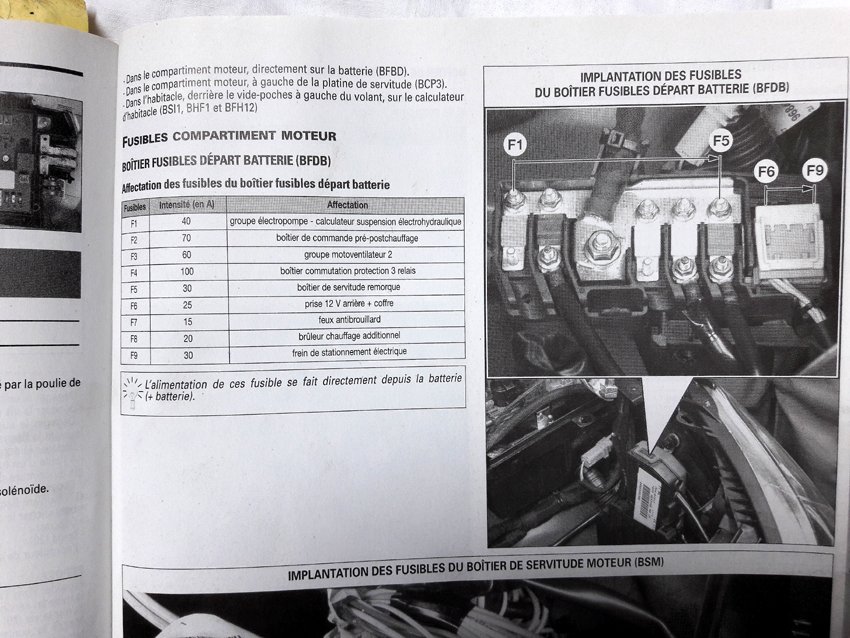

Just had a look at my 2009 handbook and says the same thing. However the Revue Technique manual is much clearer. The fuses - there may be up to 9 of them - are to the right of the battery when you lift the plastic battery cover. They are in a vertically mounted plastic box and are shown in the attached manual page. (Acknowledgement to Revue Technique. ) The one you want is indeed F6. Just checked on my car - the box is red and black and will have to be pulled apart I think, to get at the fuses
Attachments
Battery fuses X7.jpg
atr
Posts: 314
Joined: 09 Oct 2010, 05:02
Location: Israel
My Cars: Xantia 2.0l 16v 2001 petrol
C5 mkII 2.0l petrol sx pack 2007
C5 x7 saloon petrol 2010
x 6

Re: Where are these fuses? C5 X7

Post by atr »

Hi
Thank you both. I've seen that red/black box before I've asked, but never thought that it will be so good hidden.
