Remote central locking wire diagram

Post by tomj25 »

Good morning , I've just bought a xsara Picasso 02 plate it doesn't have remote central locking just key for doors, i have a hawlk aftermarket kit and was hoping someone could give me advice on the wiring diagram to fit it thanks
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Remote central locking wire diagram

Post by GiveMeABreak »

That doesn't make sense to me, as the Xsara Picasso from its launch in 2000 in the UK had Remote central locking as standard!

You just may not have the remote locking fob that you can order from your dealer that operates it, as these often get lost and not replaced. I really would not bother wrecking the car to fit this - as you could end up causing more problems, due to the multiplexed wiring on the Picasso.

What is the VIN number and I'll be able to confirm this for you, but I'm 99.9% sure it will have.
Please Don't PM Me For Technical Help

Marc
tomj25
Posts: 19
Joined: 26 Dec 2018, 08:19
Location: shropshire
My Cars: picasso 02

Re: Remote central locking wire diagram

Post by tomj25 »

hi marc thanks again vin. VF7**************[VIN obfuscated, can be read by forum staff]
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Remote central locking wire diagram

Post by GiveMeABreak »

ok, so confirmed that they all have central locking, including yours.

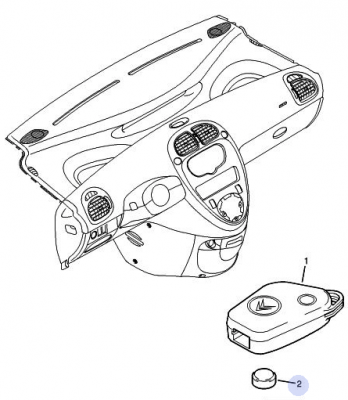

Your version is just before the change to VAN CAN multiplexing. Your remote fob would of looked something like this:
Xsara Picasso Remote Locking.PNG
Do you have this type of fob? If not you may have only been passed the other key that looked like this:
Xsara Picasso Key.PNG
Regardless of type, each has a transponder chip incorporated into the fob. The larger fob in the first diagram has the additional circuitry to send the remote locking and unlocking requests to the vehicle.

If you are missing the fob, you can get one ordered from the dealer which will contain a new key blade and remote and they will code it to the vehicle for you.

There are aftermarket suppliers of copies of these fobs, but unless you get the right one you may have issues. Regardless it will need coding to the vehicle using Citroen's software. The part number for your fob is 6490L8 and these are £123.28 inc. VAT from Citroen for the remote fob.
Please Don't PM Me For Technical Help

Marc
tomj25
Posts: 19
Joined: 26 Dec 2018, 08:19
Location: shropshire
My Cars: picasso 02

Re: Remote central locking wire diagram

Post by tomj25 »

Yes i only have the key in 2nd picture so will look at getting one ordered, thanks for your help today marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Remote central locking wire diagram

Post by GiveMeABreak »

No worries, I hope that has saved you from pulling the doors to bits :-D
Please Don't PM Me For Technical Help

Marc
tomj25
Posts: 19
Joined: 26 Dec 2018, 08:19
Location: shropshire
My Cars: picasso 02

Re: Remote central locking wire diagram

Post by tomj25 »

Indeed dont have time only time for🍺 this time of year 🤣
