Reverse light connection for dash cam

Post by crapday69 »

I bought a dash can with rear camera. I fitted the rear camera to a hole that was plugged up on my rear bumper (looks like it was made for that). The problem is that the reverse light are on the tailgate and not rear quarter panel. Where would the best place to find the reverse cable so I can splice into it. On my 07 place C4 the reverse light was easy to access for my reverse sensors, so I joined that up no problem.

2012 1.6HDi estate with satnav.

Cheers.

Gary.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25418
Joined: 15 Sep 2015, 19:38
x 2832

Re: Reverse light connection for dash cam

Post by GiveMeABreak »

The rear slit or square will be for the towing eye to screw in when towing another car. It is unclipped on the Tourer by pressing in at the bottom.. So not a good place to put it if this is where you mean.

Secondly, is this for reversing only or to operate all the time as a rear dash cam? I ask as most dash cams have wiring to hook up to the main unit on dual display dash cams.

The picture is generally not very good for reversing, unless playback on a PC for example. Unless of course it’s a specific reversing camera, in which case it would generally have a separate display unit and be a bit bigger. Of course it’s not possible to wire up a dash cam to the satnav unit without a special A/V interface unit.

I have dual dash cams and the rear one is wired directly back to the front. I can have full front, full rear, or split front rear display, but the screen size is not really sufficient to display a proper image for reversing purposes.

Perhaps it might throw a little light on things if you were to explain exactly what you wanted it for. There will of course be a wire for the reversing lights for the Tourer, but this will probably go through the main loom at the top of the tailgate. So you would have to tap into the correct wire from the top of the vehicle and wire it down the side panel down to the bumper, but like I said the towing eye socket is not the place to put it.
crapday69
Donor 2017
Posts: 278
Joined: 31 Oct 2017, 16:52
x 55

Re: Reverse light connection for dash cam

Post by crapday69 »

Its a dual camera dash cam. It has the ability to use the rear camera for reversing. I know it won't be as good as a proper dedicated camera, but as the X7 is big and with a tower in situ, it will let me know when I'm near the object behind me. The hole on the rear bumper in not the towing eye hole, its a little hole to the top left of the middle. There in nothing behind it and its the size of a 1p.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25418
Joined: 15 Sep 2015, 19:38
x 2832

Re: Reverse light connection for dash cam

Post by GiveMeABreak »

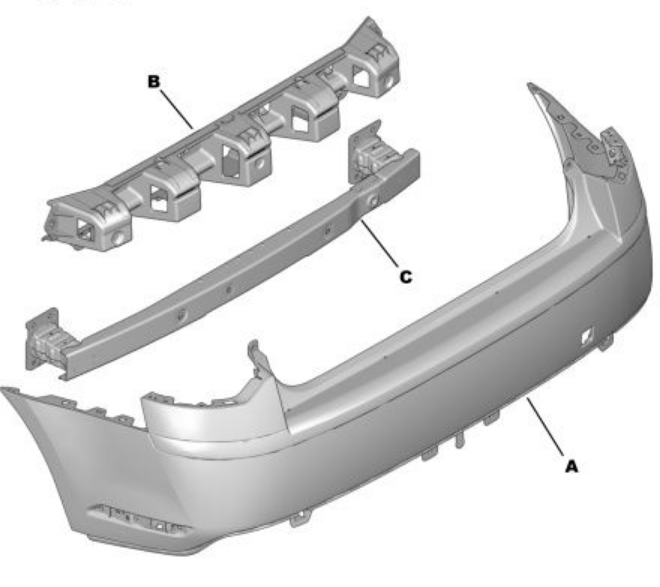

:-k Hmm... Can't see any other hole as you describe Gary:
Crapday69 Bumper.PNG
Does it look like it was made by the previous owner perhaps? The rear reversing camera on later Tourer facelifted models had the camera mounted near the number plate, thus:
Crapday69 carmera.PNG
Meanwhile, I can look at the wiring for your car for the reversing feed if you pop your VIN up here - (I know you did previously post it, but that was before the system masked it, so it has been permanently hidden as it was manually deleted).
admiral51
Donor 2021
Posts: 2339
Joined: 24 May 2007, 10:11
x 297

Re: Reverse light connection for dash cam

Post by admiral51 »

It may be a reversing sensor hole and the cover plug has now been removed as in the OP.
Could you tap into the reversing light wire on the towing hitch ecu/relay as that will not be in the tailgate.
Have read that this ecu/relay can play up a bit if things are not done correctly, sure Marc and others will give more detailed advice
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25418
Joined: 15 Sep 2015, 19:38
x 2832

Re: Reverse light connection for dash cam

Post by GiveMeABreak »

The actual reversing sensors are located in the lower black bumper skirt Colin, and there are 4 of them, so I'm still puzzled as to what this other 'hole' is. :-k
admiral51
Donor 2021
Posts: 2339
Joined: 24 May 2007, 10:11
x 297

Re: Reverse light connection for dash cam

Post by admiral51 »

Just had a look and you are right Marc, i cannot see any "hole" in the bumper or anything above the centre of it and the sensors are located in the lower skirt.
Could the previous owner have had something fitted that has now been removed and used a generic grommit to plug the hole of the same colour ?
crapday69
Donor 2017
Posts: 278
Joined: 31 Oct 2017, 16:52
x 55

Re: Reverse light connection for dash cam

Post by crapday69 »

Just had a quick look and it’s one of the holes for the reverse sensor as there are another 3 of them. I didn’t notice them. I tried to connect it to the tow control box, this has 2 lots of connectors that do the same thing. One lot are wires and the other side is screw connectors. I tried the reverse on the screw side but no luck. I’ll need to get my voltage gauge out and check the wire side.
crapday69
Donor 2017
Posts: 278
Joined: 31 Oct 2017, 16:52
x 55

Re: Reverse light connection for dash cam

Post by crapday69 »

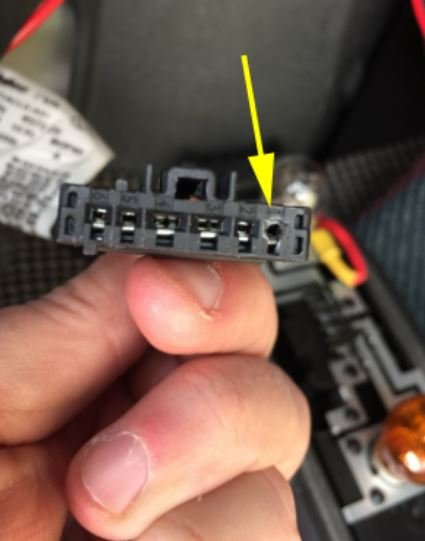

It was such a beautiful day yesterday so I took the opportunity to have a look at the reversing connection for my rearview camera again. I ended up taking a lead from the reverse lamp on the tailgate. It wasn't as difficult as I thought and took about 30 minutes. The reverse light takes it power from the far right (when the notch in the connector is facing up), so I connected my lead from that. Hiding the wire was easy with the removal of the top 2 trim screws (well top when tailgate open and bottom when tailgate closed). I then poked a hole in the rubber grommet feeding the wire through this and down the rear pillar trim into the boot. Now when I put the car into reverse, my dash cam turns into a reverse camera. I will move the camera from the position it is in now to nearer the middle of the bumper so I can see where the tow ball will be.
