1.6 HDi Injector Bolts

[DHallworth]

I'm not sure where to post this as it related to both Citroen's and Peugeot's!

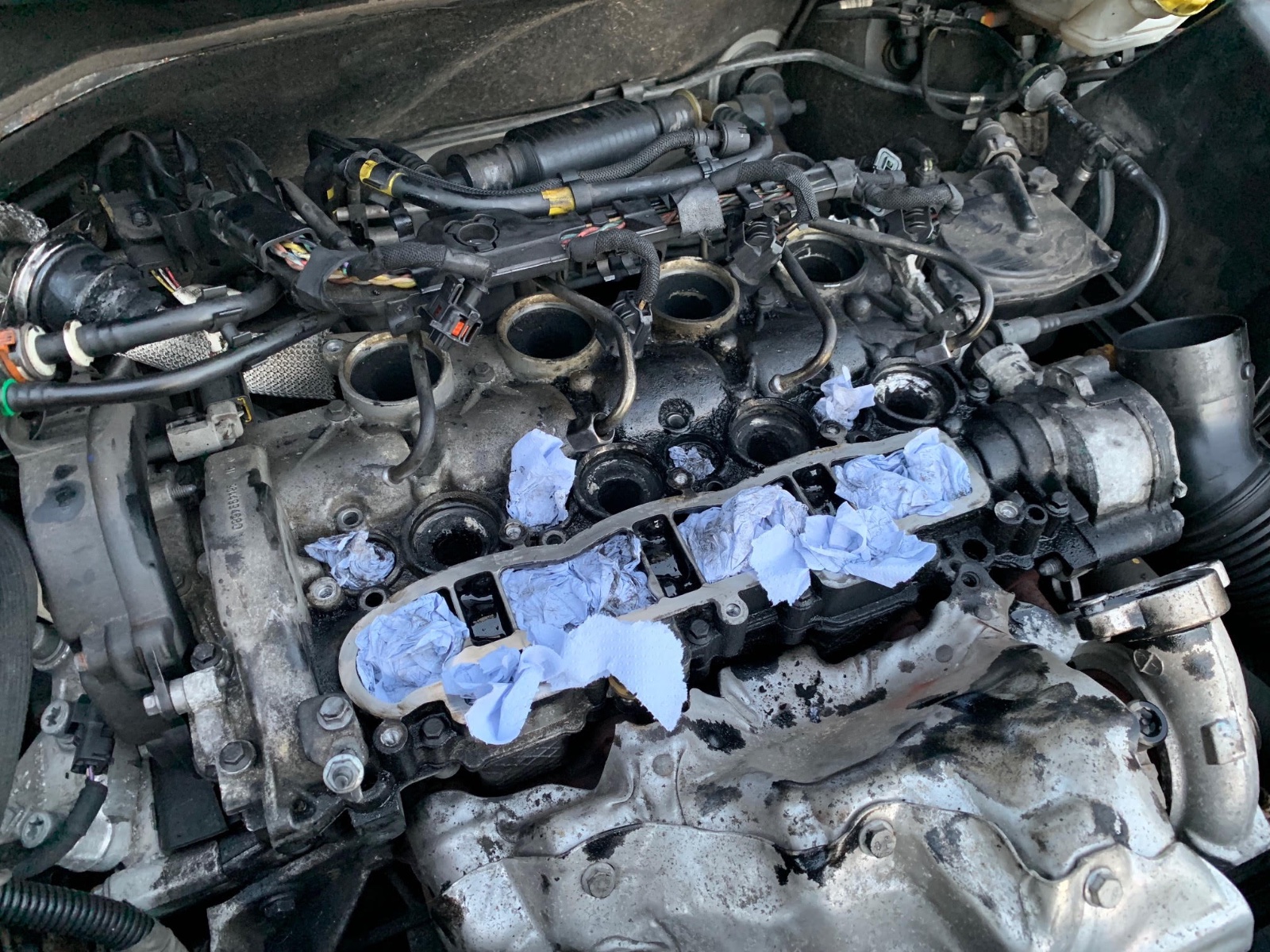

I'm doing some work on our 207 HDi at the moment. See my latest blog post for more of that...

viewtopic.php?f=14&t=29757&p=588938#p588938

Does anyone have the torque values for the 1.6 HDi engine...

Ideally...

Rocker cover bolt tightening sequence and torque values.
Inlet manifold torque values.
Injector studs into head.
Injector clamp bolts onto studs.

Thanks,

David.

[DHallworth]

I think I've had a little bit of luck...

The studs I think are 7NM, and the clamp bolts are 4NM + 65 degrees.

Still looking for a tightening sequence and torque figures for the rocker cover though. Chances are it'd be ok when being sensible but it's nice to have a job done properly.

David.

[moizeau]

6mm thread is generally 30mn, 8mm 40, it will depend on gasket type etc. Sequence, start from the middle and work out diagonally, but I'm sure you know this.

[GiveMeABreak]

Here you go David:

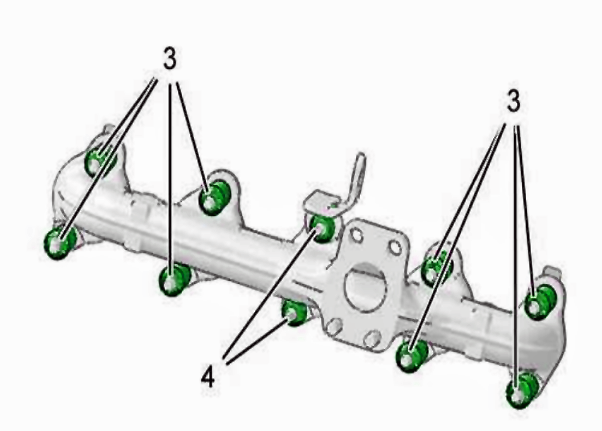

Exhaust Manifold Torque Settings

Reference	Designation	daNm
(3)	Exhaust manifold mounting nuts / Long studs	3 ± 0,3
(4)	Exhaust manifold mounting nuts / Short studs	2,5 ± 0,2
-	Fixing studs on the exhaust manifold	1 ± 0,2

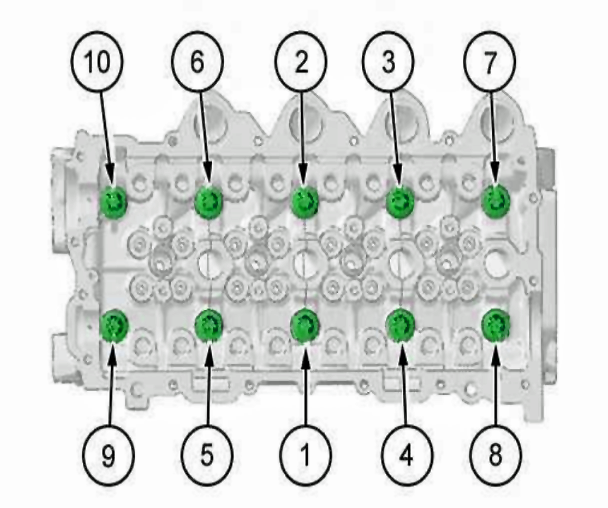

Tightening Sequence

Cylinder Head Torque Settings

Engine code	DV6ATED4
Engine legislative type	9HX
Pre-tighten ( daNm)	2 ± 0,2
Tightening ( daNm)	4 ± 0,5
Angular tightening (In degrees)	260 ± 5°

[GiveMeABreak]

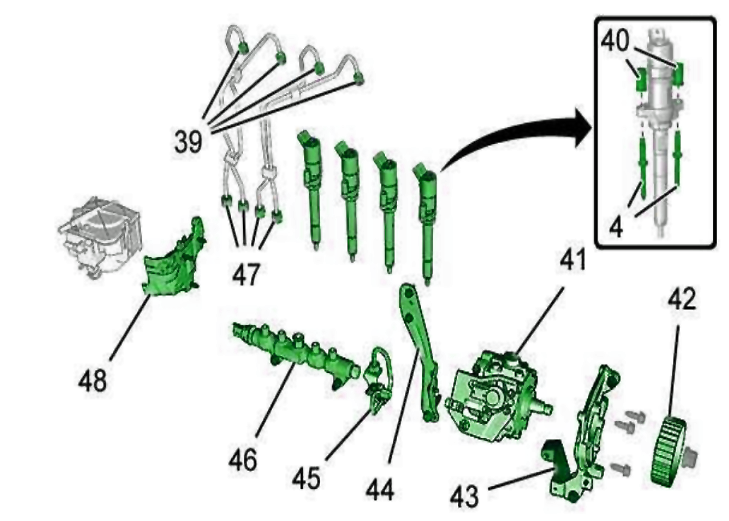

Here's the Injection Data I think you wanted:

Reference	Designation	Stage	Tightening torque
(4)	Diesel injectors fixing pillar screws - Camshaft bearings covers	Pre-tighten Tightening	0,5 daNm 1 daNm
(39)	The unions on the diesel injectors	Pre-tighten Tightening	2 daNm 2,5 daNm
(40)	Injector mounting flange nut / Pillar screws (4) of the camshaft bearing cap casting	Pre-tighten Angular tightening	0,4 daNm 75°
(41)	Diesel injection pump on support	Tightening	2,2 daNm
(42)	Diesel injection pump pulley	Tightening	5 daNm
(43)	Diesel high pressure pump front support	Tightening	2 daNm
(44)	Diesel high pressure pump rear support	Tightening	2 daNm
(45)	Connector on high pressure diesel pump	Pre-tighten Tightening	2 daNm 2,5 daNm
(46a)	Fuel high pressure common injection rail on the engine block	Tightening	2,2 daNm
(46b)	Fuel high pressure sensor	Tightening	4,5 daNm
(47)	Fuel high pressure common injection rail unions	Pre-tighten Tightening	2 daNm 2,5 daNm
(48)	Fuel filter support	Tightening	0,7 daNm

[moizeau]

Just wondering why the norm is daNm, it's one decimal point, my torque wrenches are in Nm?

[DHallworth]

Hi Mark,

Thanks for that, that's great.

Do you have the ones for the inlet manifold?

David.

[moizeau]

Have you not got a BOL? I was wondering whether to do without, but no, it's on the shelf.

[DHallworth]

I've not got one that covers the 1.6 HDi unfortunately.

David.

[GiveMeABreak]

Can you hang on until the morning? I’ve powered down LCARS for the evening, and am using this hopeless Apple iPad, of which the upgrade is causing stacks of typos!

[Paul-R]

...hopeless Apple iPad...

Words that naturally run together.

[DHallworth]

Marc, no rush at all, I'm still waiting for a few parts to arrive in the post anyway

Again, thank you very much for your help.

David.

[DHallworth]

...hopeless Apple iPad...

Words that naturally run together.

I wouldn't be without my 12.9" iPad Pro!!!

David.

[GiveMeABreak]

Without going too far , I would still be using my iPad 2 that is still on IOS 9 if it weren’t so slow David, but this iPad Air with IOS 12 is awful.

I’ll get the other bits to you dans le morning.
