RNEG to RT6 to SMEG+ IV2?

[biohead]

Has anyone on here any experience of retrofitting a SMEG+ IV2?

I'm looking at Android Auto options, so just trying to see exactly what work is needed to install a SMEG+IV2 to a car originally delivered with an RNEG unit. I know it's going to be pricey, but before I start hunting for parts I'm trying to get a feel for what is possible and whether it's worth it.

My C5 X7 was originally delivered with an RNEG unit. I then changed that out for an RT6 - that just meant a new screen and new HU. I could use the existing wiring and nothing else was needed. (I also had a C4 and swapped out the RD4 for RT4 which was a bit more work).

I believe with the SMEG+IV2 it again is a new screen, but this time also a new cable between the HU and screen? Is it just the one cable or are there other wiring mods required (I don't think so)?

My primary concern though is the SMEG+IV2 is a CAN2010 unit - will it even work with my X7? Or do I need to get a CAN2004 specific HU (if such a thing exists?) - which I feel would be like looking for a needle in a haystack I'm struggling to find info on the differences between CAN2004 and CAN2010 - just references on a few foreign language sites selling hardware.

[GiveMeABreak]

As far as I am aware the SMEG +IV2 will work with a C5 X7 (which uses CAN2004) architecture as the later X7 had touchscreen units available about 2015/16.

Apart from the new fascia (due to removal of physical switches) for some controls and the hardware, you are going to have to pay a sympathetic dealer to configure it and there is a likelyhood this will be a stumbling block. Their systems are set to be able to download ECU software and any necessary system firmware based on their VIN database automatically when the car is hooked up to PSA servers. As your VIN won't contain the SMEG as a fitted option, they won't be able to do this automatically. The BSI cannot be configured to accept a SMEG unit as the options are not there in your existing BSI's software, so it cannot be selected.

The only way I am aware of is to use a VIN from an X7 that was fitted with the system and using a manual configuration to down load the software to the BSI first, then you should be able to configure the BSI with the new SMEG unit parameters and the other areas that need to be set. So whether the dealership will even entertain this is questionable - as if anything went wrong with the BSI during a download attempt it could brick it.

I've only known one other person attempt this in France and he was 'in the know' and has association with a main dealer.

[robdevil]

Hi. I know it is old post but I need help. Where can I get brown plug for DS5 touch screen? I want to retrofit smeg+ IV2 and this is only one thing I don't know how to connect. i do have video cable but touch screen has additional socket and I'm sure it is power socket. Old screen has different power plug so wiring diagram would be useful as well.

[GiveMeABreak]

You probably don't have the correct wiring harness. They are all different.

[MacSlavko]

Hi. I know it is old post but I need help. Where can I get brown plug for DS5 touch screen? I want to retrofit smeg+ IV2 and this is only one thing I don't know how to connect. i do have video cable but touch screen has additional socket and I'm sure it is power socket. Old screen has different power plug so wiring diagram would be useful as well.

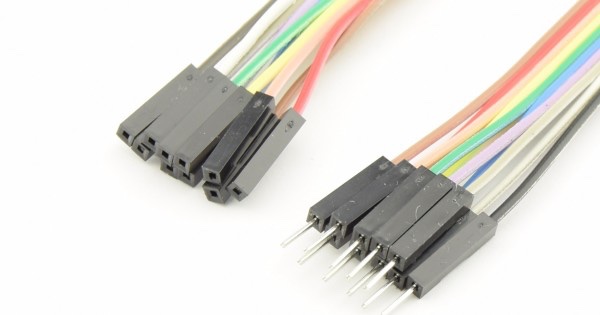

If still lacking the brown (power) conector to the screen, you can use Dupont wires. There is just enough space to plug them on the pins and they sit well in. I did so on my RNEG display retrofit previously...
Now, there are 4 pins on SMEG+IV2 display. I believe 1 is live (+), 2 is becklight and 3 and 4 are ground (-) as on RT4, 5 and 6 systems (same manufacturer) but that needs checking out!

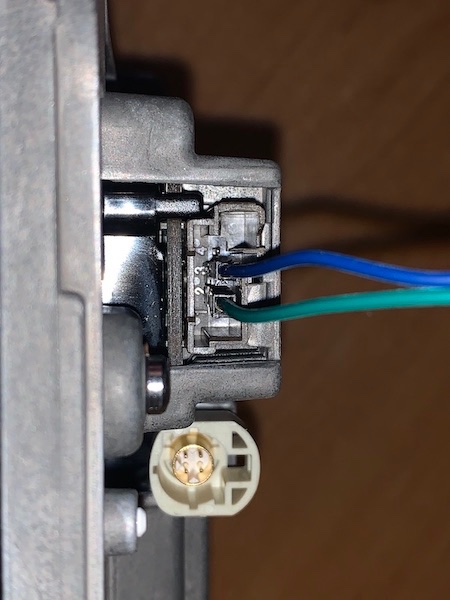

On the photo is an actual SMEG+IV2 display with two Dupont wires plugged in.

[MacSlavko]

Hi. I know it is old post but I need help. Where can I get brown plug for DS5 touch screen? I want to retrofit smeg+ IV2 and this is only one thing I don't know how to connect.

You can connect it without brown connector, simply by using Dupont vires. They sit perfect?y to the pins on the back of the screen and don't fall out.
That's how I done it on RNEG modiffication and those pins are the same.
Here tried on my spare SMEG+IV2 screen (not tested in the car) and it feels the same.
Nowt much to loose if you try that option really as those vires are fairly cheap...

[robdevil]

Thanks but it wasn't that easy. I've got it sorted now.

[thorr001]

Hi, I am close to installing the SMEG+ as the RT6 replacement, just missing the screen brown connector layout.

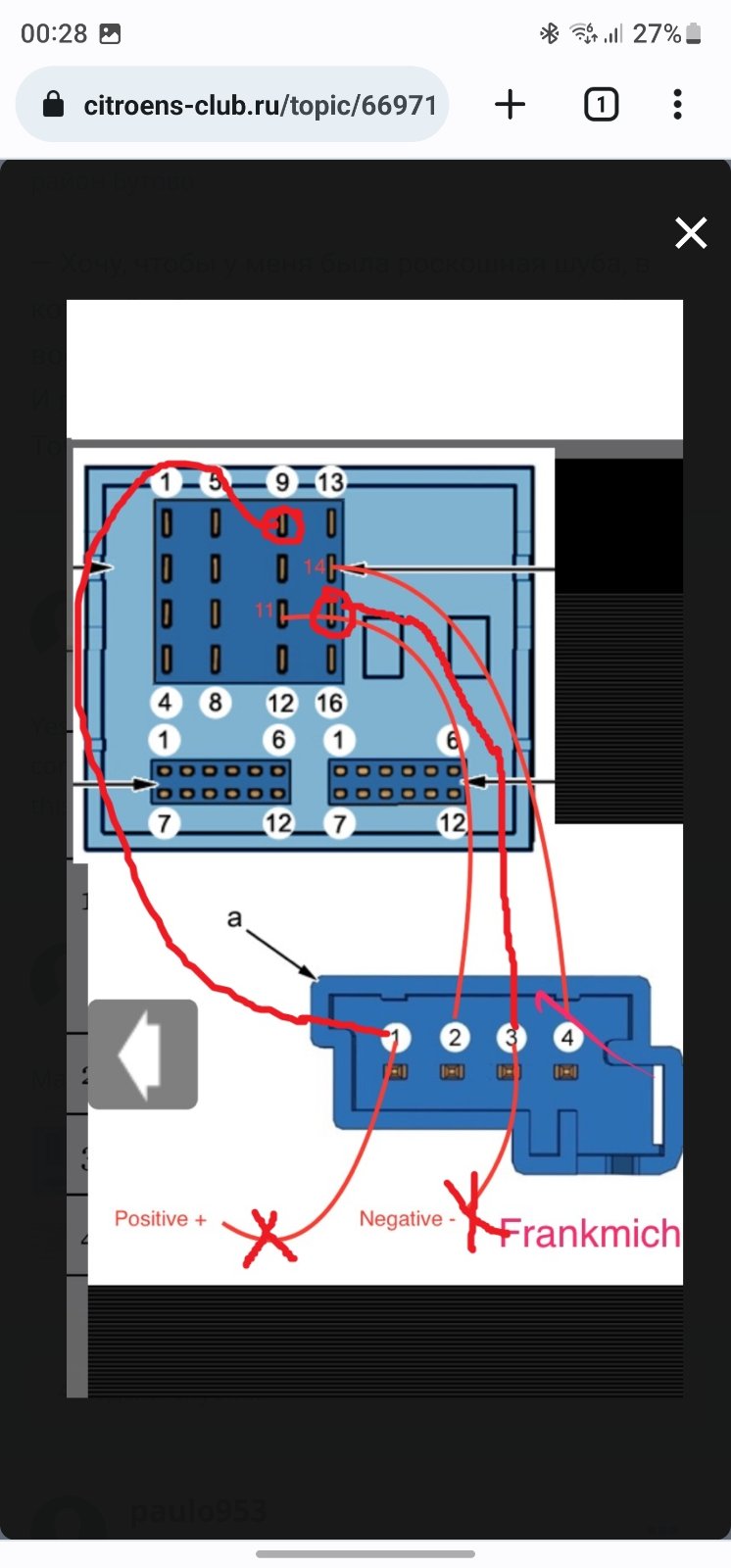

To confirm the picture from robdevil above -

Number 1 goes to slot 9 thats clear
Number 2 goes to slot 11
Number 3 goes to slot 15
Number 4 goes to slot 14.

Is that right?

First number is the screen connector, the slot number is the main unit connector.

[vladd.alex]

Hello colleagues. One question about connecting the MENU, Vol+, Vol- to the SMEG + IV2 after a conversion from RD45. Does anybody know how to connect this button module to the SMEG+IV2 unit?

I have found some information but I am not sure it is valid, so the best would be to look for a wiring diagram for a Citroen DS3 2017.

The buttons unit is 98240846ZD, I was also not able to identify a pinout.

Thank you so much.
