Location of engine speed sensor 2.0hdi RHR

[baser2010]

Hi.... getting an intermittent error with my speed sensor ( and the odd hiccup on the road).
I think it's just a bad connection to the engine speed sensor.....but having difficulty finding the exact location.
Could anyone help out with a photo pointing me in the right direction.
I have cleaned all the plugs I can find in the engine bay but would like to be sure I've done the culprit of my woes!
Thanking in advance...Adam
2004 307sw 2.0 hi 136ho RHR

[mickthemaverick]

I think item 1 on this diagram should help you out:

viewtopic.php?p=618537#p618537

[baser2010]

Thanks for that......but it's so confusing from that image where it may be.
Thinking it might be up the top near the battery as this video indicates

[wheeler]

It should be right at the crank pulley around the 8 o’clock position

[baser2010]

OK...cool...thanks.
The guy in the video might be doing the camshaft sensor....or something??

[wheeler]

The guy in the video might be doing the camshaft sensor....or something??

No that video above is a crank sensor however that looks like an RHY/RHZ 8v engine where its fitted on the flywheel side.

[wheeler]

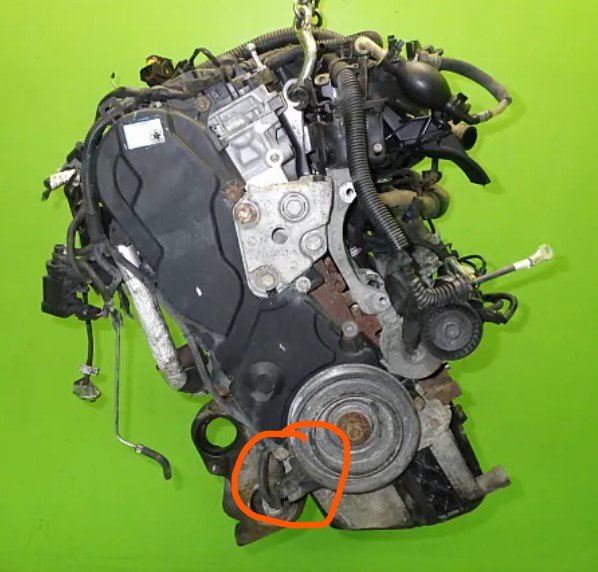

This is where it is located

[baser2010]

Yep....got under there today and gave the connections a clean.
Ordered a new one...hopefully the drama will be resolved.
Thanks everyone!

[baser2010]

Update!
Sensor plug clean seems to have done the trick.
800kms of driving since and it has not come back.
I have the new part in the spares kit but I think I'll just run with the existing as it seems fine.
Thanks for the help.
