[yukijiin]

HELLO

I need the original value of this vehicle at the time of its release. all the 'CONFIGURATION' details of this VIN, such as BSI, ECU, ENGINE WIRING HOUSING, INSTRUMENT PANEL, AUDIO, etc.

And I have made a donation.

Thank you.

VF3**************[VIN obfuscated, can be read by forum staff]

[GiveMeABreak]

We can't supply this level of information - only what equipment was fitted at factory if you are referring to a build sheet. BSI variants are not shown, nor the specific details of ECUs, only the part number.

We can provide part numbers for limited occasional requests, once the requisite donation has been made. When this has been done your membership profile will be automatically upgraded to Donor 2024 Status, which, as present it has not.

We can help if you need an original genuine part number, part diagram or factory build sheet and can't already find the info you need on the Forum. For this service, we do ask for a membership upgrade for official parts data as we are in turn charged for this. It will cover you for future part number requests for up to 2 years, so excellent value.

If interested, links are below, then provide your vehicle's VIN in full, which will be masked automatically when you submit your post.

A response to your question by a Forum Admin requiring parts or specific vehicle information requires you to have made a current contribution (Min. £10 / €11.48 or equivalent) to the Forum.

To Upgrade Your Membership & Donate Click Here For Further Information About Vehicle Parts and VIN Numbers Click Here

[yukijiin]

We can't supply this level of information - only what equipment was fitted at factory if you are referring to a build sheet. BSI variants are not shown, nor the specific details of ECUs, only the part number.

We can provide part numbers for limited occasional requests, once the requisite donation has been made. When this has been done your membership profile will be automatically upgraded to Donor 2024 Status, which, as present it has not.

We can help if you need an original genuine part number, part diagram or factory build sheet and can't already find the info you need on the Forum. For this service, we do ask for a membership upgrade for official parts data as we are in turn charged for this. It will cover you for future part number requests for up to 2 years, so excellent value.

If interested, links are below, then provide your vehicle's VIN in full, which will be masked automatically when you submit your post.

A response to your question by a Forum Admin requiring parts or specific vehicle information requires you to have made a current contribution (Min. £10 / €11.48 or equivalent) to the Forum.

To Upgrade Your Membership & Donate Click Here For Further Information About Vehicle Parts and VIN Numbers Click Here

Thank you for your response.

What I need are the details similar to those in the attached photo. I am requesting this because I saw another post where someone received such a response. Additionally, I have made a donation to the email address provided, as shown in the attached file. Please confirm.

Thank you.

[GiveMeABreak]

Sorry, but that is not a factory build sheet.

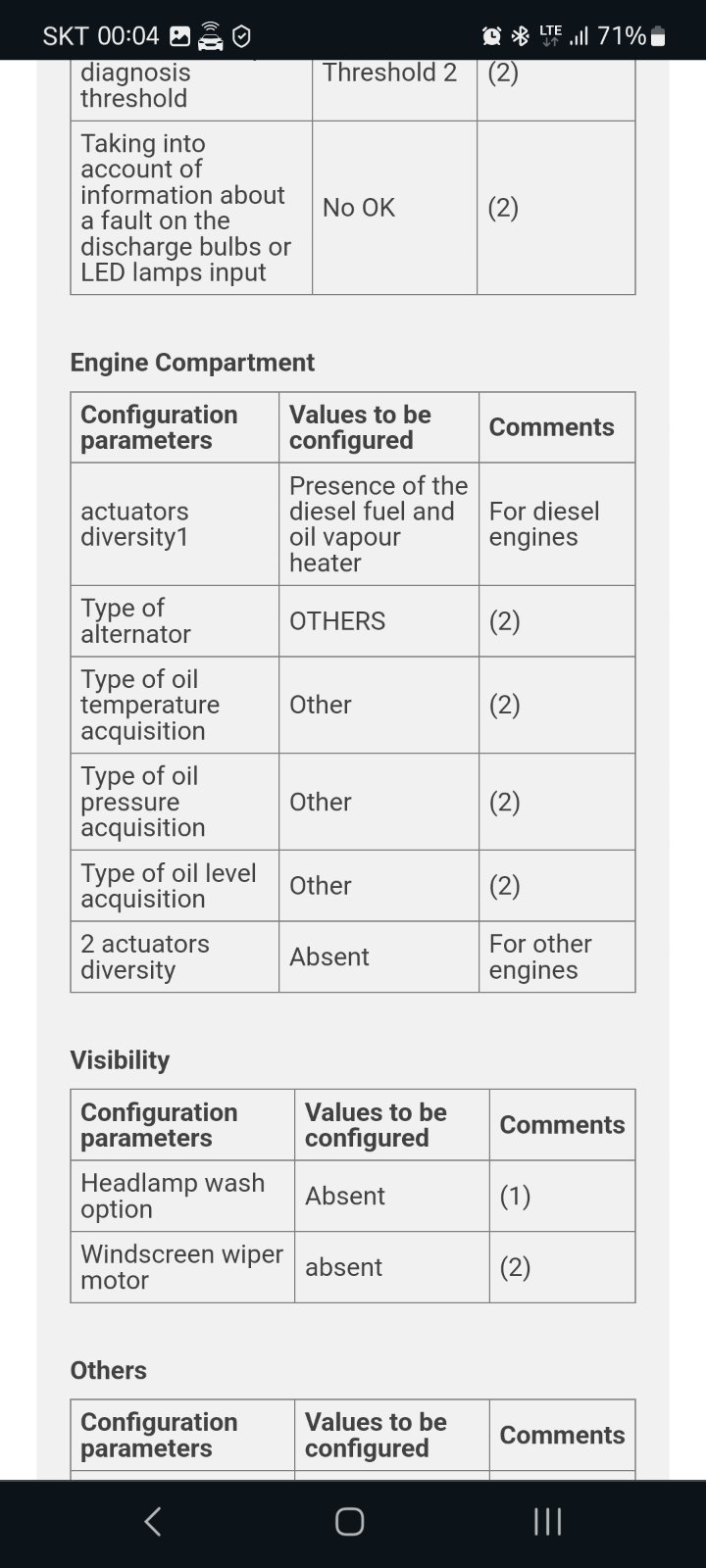

That is an ECU configuration table that I supplied to a previous member because I had this information personally. We cannot supply these as part of the 'Official Part Numbers / Part Diagrams' Service we provide to members because this type of info is part of the technical documentation, that requires a separate subscription which we do not provide.

I have personally checked my own data and can also confirm that I do not have the BSI configuration data for this vehicle of this year.

I can advise you though, that your vehicle has an outstanding recall (after-sales campaign to be more accurate), regarding the Adblue Tank Control unit that needs to be replaced.

Contact your Peugeot Dealer, and quote the reference 'KTN'

KTN - All types - Urea reservoir:
Action: Replace the urea reservoir with this control unit.

KTN
Date of campaign: 17/01/2024
Status: Incomplete

The work should be free of charge to you.

[yukijiin]

Sorry, but that is not a factory build sheet.

That is an ECU configuration table that I supplied to a previous member because I had this information personally. We cannot supply these as part of the 'Official Part Numbers / Part Diagrams' Service we provide to members because this type of info is part of the technical documentation, that requires a separate subscription which we do not provide.

I have personally checked my own data and can also confirm that I do not have the BSI configuration data for this vehicle of this year.

I can advise you though, that your vehicle has an outstanding recall (after-sales campaign to be more accurate), regarding the Adblue Tank Control unit that needs to be replaced.

Contact your Peugeot Dealer, and quote the reference 'KTN'

KTN - All types - Urea reservoir:
Action: Replace the urea reservoir with this control unit.

KTN
Date of campaign: 17/01/2024
Status: Incomplete

The work should be free of charge to you.

Thank you for your response.

You mentioned that a separate subscription is required; could you let me know the cost?

Thank you.

P.S. Can you confirm if the PayPal donation has been received?

[GiveMeABreak]

Hi, please let me clarify what I meant. We (the FCF) cannot provide that info for you here as we do not subscribe to PSA technical subscriptions, as they cost £1000s a year for all the different marques and it is not cost-effective for us to do so at this stage. You would have to create your own account with Peugeot and pay for access to technical documentation (which is timed from first access) yourself.

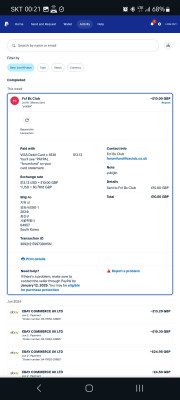

I take it you did not use the donation link directly to PayPal? This method is the quickest as it instantly upgrades you. I'm just checking with my colleague regarding the other method, but in the meantime, I'm perfectly happy to provide your build sheet for you.

Vehicle Characteristics
Vehicle family	308 (T9)
AS/RP N°	14324 89 1 0872
Warranty Start Date	31/10/2016
Engine serial number	10 DYZN 4038198
BER	e2*2007/46*0405*11
P4A	9810542199
General Information
PRODUCT TYPE	PASSENGER CAR
COMMERCIAL MARQUE/COMPONENT TYPE	PEUGEOT
VEHICLE FAMILY	308 (T9)
SILHOUETTE	5 DOOR SALOON
TRIM LEVEL	GT LINE
ENGINE	DW10FD FAP 110KW DIESEL
TRANSMISSION	AUTO GBOX 6-SPEED STT
PAINT TYPE	METALLIC LACQUER PAINT
BODY COLOUR	KCA - ARTENSE GREY PAINT
INTERIOR TRIM TYPE	W&W TEXTILE OXF +PVC PU "0N"
UPHOLSTERY COLOUR	"FJ"
DEFINITION TO FOLLOW	INITIALE RANGE
ENGINE (TYPE)	EW/DW
OTHER BADGE, " MISC. "	GT LINE
Vehicle Characteristics
TRIM LEVEL	GT LINE
PAINT TYPE	METALLIC LACQUER PAINT
BODY COLOUR	KCA - ARTENSE GREY PAINT
INTERIOR TRIM TYPE	W&W TEXTILE OXF +PVC PU "0N"
UPHOLSTERY COLOUR	"FJ"
SPEEDOMETER DRIVE	WITHOUT SPEEDOMETER RATIO
Fuel Supply-Engine
ENGINE	DW10FD FAP 110KW DIESEL
FUEL SUPPLY	DIRECT EXCHANGER TURBO INJECTION
DIESEL FILTER WATER DETECTOR	WITH DIESEL FILTER WATER DETECTOR
FUEL	DIESEL GRADE DA/DE/DE+
EMISSIONS STANDARD (ENGINE)	EURO 6.1 ENGINE EMISSION CONTROL
SPEED SENSOR SIGNAL	FRONT WHEEL SENSOR NON-SIGN RR SIGNED
ENGINE (TYPE)	EW/DW
CAPACITY	2000 CM3
CATALYTIC CONVERTER	CATALYTIC CONVERTER ABOVE 50PPM
FUEL TANK	FUEL TANK WITHOUT LOCATING TAB
COOLING MOTOR	RADIATOR 28DM2 EP: 28 BRAZED ALU
CRANKCASE GAS CIRCUIT HEATING	WITH SUMP GAS CIRCUIT REHEATING
SPECIAL POWER TRAIN SOUND	WITHOUT POWER TRAIN ACOUSTICS
EOBD SELF-DIAGNOSIS SYSTEM	"EOBD" SELF-DIAGNOSIS
DEVICE (ANTIPOLLUTION)	EXHAUST GAS RECYCING "EGR" + EXCHANGER
VEHICLE TECHNICAL DEPOLLUTION	EURO 6.1 VEHICLE TECHNICAL EMISSION CONTROL
PARTICLE FILTER	WITH PARTICLE EMISSION FILTER
FAN	1 X 2-SPEED FAN 140W AERO DYNAMIC FLAP
INJECTION ASSOCIATED VARIANT	MOUNTING DELPHI
DRIVE TRAIN	INTERNAL COMBUSTION DRIVE TRAIN
TANK FILTER	RESERVOIR FILTER INTERIOR
STOP AND START	WITH STOP AND START ALTERNATOR STARTER
Gearbox Transmission
TRANSMISSION	AUTO GBOX 6-SPEED STT
FINAL DRIVE RATIO	CP 15 X 53
SPEEDOMETER DRIVE	WITHOUT SPEEDOMETER RATIO
WHEEL STYLE	RUBIS 17" WHEEL
CLUTCH	WITHOUT CLUTCH
RIM/TYRE SIZE	17 INCH TYRE FITMENT
TYRE (SIZE, TYPE)	225/45 R17 91V NON REINFORCED TYRE
DRIVING WHEELS	2 DRIVEN WHEELS
WHEEL (TYPE)	ALLOY WHEEL ASSEMBLY 1
INFLATION PRESSURE LOSS INDICATOR	INDIRECT DETECTION OF UNDER-INFLATION WITH LOCATION
GEARBOX TYPE	AM6 3 TYPE GEARBOX
Suspension-Steering-Brakes
REAR ANTI-ROLL BAR	REAR ANTI-ROLL BAR STIFFNESS 25000 NM/RAD
FRONT ANTI-ROLL BAR	FR ANTI-ROLL BAR DIAMETER 21 HOLLOW
BRAKE TYPE	VENTILATED FRONT DISCS/REAR DISCS
STEERING WHEEL ANGLE	WITH STEERING ANGLE SENSOR
SUSPENSION	NORMAL SUSPENSION
SUSPENSION (ARCHITECTURE TYPE)	METAL SUSPENSION
DYNAMIC STABILITY CONTROL SYSTEM	ELECTRONIC STABILITY PROGRAM
STEERING (OPERATION)	LOW POWER DOUBLE PINION ELECTRIC POWER STEERING
PEDAL BRACKET (TYPE)	PEDAL ALUMINIUM
Body Fittings
TOWBAR	WITHOUT TOWBAR
HORNS	HORNS-HARMONY
AERIAL	SHORT ROOF AERIAL
SIDE MOULDINGS (DIMENSION)	WITHOUT SIDE PROTECTORS + PEUGEOT SIDE SILL
WHEEL EMBELLISHER (STYLE)	WITHOUT WHEEL CAP
UNDERBODY SHIELD	WITHOUT PROTECTION UNDER BODY
REVERSING LAMPS	WITH TWO REVERSING LIGHTS
ADDITIONAL SHIELD (UNDER ENGINE)	W/O ENGINE UNDERSHELDING
EXT. LOAD RETENTION RING (ATTACHMENT)	BOAT EXT LASHING RING
EXT. REARVIEW MIRROR COMP. FUNCTION	ELECTRIC FOLDING EXTERIOR MIRROR+DIODE
SPLASH SHIELD	FRONT STANDARD MUD GUARD WITH FOAM
ENGINE BAY SOUNDPROOFING	SOUNDPROOFING FOR BULKHEAD + BONNET + WHEELARCH + AC POWER TRAIN
WINDSCREEN GLASS (TYPE)	STANDARD WINDSCREEN GLASS
WINDSCREEN WIPER	FRONT WIPER BLADE WITH RAIN SENSOR
REAR SCREEN WIPER	WITH REAR WIPER
HEADLAMP WIPER	W/O HEADLAMP WIPER
FRONT PANEL BLANK	WITHOUT FRONT BUMPER PLUG
ROOF GLASS	WITH FIXED ROOF GLASS
BUMPER	DYNAMIC FRONT BUMPER + STANDARD REAR
MUDFLAP	WITH FRONT MUDGUARD
NUMBER PLATE	WITHOUT LICENCE PLATE
LUGGAGE RACK	MOUNTING WITHOUT ROOF BARS
FRONT FOGLAMP	LED FRONT FOGLAMPS
PANORAMIC VISUAL AID	WITHOUT PANORAMIC VISUAL AID
SPARE WHEEL	SPARE WHEEL ALLOY WHEEL + STANDARD TYRE
EXTERIOR ACCESSORIES	CHROME+BODY-COLOURED EXT HANDLE
EXT. REAR VIEW MIRROR (DRIVER SIDE RADIUS)	CURVED EXTERIOR MIRROR GLASS
GLASS (APPEARANCE)	WINDOW TINTED
WINDOW (TYPE)	ACOUSTIC LAMINATED WINDSCREEN + TOUGHENED REAR GLASS
HANDS FREE ACCESS AND STARTING	WITH HANDS-FREE ACCESS/STARTING
Interior Fittings
INTERIOR TRIM TYPE	W&W TEXTILE OXF +PVC PU "0N"
ANTI-THEFT ALARM	WITHOUT THEFT PROTECTION ALARM
CIGAR LIGHTER	WITH FRONT LIGHTER
BLIND SPOT DETECTION	WITHOUT BLIND SPOT MONITORING
REAR SEAT ARMREST	WITH REAR SEAT ARMREST
INT. LOAD RETENTION	WITH INTERIOR STORAGE
LUGGAGE COVER	SHELF
REAR SEATBELT	3 REEL 3 PT REAR SAFE BELT + UNBUKLED WARNING
FRONT SEATBELT	RETRACTOR ALARM DRIVER + PASS S/BELT
ASHTRAY	FRONT ASHTRY
CLIMATE (AMBIENT TEMP)	HOT OR WIDER TEMPERATE COUNTRY
SPEED GRADUATIONS	SPEED GRADUATION IN KM/H
GEAR SELECTOR	FLOOR GEAR CONTROL
DRIVING POSITION	LEFT-HAND DRIVE
ADDITIONAL HEATING	WITHOUT ADDITIONNAL HEATING
MIRROR LINK	WITHOUT MIRROR LINK
INT. TRIM AND EQUIPMENT VARIATION	WITHOUT ACCESSORIES SOCKET
MISC. INT. LAMPS	LC FR/RR LEDS WITHOUT AMB LED WITH AMB LGT
LOAD SPACE TRIM	MAT + BACK + SIDES CARPET
INSTRUMENT PANEL (CHARACTERISTICS)	INSTRUMENT PANEL WITH MATRIX
DOOR TRIM	SATIN CHROME DOOR TRIM DECORATION
CHILD SEAT ANCHORING POINTS	WITHOUT CHILD SEAT MOUNTING WITH ISO RR
LOUDSPEAKER	4 FR SPEAKERS (2 TW + 2 FR)+2 RR SPEAKERS
RADIO CONTROLS	REMOTE RADIO CONTROL
PASSENGER COMPARTMENT SOUNDPROOFING	SOUNDPROOFING (PASSENGER COMPARTMENT) BULKHEAD 2.8 KG
FRONT PASSENGER SEAT HEIGHT CONTROL	PASSENGER BOOSTER PARALLEL + FRONT ADJUSTMENT
DRIVER SEAT CONTROL	DRIVERS FRT SEAT MANUAL CNTROL
DRIVER SEAT ADJUSTMENT	MANUAL DRIVER’S LUMBAR ADJUSTMENT
FRONT PASSENGER SEAT ADJUSTMENT	PASSENGER’S LUMBAR SUPPORT
FRONT SEAT ARMREST	CENTRAL ARMREST
COMPACT DISC	MOUNTING COMPACT DISC
SATELLITE NAVIGATION SYSTEM	WITHOUT NAVIGATION SYSTEM
HEADLAMP BULBS	LED BULB
REAR WINDOW LIFT	SEQENT CONTR RR WINDOW LIFTER
TRAFFIC INFORMATION READER	WITHOUT LATERAL TRAJECTORY MONITORING
DISPLAY	DIGITAL TOUCH SCREEN
COURTESY MIRROR	DRIVER’S + PASSENGER’S CONCEALABLE WITH LIGHT
OIL GAUGE	OIL LEVEL GAUGE
FITTING REAR HEAD RESTRAINT	MOUNT 3 REAR HEAD-REST
HEATING ELEMENT	HEATED SEAT
FRONT LATERAL AIRBAG	THORAX SIDE + CURTAIN AIRBAG
FOOTWELL LIGHTING	DRIVER’S + FRONT PASS’S FOOTWELL LIGHTING
REAR PASSENGER PROTECTION	W/O RR PASSENGER PROTECTION
AIRBAG DEACTIVATION	MANUEL AIRBAG DISARMING
REAR LOAD FLOOR	WITHOUT REAR LOAD FLOOR
HEADLAMP HEIGHT ADJUSTER	AUTOMATIC HEADLAMP ADJUSTMENT
FRONT SEAT GUARD	WITHOUT CAB PROTECTION PANEL
FRONT SUN VISOR	DRIVER+PASSENGER SIDE WITH CARD HOLDER+INSCRIP
WIFI	WITHOUT WIFI
RADIO RECEIVER	SMEG ANALOGUE RADIO RECEIVER
REFRIGERATION	AUTOMATIC AIR CONDITIONING
CRUISE CONTROL	CRUISE CONTROL SPEED LIMITER DISTANCE MAINTAINING INHIBITING BY THE CUSTOMER
DRIVER’S SEAT HEIGHT CONTROL	PARR+FR DRV HEIGHT ADJ
INTERIOR REAR VIEW MIRROR	ELECTROCHROMATIC DAY-NIGHT INTERIOR MIRROR
CARPET COVER	CARPET MAT GT LOGO
EXT. REAR VIEW MIRROR (DRIVER SIDE RADIUS)	CURVED EXTERIOR MIRROR GLASS
LOAD SPACE STORAGE	BOOT LATERAL TRIM STRAP
TUNER RADIO	MONO RADIO TUNER
COOLANT LEVEL WARNING LAMP	NO WATER LEVEL WARNING
OBSTACLE DETECTION SYSTEM	FR RR RADAR OBSTACLE DETECTOR + RR CAMERA
LATERAL BLINDS	WITHOUT SIDE BLINDS
INFLATION PRESSURE LOSS INDICATOR	INDIRECT DETECTION OF UNDER-INFLATION WITH LOCATION
FLOOR MAT	FRONT AND REAR MATS
EQUALISER AMPLIFIER	WITHOUT EQUALISER AMPLIFIER
RADIO FREQUENCY	ASIA RADIO FREQUENCY
LOCKING CONTROL	NORMAL + AUTOMATIC LOCKING
WINDOW (TYPE)	ACOUSTIC LAMINATED WINDSCREEN + TOUGHENED REAR GLASS
STEERING WHEEL	SPORT LEATHER STEERING WHEEL
FAN	1 X 2-SPEED FAN 140W AERO DYNAMIC FLAP
SEATING ASSOCIATED VARIANT	LOW
SEAT LUMBAR SUPPORT (OPERATION)	DRIVER+PASSENGER ELECTRIC LUMBAR SUPPORT
AUDIO PACK AUXILIARY SOCKET	1 JACK SOCKET + USB + PRE-EQUIPMENT
TELEMATIC UNIT	WITHOUT TELEMATIC UNIT
Electrical
ALTERNATOR	ALTERNATOR ISTT53
HORNS	HORNS-HARMONY
BATTERY	BATTERY L3 760 VRLA2 EN AGM
STARTER MOTOR	STARTER MOTOR CLASS 6+
SPECIAL LIGHTING	FRONT DAYTIME LIGHTS
REVERSING LAMPS	WITH TWO REVERSING LIGHTS
MISC. INT. LAMPS	LC FR/RR LEDS WITHOUT AMB LED WITH AMB LGT
EXT. REARVIEW MIRROR COMP. FUNCTION	ELECTRIC FOLDING EXTERIOR MIRROR+DIODE
CEN. LOCKING REM CONTROL FREQUENCY	LOCKING REMOTE CONTROL FREQUENCY 433.92 MHZ HETERODYNE
HEADLAMP BULBS	LED BULB
MULTIPLEXING	FULL ELECTRICAL ARCHITECTURE
FOOTWELL LIGHTING	DRIVER’S + FRONT PASS’S FOOTWELL LIGHTING
FRONT FOGLAMP	LED FRONT FOGLAMPS
HEADLAMP HEIGHT ADJUSTER	AUTOMATIC HEADLAMP ADJUSTMENT
LIGHTING OF LAMPS	AUTOMATIC SWITCHING ON OF LIGHTS
Component Manufacturers
INJECTION ASSOCIATED VARIANT	MOUNTING DELPHI
Miscellaneous
SPECIAL SPECIFICATION	NORMAL
CONDENSER (SPECIFICATIONS)	CONDENSER 19,3DM2 THICKNESS 12
ATMOSPHERIC CONDITIONS	DUSTY ATMOSPHERE
DRIVING POSITION	LEFT-HAND DRIVE
VIN PLATE	EUROPEAN UNION CONSTRUCTOR’S PLATE + NRE
LABEL	WITHOUT LABEL
AIR CONDITIONING PIPES	STANDARD AIR CONDITIONING PIPES
RADIO HEADPHONE SOCKET	220V ACCESSORIES SOCKET + DOUBLE ACCESSORY
TRAFFIC SIDE	DRIVING ON THE RIGHT-HAND SIDE
SIDE IMPACTS	DOOR WITHOUT REINFORCEMENT
SET OF KEYS	SET OF BADGE KEYS + BACK-UP KEY
DOOR SEAL	IMPROVED DIRT SEAL + FR DOOR FR
REFRIGERANT	AIRCON FLUID 1234 YF
EMERGENCY EQUIPMENT	W/O HELP EQUIPMENT
SURFACE CONDITIONS	GOOD TERRAIN
EXTERIOR ACCESSORIES	CHROME+BODY-COLOURED EXT HANDLE
SPEED MONITORING	WITHOUT SPEED CHECK
SLAVE CONTROL UNIT	BSI + COM 2008 + POLY SOUND

[yukijiin]

Thakyou for all. and.. english...

[GiveMeABreak]

No problem, changed the build sheet to English for you.
