Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by c.morewood »

Thanks for the above Marc. Sorry been away for a few days. I found a replacement in Hungary by googling the part number.
Chris
Chris
Tesla Model 3 LR DM AWD Blue White
'00 Xant 110HdiSX Est 83K "W"
'99 Xant 110HdiSX Est 320K "V"
'98 Xant 1.9TDSX Est 150K "T"
'97 Xant 1.9TD 20k Est
'94 Fiat TipoTd 40K

'85 BMW K100RT 330K Garaged 26yrs '80 Honda CB250 twin Superdream
User avatar
Huskyxantia
Donor 2023
Posts: 1863
Joined: 30 Jul 2018, 22:11
x 387

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by Huskyxantia »

Needing Caliper part numbers for 308cc vin is VF3**************[VIN obfuscated, can be read by forum staff] cheers marc, the driver side rear please, piston won't retract ive tried eveything time for a new caliper i think. Thanks.

Same car part numbers for the rear off side brake pipe caliper to axle i think its called that. Cheers.
Husky. :?
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36306
Joined: 15 Sep 2015, 19:38
x 5476

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

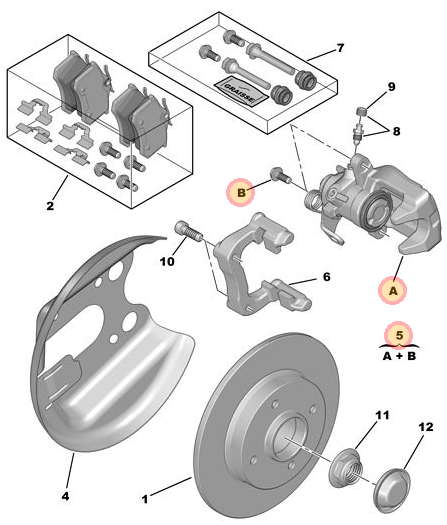

husky rear caliper.PNG
Rear Caliper
(5) Rear Caliper (Right) part: 4401N7, £256.98

Rear Pipes

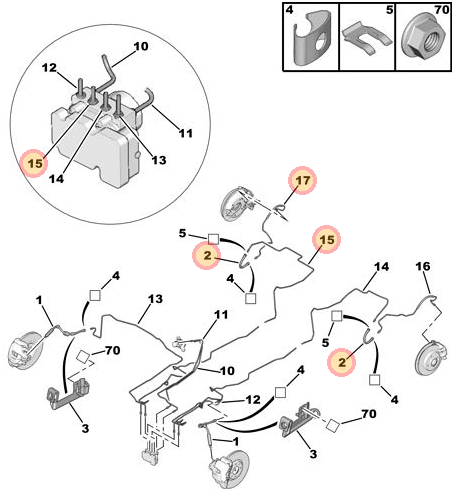

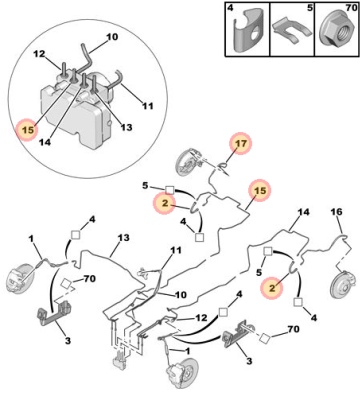

Husky pipes.PNG
Not sure which one you need, so here are the possibilities:
(2) Brake Hose Rear
OEM Original, part: 4806A1, £13.25
Cheaper: 1623257180, £14.65 (Yes OEM part is actually cheaper than the cheaper part!)

(15) Brake Hose
Part: 4888K9, £164.80

(17) Brake Hose
OEM, part: 4886Z7, £26.66
Cheaper, part: 1680022480, £30.58
Please Don't PM Me For Technical Help

Marc
User avatar
Huskyxantia
Donor 2023
Posts: 1863
Joined: 30 Jul 2018, 22:11
x 387

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by Huskyxantia »

Cheers marc, think id better have the rear left caliper part number too, might be best to do both sides i guess, same car.
Husky. :?
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36306
Joined: 15 Sep 2015, 19:38
x 5476

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

(5) Rear Caliper (Left), part: 4401N6.
Please Don't PM Me For Technical Help

Marc
User avatar
Michel
(Donor 2022)
Posts: 2200
Joined: 29 May 2017, 13:50
x 655

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by Michel »

Please could you tell me what size front discs were originally fitted to my Picasso?

VF7**************[VIN obfuscated, can be read by forum staff]

Thanks!
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36306
Joined: 15 Sep 2015, 19:38
x 5476

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

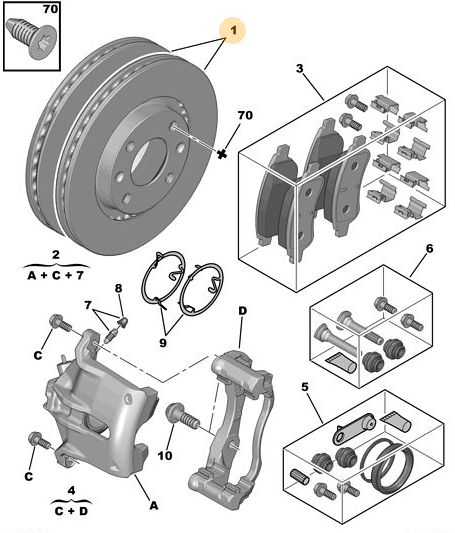

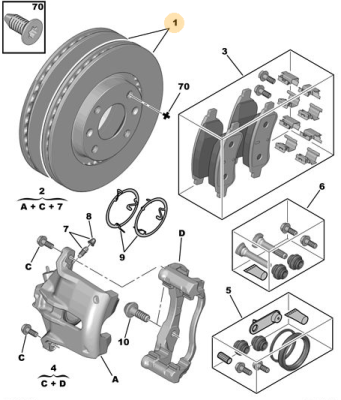

Michel discs.PNG
DIAM 266 EP 22
Please Don't PM Me For Technical Help

Marc
User avatar
Michel
(Donor 2022)
Posts: 2200
Joined: 29 May 2017, 13:50
x 655

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by Michel »

GiveMeABreak wrote: 17 Sep 2023, 14:19
DIAM 266 EP 22
Brilliant, thanks Marc
Hell Razor5543
Donor 2023
Posts: 13706
Joined: 01 Apr 2012, 09:47
x 2984

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by Hell Razor5543 »

Please can I have the part code (or codes) for the pipes that connect between the fuel tank and the fuel filter? I do not know if they are a combined part or separate pipes.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36306
Joined: 15 Sep 2015, 19:38
x 5476

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

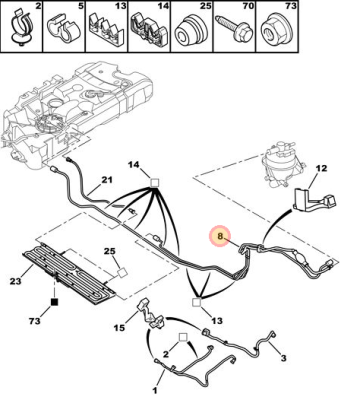

james fuel pipe.PNG
If it's (8), then part: 1579PJ, £129.94
Please Don't PM Me For Technical Help

Marc
Hell Razor5543
Donor 2023
Posts: 13706
Joined: 01 Apr 2012, 09:47
x 2984

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by Hell Razor5543 »

Thank you, Marc.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
Hell Razor5543
Donor 2023
Posts: 13706
Joined: 01 Apr 2012, 09:47
x 2984

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by Hell Razor5543 »

GiveMeABreak wrote: 18 Sep 2023, 19:45 Image

If it's (8), then part: 1579PJ, £129.94
What is item 23?
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36306
Joined: 15 Sep 2015, 19:38
x 5476

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

That is the fuel cooler
Please Don't PM Me For Technical Help

Marc
Dunkah
Donor 2023
Posts: 75
Joined: 17 Jan 2021, 15:41
x 8

Parts diagram request

Post by Dunkah »

Hi, could I please get an exploded diagram and associated parts list. Thanks
Parts in question are front suspension, not hydraulic but struts/wishbone areas
2008 c5 x7 tourer, 2ltr hdi
Vin VF7**************[VIN obfuscated, can be read by forum staff]
Thanks
Last edited by GiveMeABreak on 22 Sep 2023, 11:09, edited 1 time in total.
Reason: Moved to Parts thread
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36306
Joined: 15 Sep 2015, 19:38
x 5476

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

Please advise of actual item numbers for which you require a part number:

Strut

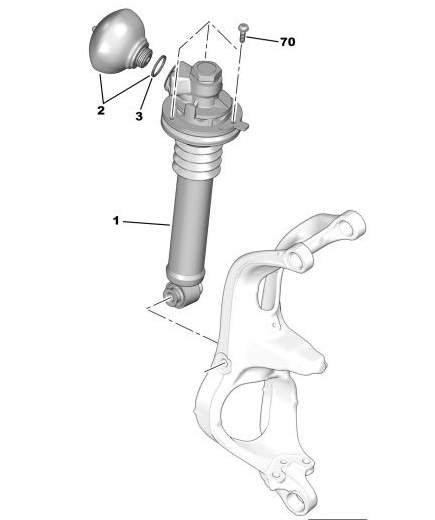

dunk susp a.PNG
Hub, Pivots, Bearing

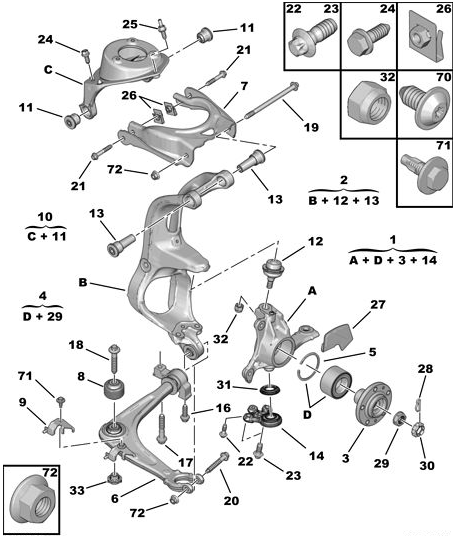

Dunk Susp b.PNG
Please Don't PM Me For Technical Help

Marc
