Citroen C5 X7 Auto Gearbox issue

Post by ds21h »

Hi, I have a 2013 C5 X7 2.2 Hdi with the
6 speed auto box.
Currently done 230k kms with a gearbox oil change done at 220k.
Recently there is an issue with the gearbox, when selecting DRIVE there is a loud clunk from the box as it engages, and it moves forwards a couple of inches even with the brake pedal applied.
Once in DRIVE then the rest of the changes are smooth both up and down the box.
If I select Reverse there is no clunk, just a smooth engagement.
Could anyone help please ?
Thanks
Mark
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Citroen C5 X7 Auto Gearbox issue

Post by GiveMeABreak »

Hi Mark

That's quite a lot of KMs if it's the first oil change to be honest. When you changed the oil, 1) did you follow the correct procedure for this operation and 2) Did you use the correct gearbox oil for your build date (there are 2 types and the correct one for the AM6 gearbox variant must be used) and finally did you reset the gearbox oil counter with the diagnostic tool?

If you have Diagbox, I would run a global diagnostic on it to see if there are any faults codes registered. The AM6 auto box has plenty of possible fault codes, so may be worth a scan if it is not already in refuge mode or issuing any warnings on the dash / messages.
Please Don't PM Me For Technical Help

Marc
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Citroen C5 X7 Auto Gearbox issue

Post by xantia_v6 »

A bit of Googling indicates that this is a common issue with these transmissions, caused by valve block wear or blocked solenoids.

I came across this company who will diagnose and recondition your valve block, which would be a lot cheaper than fitting a new transmission.
ds21h
Donor 2023
Posts: 44
Joined: 21 Apr 2014, 10:54
Location: Ruffec France
My Cars: 2013 C5 X7 2.2 HdI 200CH Exclusive Tourer
2013 DS 3 1.6 Hdi 90CH
2009 C6 2.2 Hdi 173 CH Auto
1973 D Super 5
1973 D Super 5 being restored
1969 2CV AK 350
1966 2CV AK 350 to restore

Past vehicles
1951 11 BL
1966 DS 21 Pallas LHS
1971 D Super
1972 DS 20 Pallas
1974 DS 23 Pallas
1981 CX GTi 2.4
1983 CX GTi 2.4
1989 CX DTR Turbo 2
1989 XM 2.0i
1994 XM 2.0i SX
1995 XM 2.5 VSX Estate
1998 XM 2.1 EXCLUSIVE
1998 Xantia 2.1 HDI Estate
2000 XM 2.5 EXCLUSIVE
2000 XM 3.0 V6 Petrol EXCLUSIVE
2002 C5 2.0 hpi EXCLUSIVE Estate
2010 C5 X7 2.0 HDi 140 Millenium Tourer
x 4

Re: Citroen C5 X7 Auto Gearbox issue

Post by ds21h »

Hi Marc many thanks for the reply.
My local garage did the gearbox oil change when they did the timing belt and waterpump and fitted a second hand EPB assemby at the same time.
They did 3 oil changes, but I don't know about the re-setting of the counter, and the garage is shut for holidays now until the 22nd August.
Currently I do not have any warnings on the dashboard and I will try and get a Lexia on the car later this week and do a scan.

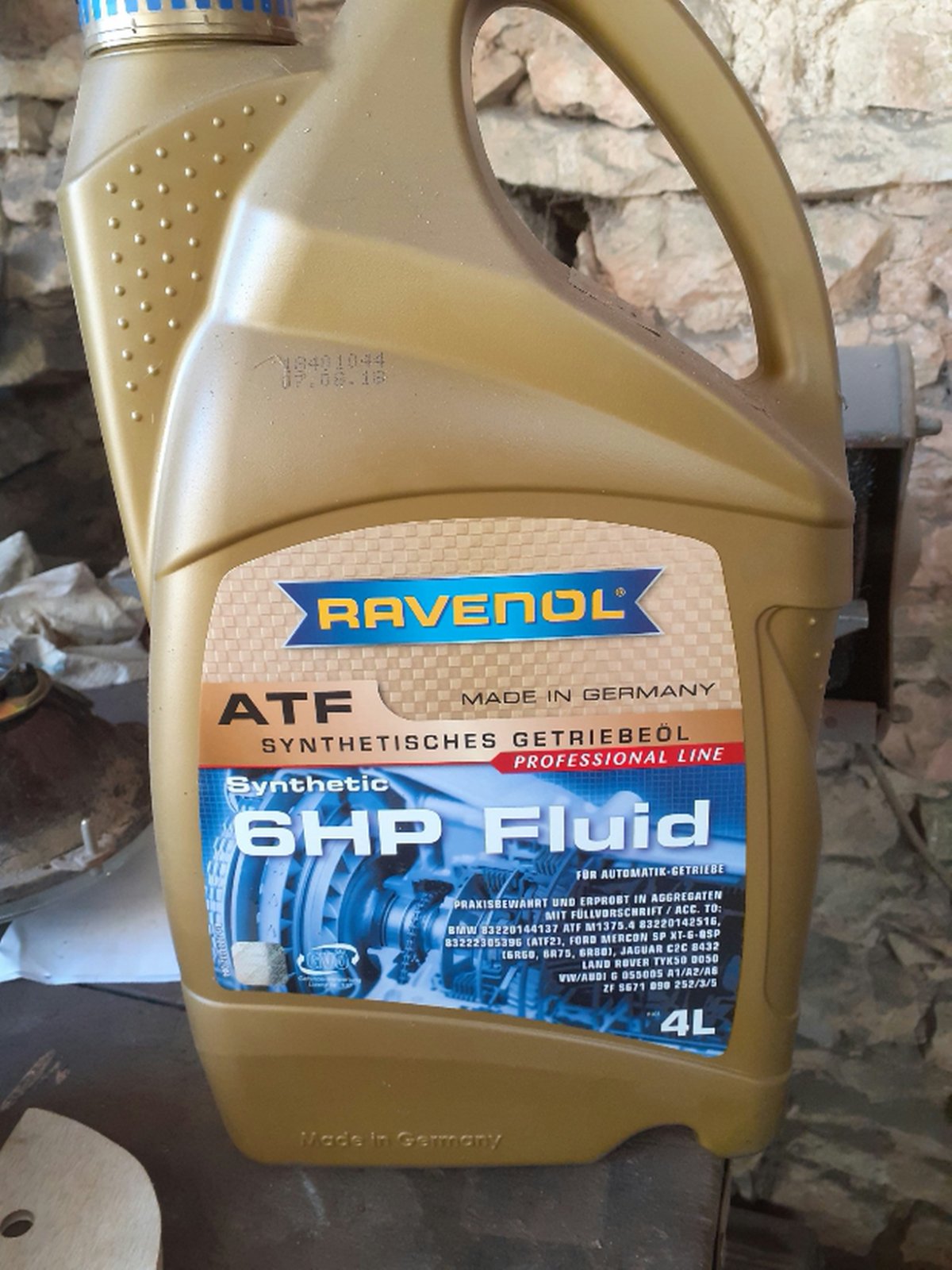

The oil used is RAVENOIL ATF 6HP Fluid
