Hi all,

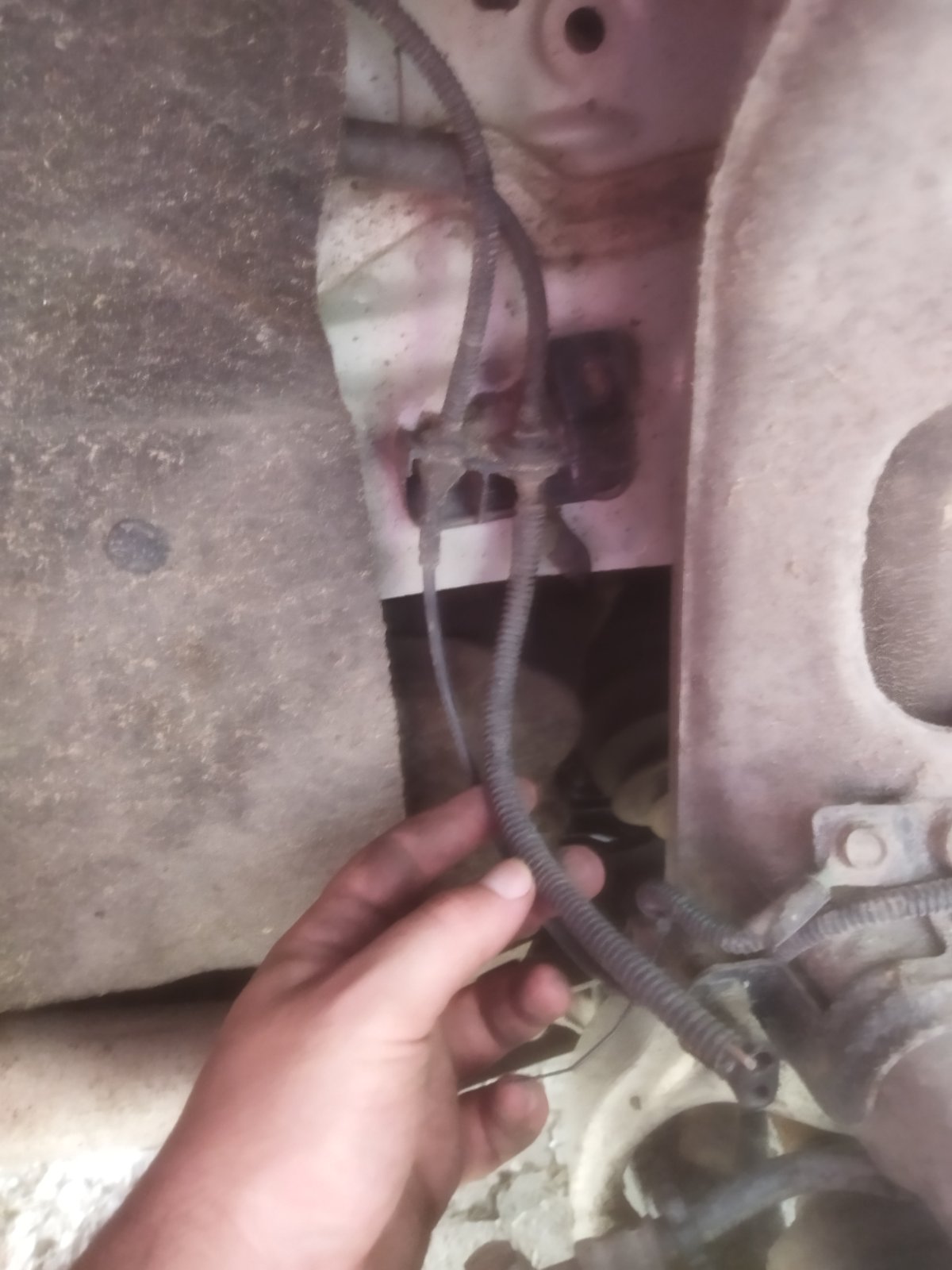

Today I was changing my tyres and I noticed that on the FL side there was a cable with two wires hanging and possibly something else also missing/unplugged. I had hooked a lexia a couple months ago and there was an error for not received data from a TPS, but I don't remember if it was from the FL side. Could someone verify if it is a TPS receiver missing?
Thanks
Citroen C5 X7 missing part
Moderator: RichardW
Re: Citroen C5 X7 missing part
Thats the connection for the brake pad wear indicator sensors.
-
- Donor 2023
- Posts: 13745
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 3008
Re: Citroen C5 X7 missing part
I believe that, for the C5 X7, it is possible to get a replacement for that segment of the loom. Marc should be able to confirm this (I know that it is not possible for the earlier C5 models), but I don't know the part number. The wires that then connect to the brake pads should come with a new set of front pads (between the ringed connector and the pads).
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
-
- Donor 2023
- Posts: 24
- Joined: 11 Jan 2022, 09:13
- Location: Sevlievo, Bulgaria
- Lexia Available: Yes
- My Cars: Citroen C5 2.0 HDi Exclusive
- x 1
Re: Citroen C5 X7 missing part
I checked some threads and you can buy a replacement. Do you know if it gives a warning a little bit before the pads are completely worn off or when there is no more pad left, because I wouldn't bother removing the wheel again just to replace it if it just activates right at the end of the life of the pads?Hell Razor5543 wrote: ↑28 May 2022, 18:26 I believe that, for the C5 X7, it is possible to get a replacement for that segment of the loom. Marc should be able to confirm this (I know that it is not possible for the earlier C5 models), but I don't know the part number. The wires that then connect to the brake pads should come with a new set of front pads (between the ringed connector and the pads).
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5739
Re: Citroen C5 X7 missing part
The warning goes off when the pads are nearly worn - so you won't have more than a few millimetres left on the pads when it goes off. That's the time to get them changed.
Please Don't PM Me For Technical Help
Marc
